Field Notes

<--2015-01-21 10:45:00 | 2015-02-04 11:00:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2015-02-04 09:00:00 (DOY 35)
Author: Siyan Ma
Others: Joe, Housen, Ana

Summary: Show Ana and Housen the sites, standard fieldwork, added electric wire to Vaira fence.


When: Date: 2/4/2015 , Day: 35 , Watch Time: 9:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe, Housen, and Ana
Weather: partially cloudy, heavy fog on Highway 4 and delta area
Phenology:


Summary
  1. Ana and Housen visited the sites.
  2. Joe put up the electronic fence at Vaira.
  3. Joe swapped memory cards of CR1000s at three sites.
  4. Checked and downloaded winflux and met data from PC at Tower, Floor, and Vaira.
  5. Read dendrometers
  6. Measured soil moisture
  7. Measured grass height
  8. Measure groundwater well
  9. Spectral measurement at Vaira.

Vaira_Grass Site
  1. Downloaded Phenocam images.
  2. Swapped the memory cards of CR1000. (Joe)
  3. Downloaded met and soil CO2 profile data:


  1. Checked levels of Radiation sensors, clear up surfaces.YES!
  2. Checked rain gage, make sure not clogged. YES! (Housen and Ana)
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Joe downloaded Winflux data from PC and swapped the memory cards of CR1000; download Phenocam images; Downloaded met data from PC



3. closed gate and set up fence. YES!

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Joe downloaded Winflux data from PC. Swapped the memory cards of CR1000. downloaded met data from PC.

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile
  1. Closed gate and set up fence. YES!

Field Data

CO2 Profile Tanks

DateTankPressure (psi)ppm
2015-02-04CO21850405
2015-02-04N213000

Well Depth

DateLocationDepth (feet)
2015-02-04TZ_floor31
2015-02-04TZ_road37.7
2015-02-04TZ_tower34.5

mode = both
Moisture Point Probes TZ
Array ( [0] => Floor_South [1] => Floor_East [2] => Floor_West [3] => Soil_Transect_4 [4] => Soil_Transect_3 [5] => Soil_Transect_2 [6] => Soil_Transect_1 [7] => SoilCO2_West_A [8] => SoilCO2_West_B [9] => SoilCO2_West_C [10] => SoilCO2 )

Date DOY Rep Depth
Floor_South
Floor_East
Floor_West
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
SoilCO2
 Avg
Spacial Count
Measurement Count
2015-02-04 35 0 0-15cm 9.7 39.9 31.1 16.5 20 17.1 15.9 19.7 20.6 15.9
2015-02-04 35 0 15-30cm 20.6 35.5 26.5 21.9 29.5 28.3 15.8 24.6 12.4 28 27.7
2015-02-04 35 0 30-45cm 34.1 32.9 35.4 21.2 30.1 31.3 31.3 31.5 31 34.3 59.4
2015-02-04 35 0 45-60cm 51.1 41.4 25.1 36.8 46.8 26.2 40 46.6 48
2015-02-04 35 1 0-15cm 7.4 39.9 34.4 16.8 20 18.2 15.6 19.4 20.9 16.5
2015-02-04 35 1 15-30cm 21.9 29.8 28.9 21.9 28.6 28.9 15.8 24.3 12.1 28.3 26.8
2015-02-04 35 1 30-45cm 32.9 39.6 43.5 22.1 26.2 31.5 31.3 31.8 30.4 34.1 42.4
2015-02-04 35 1 45-60cm 48.6 41.4 25.6 38.8 46.6 25.4 40.5 47.7 48.6
2015-02-04 35 Avg 0-15cm 8.55 39.9 32.75 16.65 20 17.65 15.75 19.55 20.75 16.2 20.78 10 20
2015-02-04 35 Avg 15-30cm 21.25 32.65 27.7 21.9 29.05 28.6 15.8 24.45 12.25 28.15 27.25 24.46 11 22
2015-02-04 35 Avg 30-45cm 33.5 36.25 39.45 21.65 28.15 31.4 31.3 31.65 30.7 34.2 50.9 33.56 11 22
2015-02-04 35 Avg 45-60cm 49.85 41.4 25.35 37.8 46.7 25.8 40.25 47.15 48.3 40.29 9 18

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2015-02-04 35 0 0-15cm 12.7 17.9 11.2 6.2
2015-02-04 35 0 15-30cm 31.9 30.4 13.3 16.1
2015-02-04 35 0 30-45cm 39.6 18.4 18.2 39.6
2015-02-04 35 0 45-60cm 47.7 23.9 15.9 41.4
2015-02-04 35 1 0-15cm 39.9 15.6 10.9 5.6
2015-02-04 35 1 15-30cm 15.5 11.1 13 16.1
2015-02-04 35 1 30-45cm 11.1 17.9 17.3 39.6
2015-02-04 35 1 45-60cm 41.4 23.6 15.3 41.4
2015-02-04 35 Avg 0-15cm 26.3 16.75 11.05 5.9 15 4 8
2015-02-04 35 Avg 15-30cm 23.7 20.75 13.15 16.1 18.43 4 8
2015-02-04 35 Avg 30-45cm 25.35 18.15 17.75 39.6 25.21 4 8
2015-02-04 35 Avg 45-60cm 44.55 23.75 15.6 41.4 31.33 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2015-02-04111.1
2015-02-041028.6
2015-02-04213.0
2015-02-0424519.3
2015-02-04313.3
2015-02-0449.0
2015-02-04710.0
2015-02-047219.5
2015-02-047915.3
2015-02-04813.2

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

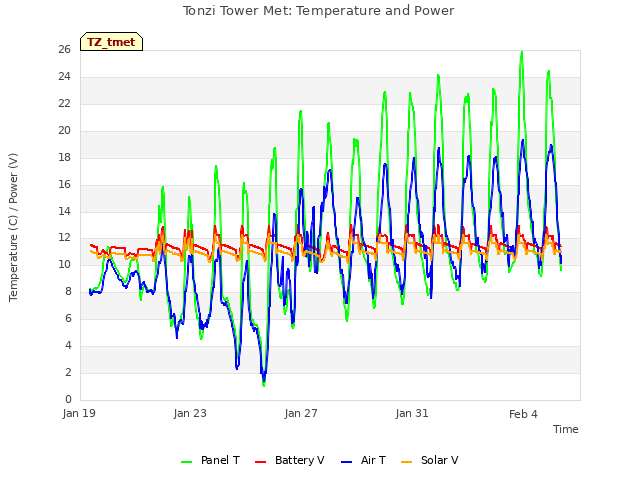

Tonzi Tower Met: Temperature and Power

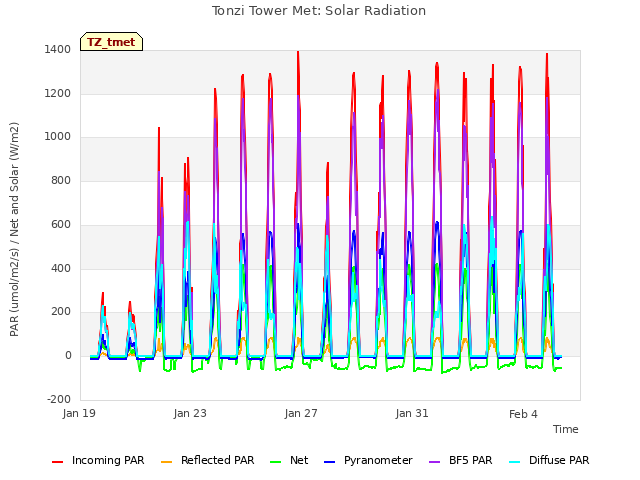

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

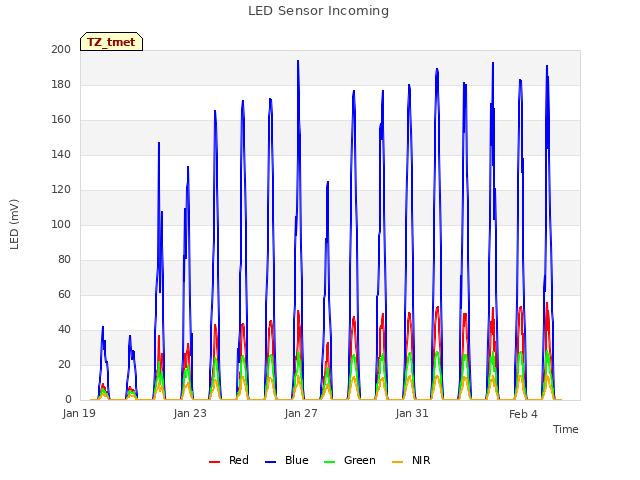

LED Sensor Incoming

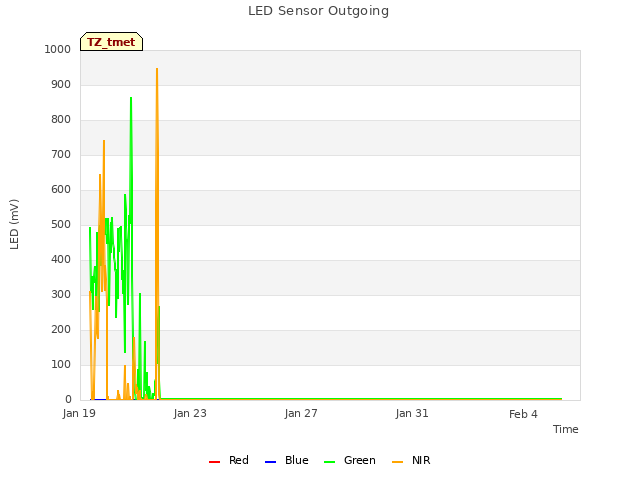

LED Sensor Outgoing

4-Band Solar Radiation

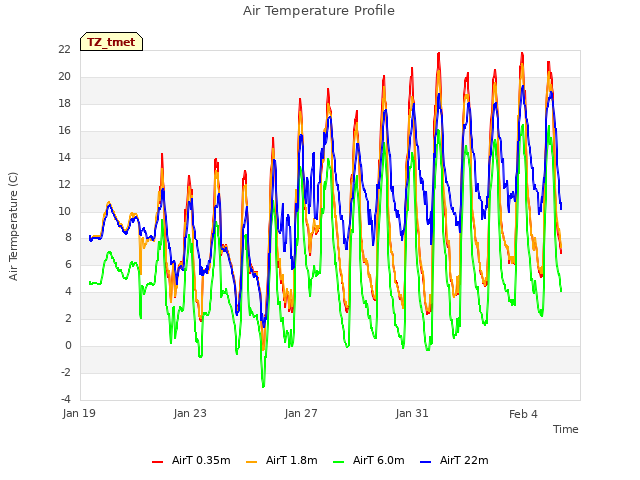

Air Temperature Profile

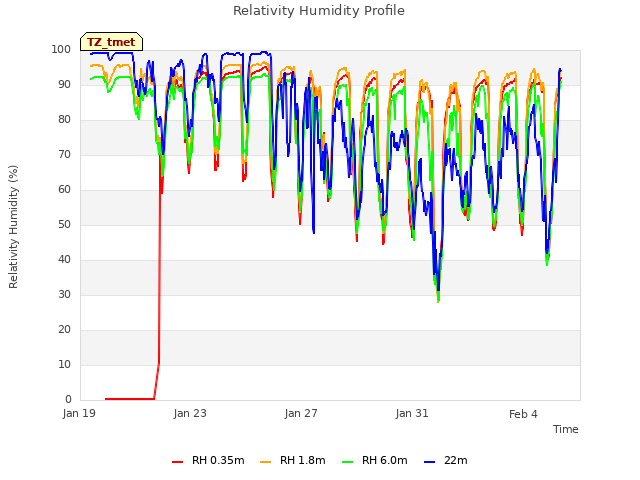

Relativity Humidity Profile

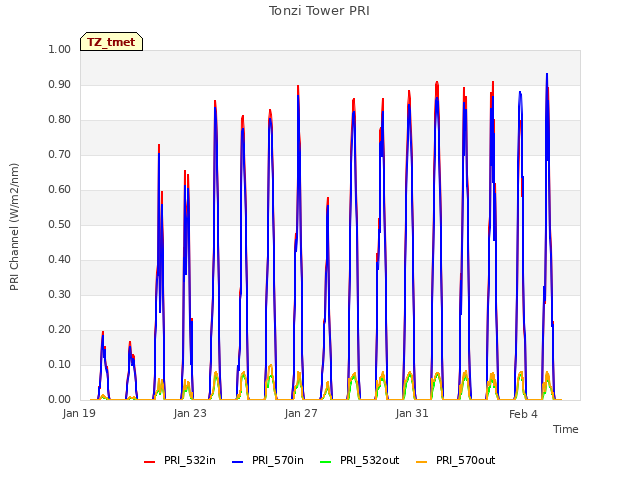

Tonzi Tower PRI

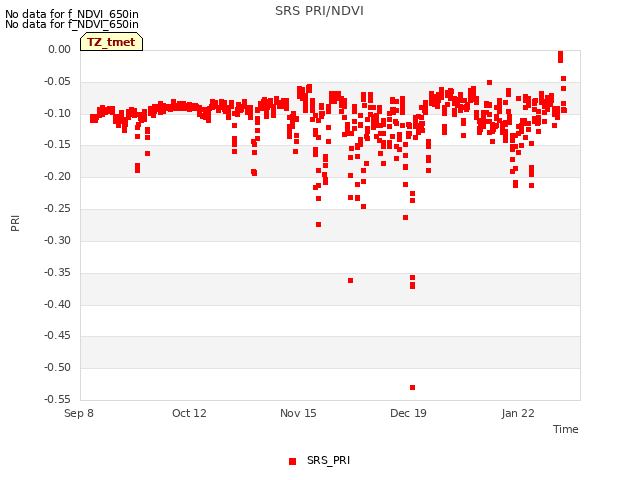

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

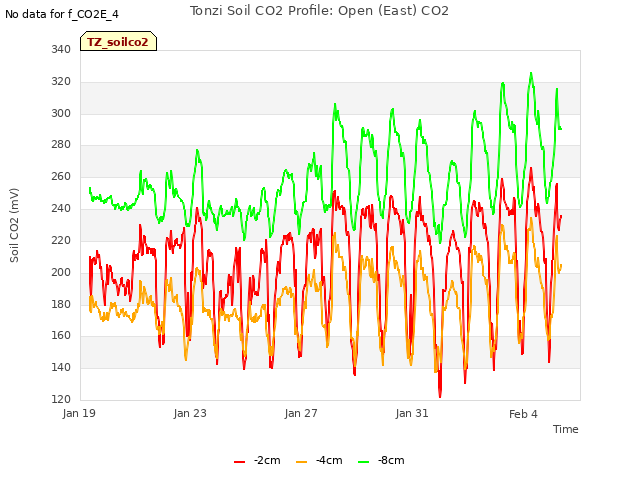

Tonzi Soil CO2 Profile: Open (East) CO2

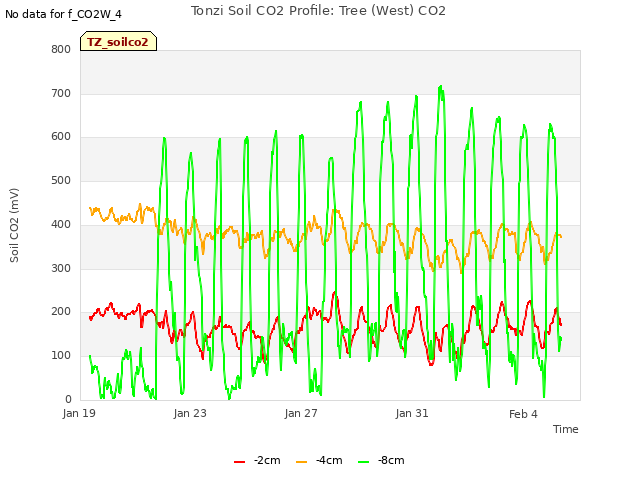

Tonzi Soil CO2 Profile: Tree (West) CO2

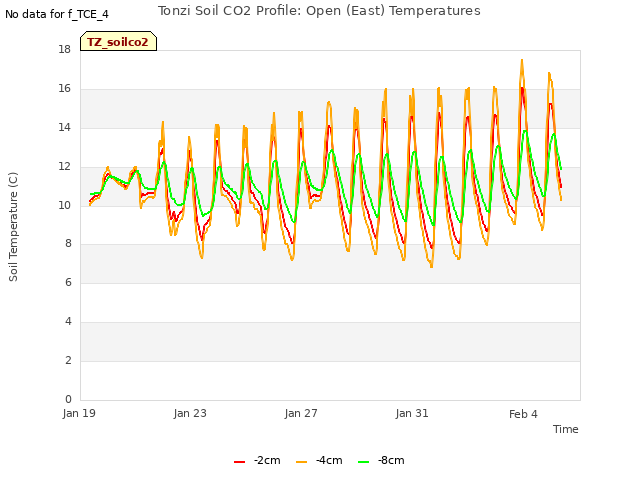

Tonzi Soil CO2 Profile: Open (East) Temperatures

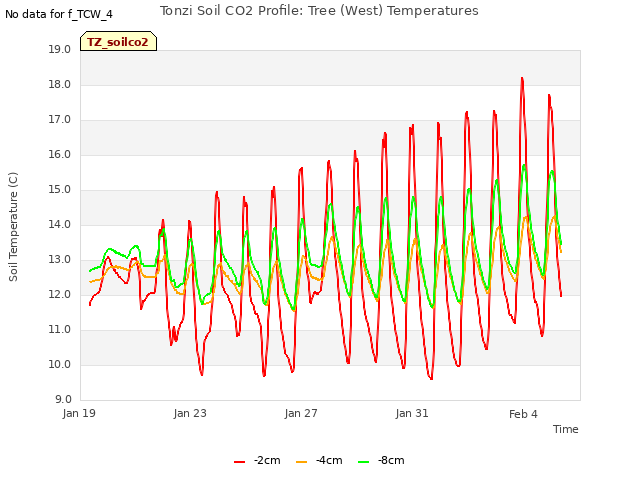

Tonzi Soil CO2 Profile: Tree (West) Temperatures

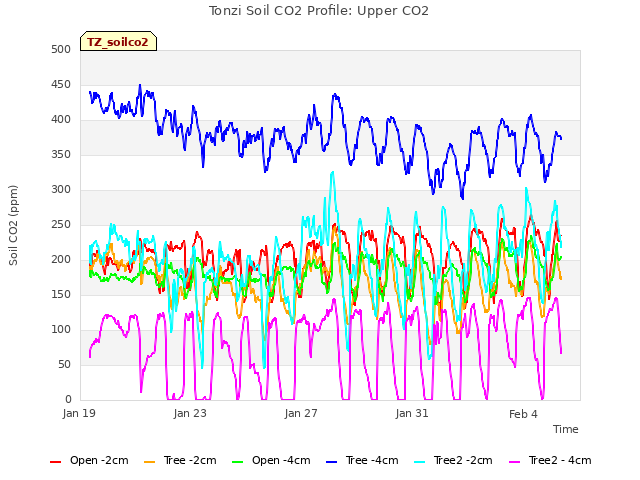

Tonzi Soil CO2 Profile: Upper CO2

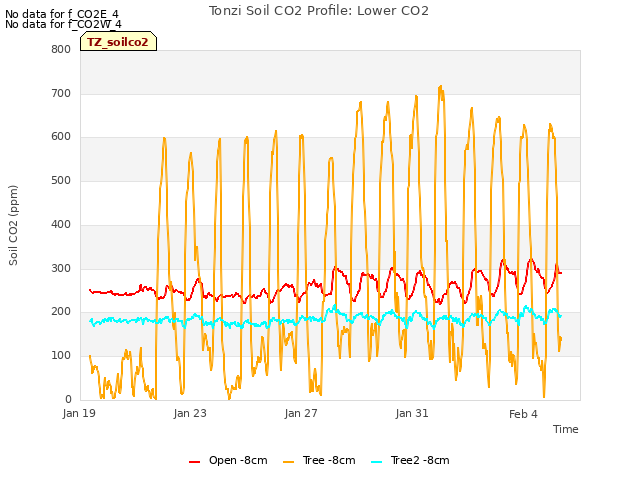

Tonzi Soil CO2 Profile: Lower CO2

Tonzi Soil CO2 Profile: Upper Temperatures

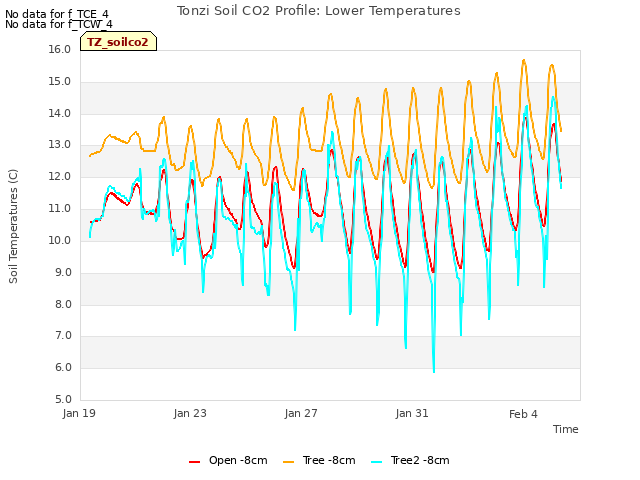

Tonzi Soil CO2 Profile: Lower Temperatures

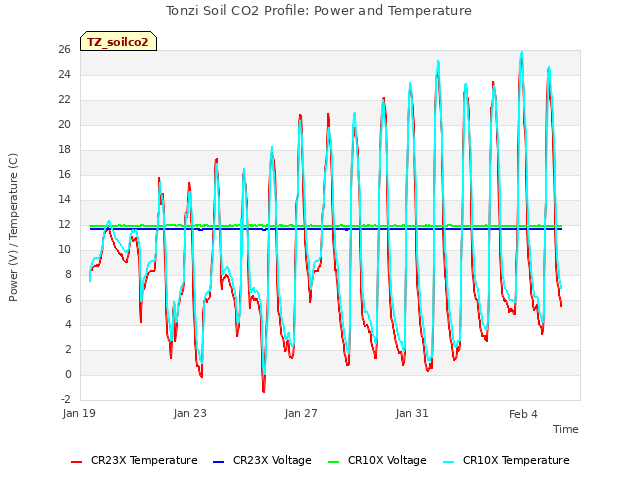

Tonzi Soil CO2 Profile: Power and Temperature

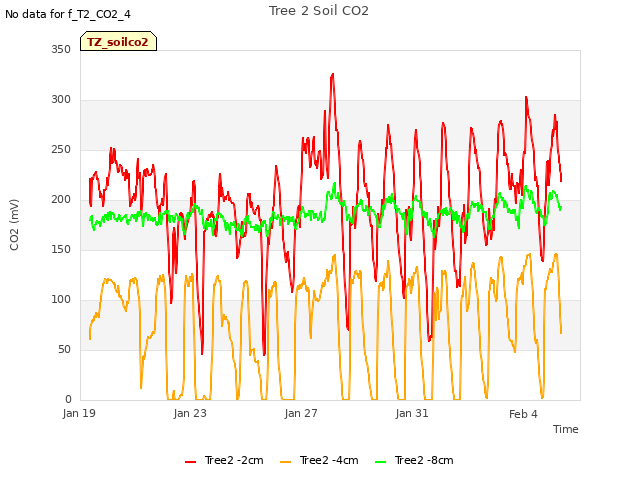

Tree 2 Soil CO2

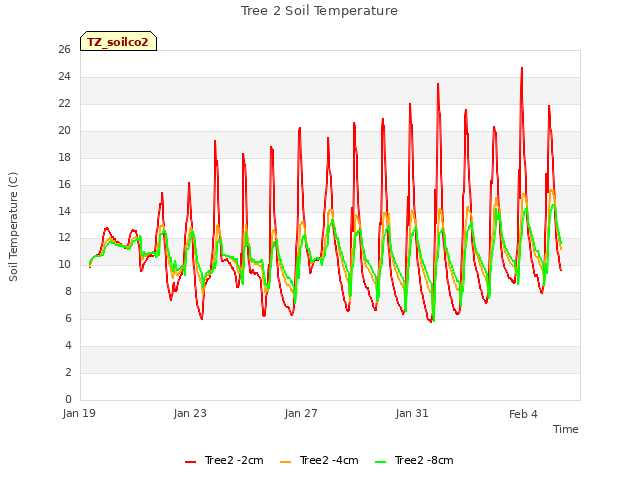

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

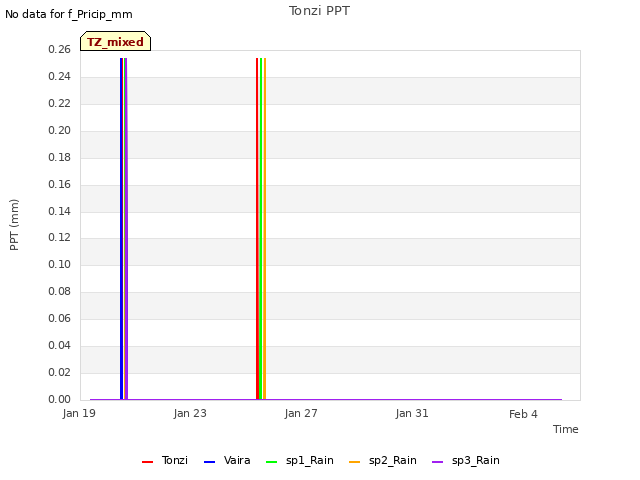

Tonzi PPT

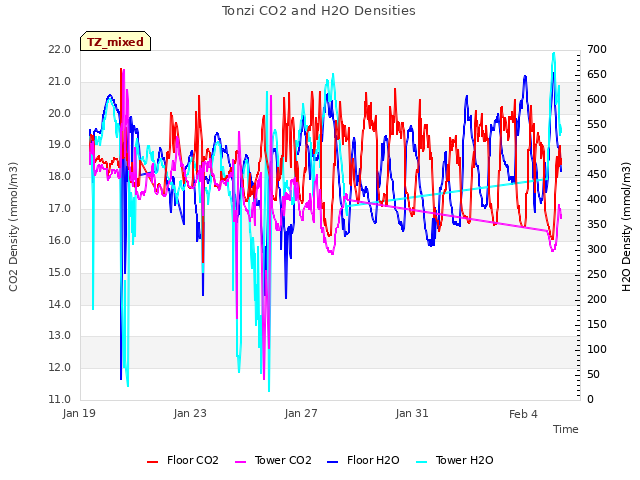

Tonzi CO2 and H2O Densities

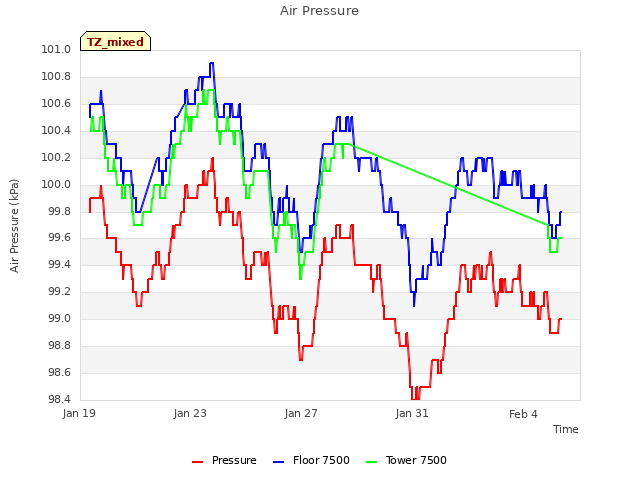

Air Pressure

1 TZ_fflux graphs found

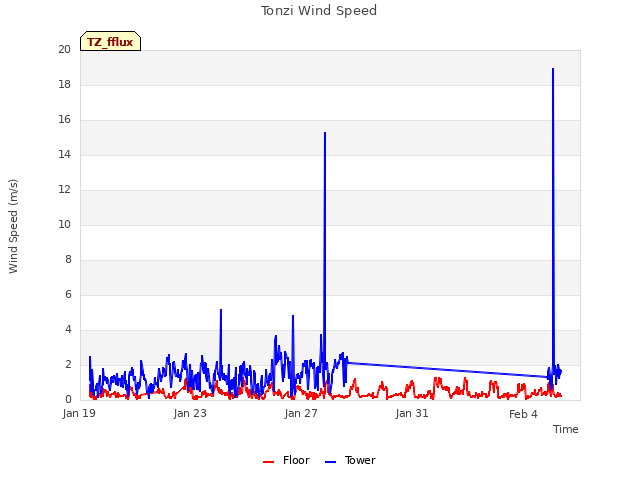

Tonzi Wind Speed

8 TZ_fmet graphs found

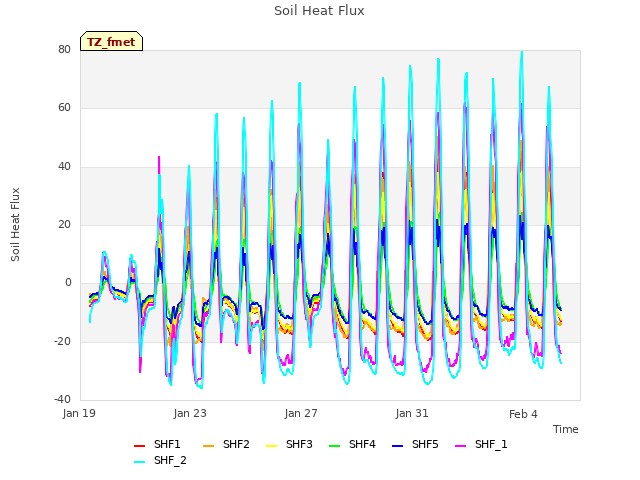

Soil Heat Flux

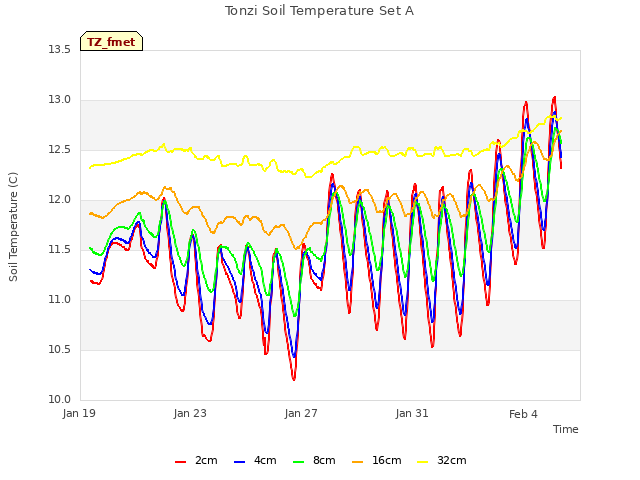

Tonzi Soil Temperature Set A

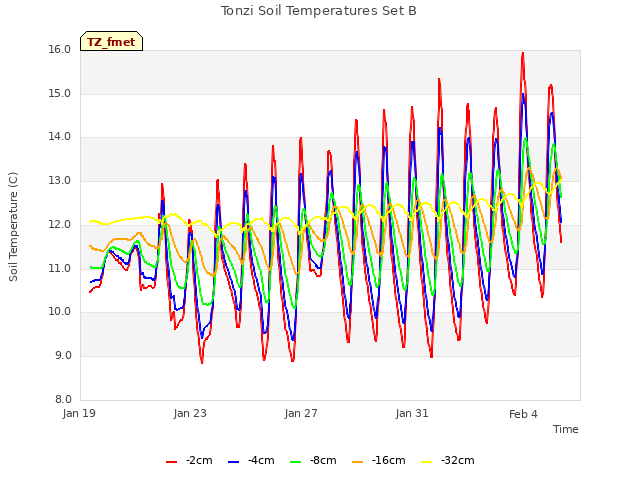

Tonzi Soil Temperatures Set B

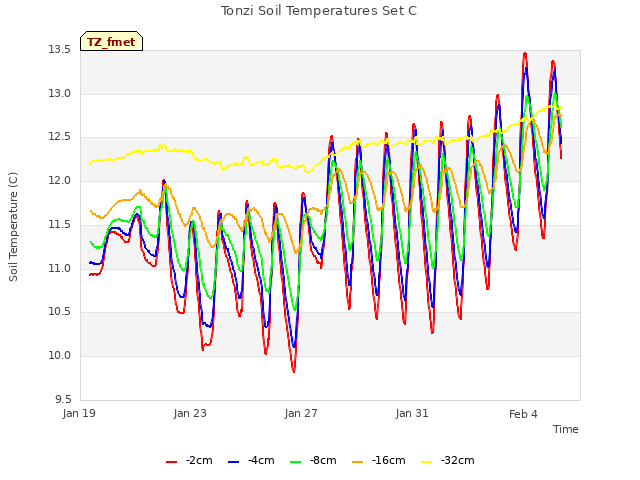

Tonzi Soil Temperatures Set C

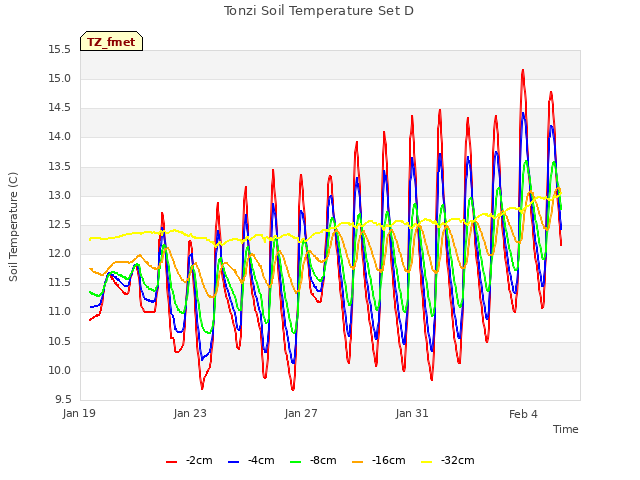

Tonzi Soil Temperature Set D

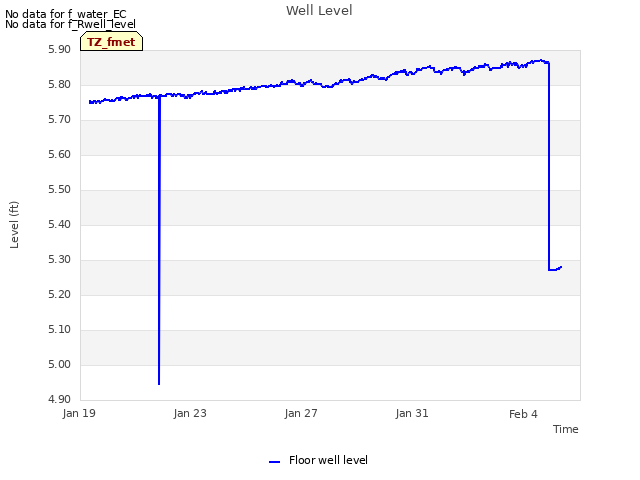

Well Level

Well Water Temperature

Soil Water Potential

1 TZ_tram graphs found

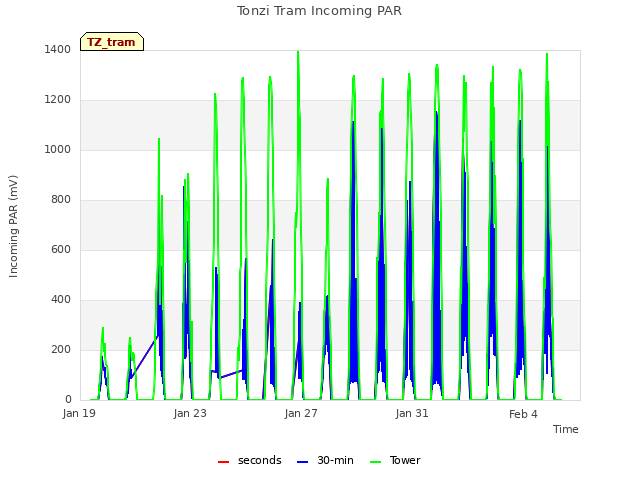

Tonzi Tram Incoming PAR

3 TZ_co2prof graphs found

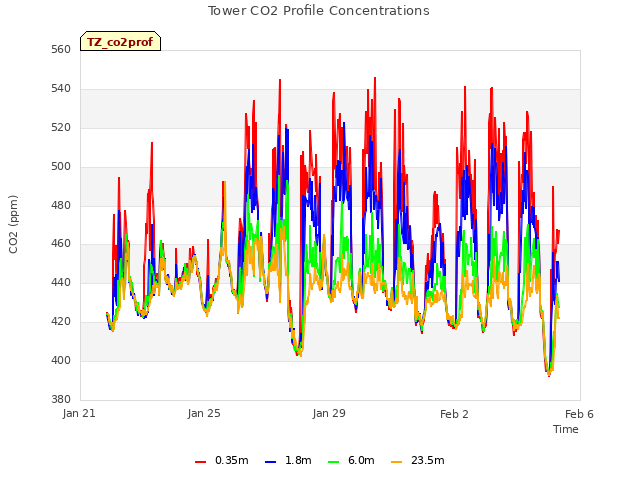

Tower CO2 Profile Concentrations

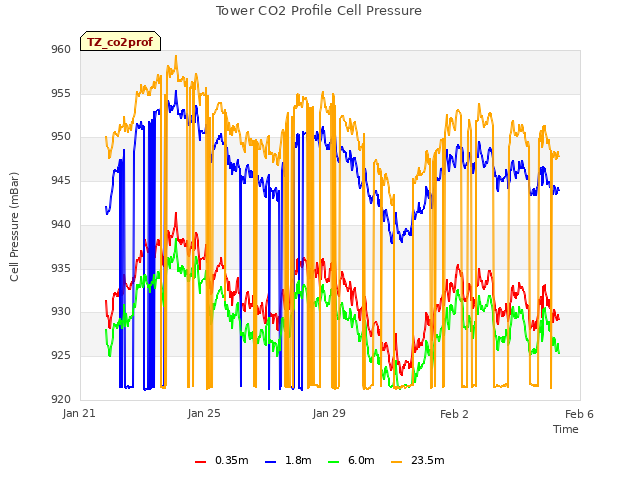

Tower CO2 Profile Cell Pressure

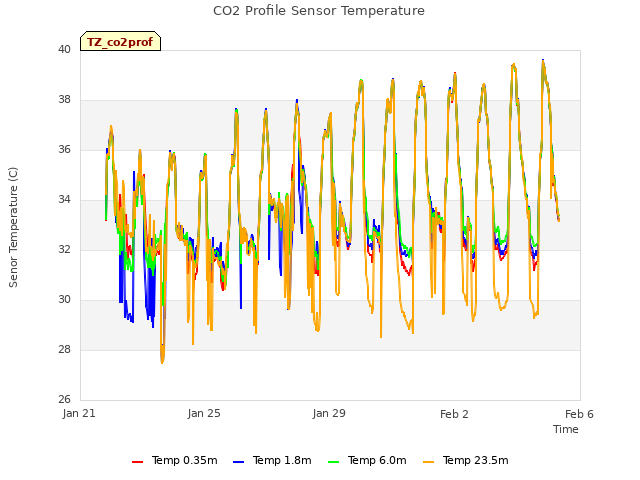

CO2 Profile Sensor Temperature

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

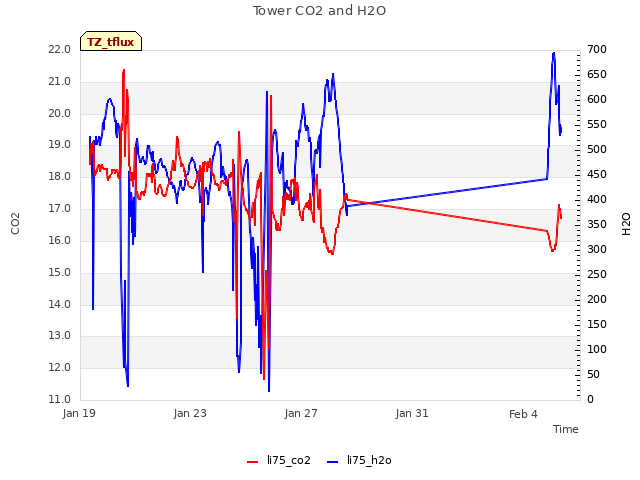

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

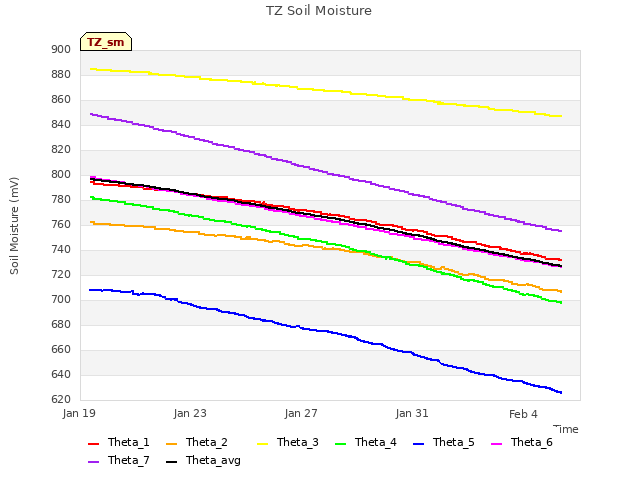

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

Floor and Tower RH

Can't check TZVR_mixed
8 TZ_osu graphs found

Soil Moisture And Rain

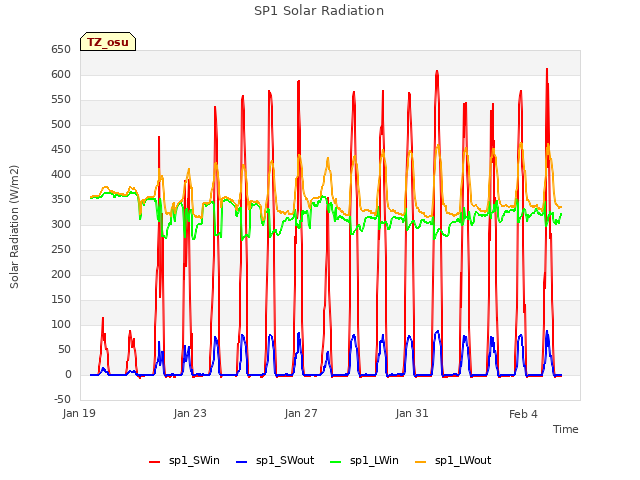

SP1 Solar Radiation

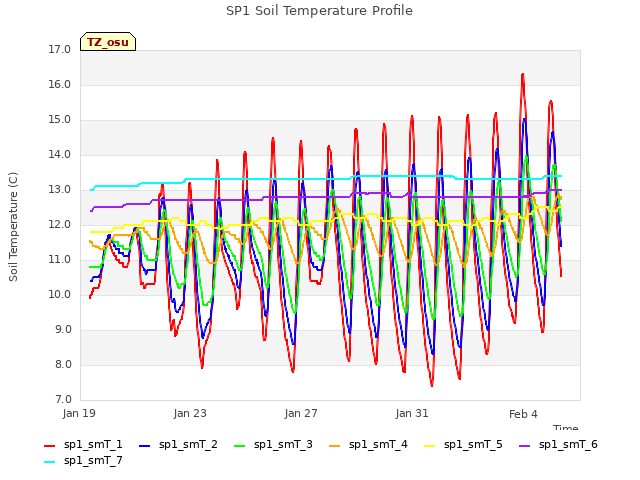

SP1 Soil Temperature Profile

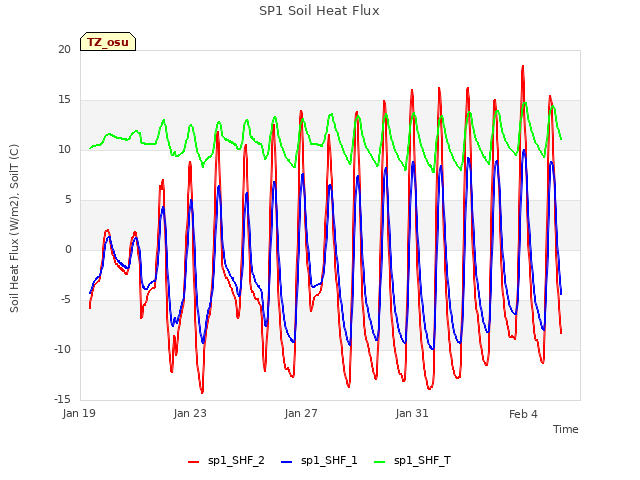

SP1 Soil Heat Flux

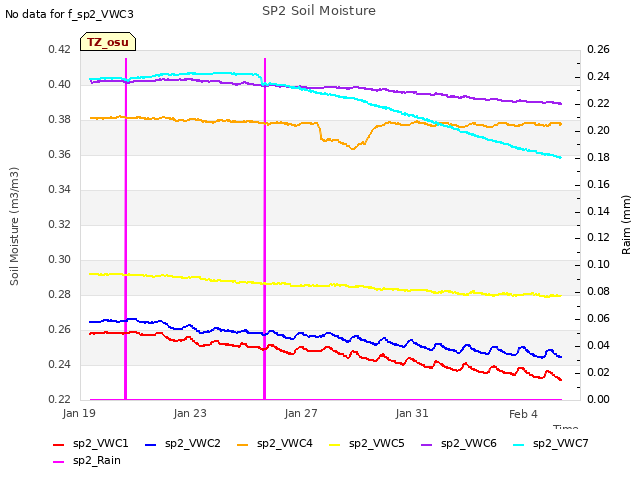

SP2 Soil Moisture

SP2 Soil Temperature

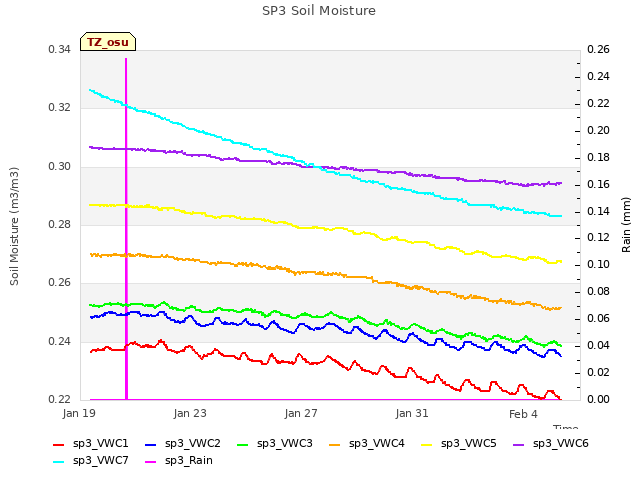

SP3 Soil Moisture

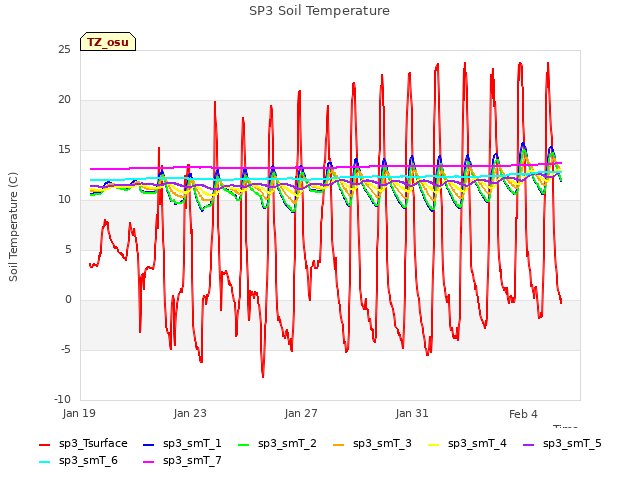

SP3 Soil Temperature

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
