Field Notes

<--2014-09-11 11:00:00 | 2014-10-02 12:00:00-->
Other sites visited today: Vaira

Tonzi: 2014-09-30 09:30:00 (DOY 273)
Author: Siyan Ma
Others: Joe

Summary: A little rain last week, trees turning brown - not so much at Vaira, Cows broke fences at Tonzi, begin new fence at Vaira, CO2 profile needs fixing, swapped Floor 7500.


When: Date: 9/30/2014 , Day: 273 , Watch Time: 9:30am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe
Weather: a nice sunny day, dry and hot
Phenology: cows at Tonzi; no grass germination yet after a rain event occurred about a week ago; 80% oak leaves turned into brown; still green oak leaves were hung out there.


Summary
  1. Swapped memory cards of CR1000s at three sites. Everything worked well.
  2. Checked and downloaded winflux and met data from PC at Tower, Floor, and Vaira.
  3. The CO2 profile system wasn’t calibrated because the IRGA seemed not to read the zero properly (~233ppm), but CO2 reading was OK. Joe is going to fix it soon.
  4. Joe worked on setting up a new fence at Vaira.
  5. The fences around Floor and Tower were broken when we got there; fixed.
  6. Measured midday water potential of oak leaves (oak leaf ~30 bar)
  7. Read dendrometers
  8. Measured soil moisture
  9. Measure groundwater well

Vaira_Grass Site
  1. Joe worked on setting up a new fence at Vaira.
  2. Downloaded Phenocam images.
  3. Swapped the memory cards of CR1000.
  4. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  5. Downloaded met and soil CO2 profile data.


  1. Checked levels of Radiation sensors, clear up surfaces.YES!
  2. Checked rain gage, make sure not clogged. YES!

Tonzi_Tower Site

  1. The fences were broken when we got there; fixed.
  2. Downloaded Winflux data from PC. YES!

  1. swapped the memory cards of CR1000.

  1. download Phenocam images. Yes!
  2. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Checked rain gage, make sure not clogged. YES!
  4. Checked CO2 profile:
  5. The CO2 profile system wasn’t calibrated because the IRGA seemed not to read the zero properly (~233ppm), but CO2 reading was OK. Joe is going to fix it soon.
  6. Closed gate and set up fence. YES!


Toniz_Floor Site
  1. The fences were broken when we got there; fixed.
  2. Swapped Li-7500s. sn 01596 off sn 0042 on.
  3. downloaded Winflux data from PC. YES!
  4. Swapped the memory cards of CR1000.

  1. downloaded met data from PC. YES! (all connectable)

CR23X3 – floor-Met
CR23X6 – tower-Met
CR10X2 – floor-Met
Soil CO2 profile: CR23X5 – soil CO2 profile
  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2014-09-30TZ_floor31.9
2014-09-30TZ_road39.6
2014-09-30TZ_tower36.4

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2014-09-30 273 0 0-15cm 10 6.5 8.4 11.1 7.7 11.5 10.6 7.7 6.5 11.8 9.7 5.9
2014-09-30 273 0 15-30cm 8.1 12.1 11.1 7.5 6.6 9 14.2 11.2 2.6 6 10.9 10.9
2014-09-30 273 0 30-45cm 16.8 10.9 6.4 10.6 2.3 9 15.6 12.9 14.3 14.3 13.1
2014-09-30 273 0 45-60cm 6.7 16.2 9.9 17 17.3 9.9 15.3 9.6 15.9
2014-09-30 273 1 0-15cm 8.3 7.1 9.9 8.3 14.7
2014-09-30 273 1 15-30cm 9.3 10.9 14.8 7.5 6.6 29.5
2014-09-30 273 1 30-45cm 16.2 10.3 11.1 12.3 2.3 23.5
2014-09-30 273 1 45-60cm 4.7 12.2 13 16.5 11.8
2014-09-30 273 2 15-30cm 15.8
2014-09-30 273 2 30-45cm 11.1
2014-09-30 273 2 45-60cm 8.7
2014-09-30 273 Avg 0-15cm 9.15 6.8 8.4 10.5 8 11.5 12.65 7.7 6.5 11.8 9.7 5.9 9.05 12 17
2014-09-30 273 Avg 15-30cm 8.7 11.5 13.9 7.5 6.6 9 21.85 11.2 2.6 6 10.9 10.9 10.05 12 19
2014-09-30 273 Avg 30-45cm 16.5 10.6 9.53 11.45 2.3 9 23.5 15.6 12.9 14.3 14.3 13.1 12.76 12 18
2014-09-30 273 Avg 45-60cm 5.7 10.45 13 16.35 9.9 14.4 17.3 9.9 15.3 9.6 15.9 12.53 11 15

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2014-09-30 273 0 0-15cm 7.1 3.6 5.3 3
2014-09-30 273 0 15-30cm 7.2 3.5 2.9 2.6
2014-09-30 273 0 30-45cm 13.1 3.4 8.1 10.9
2014-09-30 273 0 45-60cm 26.8 11.3 8.7 14.5
2014-09-30 273 1 0-15cm 8 7.1 6.8 3
2014-09-30 273 1 15-30cm 6.9 3.9 7.2 2.3
2014-09-30 273 1 30-45cm 13.4 2.8 17.3 11.5
2014-09-30 273 1 45-60cm 26.2 11 10.1 13.9
2014-09-30 273 Avg 0-15cm 7.55 5.35 6.05 3 5.49 4 8
2014-09-30 273 Avg 15-30cm 7.05 3.7 5.05 2.45 4.56 4 8
2014-09-30 273 Avg 30-45cm 13.25 3.1 12.7 11.2 10.06 4 8
2014-09-30 273 Avg 45-60cm 26.5 11.15 9.4 14.2 15.31 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2014-09-3018.5
2014-09-301026.6
2014-09-30210.4
2014-09-3024517.9
2014-09-3038.7
2014-09-3049.0
2014-09-30511.3
2014-09-3078.3
2014-09-307218.1
2014-09-307913.1
2014-09-30812.0

Water Potential - mode: raw

Time< h>SpeciesTreereadings (bar)
2014-09-30 01:17:00 PINE OLD -25 -3 -16
2014-09-30 01:17:00 PINE YNG -5 -6 -15
2014-09-30 12:56:00 OAK 102 -34 -20 -33
2014-09-30 12:56:00 OAK 35 -25 -22 -25
2014-09-30 12:56:00 OAK 92 -33 -25 -38

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display: 16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Tonzi Tower Met: Temperature and Power

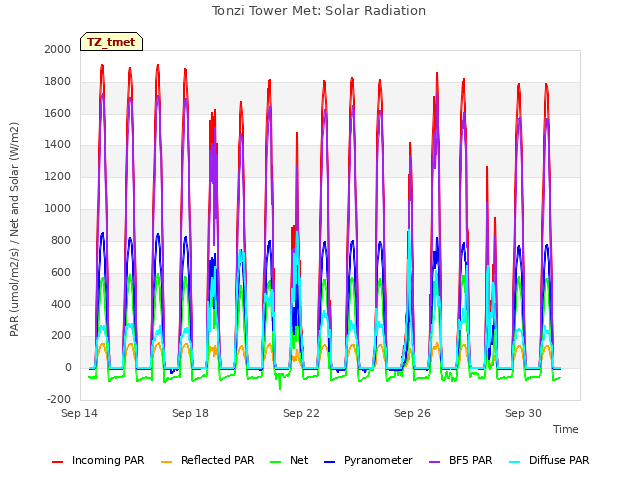

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

LED Sensor Incoming

LED Sensor Outgoing

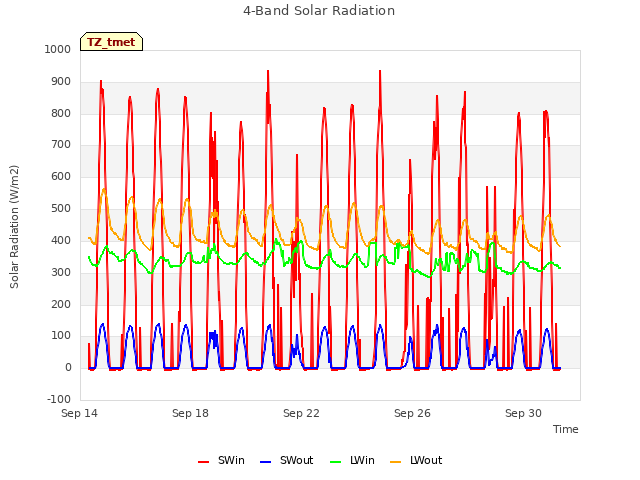

4-Band Solar Radiation

Air Temperature Profile

Relativity Humidity Profile

Tonzi Tower PRI

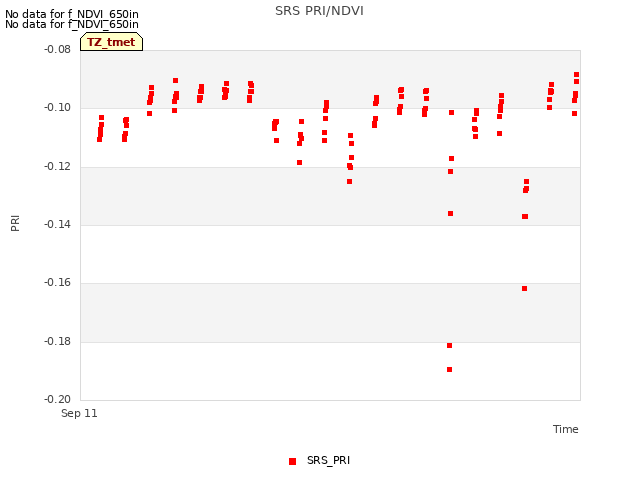

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

Tonzi Soil CO2 Profile: Open (East) CO2

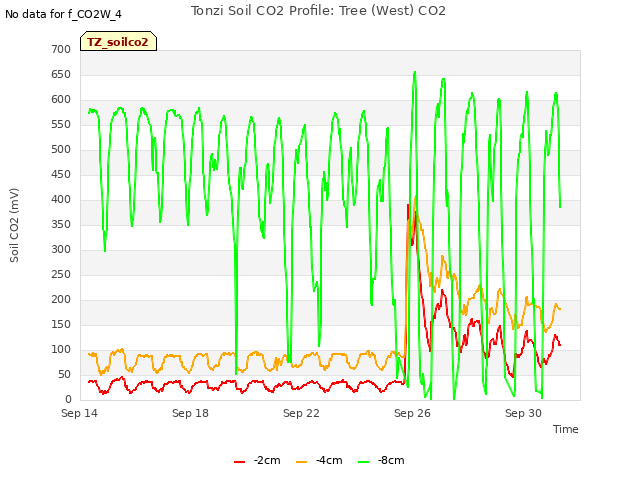

Tonzi Soil CO2 Profile: Tree (West) CO2

Tonzi Soil CO2 Profile: Open (East) Temperatures

Tonzi Soil CO2 Profile: Tree (West) Temperatures

Tonzi Soil CO2 Profile: Upper CO2

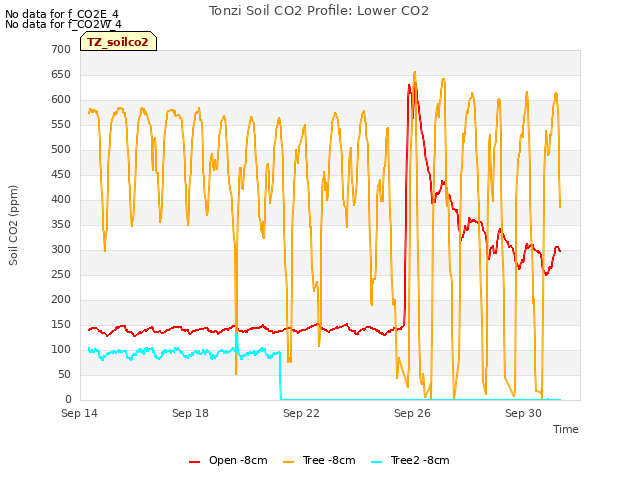

Tonzi Soil CO2 Profile: Lower CO2

Tonzi Soil CO2 Profile: Upper Temperatures

Tonzi Soil CO2 Profile: Lower Temperatures

Tonzi Soil CO2 Profile: Power and Temperature

Tree 2 Soil CO2

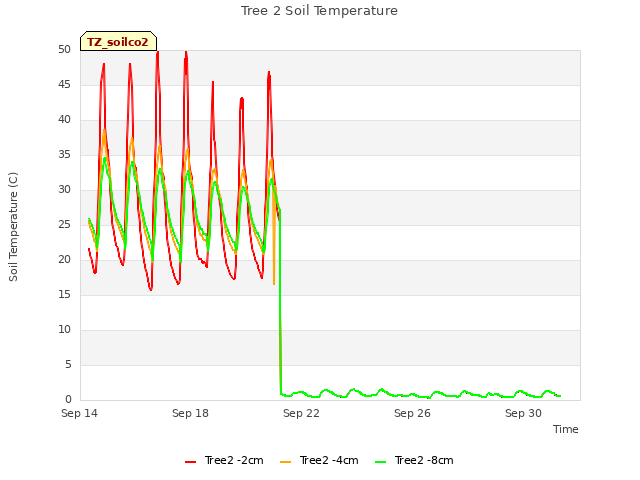

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

Tonzi PPT

Tonzi CO2 and H2O Densities

Air Pressure

1 TZ_fflux graphs found

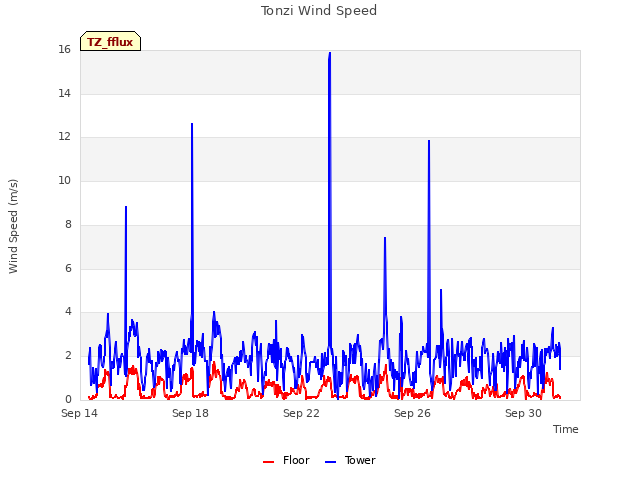

Tonzi Wind Speed

8 TZ_fmet graphs found

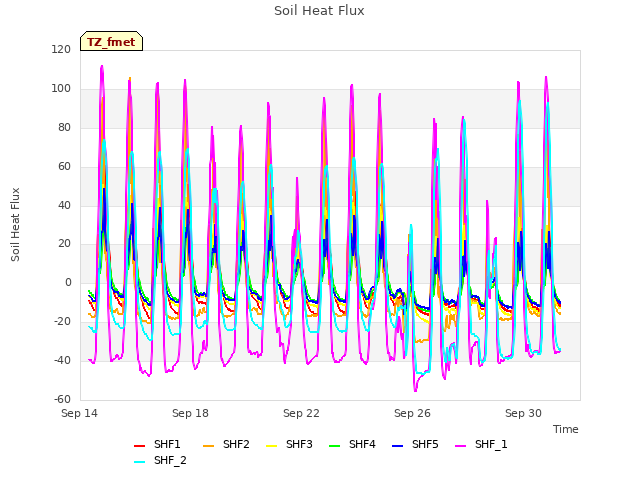

Soil Heat Flux

Tonzi Soil Temperature Set A

Tonzi Soil Temperatures Set B

Tonzi Soil Temperatures Set C

Tonzi Soil Temperature Set D

Well Level

Well Water Temperature

Soil Water Potential

1 TZ_tram graphs found

Tonzi Tram Incoming PAR

3 TZ_co2prof graphs found

Tower CO2 Profile Concentrations

Tower CO2 Profile Cell Pressure

CO2 Profile Sensor Temperature

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

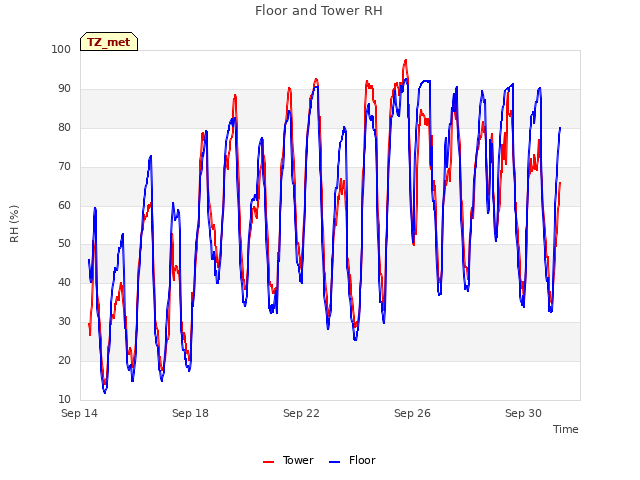

Floor and Tower RH

Can't check TZVR_mixed
8 TZ_osu graphs found

Soil Moisture And Rain

SP1 Solar Radiation

SP1 Soil Temperature Profile

SP1 Soil Heat Flux

SP2 Soil Moisture

SP2 Soil Temperature

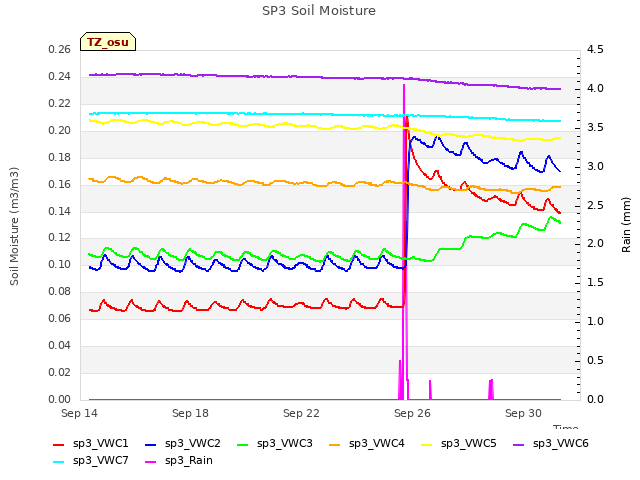

SP3 Soil Moisture

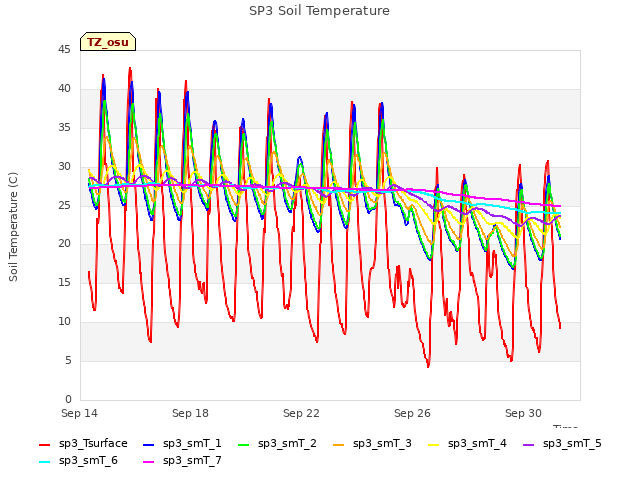

SP3 Soil Temperature

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
