Tonzi: 2014-01-24 09:10:00 (DOY 24)
Author: Siyan Ma
Others:

Summary: Very dry, 50 cows at Tonzi, Tower fence broken - fixed, removed Vaisala CO2 probes for calibration, CO2 profile large offsets and data logger readings do not match licor interface, tram reinstalled, lost empty CF card near tower.

When: Date: 1/24/2014 , Day: 24 , Watch Time: 9:10 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: clear, sunny
Phenology: Still so dry! Saw 50 cows at Tonzi. They looked mad and chased my car after I drove the crowd. Tower fence was broken; fixed.

Summary

Put Tram car back, and it parked to the charge station.

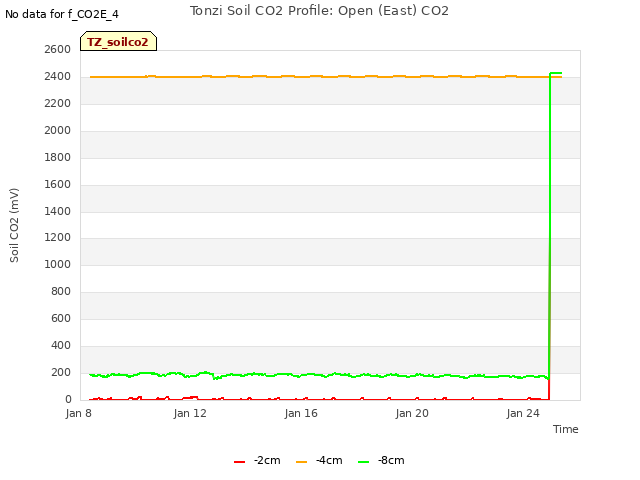

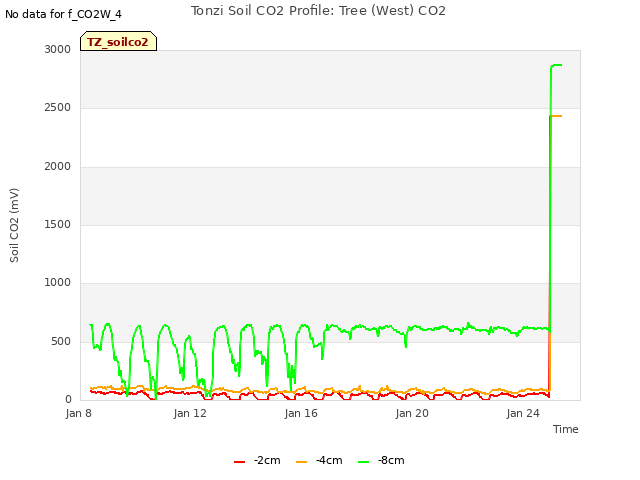

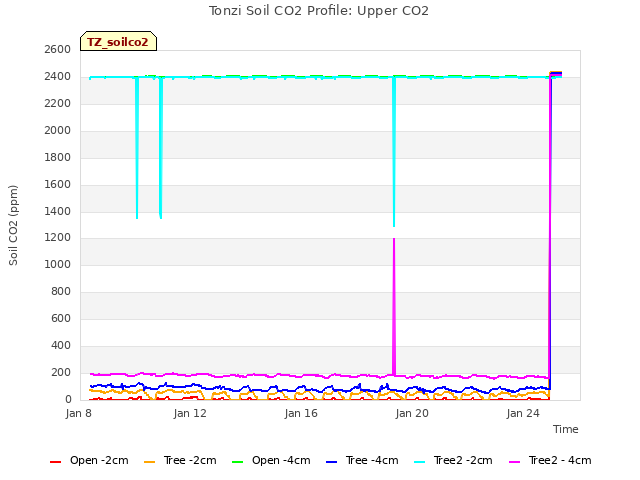

Took off soil CO2 probes at Tonzi and Vaira
Checked and downloaded data from PC at Tower, Floor, and Vaira.
Swapped memory cards of CR1000s at three sites. Dropped the memory card from the top of the tower and lost it. Downloaded data from the on-site card and put it back.

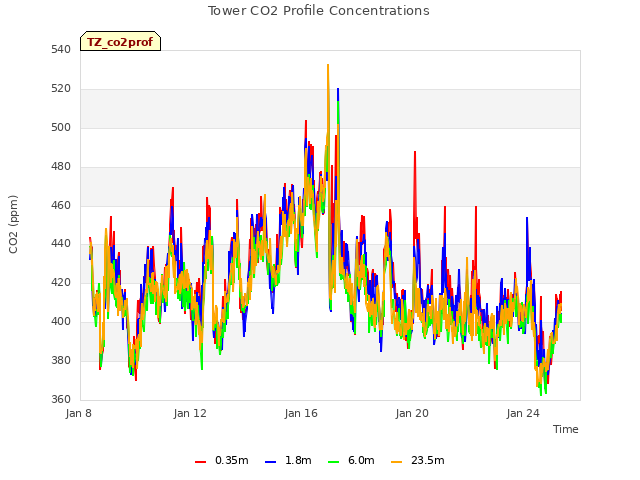

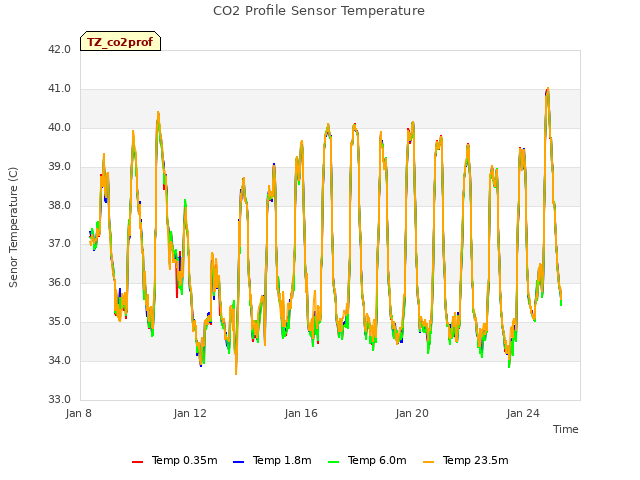

Calibrated CO2 profile system; Zero and span off 50 â€“ 80 ppm.
Read dendrometers

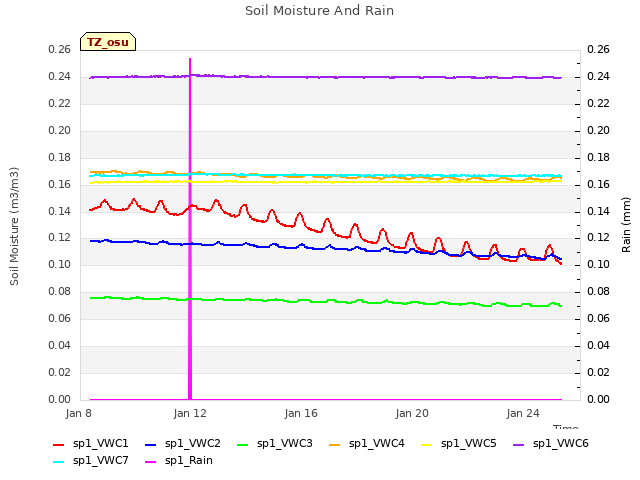

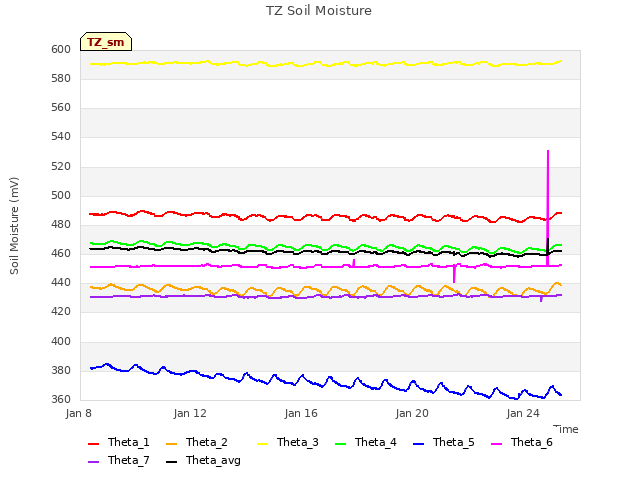

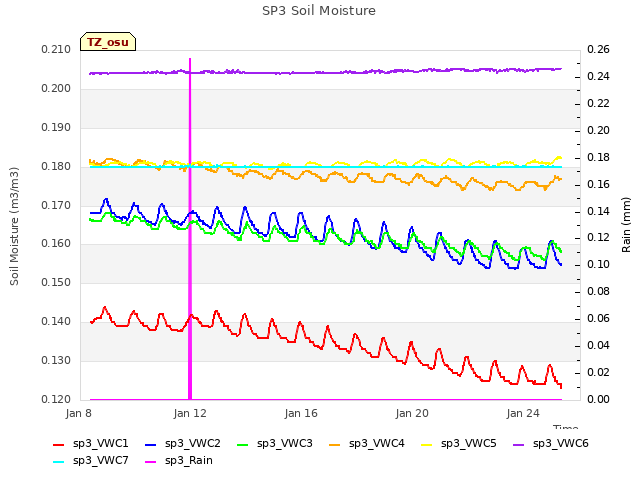

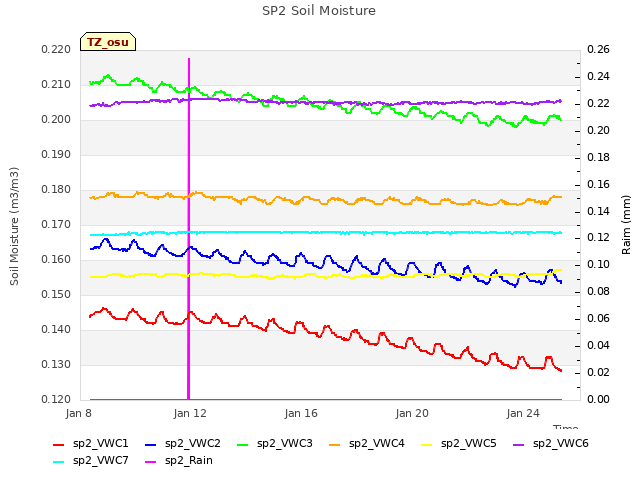

Measured soil moisture

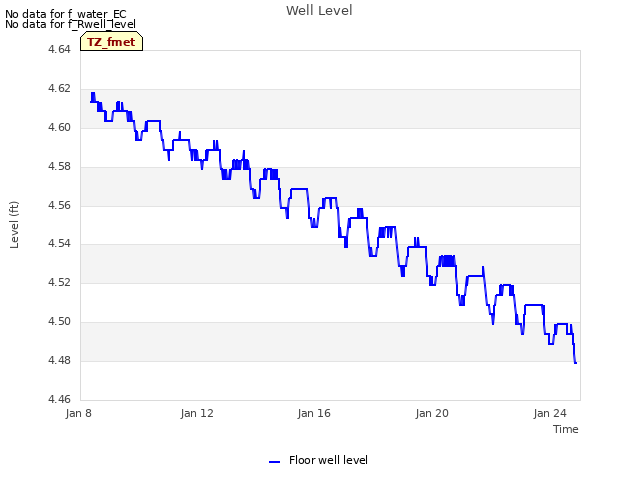

Measure groundwater well:

Date	DOY	Location	Depth without the black thing (feet)
1/24/2014	24	Floor	32.4
		Tower	36.95
		Roadside	40

Vaira_Grass Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Downloaded data and swapped the memory cards of CR1000.

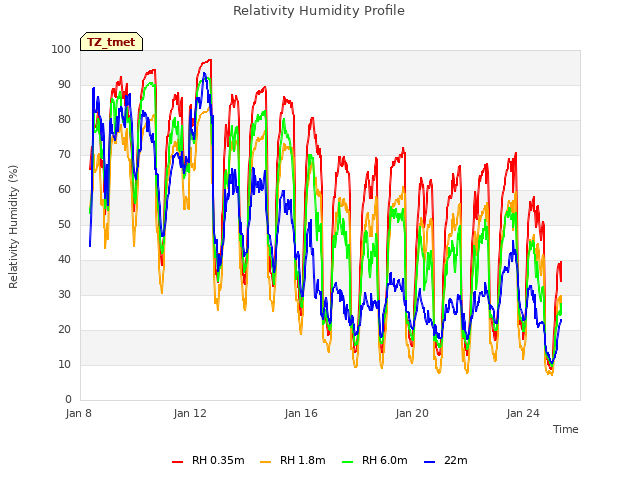

Check the fans of air temp and relative humidity sensors at Vaira. YES!
Met and soil CO2 profile data:

Screen shot of Vaira met data logger table

Screen shot of Vaira soil co2 data logger table

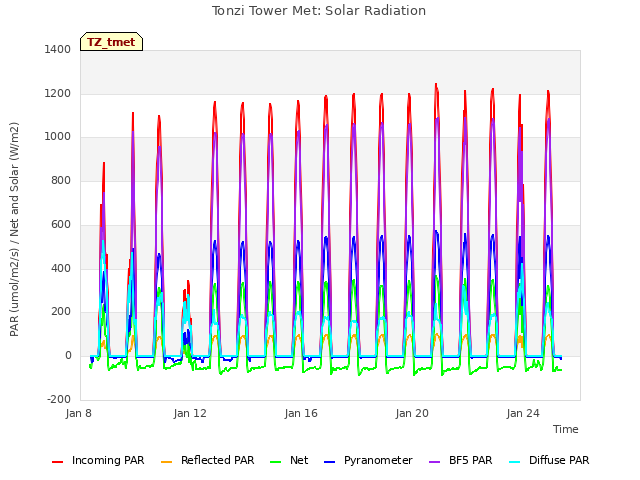

Check levels of Radiation sensors, clear up surfaces.YES!
Check rain gage, make sure not clogged. YES!
Closed gate and set up fence. YES!

Tonzi_Tower Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 â€“ 5 v.)

Tower Gill sonic plots screen before downloading data

Screen shot of tower flux data logger table

downloaded data from PC and swapped the memory cards of CR1000.

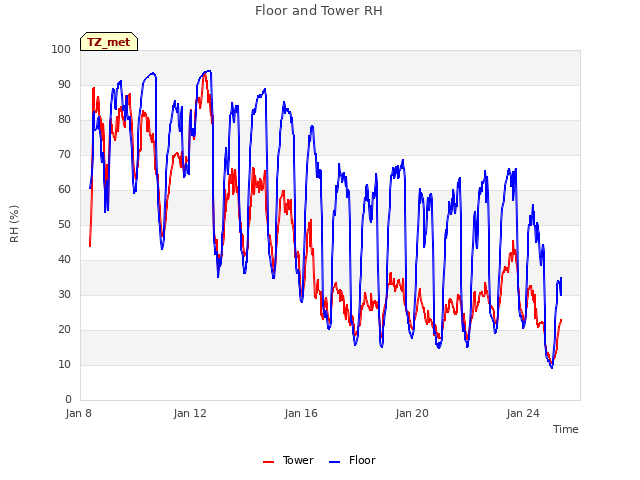

check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
Check rain gage, make sure not clogged. YES!
Check calibration cylinders;

CO2 tank	404.02ppm	500	18psi
N2		1100	10

Is the pump runningâ€Œ YES!
Screen shot of Li-800 calibration pre-cal

Zero

Before	After

Span

Before	After

Tram car was put back to the field

Screen shot of rad tram data logger table

close gate and set up fence. YES!

Toniz_Floor Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 â€“ 5 v.)

Floor Gill sonic plots screen before downloading data

Screen shot of floor flux data logger table

downloading data from PC. YES!
Swapped the memory cards of CR1000.
Check MD-9 system connections YES!

CR23X3 â€“ floor-Met
CR23X6 â€“ tower-Met
CR10X2 â€“ floor-Met

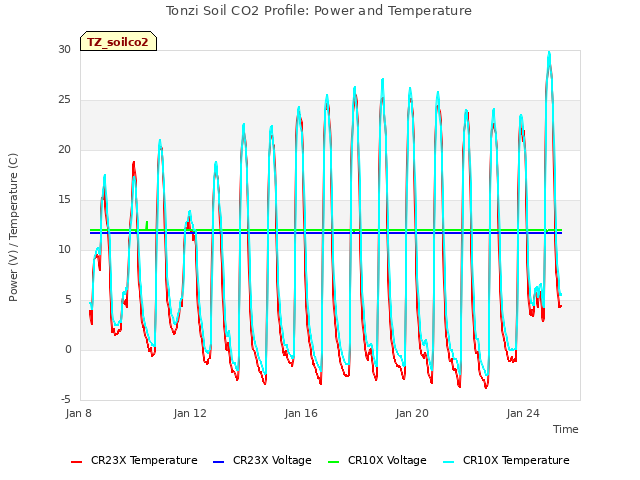

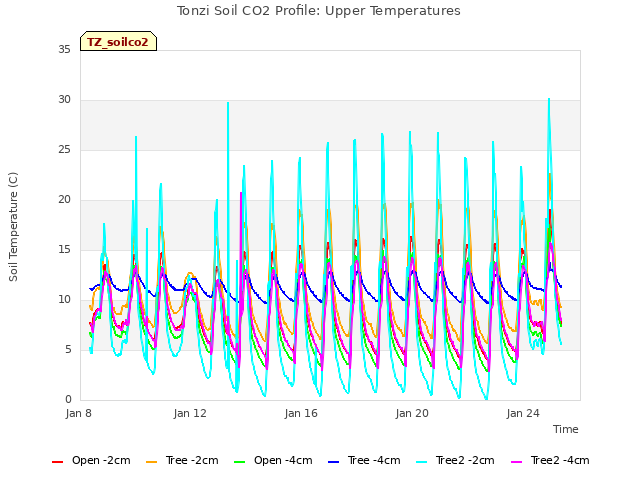

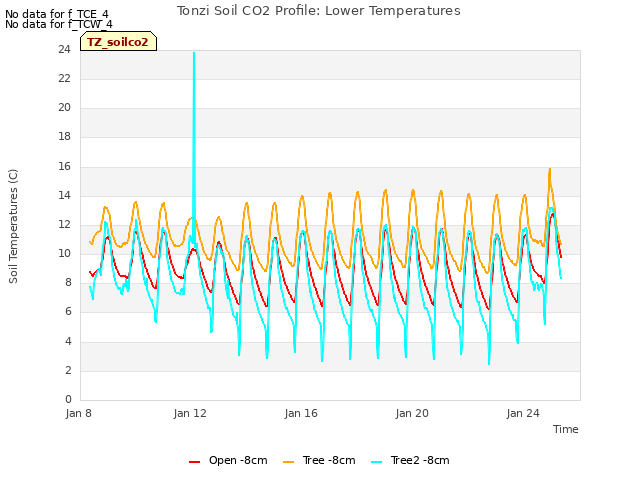

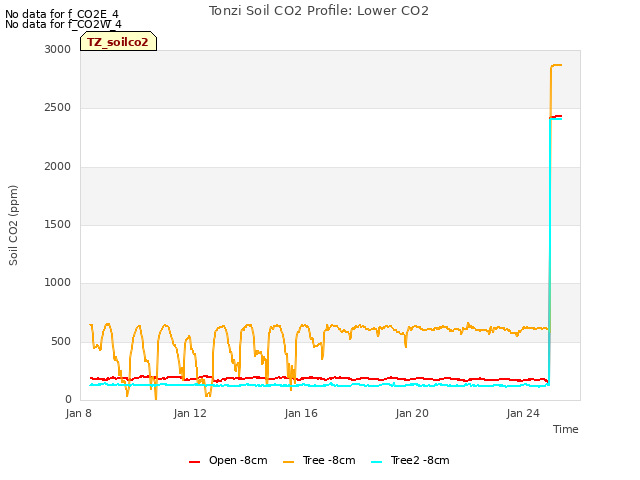

Soil CO₂ profile: CR23X5 â€“ soil CO₂ profile
Screen shot of soil moisture data logger table

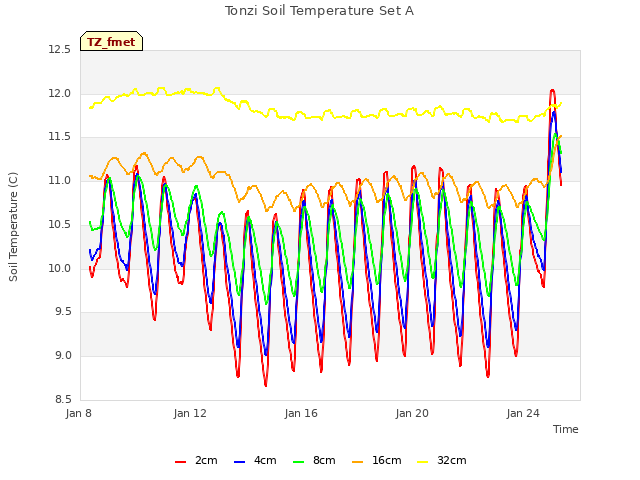

Screen shot of floor met data logger table

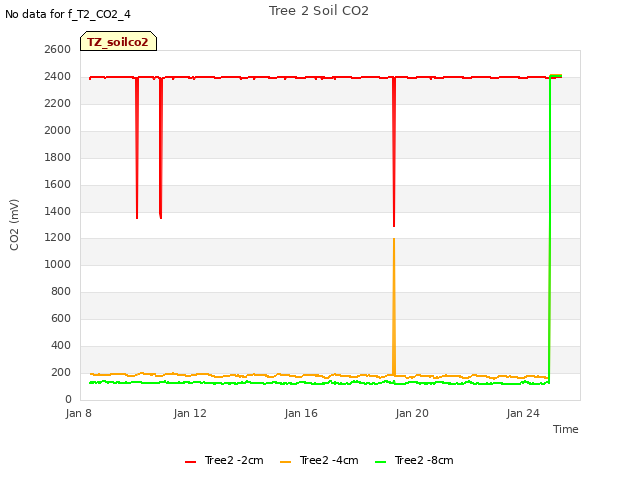

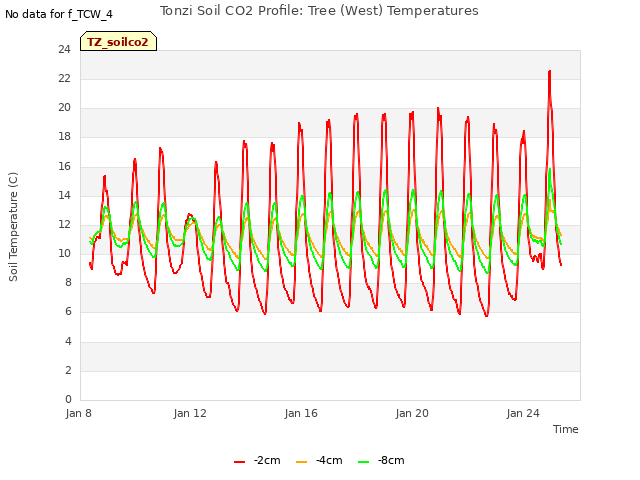

Screen shot of soil co2 data logger table

Screen shot of tower met data logger table

Close gate and set up fence. YES!

Tonzi
Dendrometer

Date	Day	Tag #	Reading (mm)
1/24/2014	24	79	21.4
		72	16.1
		102	22
		245	14.3
		2	18.3
		3	20.5
		5	25
		8	9.6
		7	18.1
		4	3.9
		1

Field Data

CO2 Profile Tanks

Date	Tank	Pressure (psi)	ppm
2014-01-24	CO2	500	404.2
2014-01-24	N2	1100	0

Well Depth

Date	Location	Depth (feet)
2014-01-24	TZ_floor	32.4
2014-01-24	TZ_road	40
2014-01-24	TZ_tower	36.95

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => SoilCO2_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => SoilCO2_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => SoilCO2_3 [27] => Soil_Transect_4_3 [28] => Soil_Transect_3_3 [29] => Soil_Transect_2_3 [30] => Soil_Transect_1_3 [31] => SoilCO2_West_A_3 [32] => SoilCO2_West_B_3 [33] => SoilCO2_West_C_3 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 [44] => Soil_Transect_2_1 [45] => Floor_East_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_2_1	Floor_East_1	Spacial Count
2014-01-24	24	0	nan	6.5	1.8	5	11.1	9.4	14.4	1.5	13.5	11.2	4.5	13.6	7.2	17	10	11.8	10.3	19.4	13.3	3.2	10.3	1.7	13.9	18.2	11.2	11.1	12.3	7.8	9.8	11.1	15.4	12.9	14	1143	12	1.9	12.8	14.8	10.2	17.3	19.9	10.2	12.8	7.3	9.9
2014-01-24	24	1	nan	7.7			11.1							13		13.9		12.2			12.4					17.9		11.1		6.4			14.8						11.3				20.2					5.6
2014-01-24	24	2	nan													15.6												11.7																					14.7
2014-01-24	24	Avg	0-15cm																																															0
2014-01-24	24	Avg	15-30cm																																															0
2014-01-24	24	Avg	30-45cm																																															0
2014-01-24	24	Avg	45-60cm																																															0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2014-01-24	24	0	nan	4.7	8	3.6	1.5	11.5	8.7	16.7	7.8	13.1	2.5	10.1	12.6	22.5	10.5	5.3	11.9
2014-01-24	24	1	nan	5.6	7.7	3.3	1.8	11.2	9.3	11.2	8.1	13.4	2.3	11.7	12.3	22	10.2	7.3	12.2
2014-01-24	24	Avg	0-15cm																	0
2014-01-24	24	Avg	15-30cm																	0
2014-01-24	24	Avg	30-45cm																	0
2014-01-24	24	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2014-01-24	102	22
2014-01-24	2	18.3
2014-01-24	245	14.3
2014-01-24	3	20.5
2014-01-24	4	3.9
2014-01-24	5	25
2014-01-24	7	18.1
2014-01-24	72	16.1
2014-01-24	79	21.4
2014-01-24	8	9.6
