Mayberry: 2014-01-10 11:30:00 (DOY 10)
Author: Cove Sturtevant
Others: Joe, Dennis

Summary: Removed Wat1 soil temperature rod for fixing in lab. Removed water and surface DO probes for repair. Fixed wiring of conductivity probe, new Tule program - readings good.

Mayberry
2014-01-10

We arrived about 11:30 PST. It was sunny, calm, and pleasant out. Dennis and I attended to the tower and downloaded data while Joe went out into the water to attempt replacing water/soil temperature rod Wat1 with a more rigid rod. It was too difficult so he brought the whole rod in to replace in the lab. DO probes ‘water’ and ‘surf’ were both reading high and were pulled. The ‘surf’ DO probe looks corroded. Joe fixed a problem in the wiring of the conductivity probe and the probe was reading well after uploading the new program with corrected computations (tried several weeks ago).

Joe had the great idea of replacing the flux tower tripod with the Tule tower scaffold in order to safely raise the flux tower height. Now that the veg has filled in at the site, the water and veg instruments currently on the Tule tower can be located directly adjacent to the flux tower.

7500 readings:
CO2: 418 ppm (forgot to check after cleaning)
H2O: 495 mmol m-3 (forgot to check after cleaning)
signal strength = 91.9% (forgot to check after cleaning)
t: 19.1 °C
p = 102.6 kPa

Current 7700 readings:
CH4 = 2.3 ppm (same after cleaning)
RSSI = 62% (85 after cleaning)
Topped of reservoir; it was almost full.

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

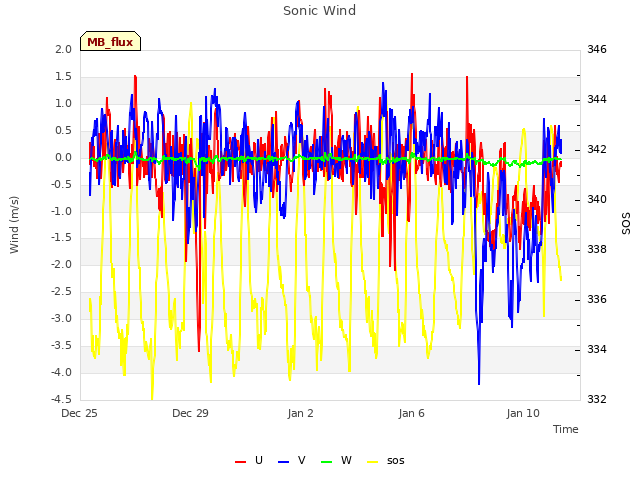

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

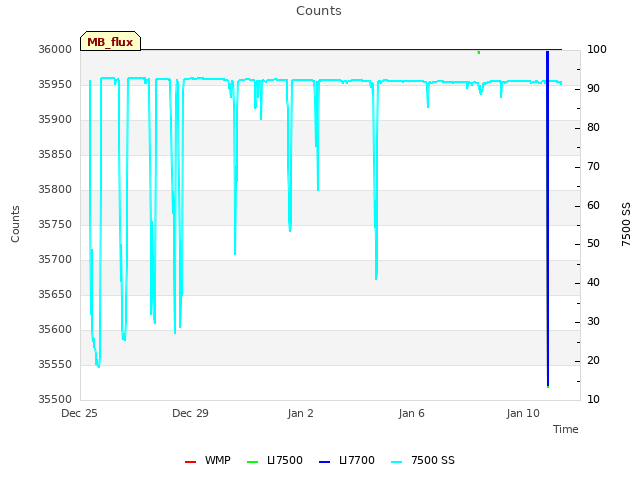

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

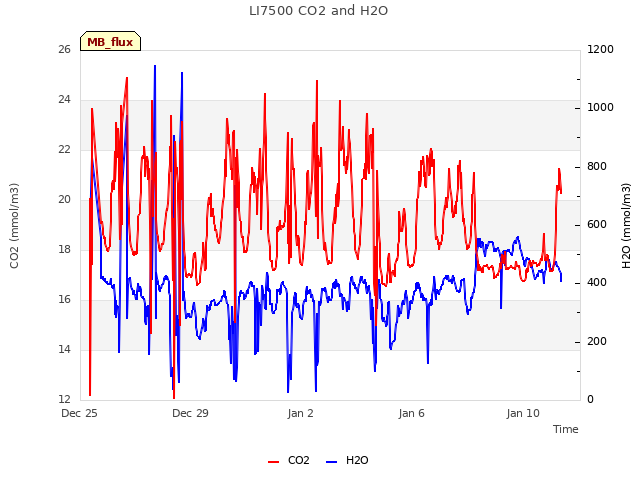

Explore the graph:LI7500 CO2 and H2O in a new window

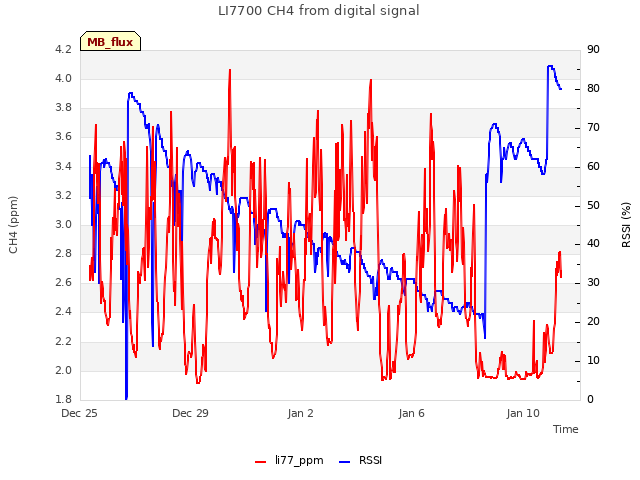

Explore the graph:LI7700 CH4 from digital signal in a new window

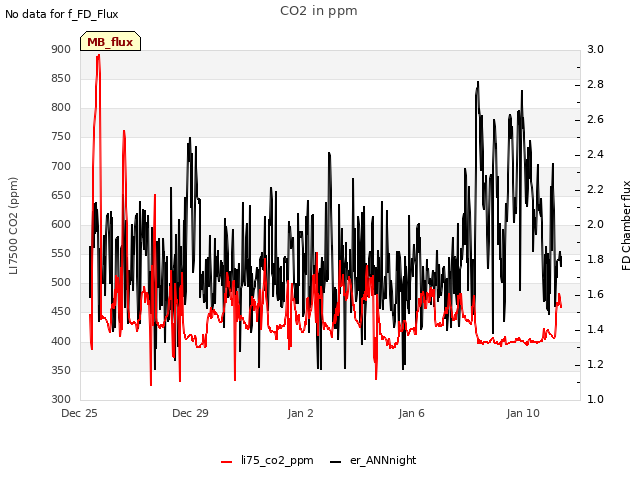

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

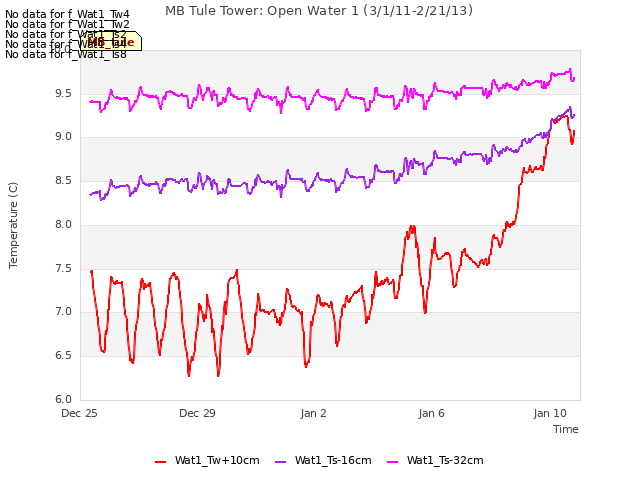

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

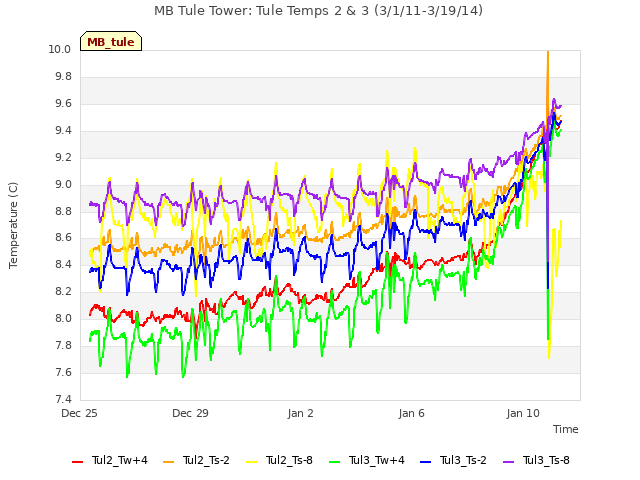

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

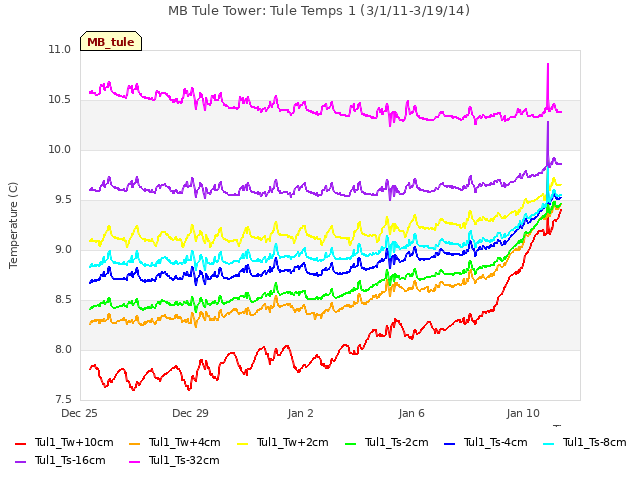

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

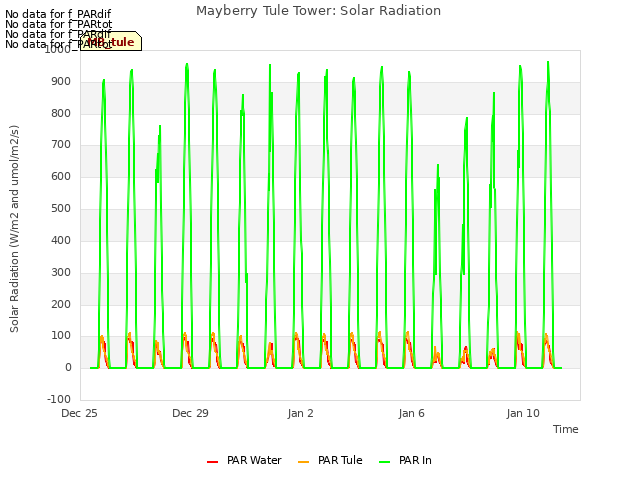

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

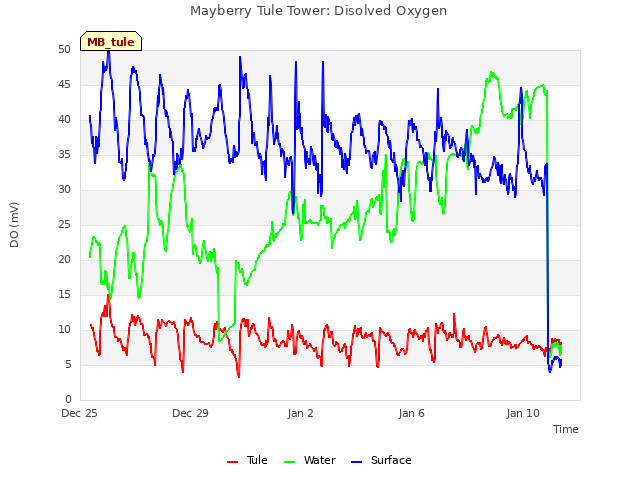

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

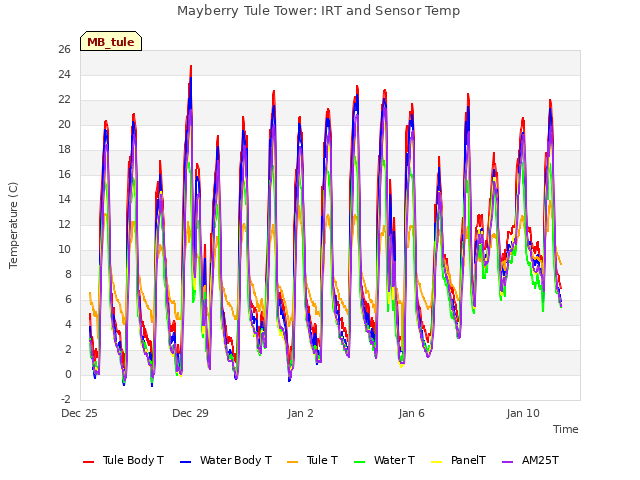

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

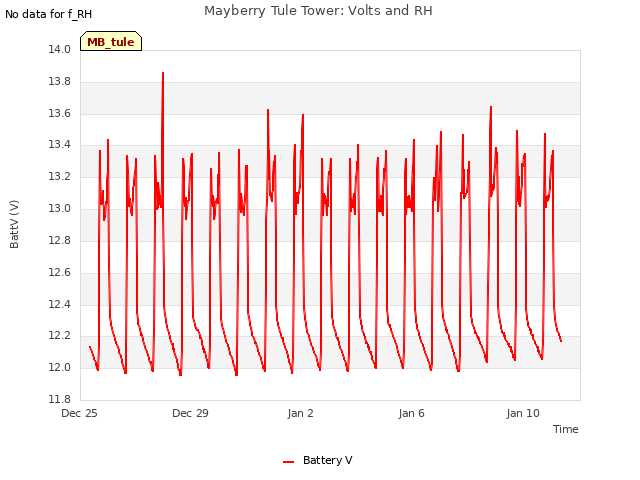

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

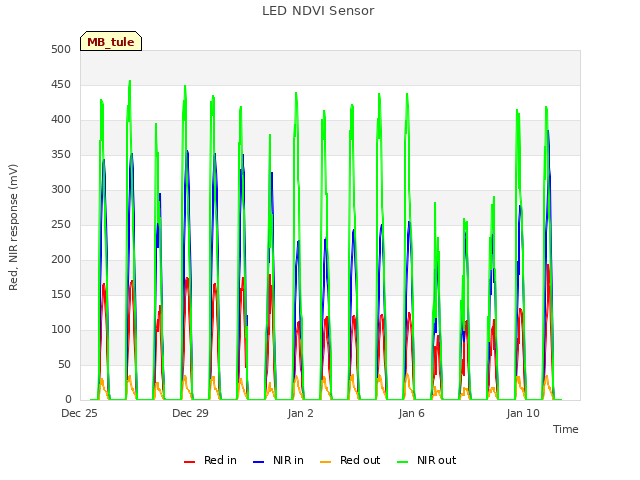

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

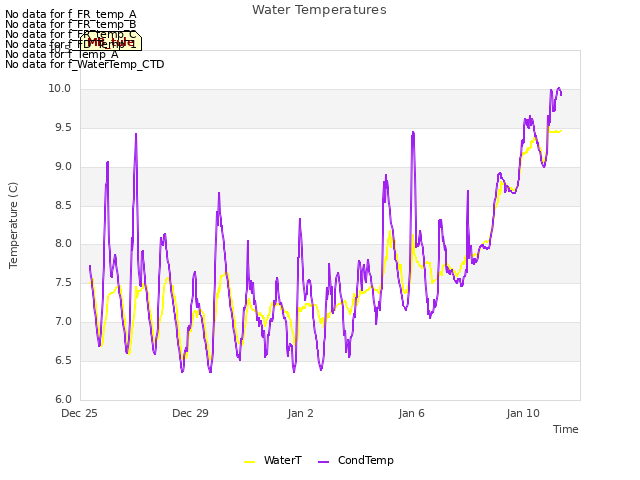

Explore the graph:Water Temperatures in a new window

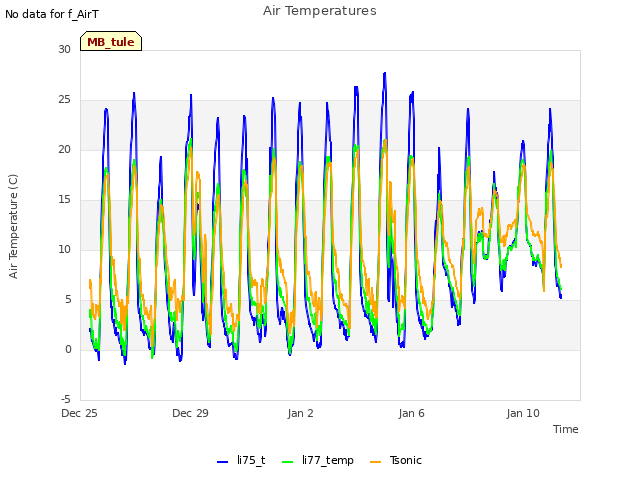

Explore the graph:Air Temperatures in a new window

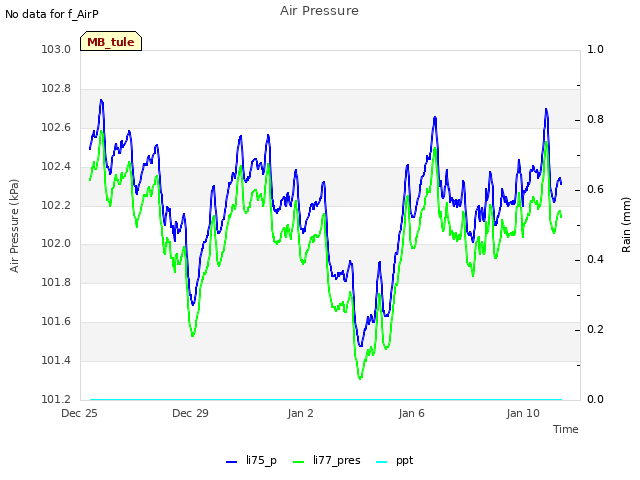

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

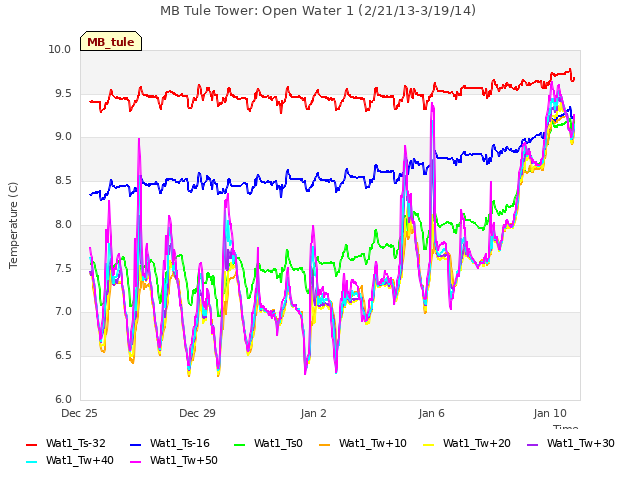

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

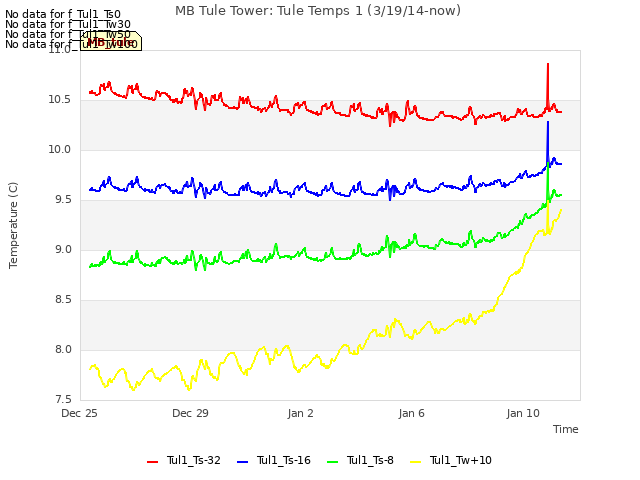

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

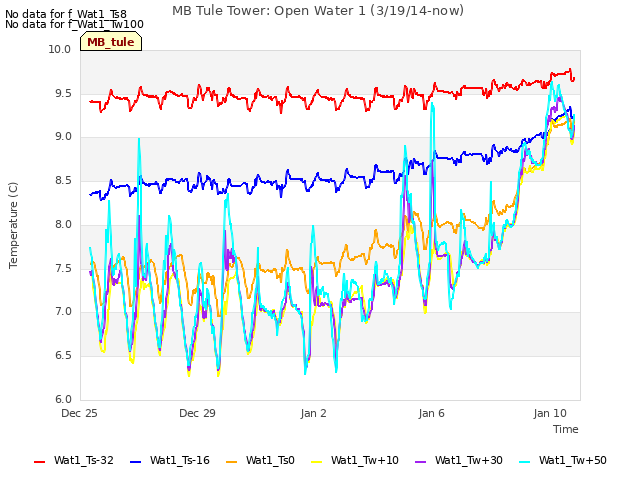

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

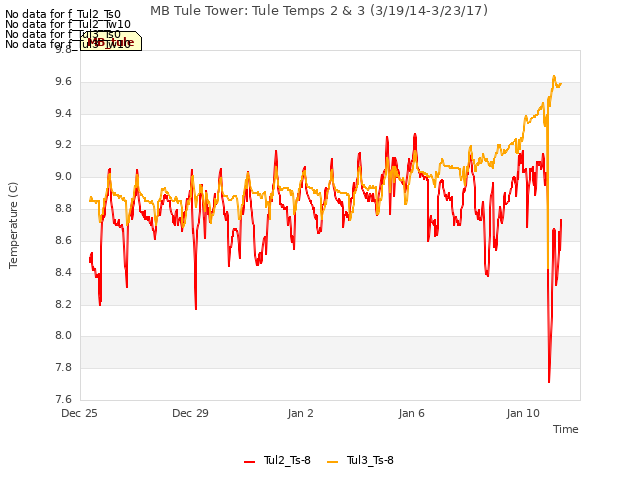

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

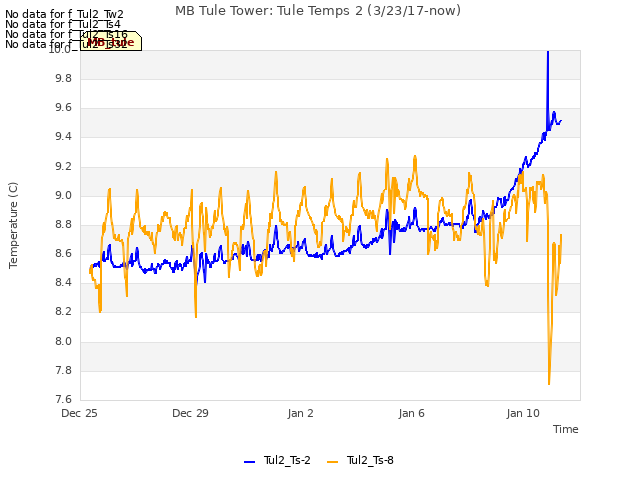

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

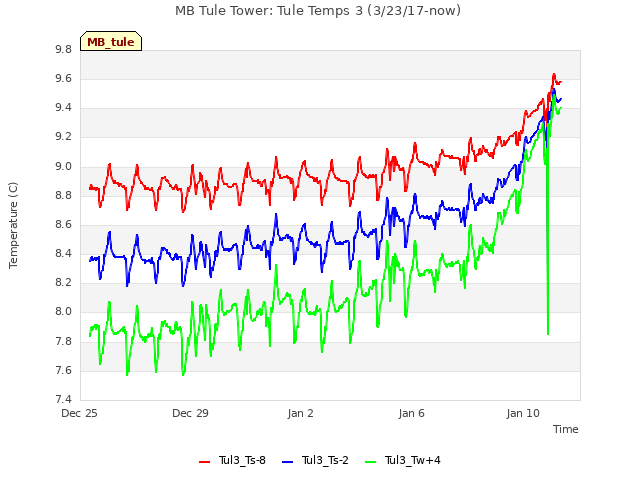

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

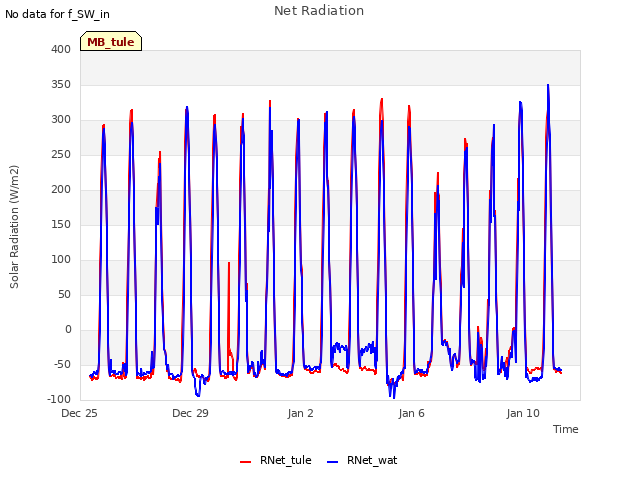

Explore the graph:Net Radiation in a new window

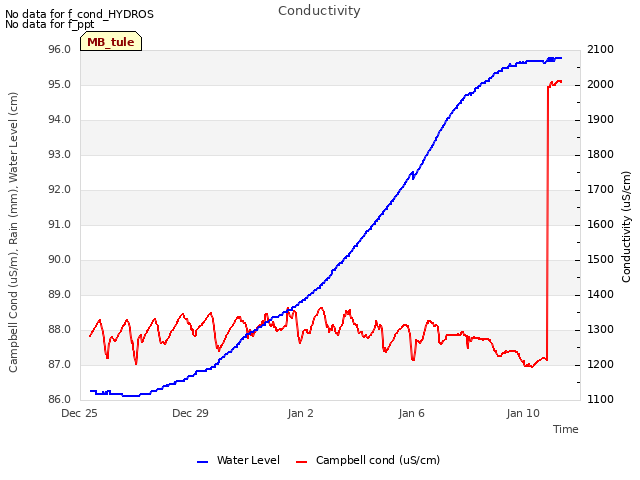

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

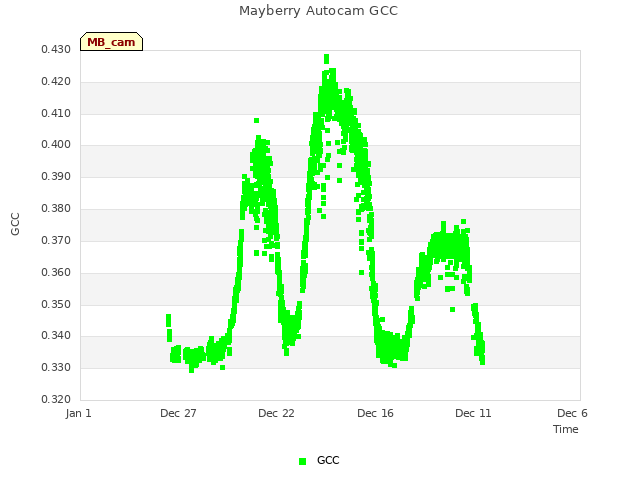

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA
1 MB_processed graphs found

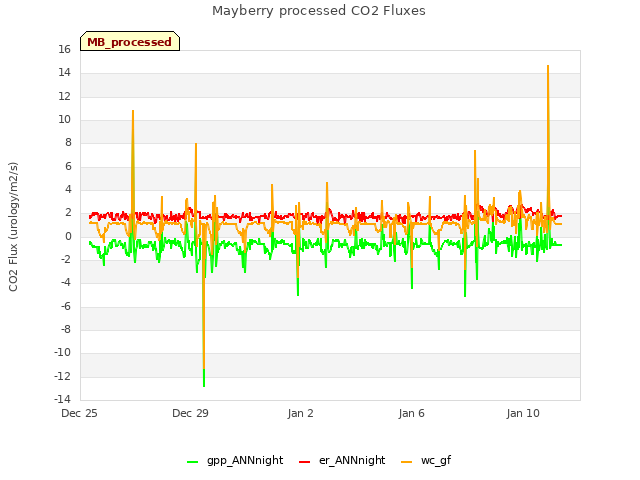

Explore the graph:Mayberry processed CO2 Fluxes in a new window
