Twitchell Rice: 2013-05-09 08:15:00 (DOY 129)
Author: Cove Sturtevant
Others: Joe, Iryna, Laurie

Summary: Rice is growing. Set out LAI transect. Swapped out 7500A head and reinstalled TDR #2. All generally well.

Twitchell
2013-05-09

Joe, Laurie and I arrived at approximately 08:15 PDT. It was breezy, sunny, and cool, about 16 C. The rice is steadily growing, currently about 10 cm tall. The ~2 m swath in front of the tower is weed-ridden and much taller (~1 m) since it was not plowed. We swapped out the 7500A head (removed s/n 2180, installed s/n 0065). Also reinstalled TDR #2. Iryna joined us at the site. She and Laurie stayed to set out the LAI transect and do field work at the other sites while Joe and I split off to move the corn tower.

7500 readings after swap (s/n 0065):
CO2 = 409 ppm
H2O = 535 mmol m-3
agc = 13.5
p = 102.5 kPa

7700 readings:
CH4 = 1.9 ppm
RSSI = 17.2 (bumped to 60 after cleaning)
The reservoir was almost full, refilled to 100%.

MET looked good. We cleaned the radiation instruments, which were not very dirty. There were no camera pics, I ensured program start upon reinstalling the card.

2 photos found

Ground and radiation sensors not seeing typical rice ground cover
Ground and radiation sensors not seeing typical rice ground cover

View of site
View of site

Graphs display:
6 sets found

12 TW_met graphs found

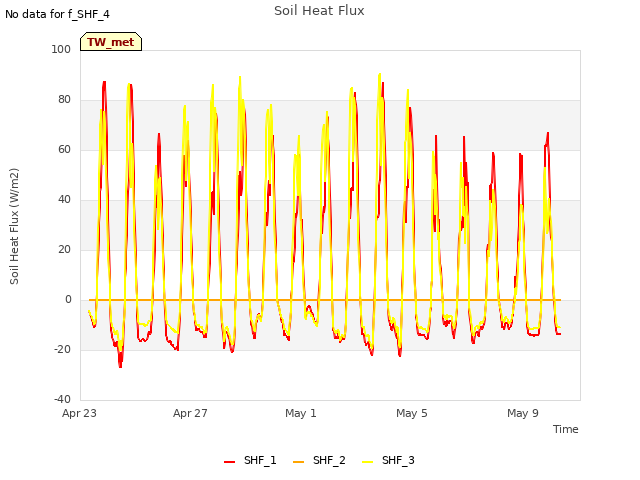

Soil Heat Flux

Solar Radiation

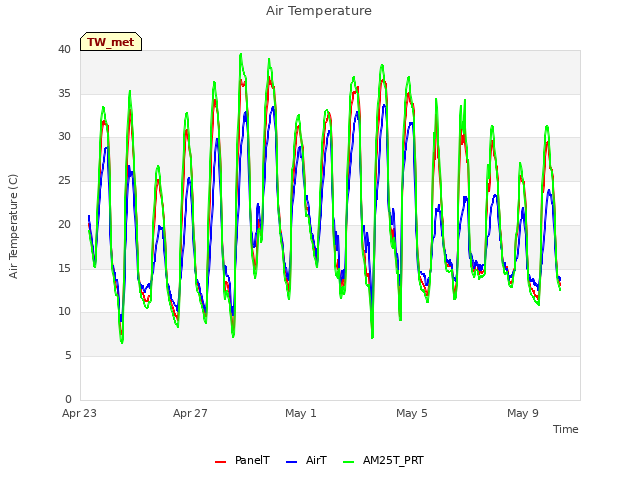

Air Temperature

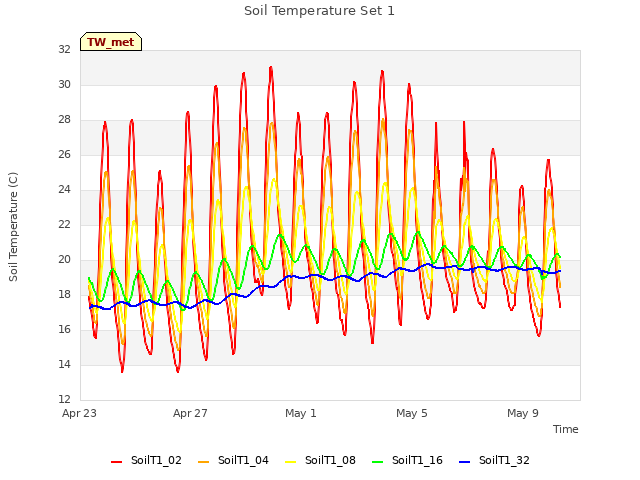

Soil Temperature Set 1

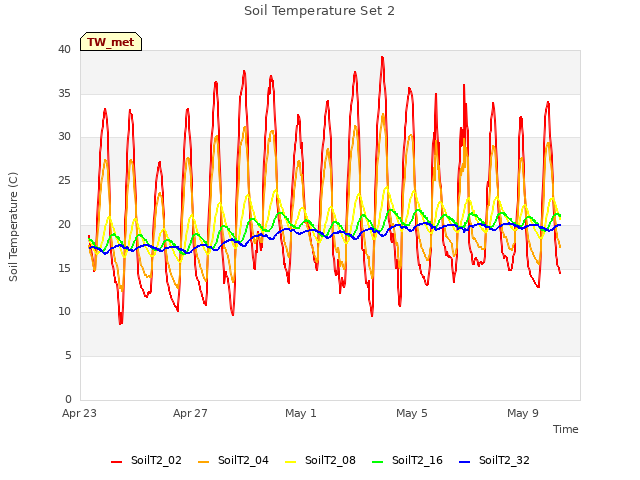

Soil Temperature Set 2

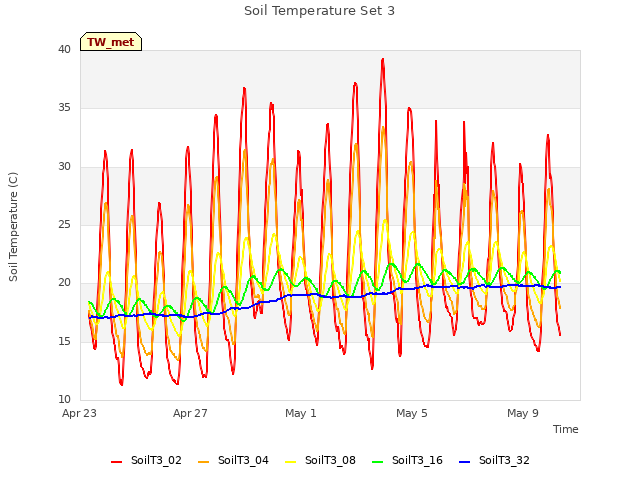

Soil Temperature Set 3

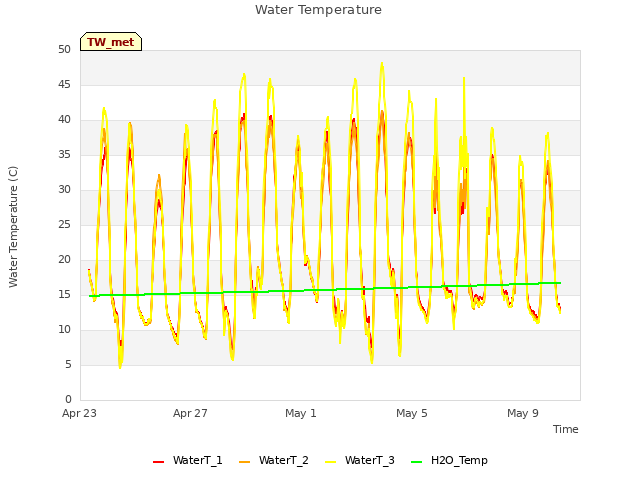

Water Temperature

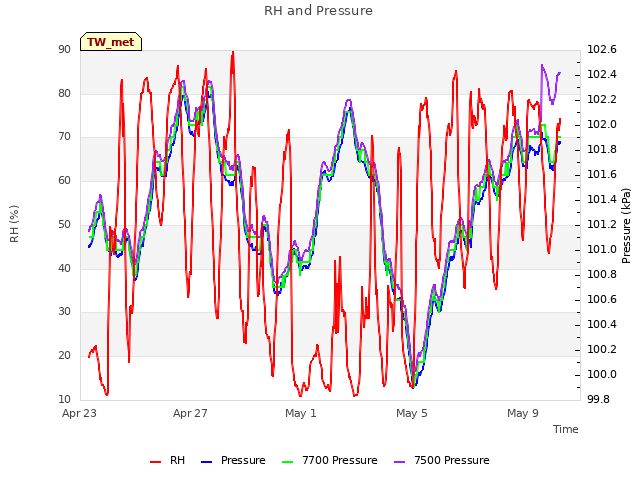

RH and Pressure

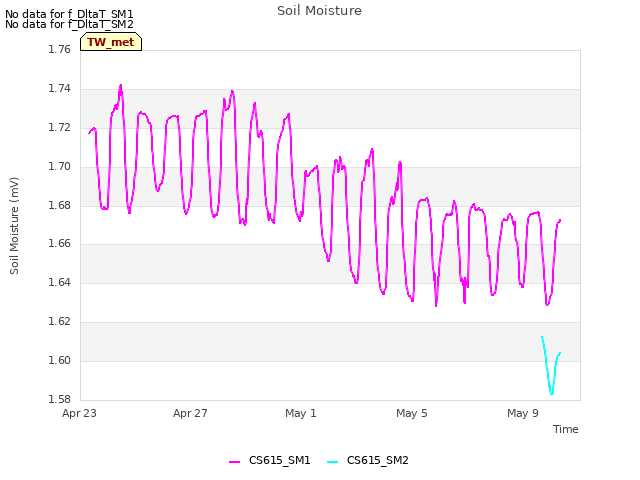

Soil Moisture

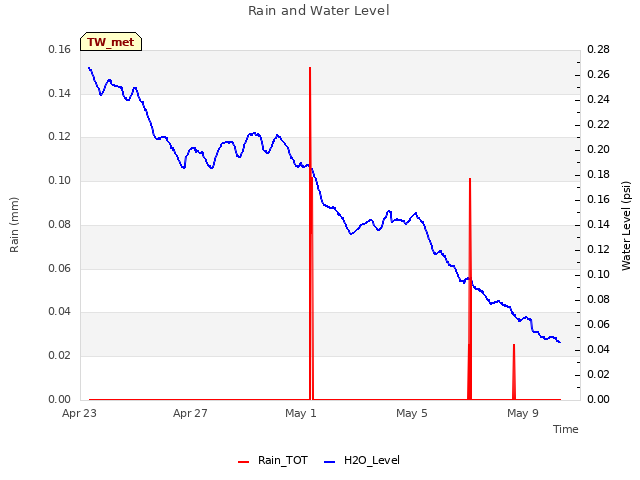

Rain and Water Level

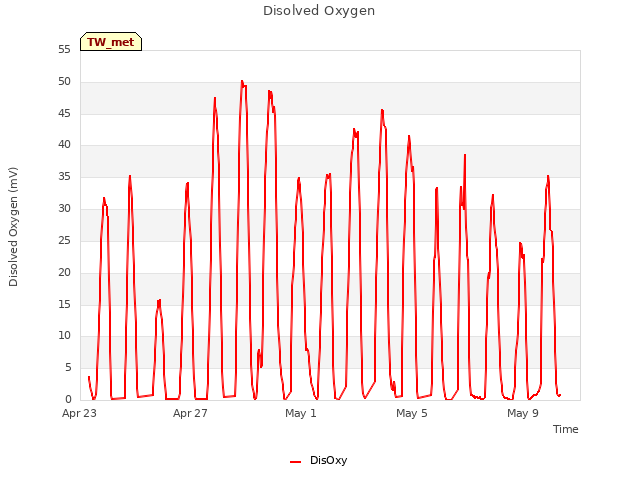

Disolved Oxygen

LED NDVI Channels

5 TW_flux graphs found

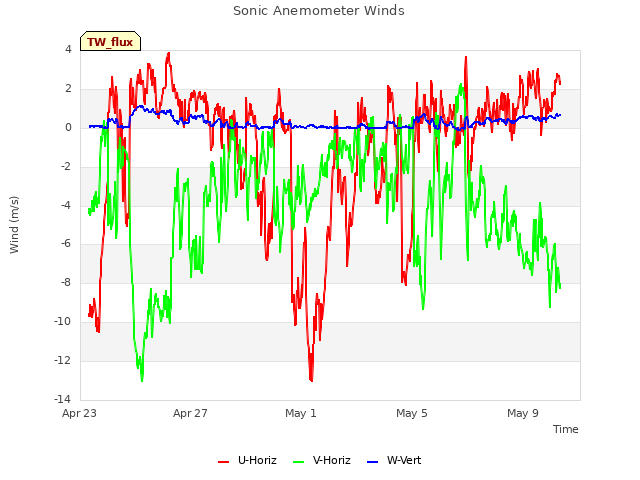

Sonic Anemometer Winds

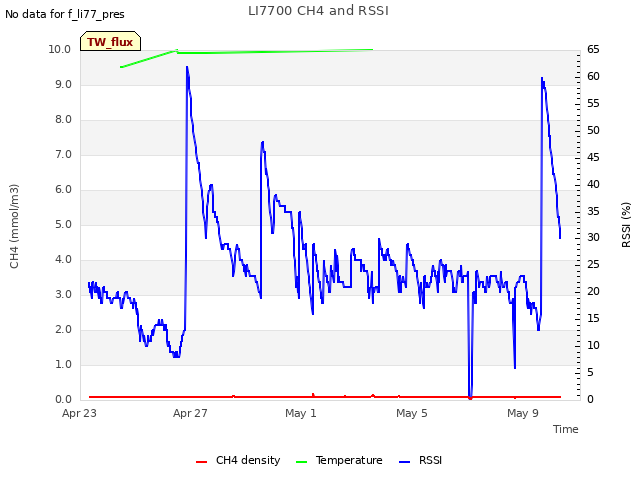

LI7700 CH4 and RSSI

Twitchell CH4

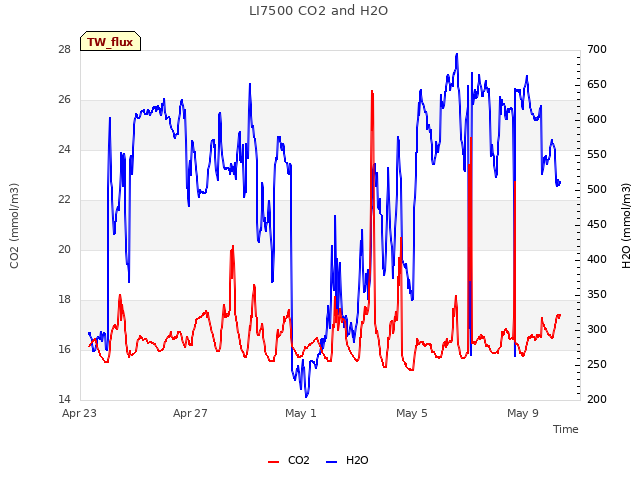

LI7500 CO2 and H2O

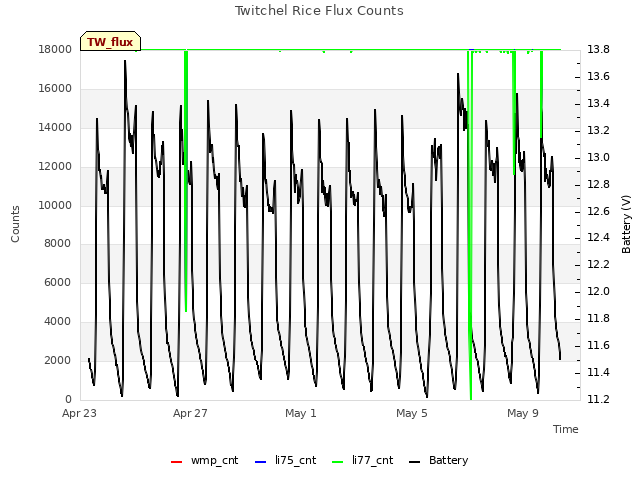

Twitchel Rice Flux Counts

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

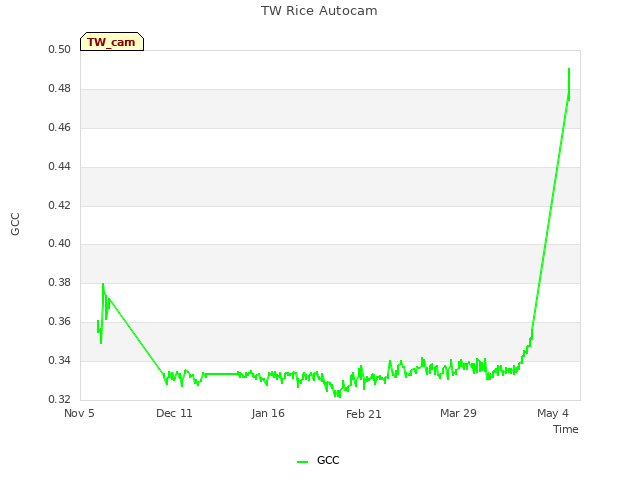

TW Rice Autocam

Can't check TATWBABCSB_cam
