Sherman Island: 2013-02-21 11:40:00 (DOY 52)
Author: Joe Verfaillie
Others: Cove

Summary: All is well, might need to swap LGR.

Sherman
2013-02-21

I arrived about 11:40 with Cove. It was clear, sunny and cool with a light breeze. The cows were hanging out near the tower where they had recently been fed. The field is nearly barren except for the close cropped grass. The water in the ditch along the road and under the bridge is very low.

We check the data and all looked well. The soil heat flux plate (#2) just outside the fence to the south was reading high, but the ground there was getting a lot of direct sun because the cows have eaten all the standing vegetation.

The LGR was reading 139Torr so we did not adjust it. But in slow flow mode it was reading about 30Torr and falling. Next time out we should try swapping it with the one in the lab.

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

Explore the graph:Solar Radiation in a new window

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

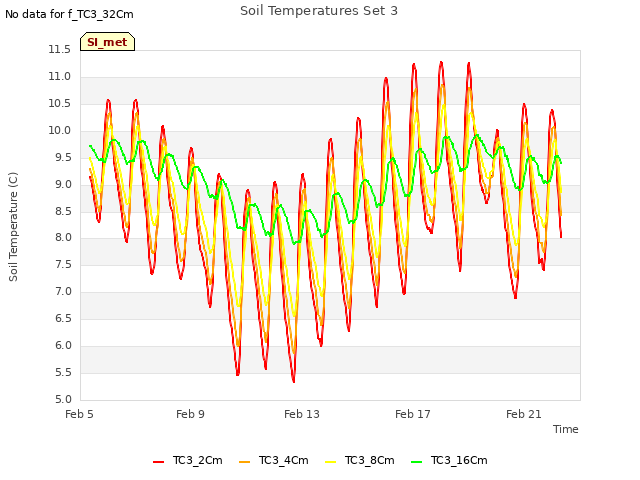

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:LED NDVI Sensor Output in a new window

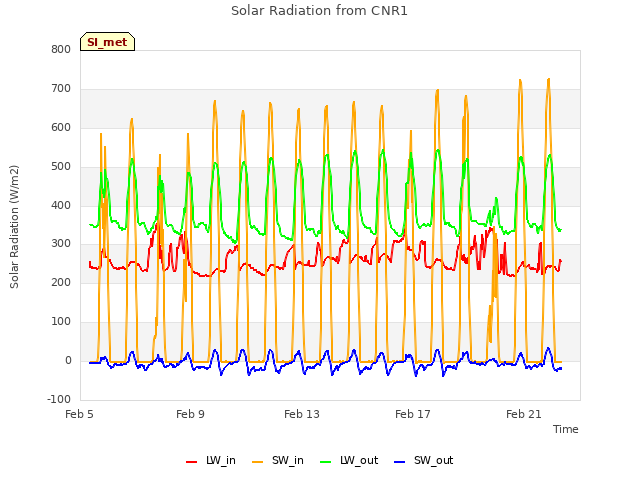

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

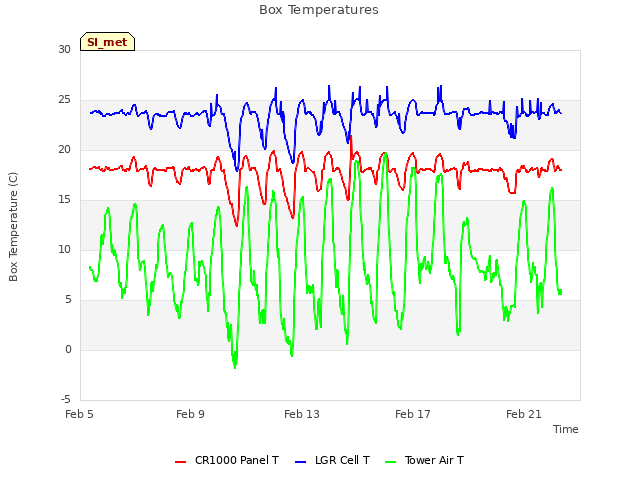

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

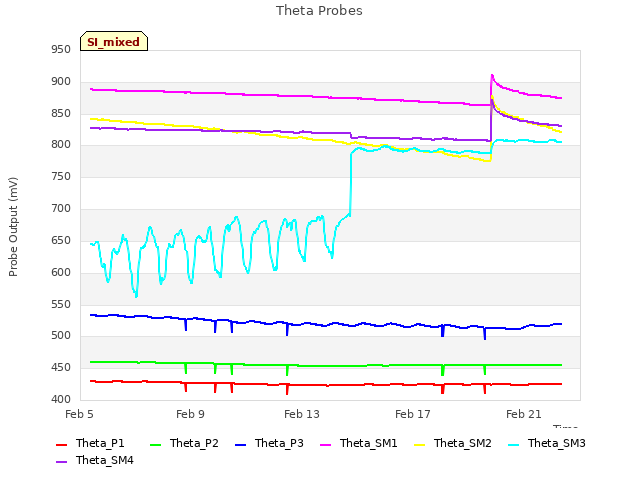

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

3 SI_soilco2 graphs found

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

Explore the graph:Soil CO2 Temperatures in a new window

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
