Field Notes
<--2009-10-02 09:30:00 | 2010-01-08 09:30:00-->Other sites visited today: Tonzi | Twitchell Rice
Phenocam link: Searching...
Vaira: 2009-10-28 08:30:00 (DOY 301)
Author: Joe Verfaillie
Others:
| Vaira

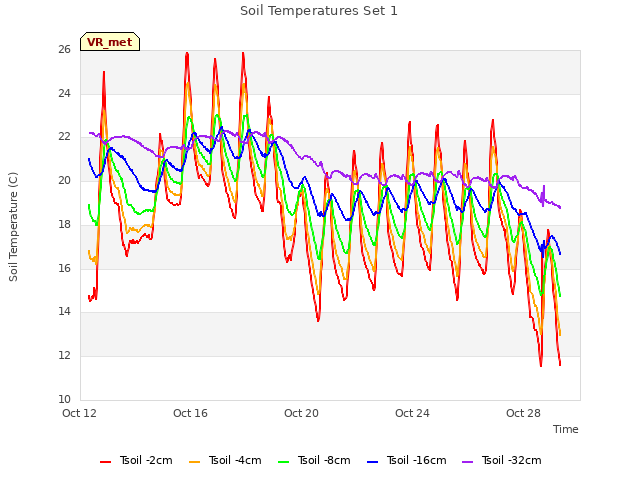

10-28-2009 Arrived about 8:30 PDT. Clear, sunny, cool, breezy. The web camera was down and had not recorded images since Siyan’s last visit. Seems there was some trouble with the network connection. A power cycle of the camera seemed to fix the problem. Recently I had switched the camera to be continuously power rather than switched on and off by the data logger. With the new data logger program (see below) I returned control to the data logger so that the camera is turned on in the morning and turned off in the evening. Images were being collected when I left. I swapped out the AM16/32 connected to the soil temp TCs for an AM25T (sn 3838). I left the old reference temperature for the AM16/32 and continue to record its data fro comparison with the AM25T PRT temperature. New 23x program installed. This is a complete rewrite. Code for turning on and of the web cam has been simplified, and empty channels for “calibration” instruments have been removed. Three zero channels (for 23x, AM16/32, and AM25T) record in the 10mv range. Routines to read the AM25T instead of the AM16/32 have been implemented. Wiring locations for the NDVI sensor have been moved to avoid reading empty channels on the AM16/32. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found
16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
