Field Notes

<--2007-08-10 10:00:00 | 2007-08-23 10:30:00-->
Phenocam link: Searching...

Tonzi: 2007-08-12 17:30:00 (DOY 224)
Author: Youngryel Ryu
Others:

In 12 Aug 2007, I went to Tonz/Vairai sites by myself. I measured spectral reflectance and LAI. At Vaira site, I only measured reflectance around LED sensor and the flux tower. All grass is dead so I did not measure under trees. For Tonzi site, I measured reflectance in reference 1&2 grasses and LAI around tram system. I went up/down the flux tower nearlly 10 times for my mistakes. Finally, I collected 80 pts LAI around tram. Leaves of blue oaks turned to yellow. Dennis said this is a first observation for falling leaves in Aug. It looks due to short growing season length modulated by little precipitation in May and June. Extremely dry and hot. Clear sky, moderate wind at the top of flux tower. Tram did work. I left Berkeley 14:45, arrived in Vaira 16:45, arrived Tonzi 17:30, and left Tonzi 20:30. I prepared Bibimbob for dinner, but forgot to bring a spoon.....

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

21 photos found

Tonzi flux tower
Tonzi flux tower

Reference 1 grass
Reference 1 grass

Reference 2 grass
Reference 2 grass

Leaves of a blue oak in tonzi ranch
Leaves of a blue oak in tonzi ranch

Tram system. It did work
Tram system. It did work

Tram system from flux tower. LAI was 0.74
Tram system from flux tower. LAI was 0.74

Leaves turned to yellow
Leaves turned to yellow

From the top of flux tower. See the colors of trees
From the top of flux tower. See the colors of trees

From the top of flux tower
From the top of flux tower

From the top of flux tower
From the top of flux tower

From the top of flux tower
From the top of flux tower

Radiometer
Radiometer

Reference 2 grass
Reference 2 grass

Reference 1 grass
Reference 1 grass

View of oak savanna with dead grass from tower top
View of oak savanna with dead grass from tower top

Matching two LAI sensors
Matching two LAI sensors

Matching two LAI sensors. I waited until sunset
Matching two LAI sensors. I waited until sunset

Me
Me

Close to sunset. Below part is almost diffused radiation.
Close to sunset. Below part is almost diffused radiation.

Sunset from the top of tower
Sunset from the top of tower

Reference LAI sensor. Almost sunset
Reference LAI sensor. Almost sunset

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

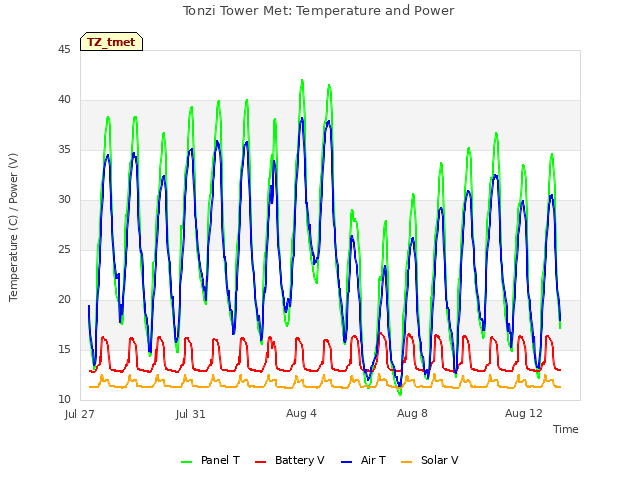

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

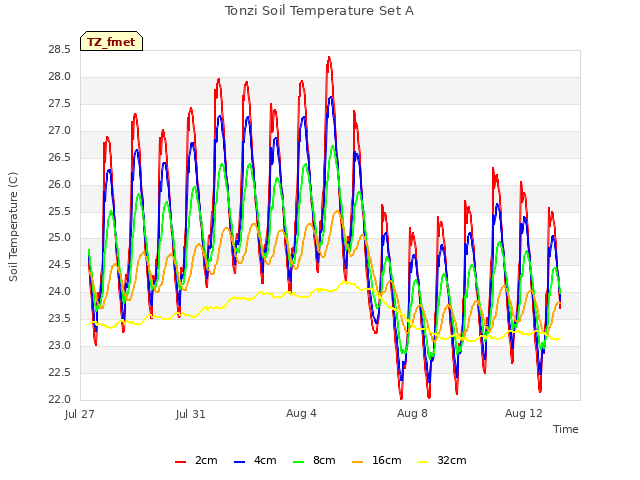

Explore the graph:Tonzi Soil Temperature Set A in a new window

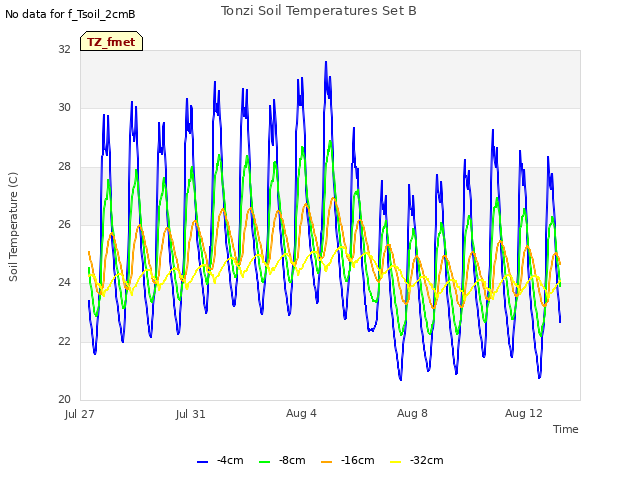

Explore the graph:Tonzi Soil Temperatures Set B in a new window

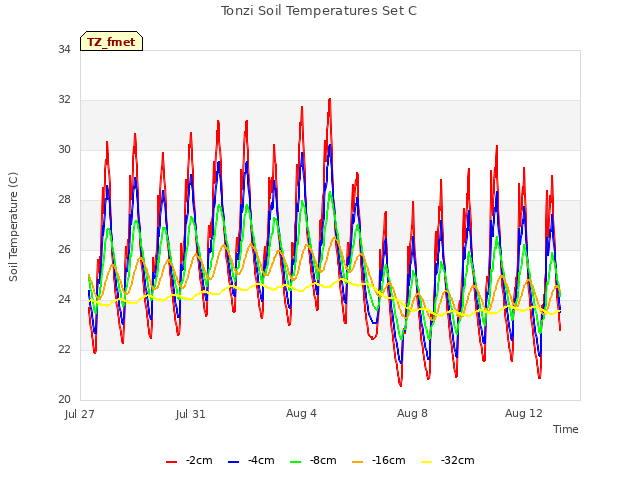

Explore the graph:Tonzi Soil Temperatures Set C in a new window

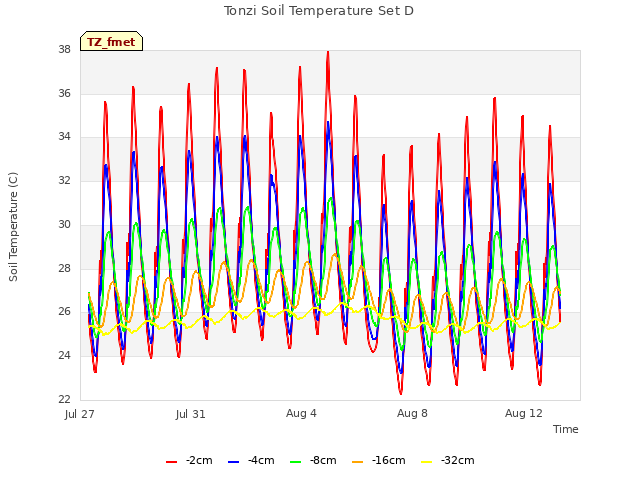

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
3 TZ_co2prof graphs found

Explore the graph:Tower CO2 Profile Concentrations in a new window

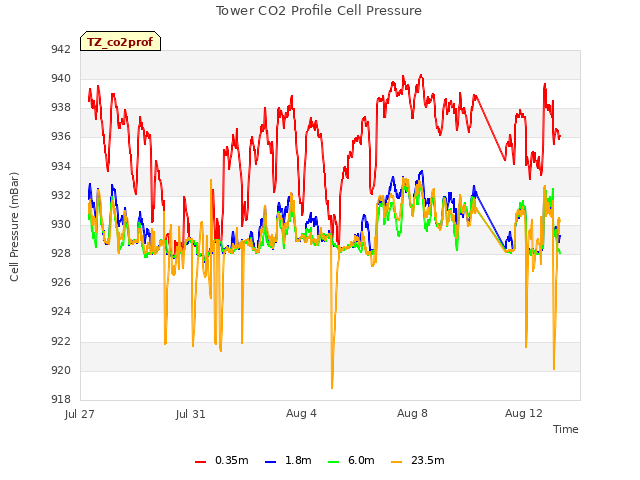

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

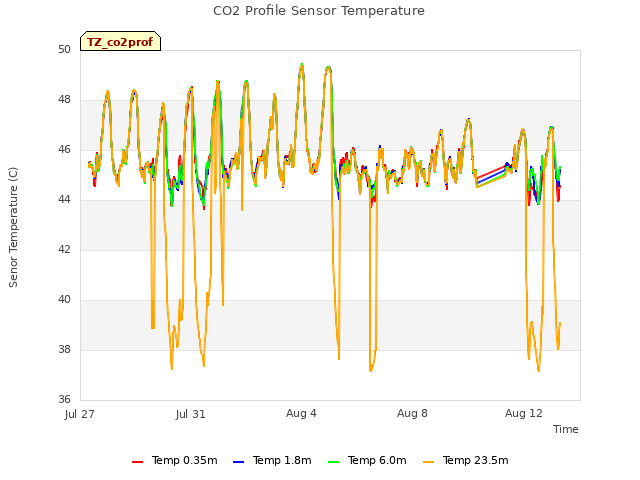

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
1 TZ_windprof graphs found

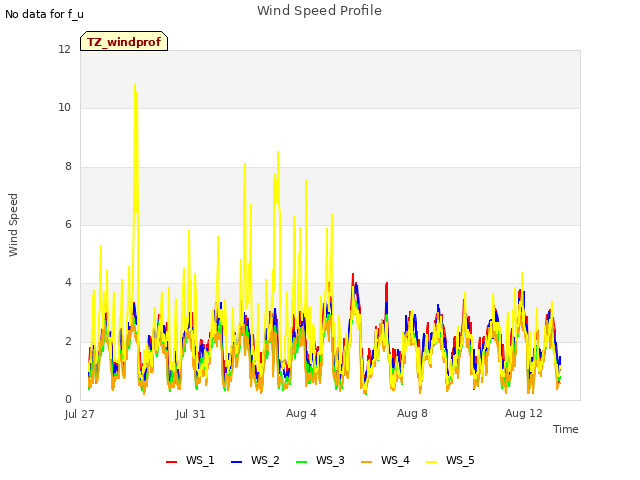

Explore the graph:Wind Speed Profile in a new window

No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

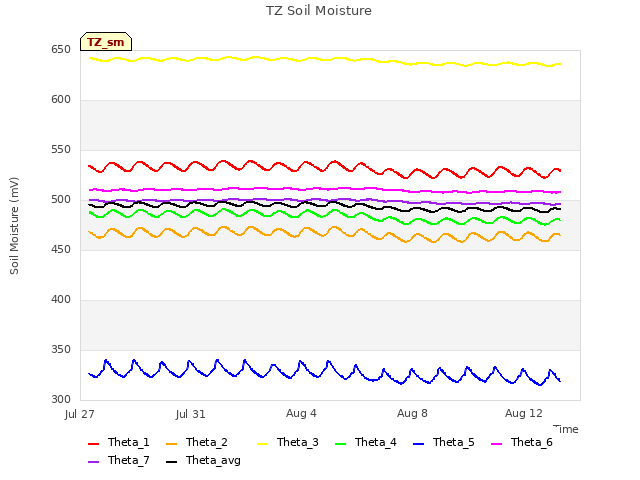

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
