Field Notes
<--2005-12-06 00:00:00 | 2005-12-13 10:30:00-->Other sites visited today: Vaira | Tonzi
Tonzi: 2005-12-13 09:00:00 (DOY 347)
Author: Ted Hehn
Others:
| When: Tue-Wed, 13-14Dec05 JD-347-348
Where: Tonzi Who: Ted Hehn Weather Cool, fog in the morning, clear skies by 9-10 am Trip Purpose Change out system batteries & general site visit Tonzi Ranch: 13Dec05 Tower Install 6 gell cell batts removed from Vaira on tower system. 14Dec05 Tower V = 14.2 SA = 0 LA = 4.1 Charge status 5 blinks => near full charge Install solid state switch on webcam. Failure. Voltage drop across unit is problem. Remove. 12:48 Zero and span Li 820 on profile system. Replace webcam window. Floor 13Dec05 Install 6 new gel cell batts on floor system. Upon power up LI7500 was not working. Power plug was not firmly in place. Push in plug and tighten thread and it begins to function. Soil co2 profile fencer in yellow mode. Batt volts at 13. Something wrong but unable to determine what. 14Dec05 V = 14.1 SA = 15.1 LA = 1.8 Batt stat = flashing green Charge stat = green |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

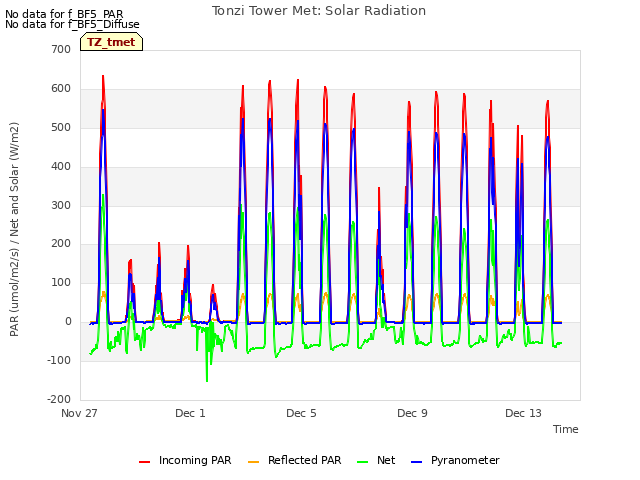

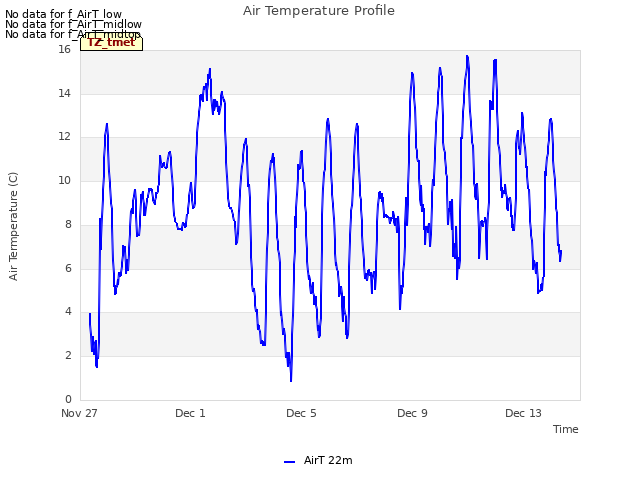

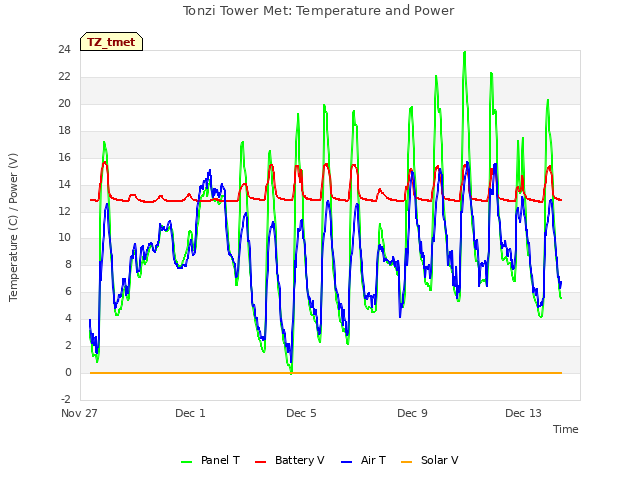

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

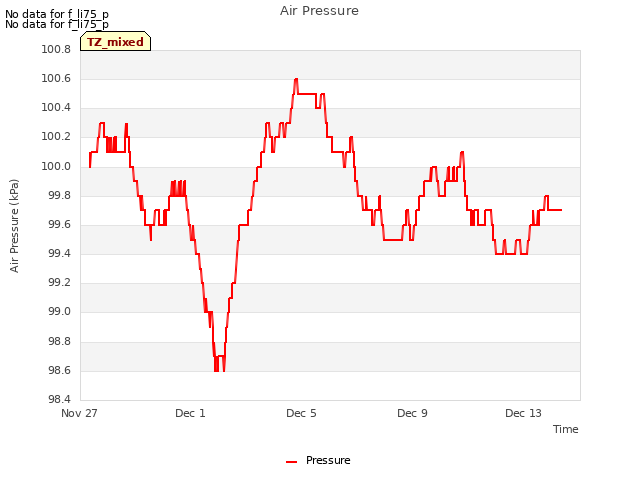

3 TZ_mixed graphs found
No data found for TZ_fflux.

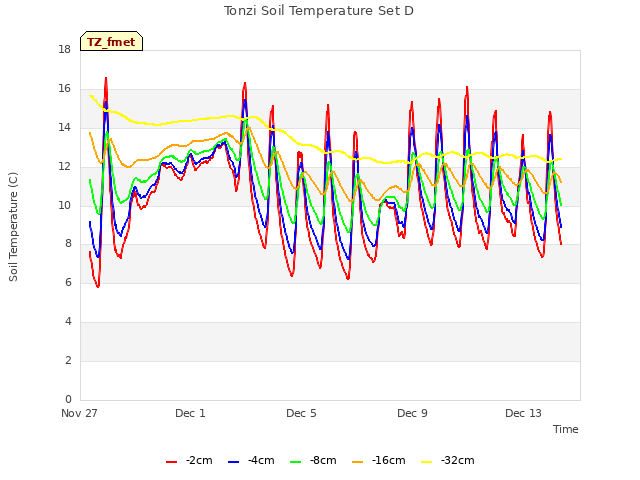

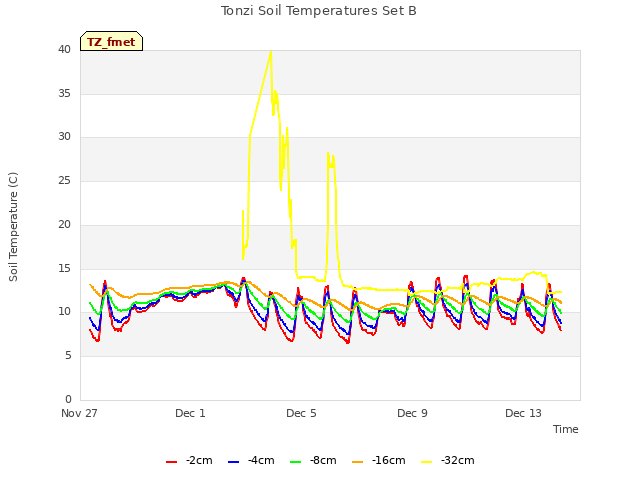

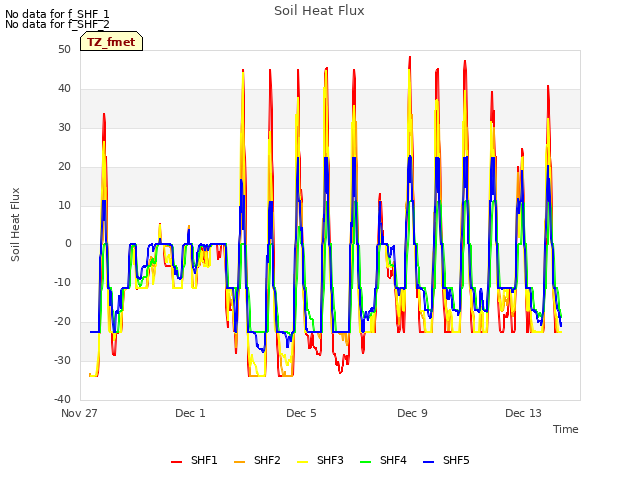

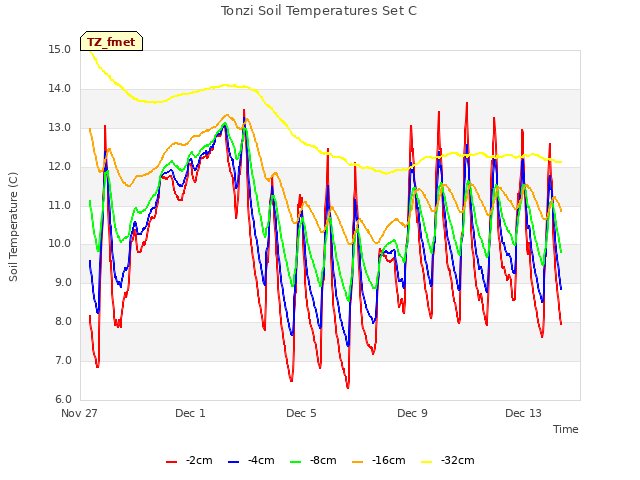

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.

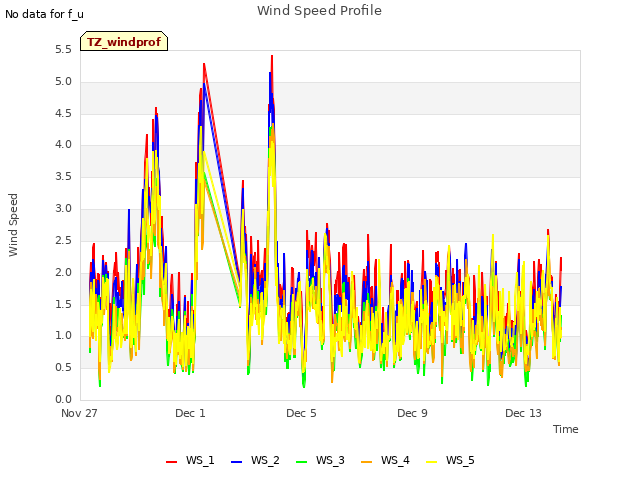

1 TZ_windprof graphs found
No data found for TZ_tflux.

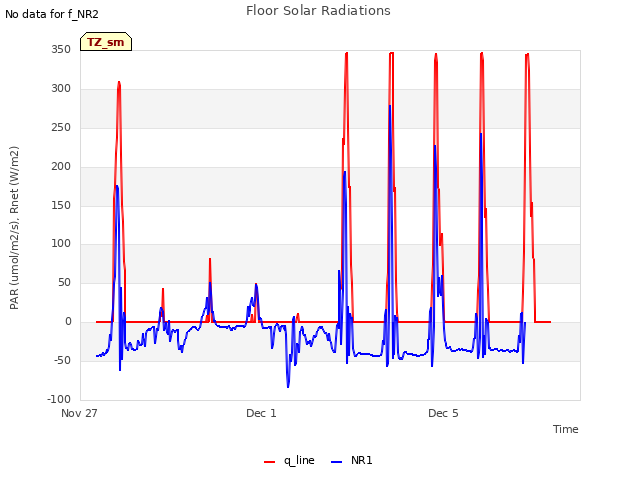

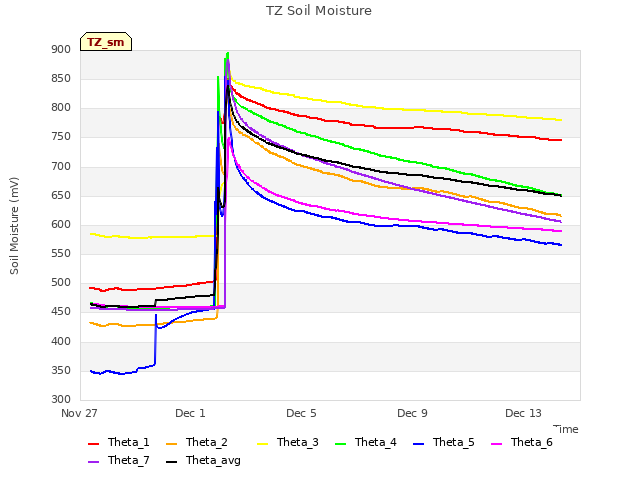

2 TZ_sm graphs found
Can't check TZ_met

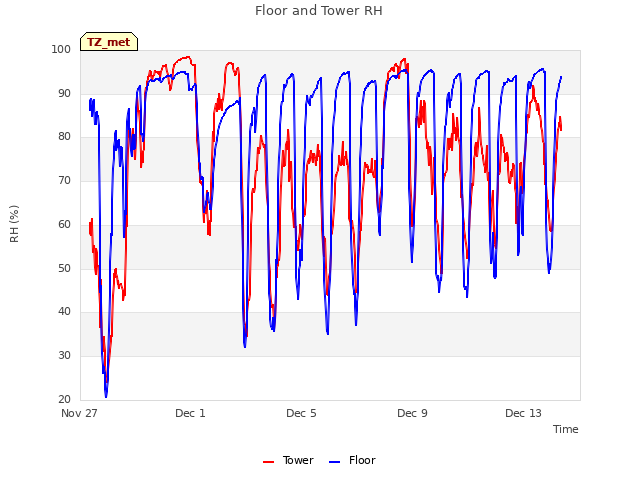

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
