Tonzi: 2010-04-30 06:10:00 (DOY 120)
Author: Siyan Ma
Others:
When: Date: 4/30/2010 ,
Day: 120 ,
Watch Time: 6:10am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather:
clear, beautiful sunshine
Phenology:
A lot of dew on the grass leaf surface in the morning; Grass in reproduction
stage; Yellow flowers, purple; Tree No.92 see acorn follower; Tall
grass at Vaira, as tall as my leg.
Summary
- Tram was working well.
- Pre-dawn leaf water potential: oak leaf= -2.7 bar; pin needle=-6
bar.
- A-Ci curves for oak and gray pine
- check and download data at Tower, Floor, and Vaira
- Didn’t calibrate Li-800 in the field because N2 tank was almost
empty.
- collected samples of oak leaves and pin needles
- dendrometers
- soil moisture
- groundwater well:
Date
|
DOY
|
Location
|
Depth
from the black thing (feet)
|
4/30/2010
|
120
|
Floor
|
20.96
|
|
|
Tower
|
24.4
|
|
|
roadside
|
30.03
|
Vaira_Grass
Site
- Fence and gate power: 12 (was not on) v.
- Panel and Batteries: 13.5 v; 14.6 amps; 3.6
amps.
- Reading from Gillsonic screen
before downloading data. (The value
of H2O and CO2 should be in the range of 0 – 5 v.)
- downloading data YES!
- Check the fans of air temp.
and relative humidity sensors at Vaira. YES!
- Check MD-9 system connections
YES!
- Check CR23X with two
multiplexers
- Check levels of Radiation
sensors, clear up surfaces.YES!
- Check rain gage, make sure
not clogged. YES!
- Closed gate and set up fence.
YES!
Tonzi_Tower Site
- Fence and gate power: 12
v.
- Panel and Batteries: ok
v; ok
amps; ok
amps.
- Reading from Gillsonic screen
before downloading data. (The value
of H2O and CO2 should be in the range of 0 – 5 v.)
- downloading data YES!
- check the fans of air temp.
and relative humidity sensors on the tower and the floor. YES!
- Check rain gage, make sure not
clogged. YES!
- Check calibration cylinders;
CO 2 500 psig; flow psi; 431.25
ppm.
N 2 almost 0
psig; flow psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running Sounds OK.
- close gate and set up fence. YES!
Toniz_Floor
Site
- Fence and gate power: 12
v.
- Panel and Batteries: 14.7
v; 16.7
amps; 1.9
amps. (about
7:00 am local time)
- Reading from Gillsonic screen
before downloading data. (The value
of H2O and CO2 should be in the range of 0 – 5 v.)
- downloading data YES!
- Check MD-9 system
connections YES!
CR23X3 – floor-Met
CR23X5 – soil CO 2
profile
CR23X6 – tower-Met
CR10X2 – floor-Met
- Soil CO2 profile:
no power when I got there. I unplug
and re-plug fuses, then the system back to work.
Reading
from datalogger
Reading
from panels of analyzers
depth
|
Open
|
order
|
depth
|
Tree
|
order
|
2cm
(1%)
|
1300
|
1
|
2cm
(1%)
|
4220
|
1
|
4cm
|
2120
|
2
|
4cm
|
5460
|
4
|
8cm
|
2530
|
3
|
8cm
|
5210
|
2
|
16cm
|
910
|
4
|
16cm
|
1.14%
|
3
|
- clean up flat camera’s
surface. YES!
- Close gate and set up fence. YES!
tonzi
|
7931AFE
|
402165
|
574B4B
|
402FF3
|
574632
|
7A432E
|
7A3C6E
|
7A3B40
|
7A4AAA
|
4/30/2010
|
120
|
|
|
|
|
|
|
|
|
|
sm
|
|
|
|
|
|
|
|
|
0-15
|
44.9
|
29.1
|
41.1
|
34.1
|
38.2
|
37.6
|
27.6
|
26.1
|
22.3
|
15-30
|
40.8
|
39.0
|
40.5
|
37.8
|
40.2
|
27.7
|
30.1
|
31.3
|
18.6
|
30-45
|
45.2
|
46.3
|
44.9
|
40.5
|
46.6
|
34.9
|
32.4
|
34.6
|
33.2
|
45-60
|
42.0
|
56.6
|
66.6
|
50.0
|
45.1
|
36.5
|
45.4
|
51.4
|
29.4
|
|
|
|
|
|
|
|
|
|
|
|
A6D882B
|
A3D04E8
|
A6D72F5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0-15
|
29.4
|
20.9
|
22.0
|
|
|
|
|
|
|
15-30
|
27.1
|
17.6
|
33.5
|
|
|
|
|
|
|
30-45
|
35.4
|
34.3
|
44.6
|
|
|
|
|
|
|
45-60
|
47.1
|
51.4
|
48.0
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
vaira
|
57318a
|
7933dee
|
|
|
|
|
|
|
|
0-15
|
27.9
|
22.9
|
|
|
|
|
|
|
|
15-30
|
27.4
|
30.9
|
|
|
|
|
|
|
|
30-45
|
32.8
|
30.5
|
|
|
|
|
|
|
|
45-60
|
35.3
|
40.4
|
|
|
|
|
|
|
|
Tonzi
|
|
|
|
|
|
Dendrometer
|
|
|
|
|
|
|
|
|
|
|
Date
|
Day
|
Tag #
|
Reading (mm)
|
|
|
4/30/2010
|
120
|
245
|
10.9
|
|
|
|
|
250
|
21.8
|
|
|
|
|
79
|
12.9
|
|
|
|
|
72
|
9
|
|
|
|
|
1
|
19.2
|
|
|
|
|
5
|
12.1
|
|
|
|
|
3
|
17.3
|
|
|
|
|
2
|
10.9
|
|
|
11829
|
|
8
|
16.3
|
|
|
11828
|
|
7
|
15.9
|
|
|
|
|
4
|
8.3
|
|
|
Notes:
“X” means not working any more.
Dendrometers
installed by Gretchen group
|
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
2010-04-30 | TZ_floor | 20.96 |
2010-04-30 | TZ_road | 30.03 |
2010-04-30 | TZ_tower | 24.4 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Water Potential - mode: raw
Time< h> | Species | Tree | readings (bar) |
2010-04-30 04:37:00 |
OAK |
UNKNOWN |
-2 |
-2 |
-2 |
-3.5 |
-3 |
-2.5 |
-2.5 |
-3 |
-4 |
2010-04-30 04:37:00 |
PINE |
UNKNOWN |
-4 |
-7 |
-7 |
-8 |
-6 |
-6 |
|
|
|
2010-04-30 12:02:00 |
OAK |
UNKNOWN |
-9.5 |
-8.5 |
-13.2 |
-14.5 |
-4.1 |
-21 |
-13.6 |
|
|
2010-04-30 12:02:00 |
PINE |
UNKNOWN |
-17.5 |
-15.5 |
-7.9 |
|
|
|
|
|
|
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
15 photos found
caption
caption
caption
caption
caption
caption
caption
caption
caption
caption
caption
caption
caption
caption
caption
16 sets found
No data found for TZ_Fenergy.

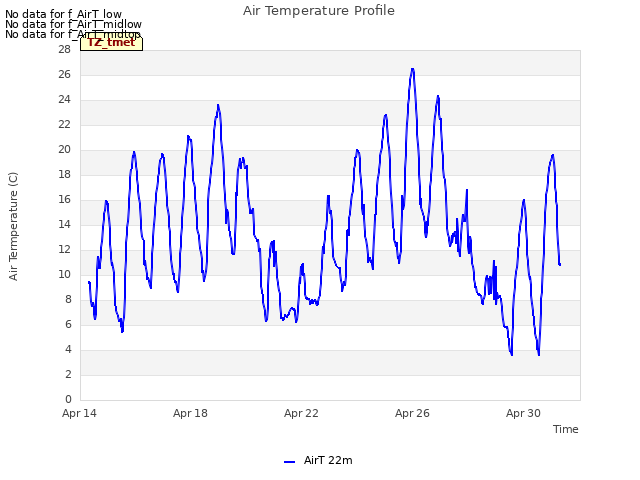

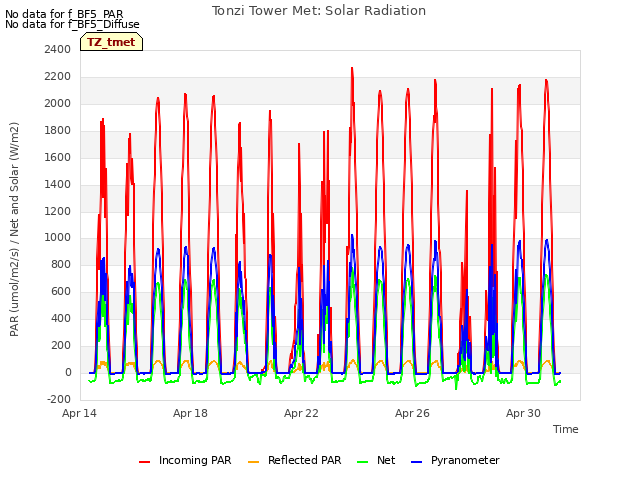

11 TZ_tmet graphs found

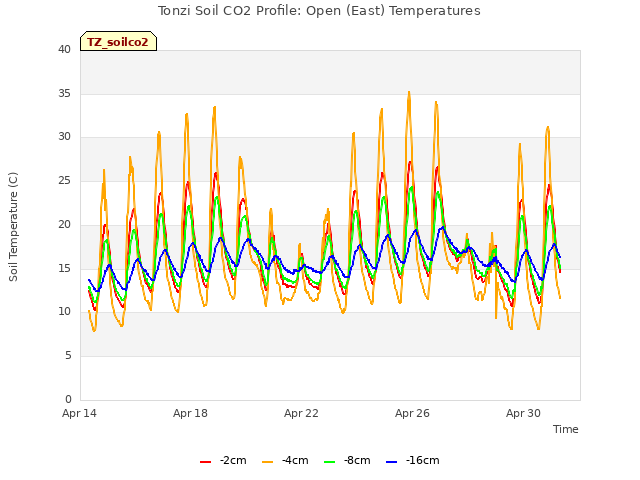

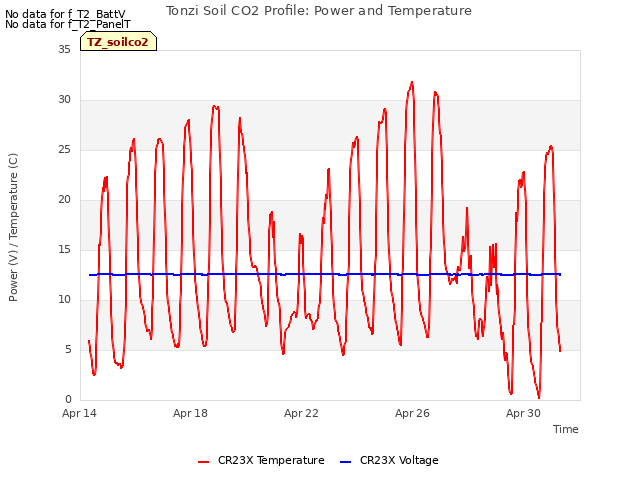

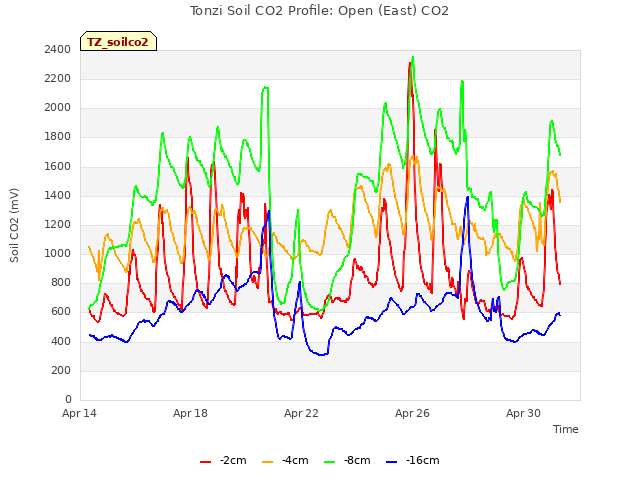

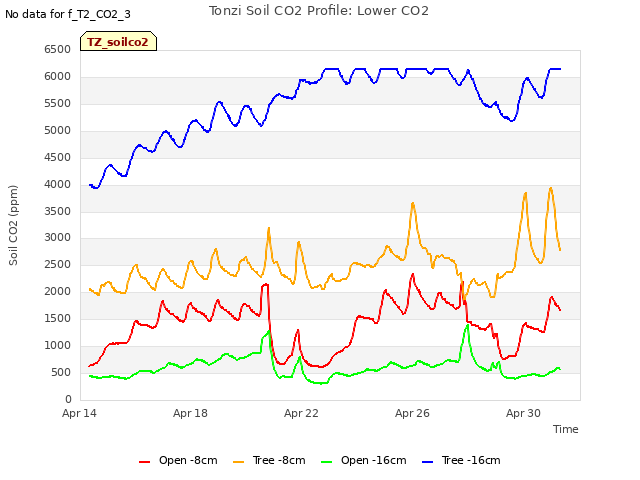

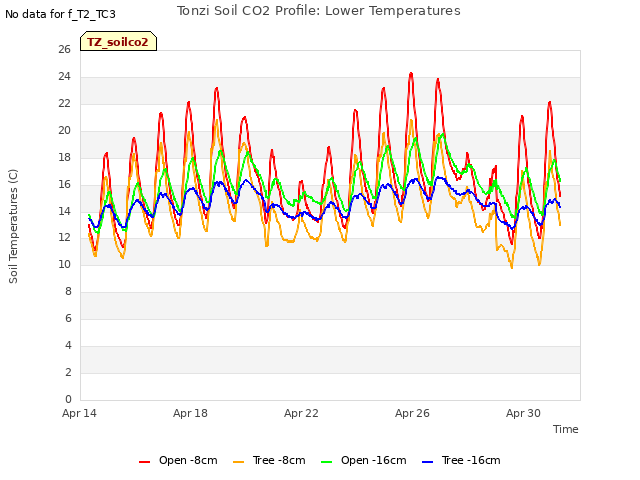

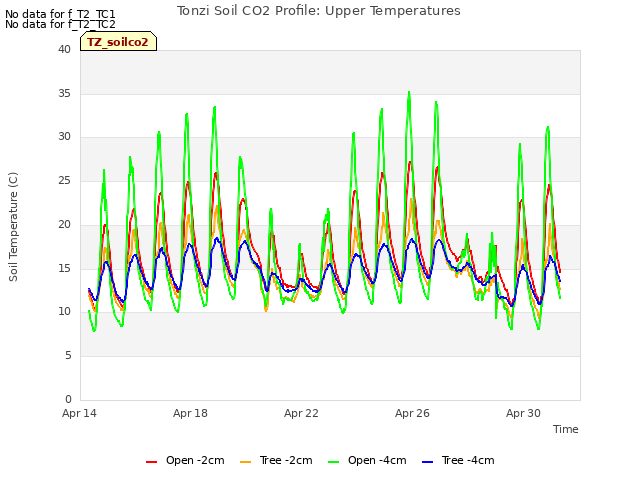

11 TZ_soilco2 graphs found
Can't check TZ_mixed

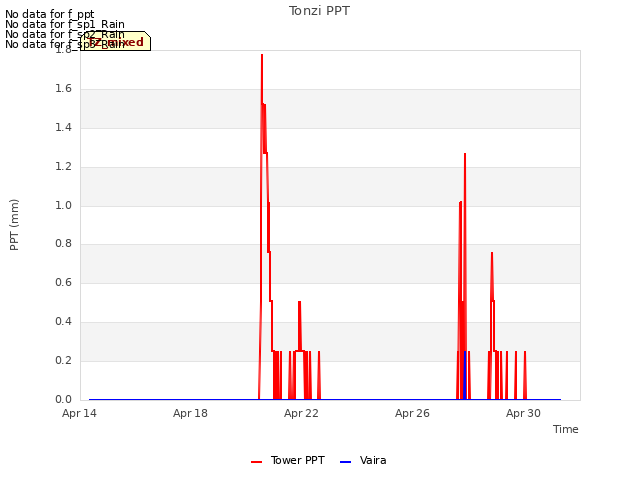

3 TZ_mixed graphs found
No data found for TZ_fflux.

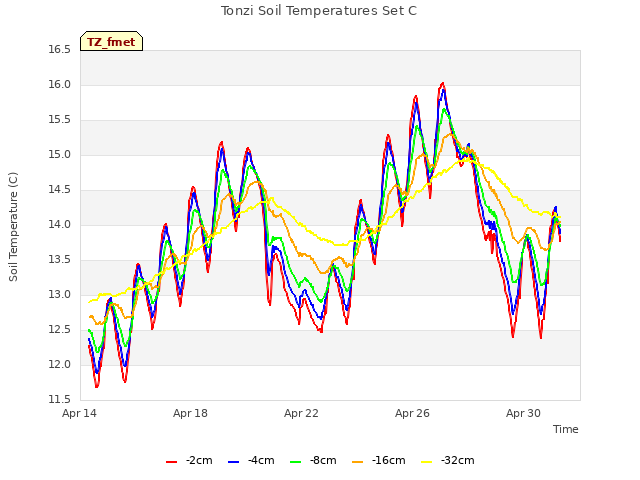

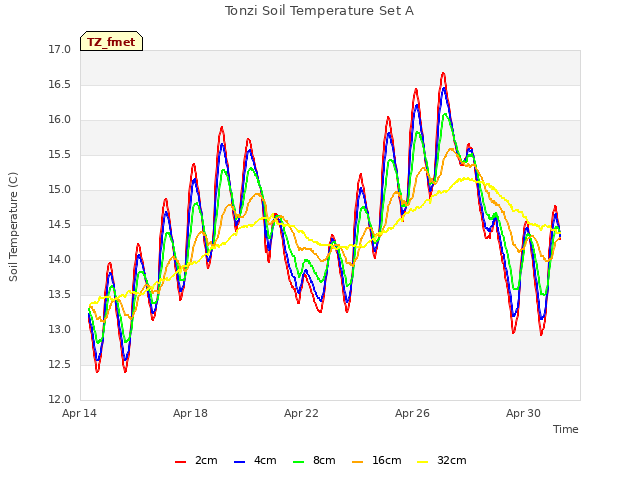

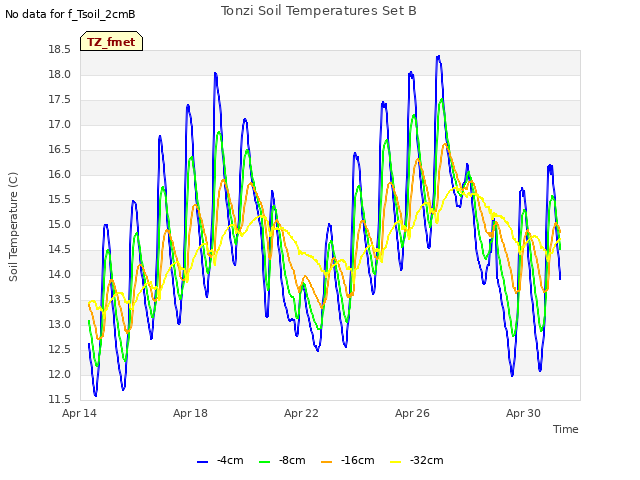

8 TZ_fmet graphs found
1 TZ_tram graphs found

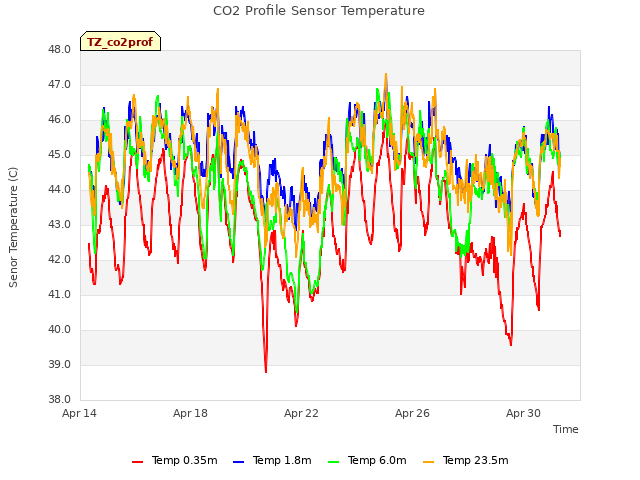

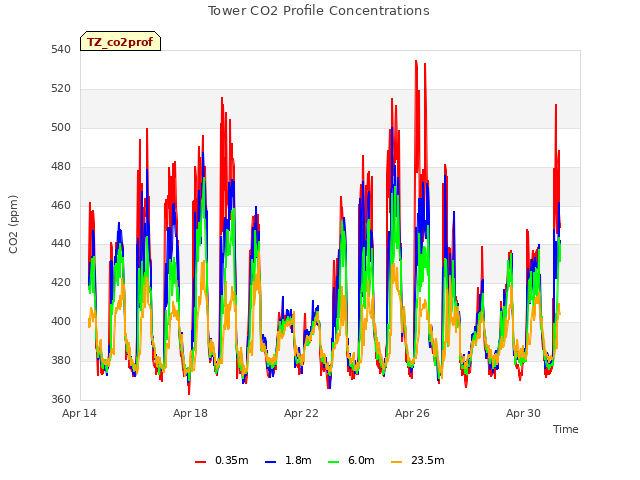

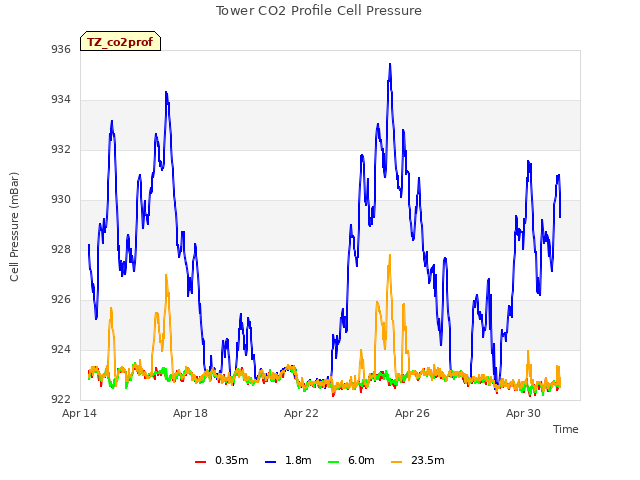

3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found
Can't check TZ_met

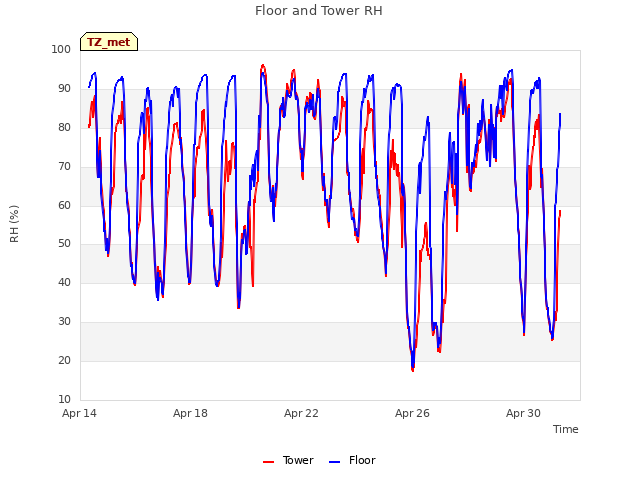

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
|
|
