When: Date: 8/5/2005 , Day: 216 , Watch Time: 10:00 .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: Clear
Phenology: dead grass

Tasks

1. check Flux systems, download data (Floor met D168-173)
2. leave samples in Tonzi

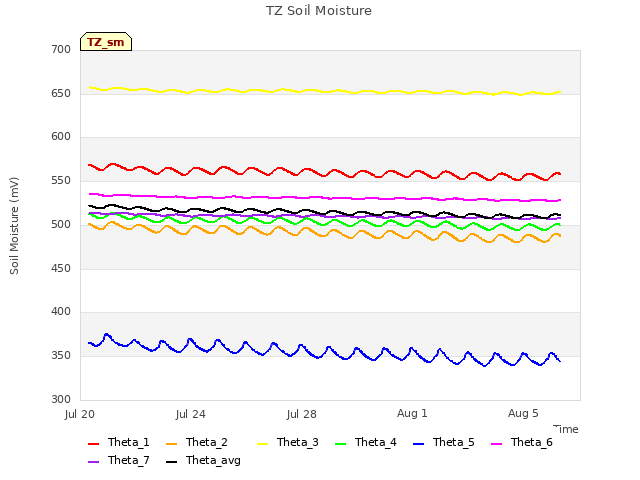

3. soil moisture
4. dendrometer
5. Alexander’s isotope samples

Vaira_Grass Site

1. Fence and gate power: >12 v.
2. Panel and Batteries: 13.4 v; 13.5 amps; 2.0 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time	9:08:34
Path/File name	D:\data\VR05_216.flx D:\data\VR05_2160800.raw
	mean	std		mean	std
w	0.29	0.226	Ts	30.389	2.489
u	-0.6	0.733	H2O	2.534	0.039
v	0.21	0.489	CO2	1.458	0.052

1. Reading from Gillsonic screen after downloading data or swaping Li-7500 Analyzer. (Remove SN# 73 ; install SN# 35 )

Time	9:22:00
Path/File name	D:\data\VR05_216.flx D:\data\VR05_2160800.raw
	mean	std		mean	std
w	0.080	0.231	Ts	32.930	1.056
u	1.57	0.961	H2O	2.416	1.254
v	0.01	0.949	CO2	1.571	0.594

1. Check CR23X with two multiplexers

Sys_vot = 2.57
PC_start = 1.4232

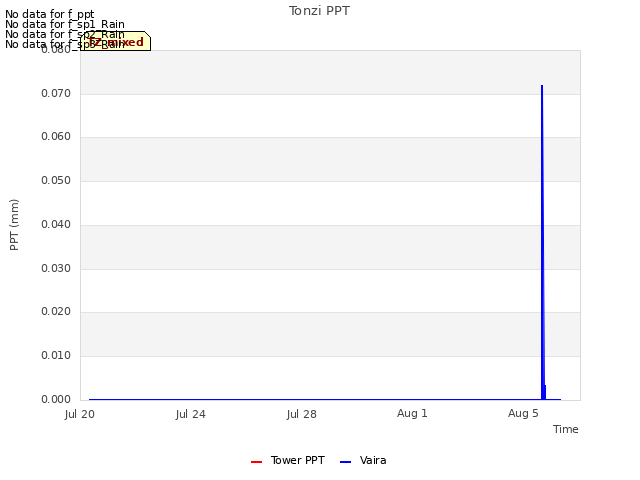

Precip multiplier = 0.254, so unit should be in “mm”, but precip output looks too small.
Some wires were on the edge of enclosure door. Not good for a long term.
6. Closed gate and set up fence.

Tonzi_Tower Site

Ted was working on CO2 profile system.
I didn’t download data and do any check, just swap Licor-7500. (Remove SN# 65 ; install SN# 42 ). Looks work well afterwards.

Toniz_Floor Site

1. Fence and gate power: >12 v.
2. Panel and Batteries: 13.6 v; 13.3 amps; 2.2 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time	11:11:02
Path/File name	D:\data\FL05_216.flx D:\data\fl052161100.raw
	mean	std		mean	std
w	-0.24	0.235	Ts	34.606	1.618
u	0.19	0.478	H2O	2.477	0.071
v	0.44	0.418	CO2	1.388	0.026

1. Readings were OK from Gillsonic screen after downloading data or swaping Li-7500 Analyzer. (Remove SN# 41 ; install SN# 418 )
2. Close gate and set up fence.

• LI-cor 7500 #418 and #35 were repaired in Licor recently.

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
D187
Jul 6 2005	Ted & Alexanda
0-15	7.2	4.9	11.1	5.1	5.3	5.6	5.0	3.6	0.9
15-30	13.0	14.9	15.2	12.0	11.3	7.4	13.0	12.5	2.1
30-45	18.1	6.0	18.9	15.2	9.5	9.8	14.5	16.7	13.0
45-60	13.5	3.4	4.1	12.8	13.7	10.7	13.4	19.5	9.8
	A6D882B	A3D04E8	A6D72F5
0-15	7.0	6.9	1.4
15-30	8.1	8.1	11.4
30-45	17.2	18.7	14.0
45-60	18.4	19.5	3.7
vaira	57318a	7933dee
0-15	11.1	3.3
15-30	6.0	9.3
30-45	13.8	12.6
45-60	16.9	18.2

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
8/5/2005	187	71	22.5
		72	23.2
		77	-
		78	-
		79	22.9
		245	19
		248	22.7
		250	21.7
		255	22.3
		‌252‌ 120	7.0

Sample vial	What
MIBA-US-01.__90__	Leave 1
MIBA-US-01._91___	Leave 2
MIBA-US-01. __-__	Grass 1
MIBA-US-01. __-__	Grass 2
MIBA-US-01. __92__	Surface Litter
MIBA-US-01. __93__	Soil in 7cm
MIBA-US-01. __94__	Stem 1
MIBA-US-01. __95__	Stem 2
