Vaira: 2021-05-19 10:45:00 (DOY 139)
Author: Joe Verfaillie
Others: Dennis

Summary: Standard data collection, still a little green grass, went to the pond

Vaira
2021-05-19

Dennis and I arrived at about 10:45 PDT. It was clear sunny and mild with a cool breeze from the SSW. Itâ€™s actually greener here than I expected. The hills on the way up looked very brown, but there is still some green grass here. The water hole is about half full. A lot more dandelion tufts than usual I think and dead clover.

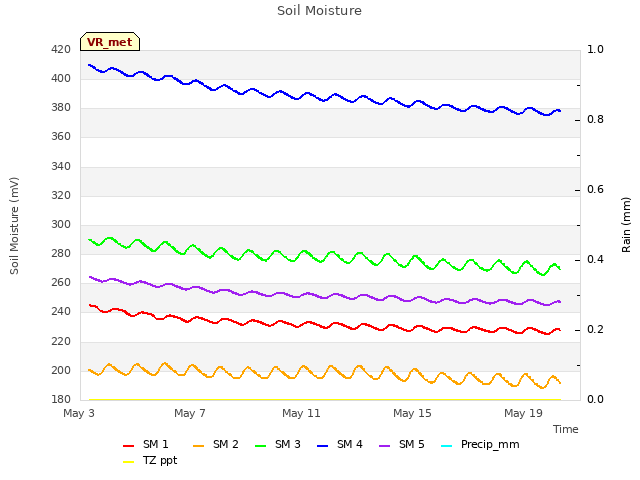

Dennis did soil moisture and the well reading.

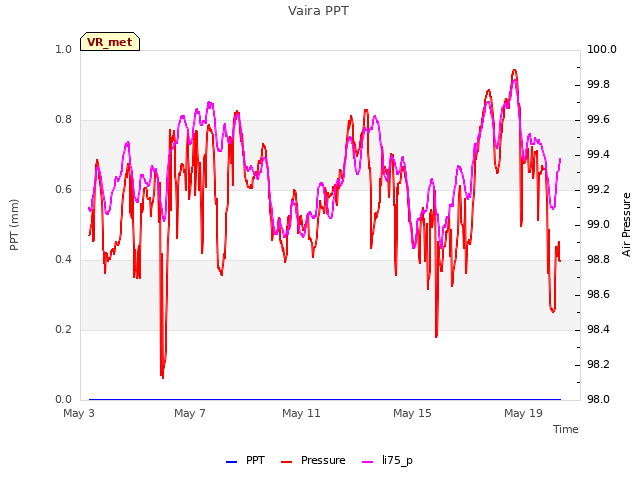

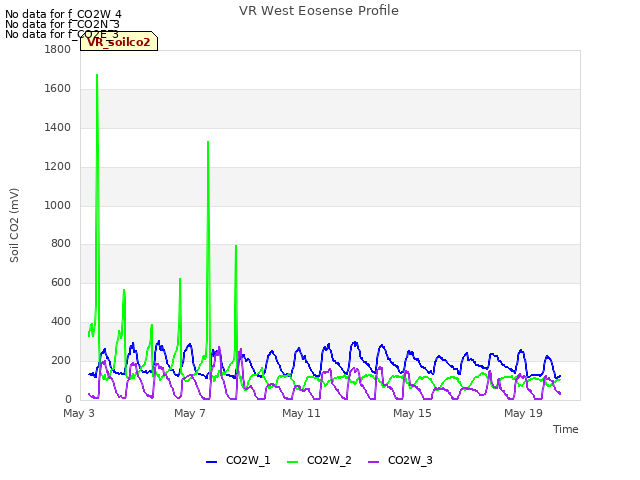

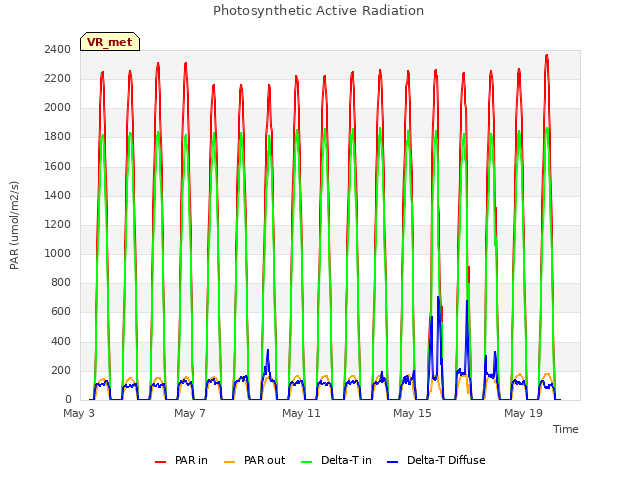

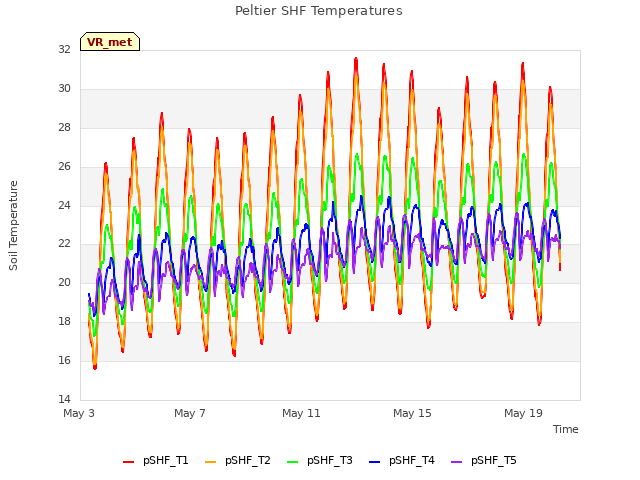

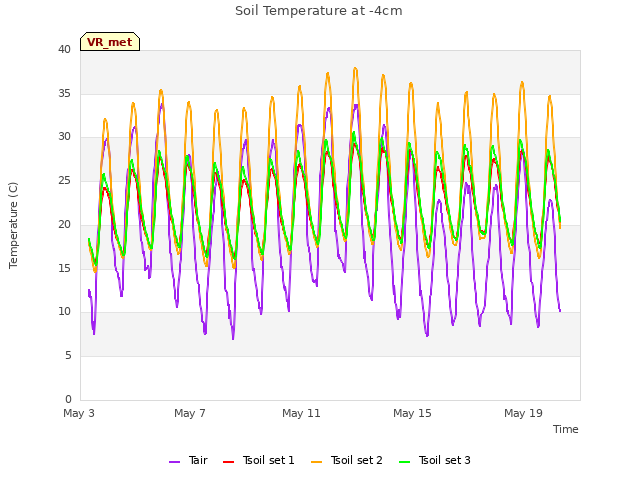

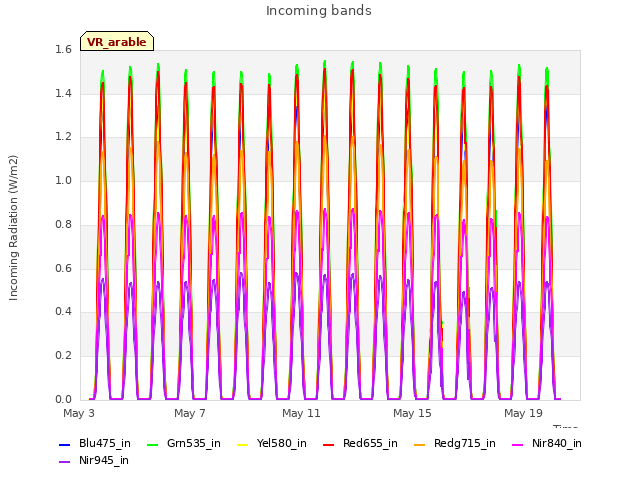

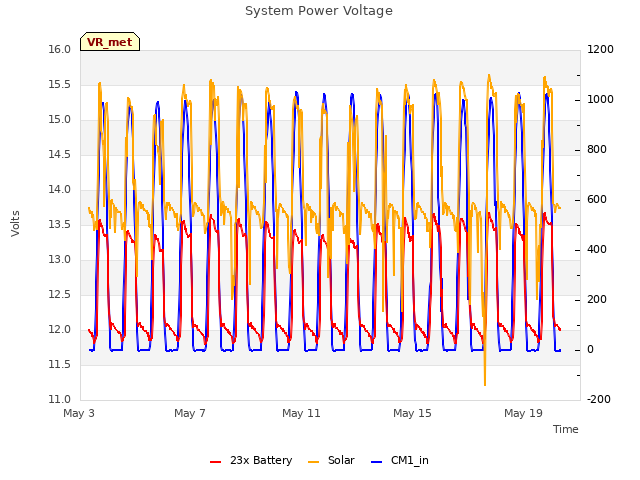

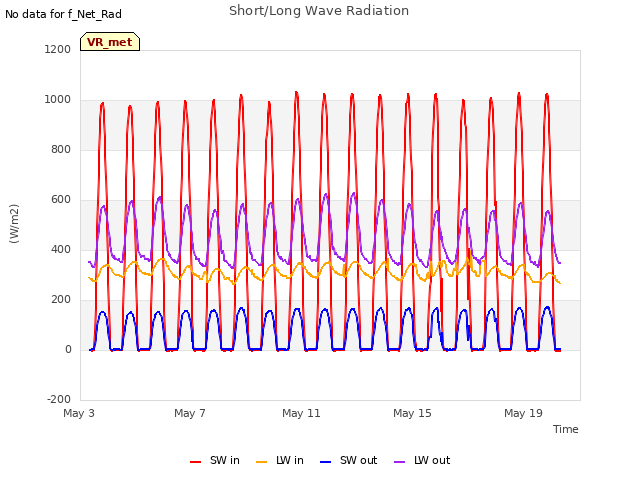

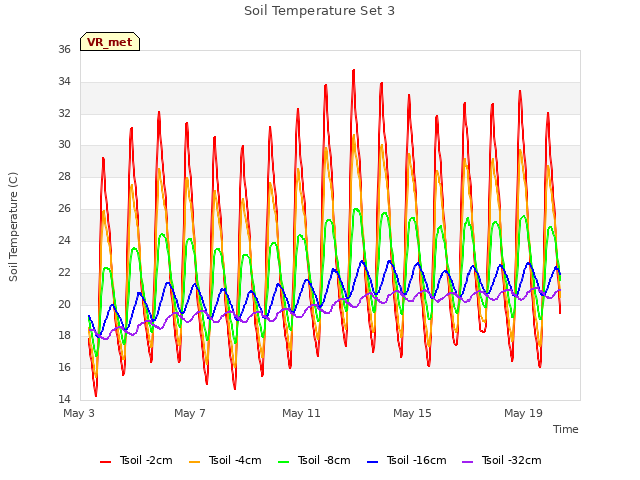

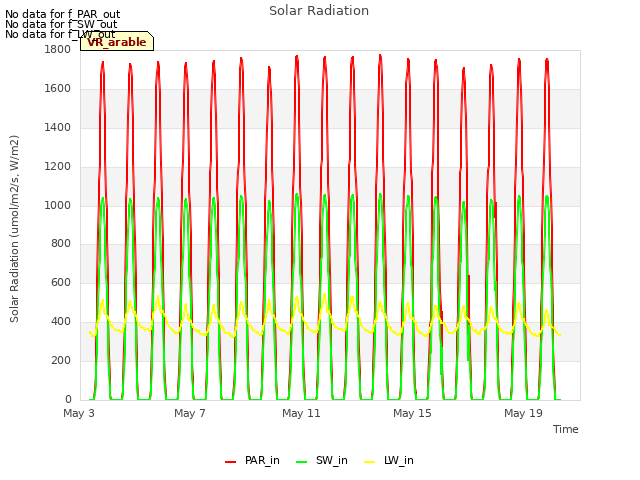

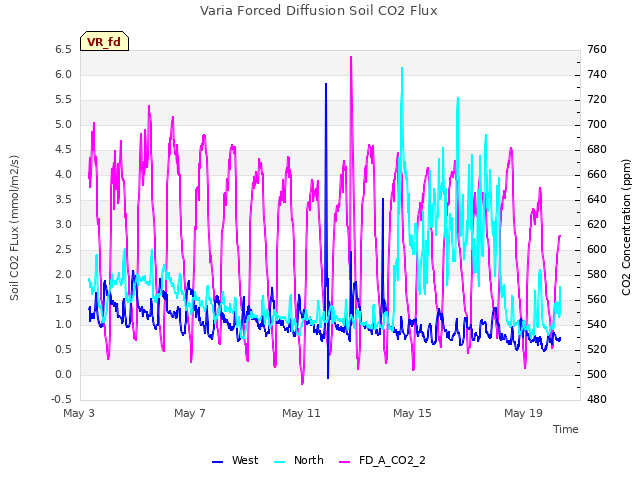

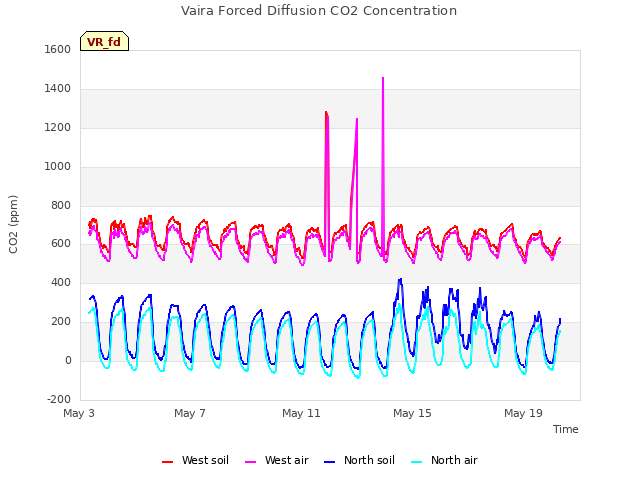

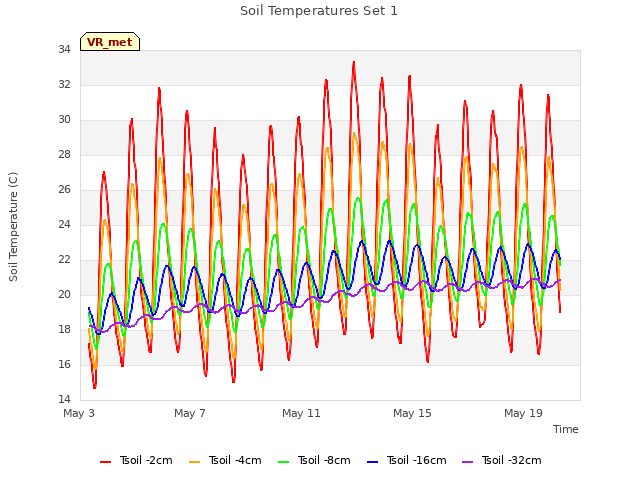

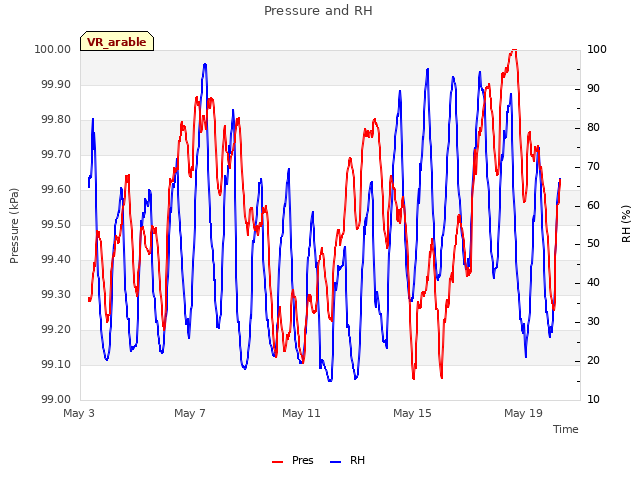

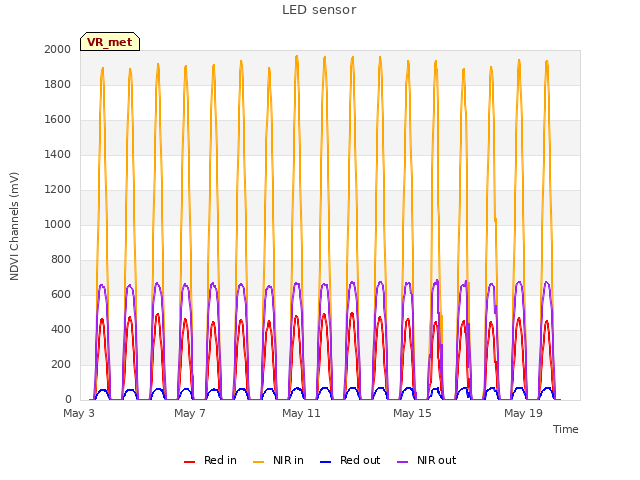

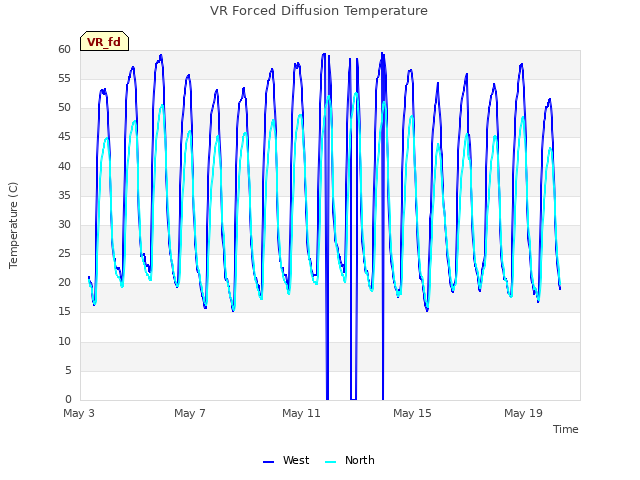

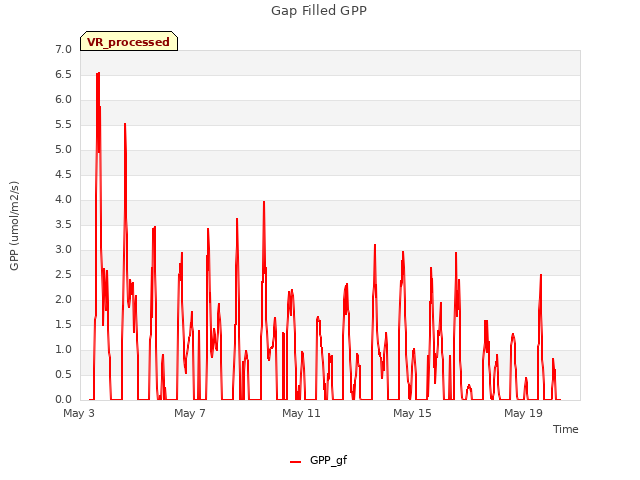

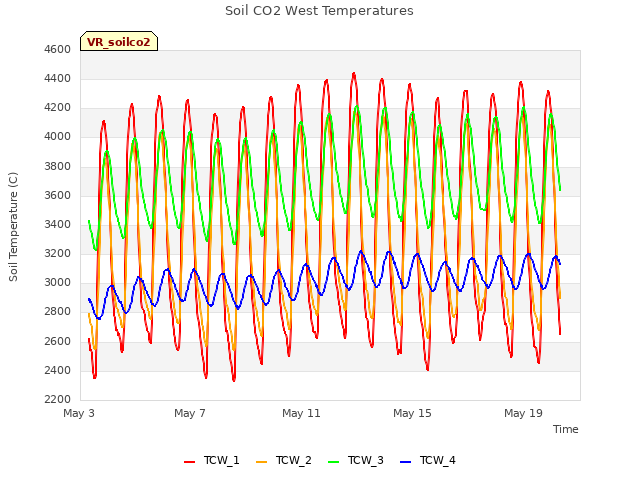

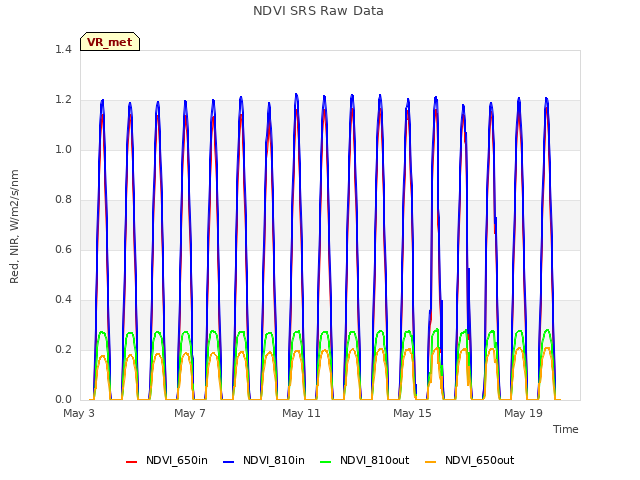

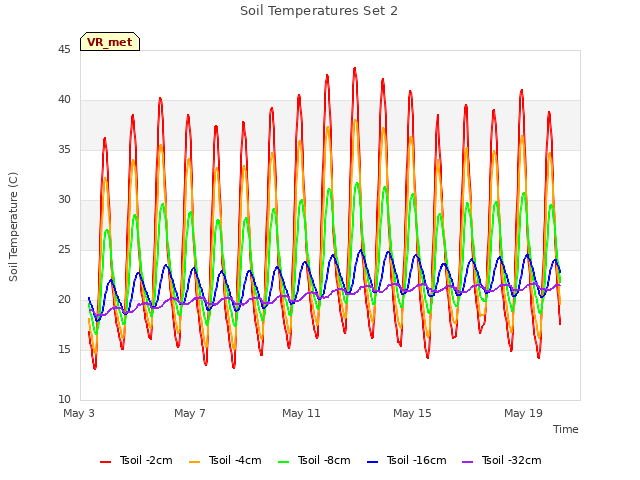

I collected met, flux, camera and FD data. All looked well.

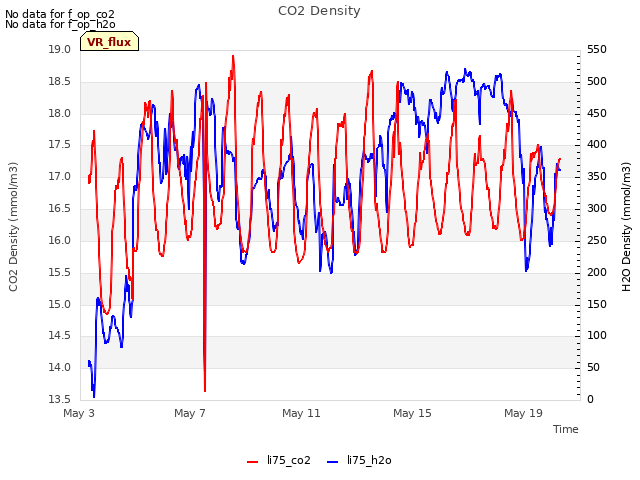

The 7500 read: 413.1ppm CO2, 295.0mmol/m3 H2O, 20.6C, 99.4kPa, 103.2SS

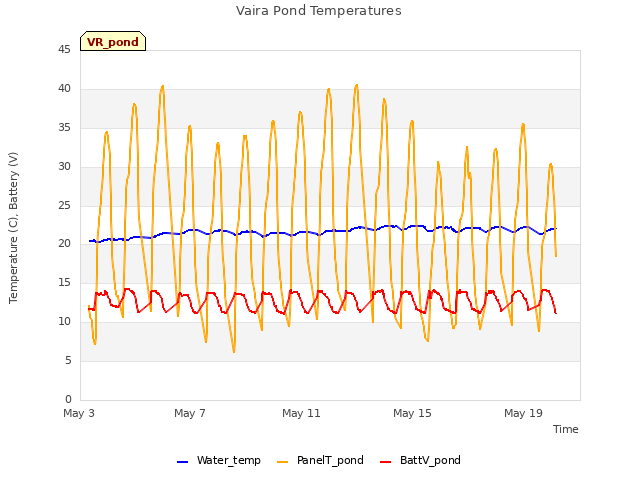

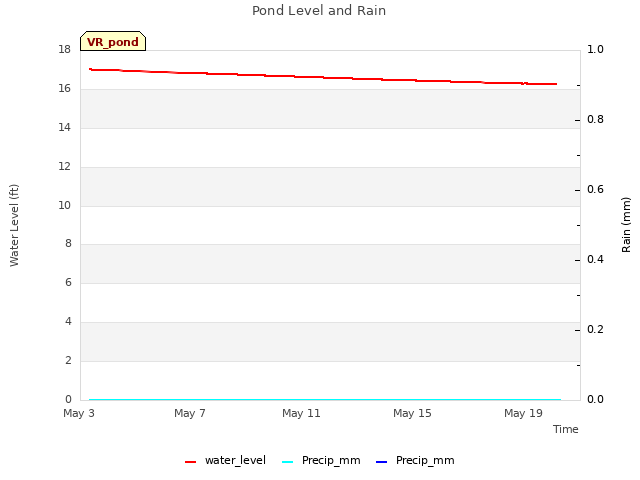

We went to the pond. Back in the lab looking at the data, the pond data logger has been losing data. Probably the battery is wearing out. Might try a lithium power pack.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2021-05-19	TZ_floor	30.45
2021-05-19	TZ_road	38.5
2021-05-19	TZ_tower	34.7
2021-05-19	VR_well	56.8
2021-05-19	VR_pond	16.3

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_3_1 [3] => Soil_Transect_2_1 [4] => Soil_Transect_1_1 [5] => SoilCO2_West_A_1 [6] => SoilCO2_West_B_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Soil_Transect_4_2 [10] => Soil_Transect_3_2 [11] => Soil_Transect_2_2 [12] => Soil_Transect_1_2 [13] => SoilCO2_West_A_2 [14] => SoilCO2_West_C_2 [15] => Tower_3 [16] => Floor_South_3 [17] => Soil_Transect_4_3 [18] => Soil_Transect_3_3 [19] => Soil_Transect_2_3 [20] => Soil_Transect_1_3 [21] => SoilCO2_West_A_3 [22] => SoilCO2_West_B_3 [23] => SoilCO2_West_C_3 [24] => Tower_4 [25] => Soil_Transect_4_4 [26] => Soil_Transect_3_4 [27] => Soil_Transect_2_4 [28] => Soil_Transect_1_4 [29] => SoilCO2_West_A_4 [30] => SoilCO2_West_B_4 [31] => SoilCO2_West_C_4 [32] => Floor_South_2 [33] => SoilCO2_West_B_2 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_South_2	SoilCO2_West_B_2	Spacial Count
2021-05-19	139	0	nan	5.3	8.6	7.7	4.5	5.3	10	4.7	3	12.7	8.4	13.6	12.7	5.1	7.8	13	15.1	29	11.7	16.8	18.2	15.1	16.5	17	11.5	23.1	13.3	22.5	31.4	15.6	22.8	13.9	16.5
2021-05-19	139	1	nan	5	3.6	8.3		6.2	9.7	4.5	2.7	12.7	6.6	13.3	12.7	4.8	8.4	12.4	16.2	29.6	11.2	17.3	17.9	15.4	15.9	17	11.7	22.2	14.8	22.8	30.8	15.3	22.5	14.2	16.8	2.2
2021-05-19	139	2	nan	5	0.9	8.3	4.5	6.2	9.4	4.5	2.7	13	6.3	13.6	12.7	5.1	8.1	12.1	16.2	28.5	11.7	17	17.9	14.8	15.9	17	12	21.9	13.6	23.4	32.3	15.6	21.9	14.2	16.8	7.5	0.5
2021-05-19	139	Avg	0-15cm																																			0
2021-05-19	139	Avg	15-30cm																																			0
2021-05-19	139	Avg	30-45cm																																			0
2021-05-19	139	Avg	45-60cm																																			0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2021-05-19	139	0	nan	0.1	0.3	7.8	4.5	4.5	10.6	11.6	13.3
2021-05-19	139	1	nan	0.1	0.1	7.6	4.8	3.7	11.5	11	13.9
2021-05-19	139	2	nan	0.7	0.1	7.8	3.9	3.5	11.7	10.7	13.9
2021-05-19	139	Avg	0-15cm									0
2021-05-19	139	Avg	15-30cm									0
2021-05-19	139	Avg	30-45cm									0
2021-05-19	139	Avg	45-60cm									0
