Field Notes
<--2005-01-27 11:22:00 |
2005-02-09 11:00:00-->
Other sites visited today: VairaTonzi: 2005-02-08 10:55:00 (DOY 39)
Author: Siyan Ma
Others: Jorge
When: Date: Feb 8, 2005 , Day: 39 , Watch Time: 1055 (Vaira) .
Where: Tonzi/Vaira
Ranch
Who: Siyan and Jorge
Weather
Phenology
Tasks
- check
Flux systems
- swap
Li-7500 from Tower site (remove: SN#42; install: SN#35)
- Spectrum
measurements
- soil
moisture
- Alex’s
samples
- leave
samples: Vaira grass, Tonzi understory grass
Vaira_Grass Site
- Fence
and gate power: >12.0 v.
- Panel
and Batteries: 13.1 v; 19.6 amps; 2.1 amps.
- No
screen. Ted was there to install
new computer system.
- Download
data. The filename started with
“L”. It needs to be changed. In addition, Ted will download Met data
from CR23X directly because of no hook with MD9. The big Met data file need split into
day-based files.
- Check
CR23X with two multiplexers – “E10 22 low battery”
Loc 74: Sys_vot = 2.0208
Loc 75: PC_start = -1.1535
6.
Ted was there when we left.
Tonzi_Tower Site
- Fence
and gate power: >12 v.
- Panel
and Batteries: 13.5 v; 0.0 amps; 2.9 amps.
- No
screen cable, so no way to check.
Sounds working though.
- Remove
SN# 42 ; install SN# 35
- Check
calibration cylinders;
CO 2 1500
psig; flow 10 psi.
N 2 500
psig; flow 10 psi.
- close
gate and set up fence.
Toniz_Floor Site
- Fence
and gate power: >12 v.
- Panel
and Batteries: 13.9 v; 23.6 amps; 2.5 amps.
- Reading
from Gillsonic screen before downloading data. (The value of H2O and CO2
should be in the range of 0 – 5 v.)
Time
|
14:23:24
|
Path/File
name
|
D:FL5_39.flx
|
|
mean
|
std
|
|
mean
|
std
|
w
|
.15
|
.27
|
Ts
|
17.228
|
.327
|
u
|
.24
|
.494
|
H2O
|
2.363
|
.076
|
v
|
.64
|
.475
|
CO2
|
1.737
|
.02
|
- Download
data
- Close
gate and set up fence.
tonzi
|
7931AFE
|
402165
|
574B4B
|
402FF3
|
574632
|
7A432E
|
7A3C6E
|
7A3B40
|
7A4AAA
|
D039
|
|
|
|
|
|
|
|
|
|
Feb. 8, 2005
|
Siyan
|
|
|
|
|
|
|
|
|
0-15
|
40.7
|
36.1
|
40.4
|
28.1
|
37.2
|
32.6
|
26.4
|
32.6
|
23.6
|
15-30
|
39.4
|
41.7
|
41.0
|
38.5
|
37.1
|
26.7
|
28.2
|
30.8
|
21.1
|
30-45
|
37.2
|
41.4
|
41.0
|
37.0
|
44.3
|
35.7
|
28.6
|
33.0
|
31.9
|
45-60
|
40.2
|
53.2
|
49.0
|
46.2
|
42.6
|
33.7
|
42.0
|
44.5
|
26.2
|
|
|
|
|
|
|
|
|
|
|
vaira
|
57318a
|
7933dee
|
|
|
|
|
|
|
|
0-15
|
14.3
|
32.7
|
|
|
|
|
|
|
|
15-30
|
26.7
|
30.4
|
|
|
|
|
|
|
|
30-45
|
29.5
|
29.7
|
|
|
|
|
|
|
|
45-60
|
30.8
|
35.2
|
|
|
|
|
|
|
|
A6D882B
|
A3D04E8
|
A6D72F5
|
|
|
|
|
|
|
|
|
|
34.9
|
32.1
|
19.0
|
|
27.9
|
31.4
|
33.2
|
|
35.9
|
34.3
|
34.3
|
|
41.5
|
47.6
|
42.9
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

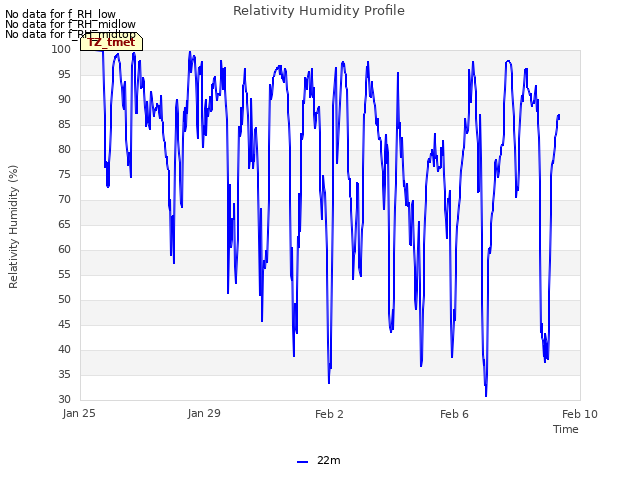

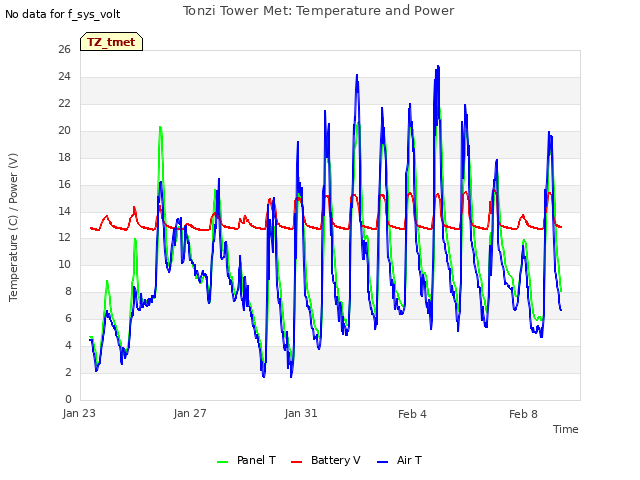

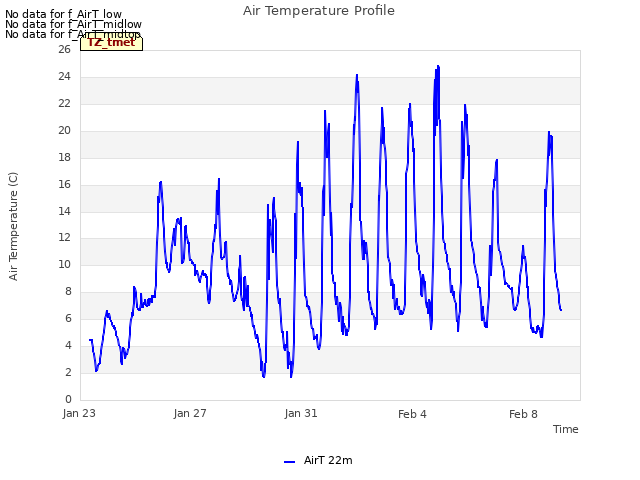

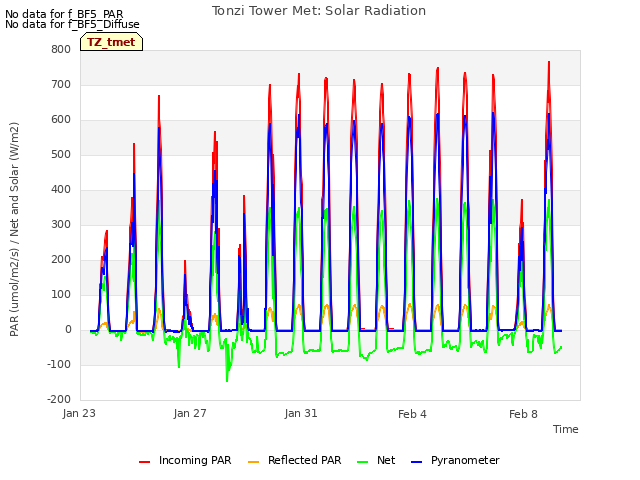

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

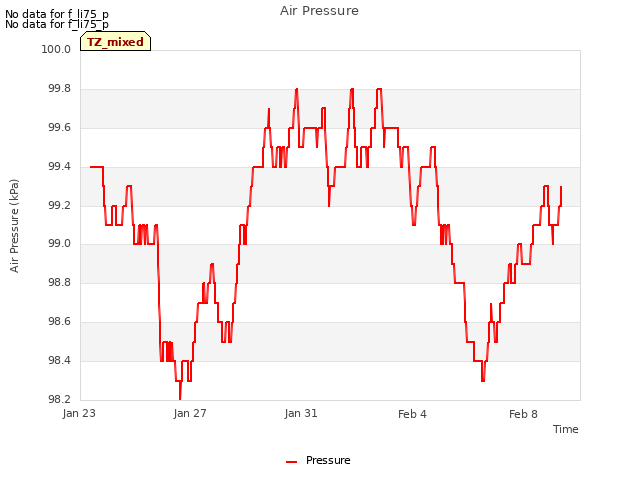

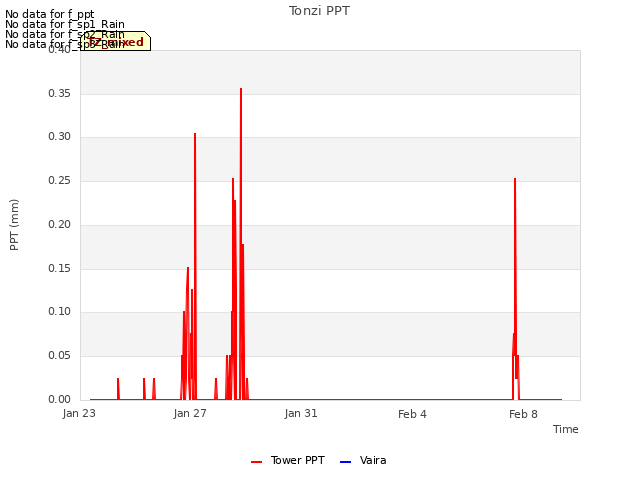

3 TZ_mixed graphs found
No data found for TZ_fflux.

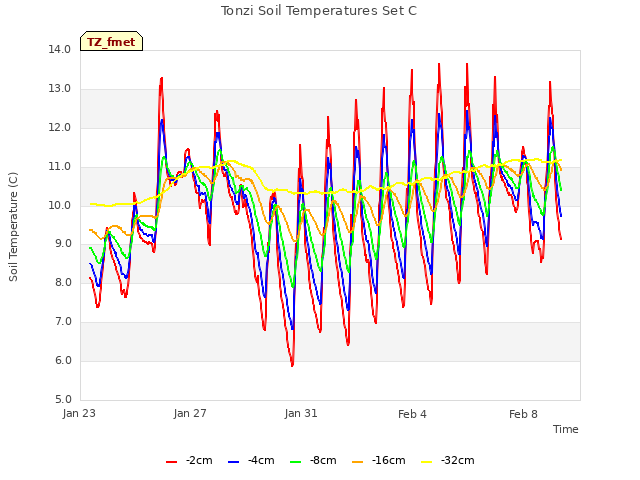

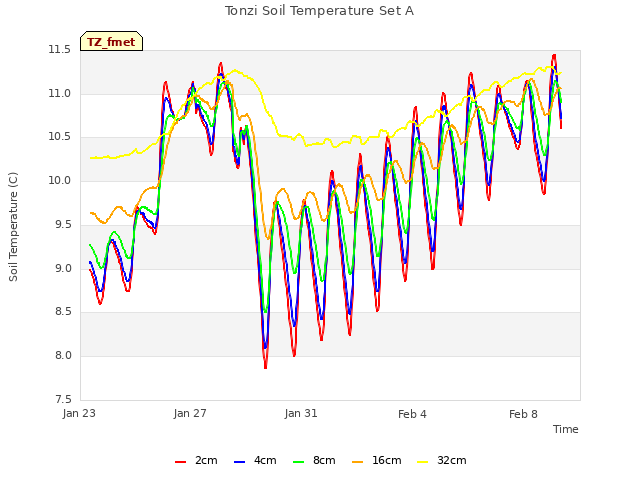

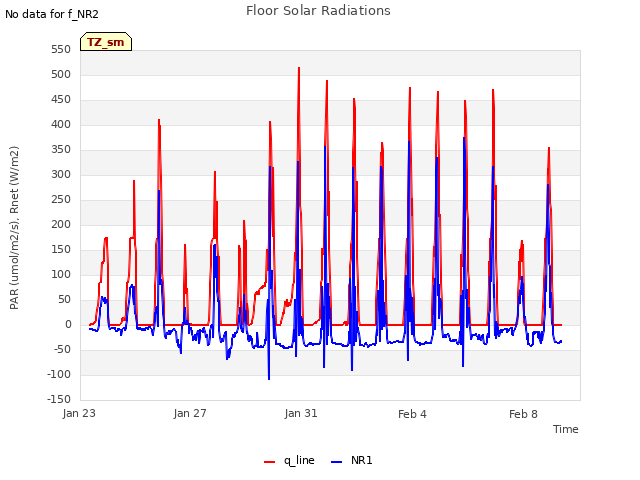

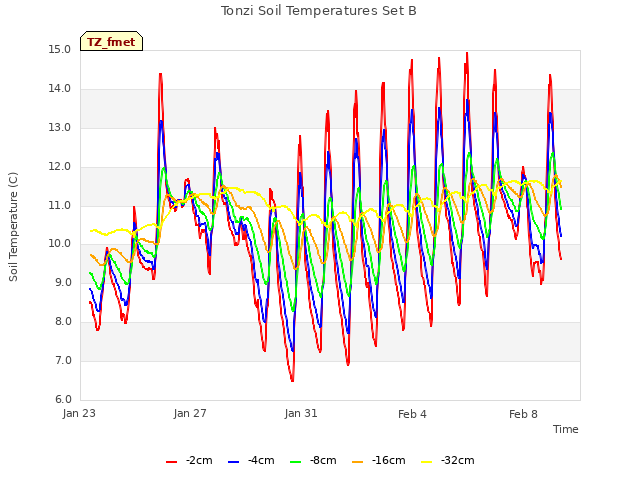

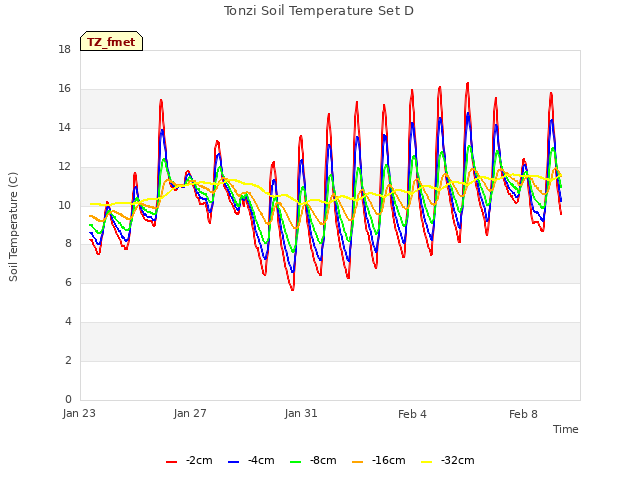

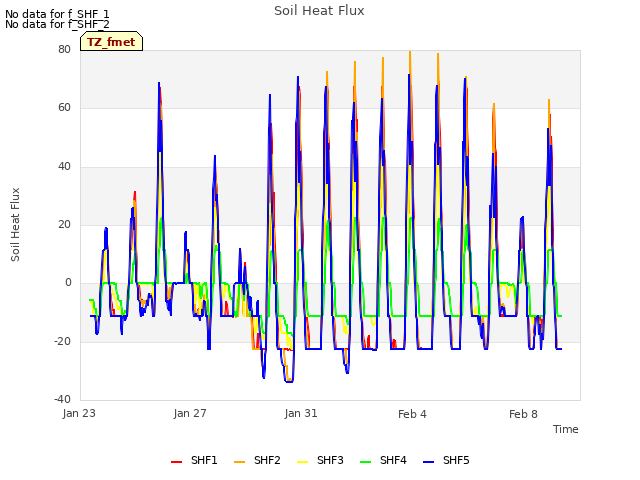

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
1 TZ_windprof graphs found
No data found for TZ_tflux.

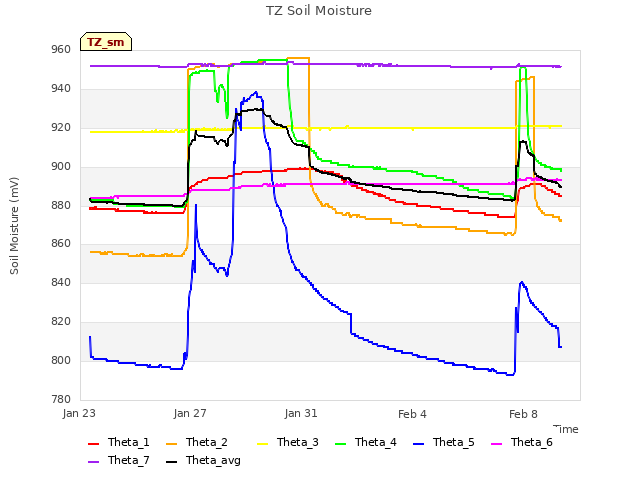

2 TZ_sm graphs found
Can't check TZ_met

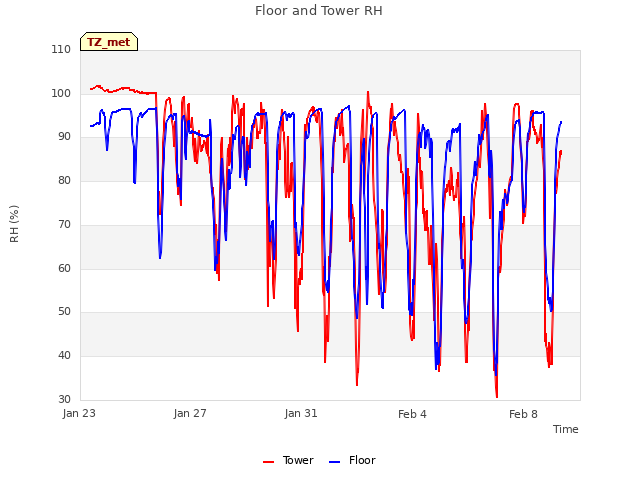

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
