Field Notes

<--2003-03-22 00:00:00 | 2003-03-29 09:00:00-->
Phenocam link: Searching...

Tonzi: 2003-03-28 09:00:00 (DOY 87)
Author: Ted Hehn
Others:

Summary: Checking on systems both Tower and Floor locked up. Starting Tower solar power upgrade

When: Thurs-Sun., Mar 27-30, JD 86-89
Where: Tonzi/Vaira Ranches
Who: Ted Hehn
Weather

Trip Purpose: Tower reconfiguration to upgrade from 30 amp to 60 amp capability.

Tonzi Ranch: Friday 28 Mar 03, 09:00hr - clear, cool, high wispy clouds. Flowers are out this week – mostly the yellow version but some purple ones as well.

Floor system failure- PC running, Gillsonic.exe graphics on screen – all channels flat line. Licor running. Appears sonic not outputting serial data. Sonic translator box “receive LED” not blinking. Unplug sonic power lead and power sonic back up and “receive LED” begins flashing and traces on PC begin showing response. Lost 5-6 days of data. Appears PC watchdog did not function during that time. CR10x with watchdog software had no data for that time frame either so it appears both the PC and CR10x crashed.

09:30 - Tower system failure – PC on, Gillsonic.exe running – showing flat line on all channels. All data present for past week – appears to have failed during 05:00hr reset sequence this morning. Power down tower with off switch on solar regulator at 09:46. Tower system powers back up successfully and system begins taking data.

Requested and received permission from Mr. Tonzi to place portable toilet at site.

Begin tower power reconfiguration.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

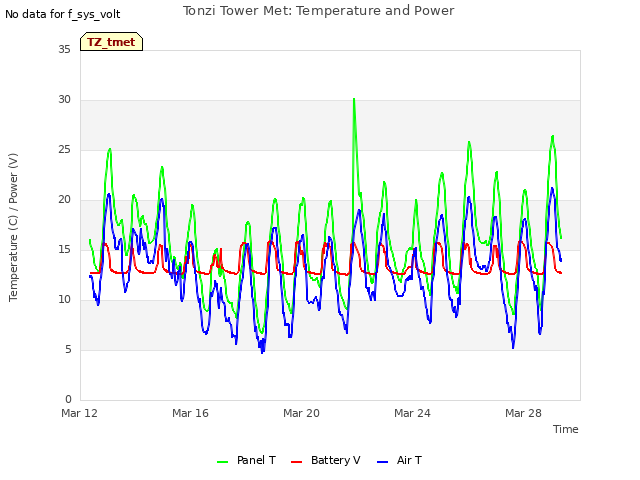

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

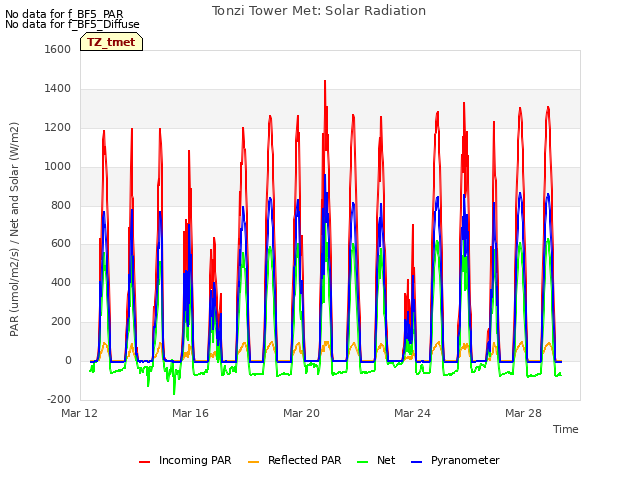

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

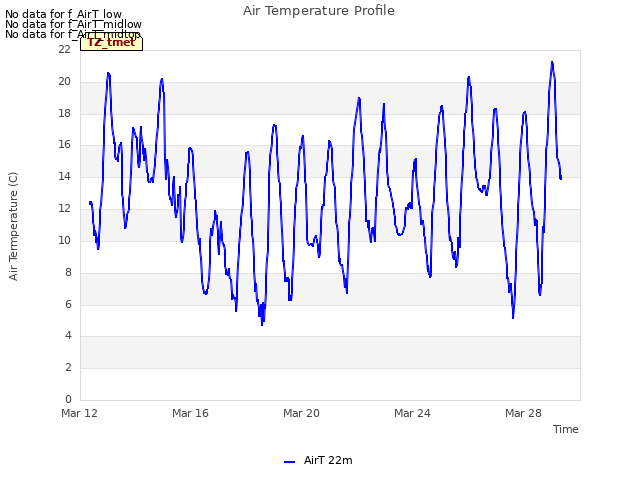

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

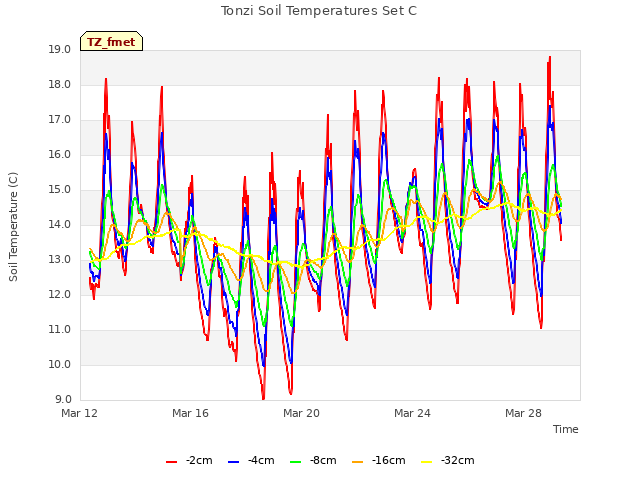

Explore the graph:Tonzi Soil Temperatures Set C in a new window

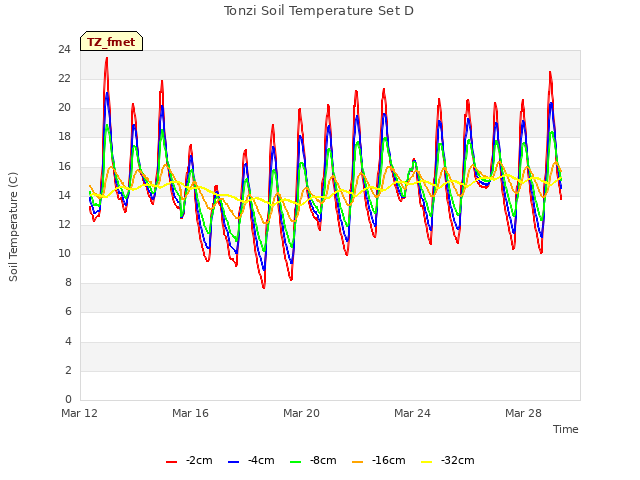

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

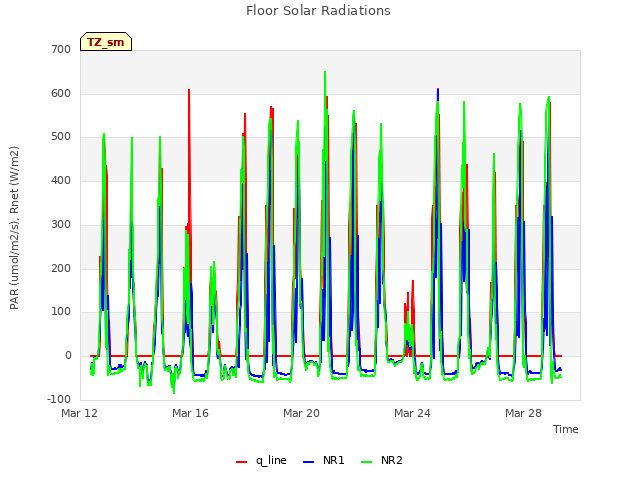

Explore the graph:Floor Solar Radiations in a new window

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

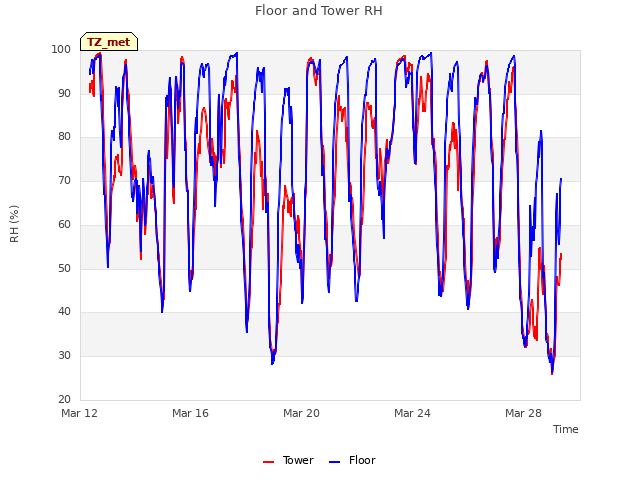

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
