Field Notes
<--2003-01-13 00:00:00 | 2003-01-29 10:00:00-->Tonzi/Vaira: 2003-01-21 09:00:00 (DOY 21)
Author: Ted Hehn
Others:
Summary: New CR10x program for diffuse PAR and 4-way net radiaometers, swapped HMP45 at Tonzi
| When: Tue., 21Jan03, JD-21 Where: Tonzi/Vaira Ranches Who: Ted Hehn Weather Overcast & cool Trip Purpose: Install CR10x/MUX program at Vaira. Vaira Ranch: Install new cr10x/mux program and all appears well. This new program includes the new instrumentation (KZ 4 way net radiometer/PRT and Delta T diffuse radiation sensor). The new output is as follows: 177 Output_Table 30.00 Min 1 177 L 2 Day_RTM L 3 Hour_Minute_RTM L 4 Panel_T_AVG L 5 Batt_Volt_AVG L 6 TC_1_AVG L 7 TC_2_AVG L 8 TC_3_AVG L 9 TC_4_AVG L 10 TC_5_AVG L 11 TC_6_AVG L 12 TC_7_AVG L 13 TC_8_AVG L 14 TC_9_AVG L 15 TC_10_AVG L 16 TC_11_AVG L 17 TC_12_AVG L 18 TC_13_AVG L 19 TC_14_AVG L 20 TC_15_AVG L 21 SHF1_AVG L 22 SHF2_AVG L 23 SHF3_AVG L 24 CM_UP_AVG L 25 CG_UP_AVG L 26 CM_DN_AVG L 27 CG_DN_AVG L 28 PRT_AVG L 29 Delta_Pyr_AVG L 30 Delta_Dif_AVG L 31 SM_1_AVG L 32 SM_2_AVG L 33 SM_3_AVG L 34 SM_4_AVG L 35 SM_5_AVG L 36 Ref_Temp_AVG L Tonzi Ranch: Swapped T/RH sensor: Vaisala model Hmp45AC sn U3030032 came off and sn W0510026 went on |
0 photos found
16 sets found
No data found for TZ_Fenergy.

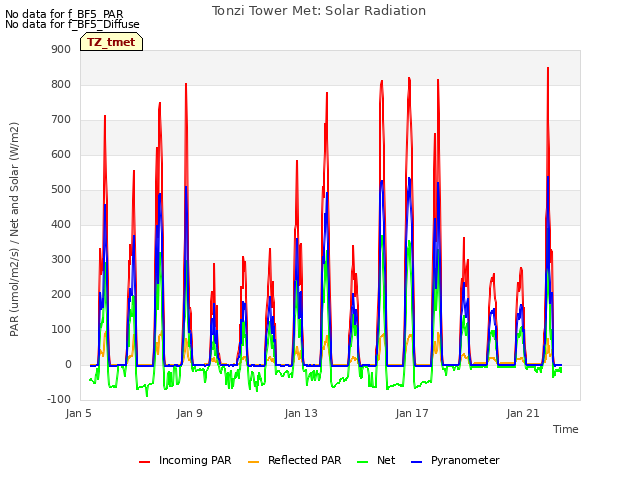

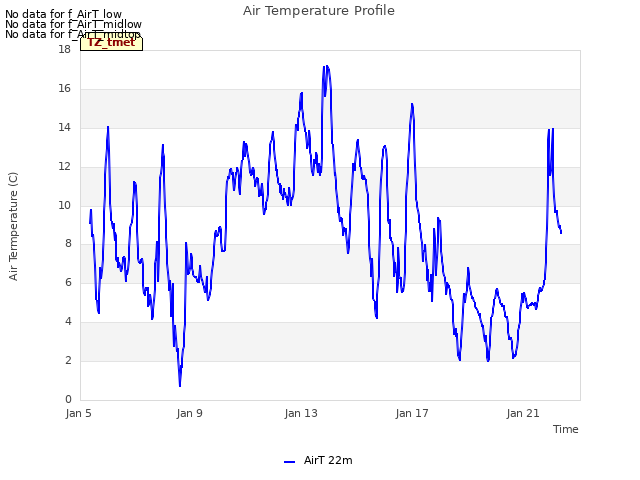

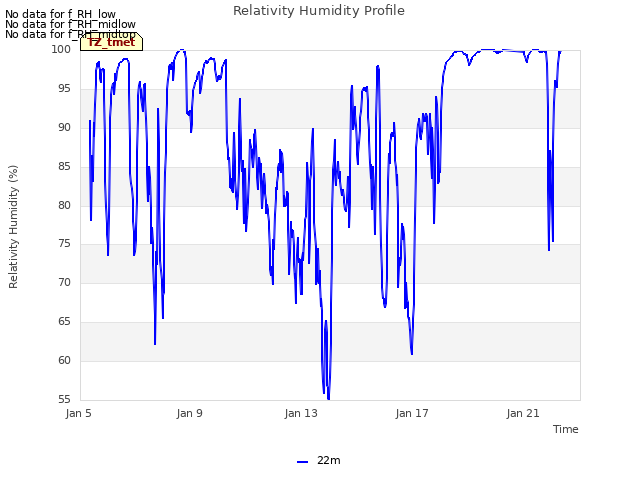

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

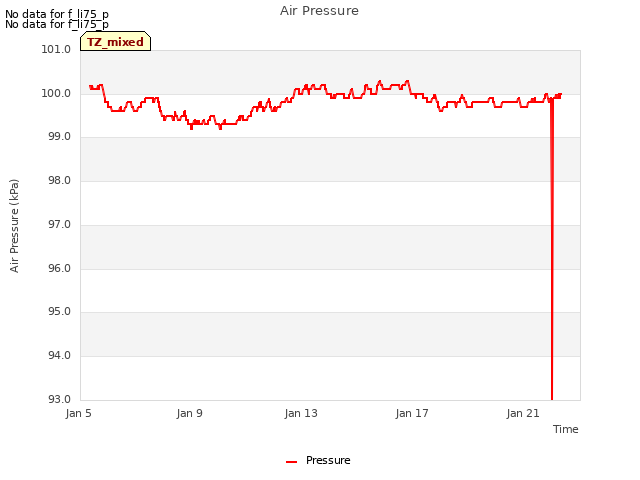

3 TZ_mixed graphs found
No data found for TZ_fflux.

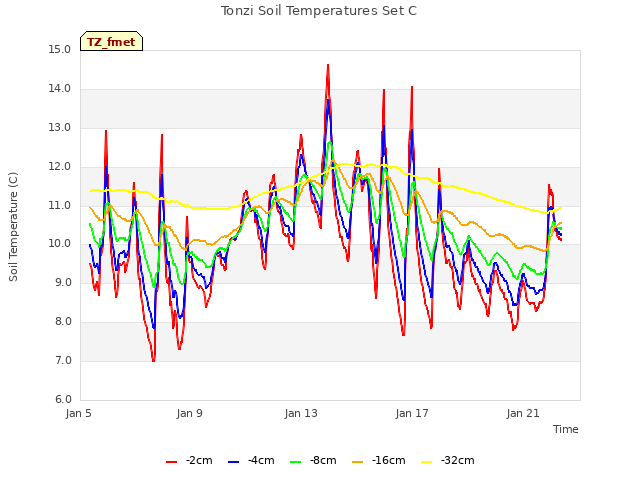

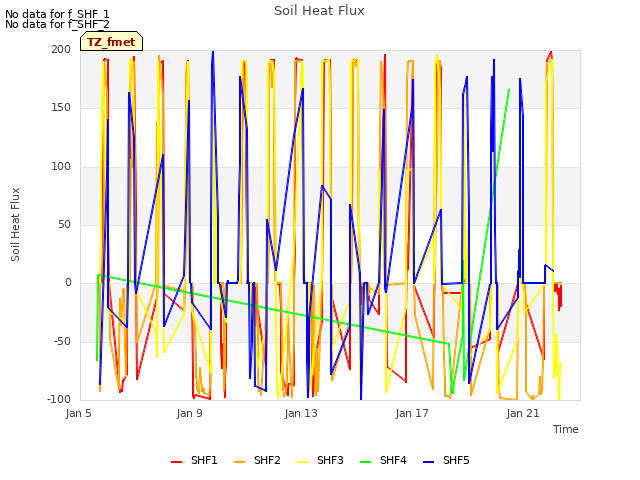

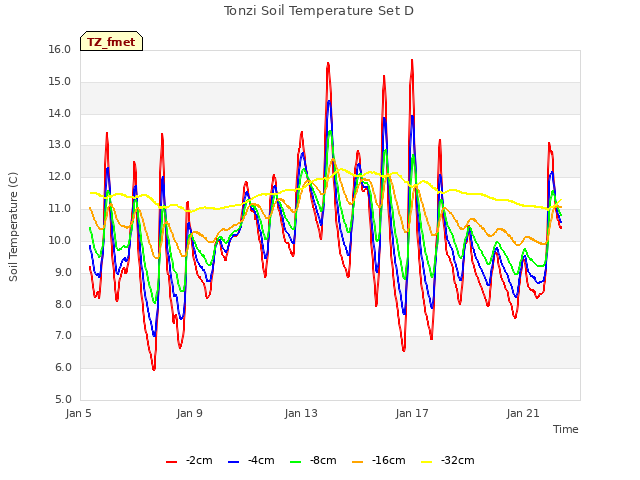

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

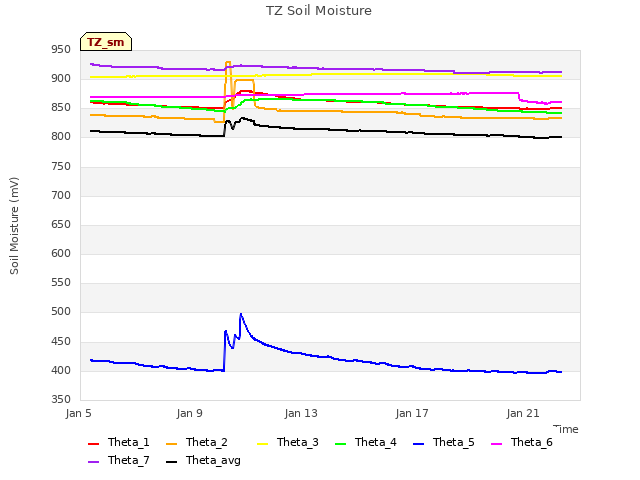

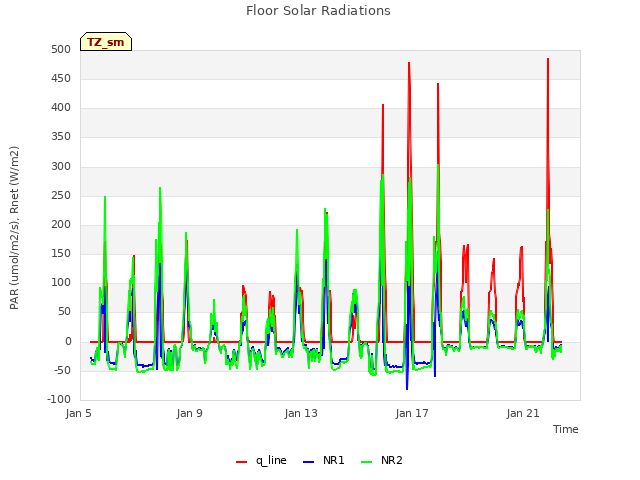

2 TZ_sm graphs found
Can't check TZ_met

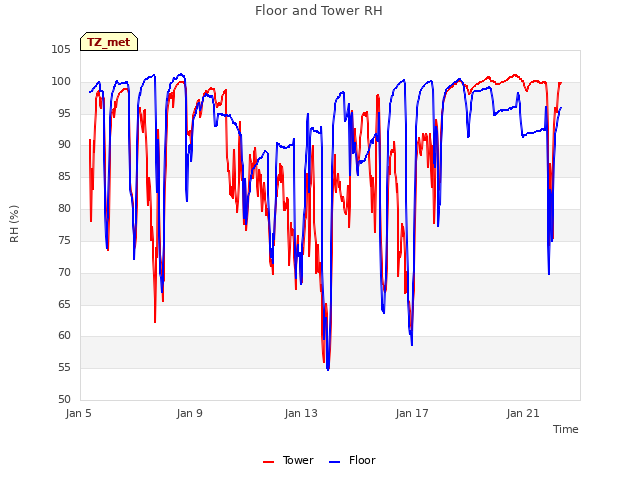

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
