Field Notes

<--2002-01-02 14:05:00 | 2002-01-10 15:45:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2002-01-10 11:00:00 (DOY 10)
Author: Nancy Kiang
Others: Ted

Summary: Upgrade sap flow batteries and add spray foam insulation

WHO: Nancy Kiang (drove with: Ted Hehn)
WHERE: Tonzi Ranch
WHEN: 1/10/2002
WEATHER: 60's F. Sunny, mild.
WHAT: Replace batteries and improve insulation for sapflow setups.

Arrived 11:00 PST. All trees are fully senesced (since December), no dead leaves remaining on trees. There are running streams and standing water,and Tonzi's reservoir is full. According to Mr. Tonzi, the weather is unusually mild; normally this time of year it is closer to freezing.

Replaced batteries to both sapflow sites, switching the small wheelchair batteries with large batteries that were left over from the solar panel systems. The large batteries are attached external to the datalogger boxes.

-tz5: bad wheelchair battery (black color), does not retain charge (these two black batteries were bought in Sacramento, and both are bad). 11:50 PST finished, starting logging data at 12:00 noon.

-tz4: 13:30 PST finished, started logging data at 14:00 PST.

-Applied foam spray sealant to all sapflow sensors for insulation (except for Tree 71, which needs heater replaced).

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

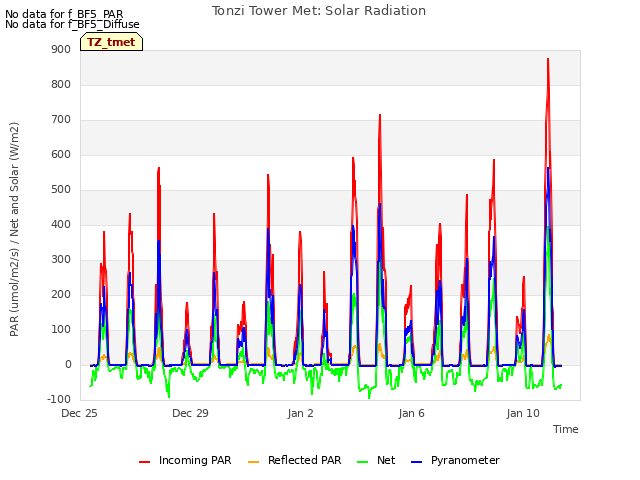

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

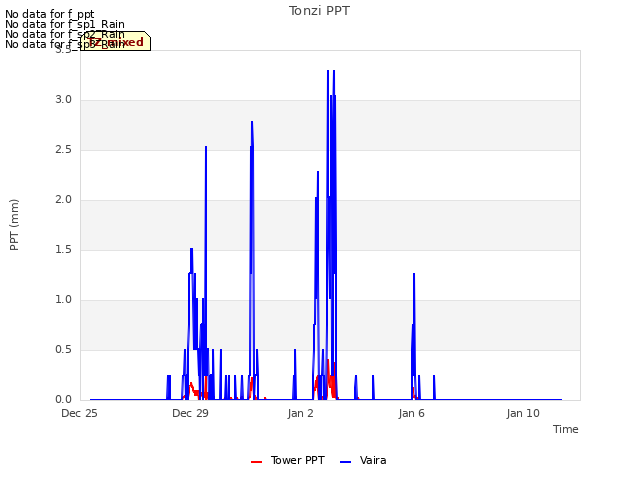

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

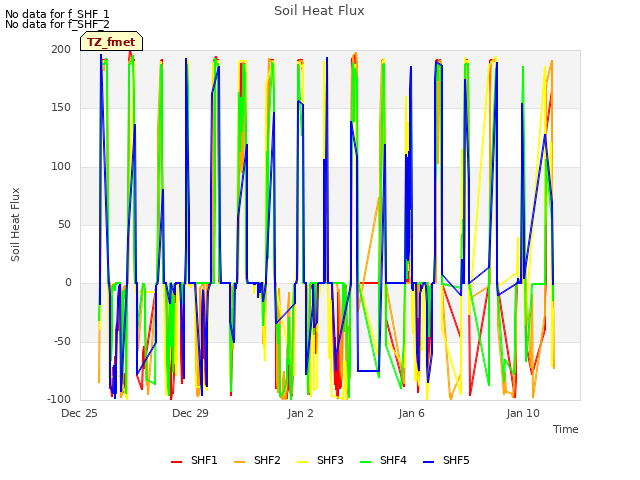

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

Explore the graph:Tonzi Soil Temperatures Set C in a new window

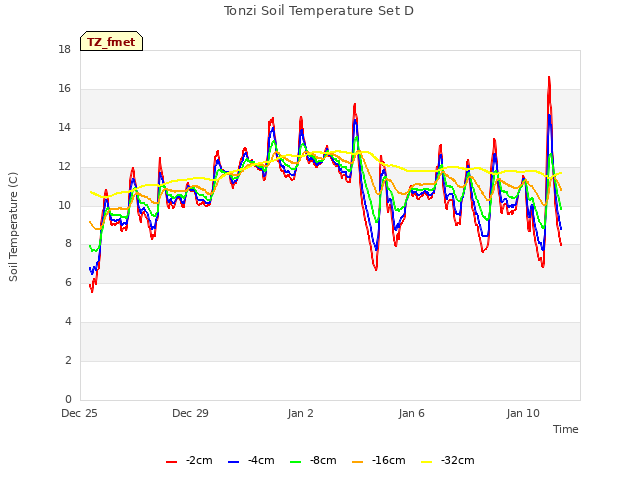

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

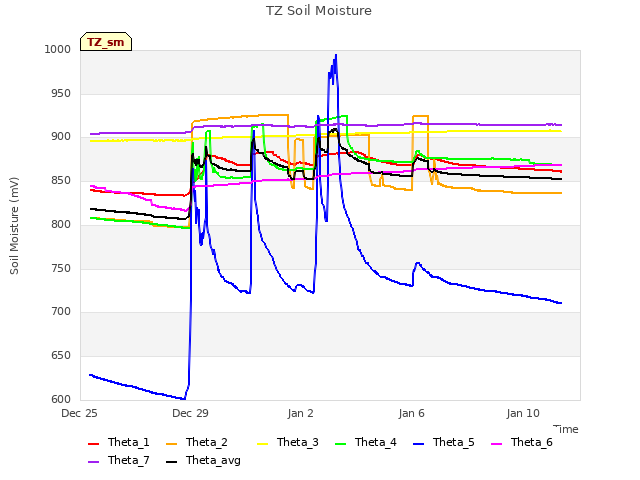

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

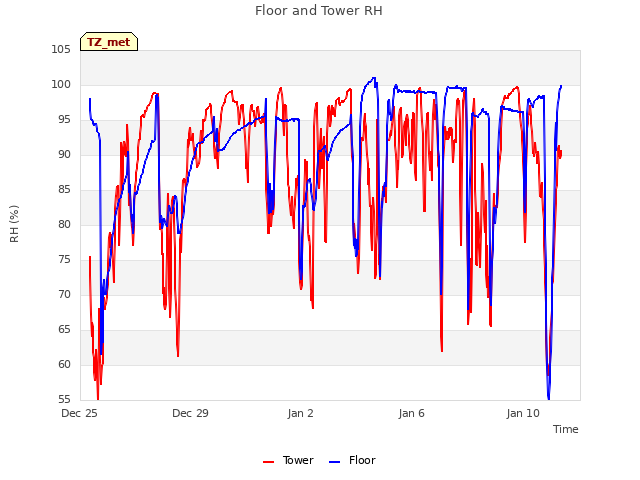

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
