West Pond: 2020-07-31 09:30:00 (DOY 213)
Author: Ariane Arias-Ortiz
Others:

Summary: collected porewater samples and removed outlet boards

I arrived at 9:30 am, it was sunny and windy in the Delta although at West Pond the wind wasn't as strong. The wetland was dry, no standing water, and the staff gauge mark was at 28 cm, i.e., at the mud level.

I sampled porewaters at the tower (@-10, -30, -50 cm) and at the 0.5 footprint site (@-20, -30, -40, -50, -60 cm - here the water table was below -10 cm).

Porewaters seemed to be well mixed without a clear stratification with depth, like it is usually the case. This was particularly true at the 0.5 footprint site.

Average porewater readings at the tower:

Conductivity: 350 uS
Salinity: 0.19 ppt
pH: 6.06
DO%: 1.86 mg/L
Temp: 18.3 C


I removed the outlet boards to the soil surface level to drain the remaining standing water at the low lying areas. I will put the boards back on the 18th of August

I left at 11:45 am

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

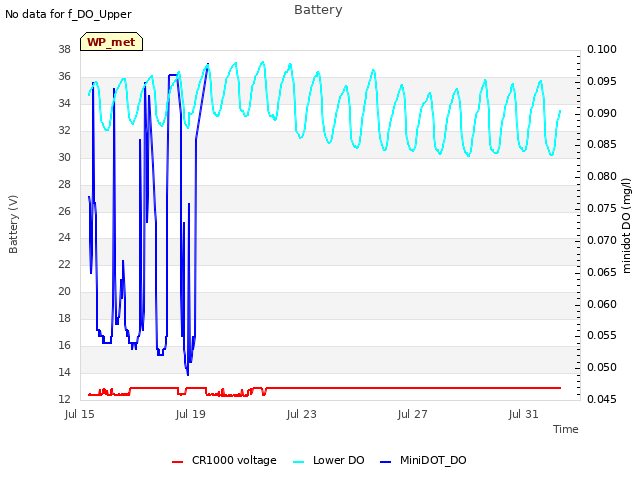

Explore the graph:Battery in a new window

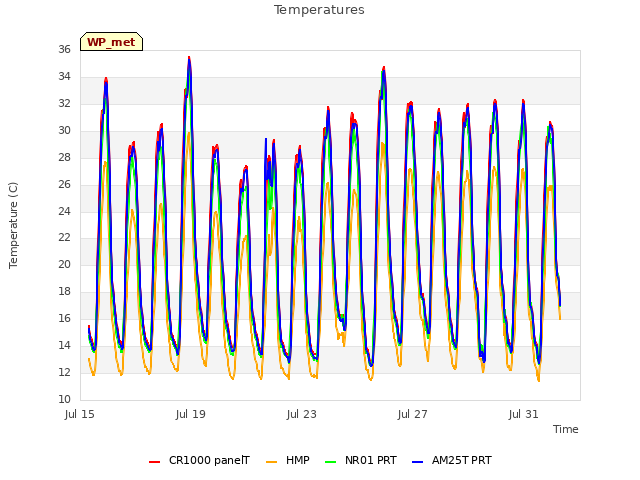

Explore the graph:Temperatures in a new window

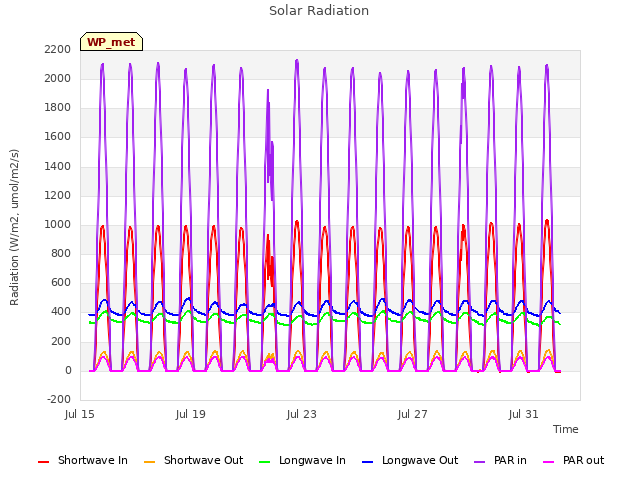

Explore the graph:Solar Radiation in a new window

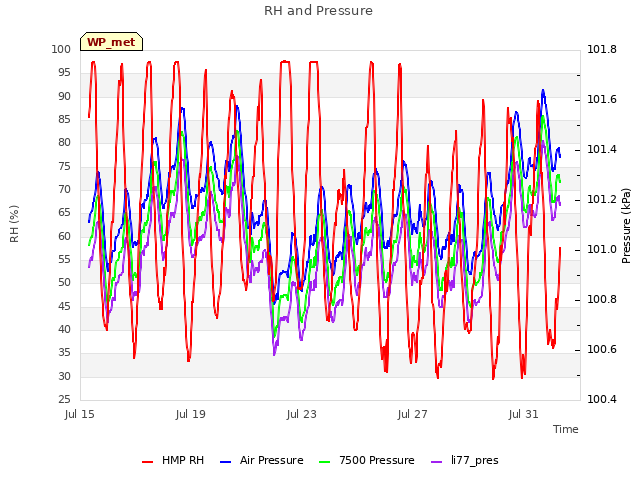

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

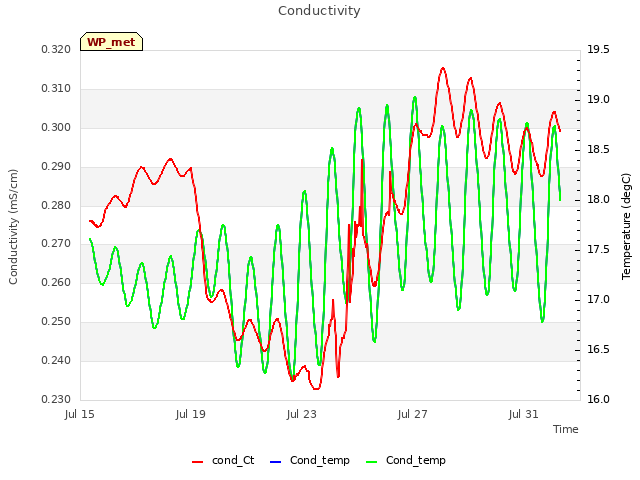

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

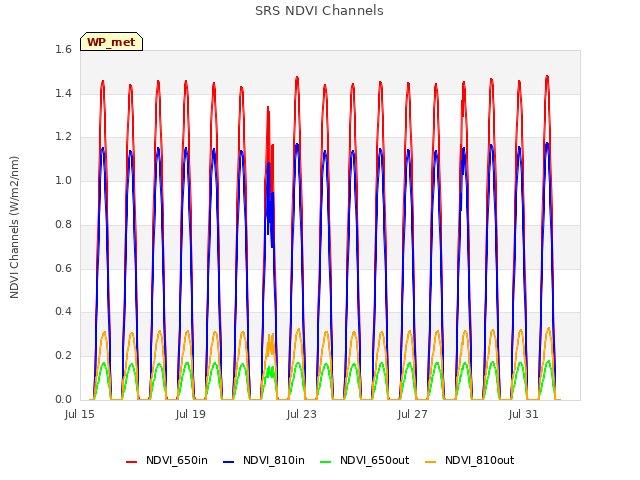

Explore the graph:SRS NDVI Channels in a new window

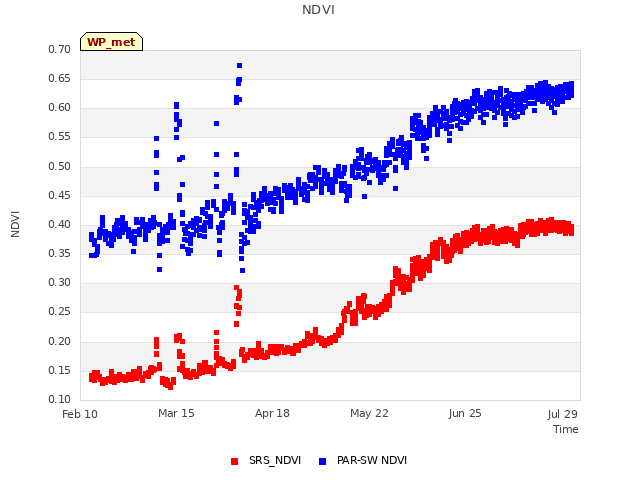

Explore the graph:NDVI in a new window

5 WP_flux graphs found

Explore the graph:Winds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

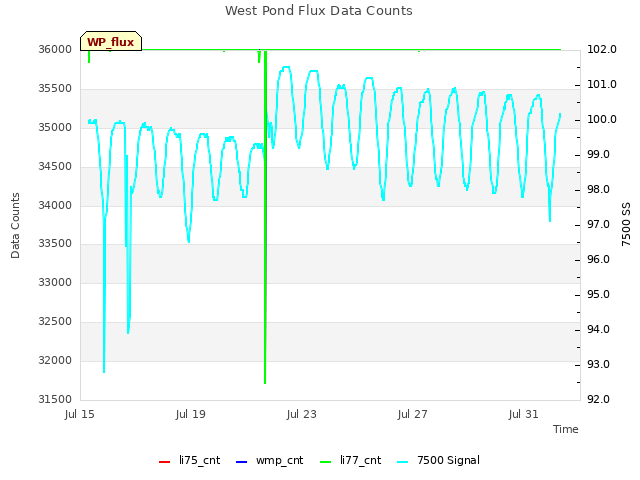

Explore the graph:West Pond Flux Data Counts in a new window

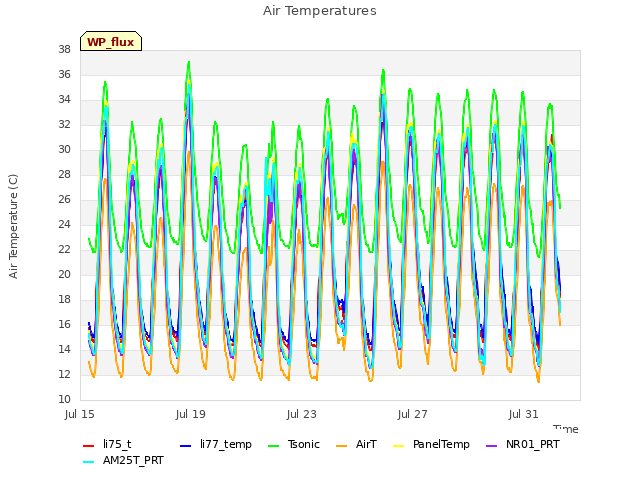

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
