When: Date: 3/5/2010 , Day: 63 , Watch Time: 9:50 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: partially cloudy
Phenology: green grass, oak leaves about coming out, wet

Tonzi
Leaves of the tree by the side of Mr. Tonzi’s house were just out. Other trees hadn’t yet.	Mr. Tonzi’s pond was full.
Vaira:

(The date on the photos should be 2010/03/05.)


Summary

1. The aspiring bump for Vaira Ta&Rh didn’t work. I clicked it, and it worked again, but not very strong.
2. checked and downloaded data at Tower, Floor, and Vaira
3. swapped Li-7500 at Tower and Floor site.
4. returned the TRAM to the field.
5. returned the Soil CO2 probes to the field.
6. Didn’t calibrate Li-800 in the field because the CO2 profile system was off for power saving purpose.
7. collected grass samples for LAI
8. dendrometers

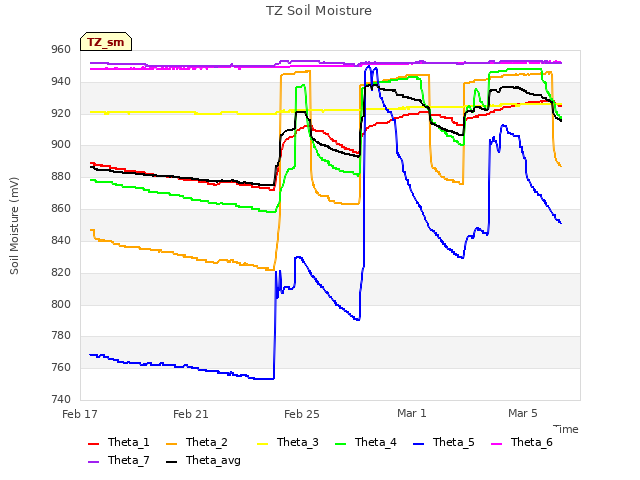

9. soil moisture
10. groundwater well:

Date	DOY	Location	Depth - no black thing (feet)
3/5/2010	63	Floor	25.4
		Tower	29.61
		roadside	32.86

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.8 v; 14.4 amps; 3.7 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data YES!
2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
3. Check MD-9 system connections YES!
4. Check CR23X with two multiplexers

1. Check levels of Radiation sensors, clear up surfaces.YES!
2. Check rain gage, make sure not clogged. YES!
3. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: v; amps; amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data YES!
2. swap IRGA: remove #418; install #976.
3. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
4. Check rain gage, make sure not clogged. YES!
5. Check calibration cylinders;

The whole system is off for saving power.

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 14.9 v; 12.8 amps; 1.9 amps. (about 7:00 am local time)
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

1. downloading data YES!
2. swap IRGA: remove #73; install #1594.
3. Check MD-9 system connections YES!

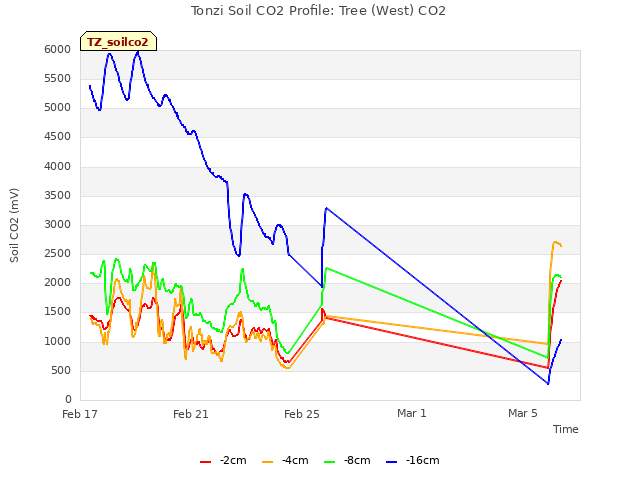

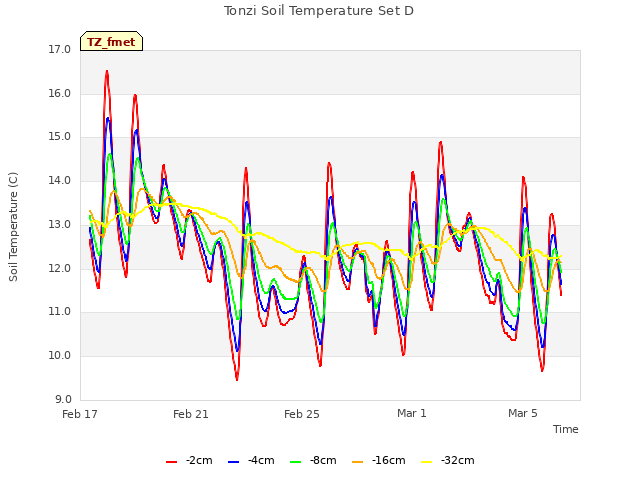

CR23X5 – soil CO₂ profile
Put CO2 probes back after Jacyln did comparison in the lab.
Reset power, but indicator showed “battery low”. LOOKS OK!

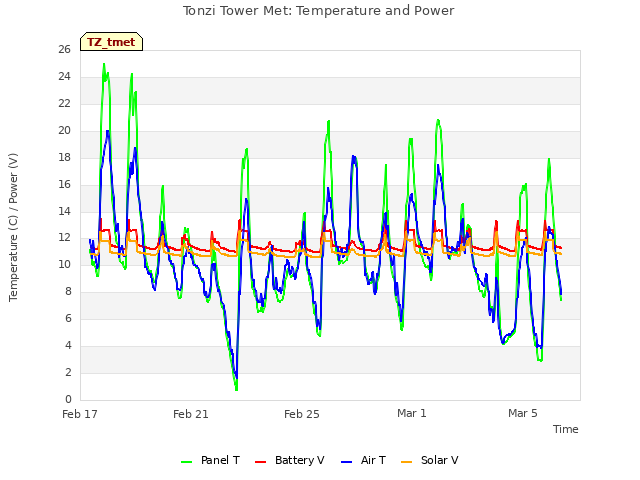

CR23X6 – tower-Met

CR10X2 – floor-Met

CR23X3

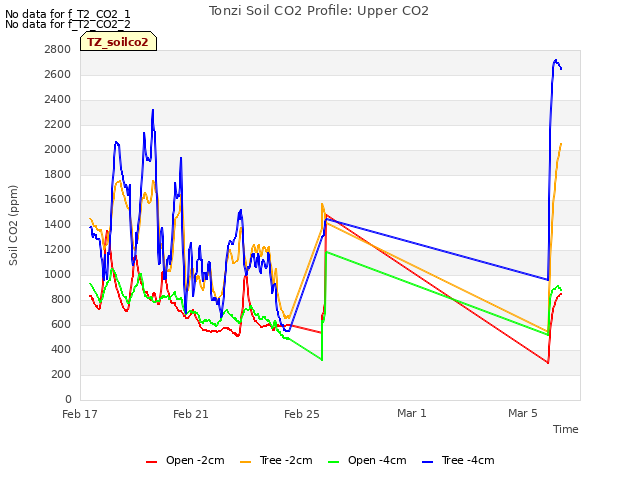

1. Soil CO₂ profile: no power when I got there. I unplug and re-plug fuses, then the system back to work.

Reading from datalogger
Reading from panels of analyzers
Read after installation, might not be balanced.

depth	Open	order	depth	Tree	order
2cm (1%)	570	1	2cm (1%)	1040	1
4cm	1020	2	4cm	1820	4
8cm	830	3	8cm	1380	2
16cm	370	4	16cm	540	3

1. Close gate and set up fence. YES!

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
3/5/2010	63
	DDB
0-15	46.4	26.1	39.9	37.9	38.4	39.6	30.5	29.1	22.9
15-30	41.1	45.7	46.3	39.8	40.8	40.2	30.7	35.3	31.0
30-45	39.6	46.0	90.2	41.6	44.1	35.4	34.1	34.3	37.7
45-60	39.1	56.0	80.4	45.4	42.0	35.7	44.0	47.7	38.8
	A6D882B	A3D04E8	A6D72F5
0-15	38.7	35.2	28.5
15-30	33.2	39.0	39.6
30-45	37.4	36.8	44.6
45-60	45.4	51.7	45.1
vaira	57318a	7933dee
0-15	27.2	28.6
15-30	32.4	29.2
30-45	31.6	36.7
45-60	33.9	34.3

Tonzi
Dendrometer
Date	Day	Tag #	Reading (mm)
3/5/2010	63	72	7.2
		79	10.9
		102	X
		245	10.4
		250	21.2	(reset to 10.5 on May 7, 2009)
		1	17.5
		2	10.1
		3	16.5
		4	7
		5	11.5
		7	15.2	133
		8	15.4	11828
		71	X
		77	X	‌
		78	X	‌
		248	X	broken
		255	X	‌
		‌252‌	X	‌
		6	X

Notes: “X” means not working any more.
Dendrometers installed by Gretchen group
