Vaira: 2020-01-28 10:15:00 (DOY 28)
Author: Joe Verfaillie
Others: Daphne

Summary: Standard fieldwork, went to the pond, all seems well

Vaira
2020-01-28

Daphne and I arrived at about 10:15. It was mostly overcast with light patchy rain threatening. The ground is damp with puddles in the road but the surface of high exposed spots is almost dry. The grass hasnâ€™t changed in height still about 5cm tall, but looks to be more densely covering the ground.

At the tower Daphne downloaded the data and measured the well level. The well level was 58.33ft. I did the soil moisture, spectral measurements with the Jaz and cleaned the sensors. The last two Jaz measurements were inside the cow fence where standing litter is hiding a lot of the new green sprouts.

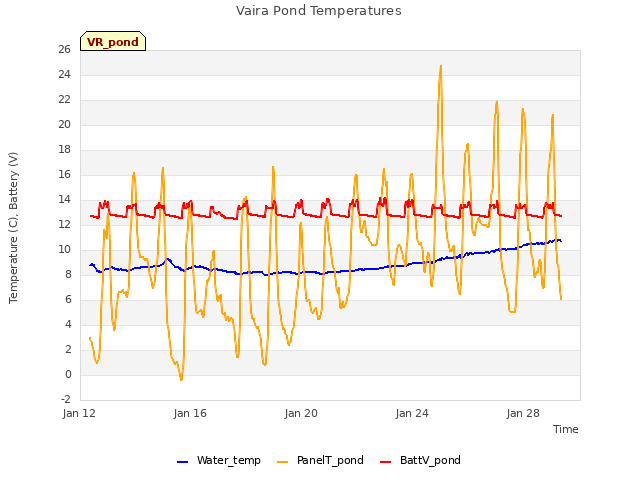

We went to the pond. The road was in good shape but we had 4-wheel drive. The pond level was 17.44ft about a meter higher than last time.

There were a least three trees that had fallen down in the rocky rise north of the road on the half closest to the gate.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2020-01-28	VR_well	58.33
2020-01-28	VR_pond	17.44
2020-01-28	TZ_floor	29.7
2020-01-28	TZ_tower	34.56
2020-01-28	TZ_road	37.99

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Soil_Transect_4_4 [33] => Soil_Transect_3_4 [34] => Soil_Transect_2_4 [35] => Soil_Transect_1_4 [36] => SoilCO2_West_A_4 [37] => SoilCO2_West_B_4 [38] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2020-01-28	28	0	nan	29.9	19.7	26.7	21.7	26.1	26.7	23.8	33.2	27.6	17.1	25.5	26.5	31.3	27.1	32.6	33.8	18.8	28	20.6	30.1	26.8	32.4	34.6	33.2	34.1	33.5	31.3	36.8	38.2	39.1	34.8	15.6	35.7	44.3	47.4	34.8	45.4	53.4	48.3
2020-01-28	28	1	nan	29.4	19.4	26.7	20.9	25.8	27		32.9	27.9	16.5	24.9	25.8	31.3	26.8	32.6	32.9	18.2	28.9	21	31	25.4	31.8	36.8	33.2	33.8	35.4	32.1	37.4	38.5	39.6	34.8	15.3	33.7	44	48	35.4	46	50.9	48.3
2020-01-28	28	2	nan							23.2										17.9										31.5									35.4
2020-01-28	28	Avg	0-15cm																																								0
2020-01-28	28	Avg	15-30cm																																								0
2020-01-28	28	Avg	30-45cm																																								0
2020-01-28	28	Avg	45-60cm																																								0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-01-28	28	0	nan	30.2	18.5	14.7	28.3	31.9	23.7	36.6	18.2	31.8	43.1	30.8	33.1
2020-01-28	28	1	nan	28.8	17.9	13.8	28.6	31.9	24.3	32.1	18.2	32.4	43.4	30.2	33.7
2020-01-28	28	Avg	0-15cm													0
2020-01-28	28	Avg	15-30cm													0
2020-01-28	28	Avg	30-45cm													0
2020-01-28	28	Avg	45-60cm													0
