Field Notes

<--2019-10-22 15:40:00 | 2019-10-31 12:00:00-->
Phenocam link: Searching...

Mayberry: 2019-10-23 09:00:00 (DOY 296)
Author: Ariane Arias-Ortiz
Others: Camilo, Robert

Summary: Collected soil cores across the EC footprint

Camilo, Robert and I arrived at Maybery at around 9 am. It was a sunny day with light wind. The visit was to collect 5 soil cores across the EC tower footprint. The wetland was dry, water was only present in the channels.

We used 4 inch PVC tubes and a stainless steel core shoe with a core catcher.

We took soil cores at 20, 60 and 100 m away from the EC tower towards the northwest. These sites consisted of cattail, phragmites and edge-of-channel "land-cover type", respectively. To reach these sites, we followed the edge of the chanel in front of the tower to the left and then walked through the wetland. We found 3 wide areas where the cattails and also phragmites were horizontally tilted as if an helicopter had landed on top of them (otters?).

We took the car and drove to the other side of MB wetland to reach the last two coring sites, located at 170 and 270 m away from the tower. These sites consisted of cattail "cover type". Crossing through the wetland we saw more areas where cattails were tilted.

All of the cores were > 75 cm long, except for that sampled at the edge of the channel which was 36 cm long.

Soil samples were measured for dry bulk density, soil organic carbon, total nitrogen, organic matter content, δ13C, and total 210Pb.

We left at around 5.30 pm.

See paper:

Arias‐Ortiz, Ariane, et al. "Tidal and nontidal marsh restoration: A trade‐off between carbon sequestration, methane emissions, and soil accretion." Journal of Geophysical Research: Biogeosciences 126.12 (2021): e2021JG006573.

https://agupubs.onlinelibrary.wiley.com/doi/full/10.1029/2021JG006573

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

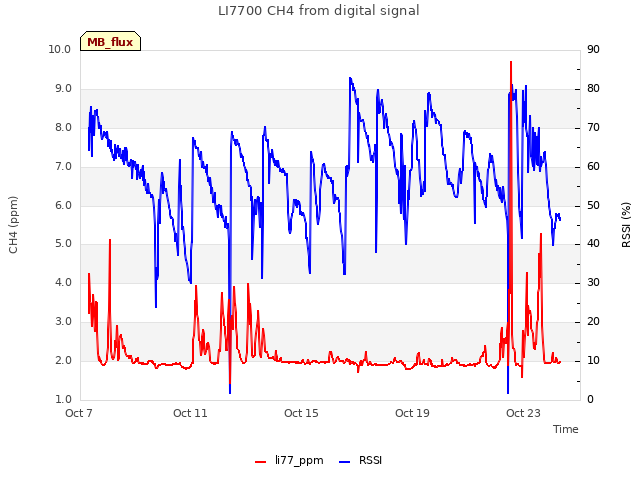

Explore the graph:LI7700 CH4 from digital signal in a new window

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

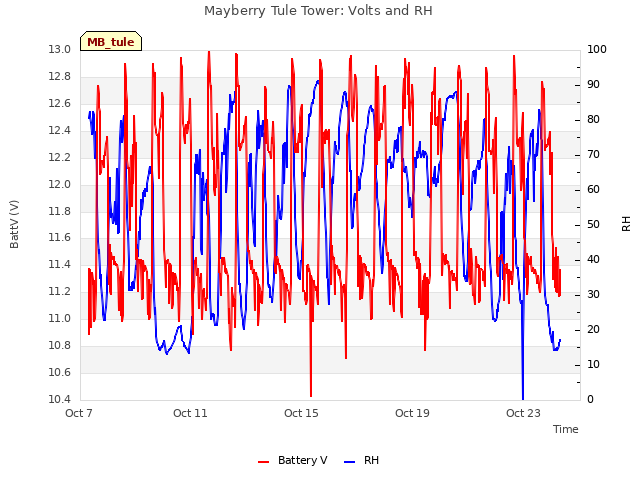

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

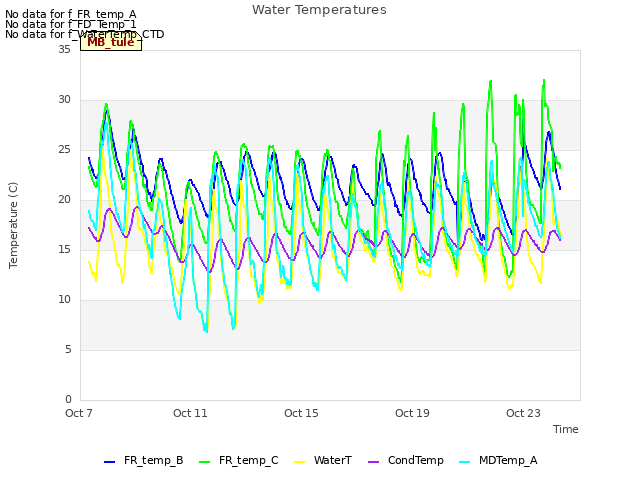

Explore the graph:Water Temperatures in a new window

Explore the graph:Air Temperatures in a new window

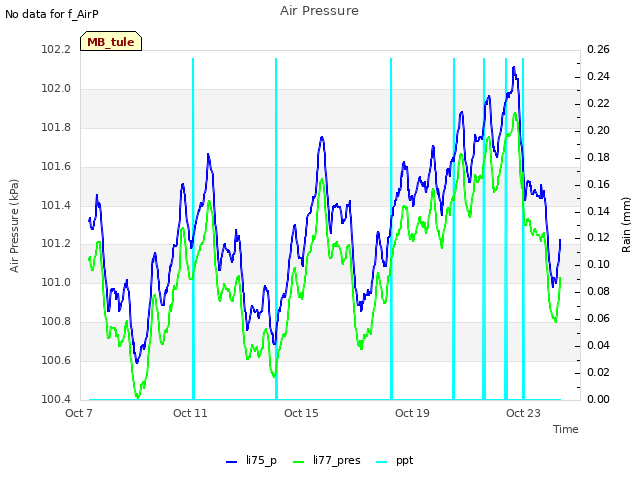

Explore the graph:Air Pressure in a new window

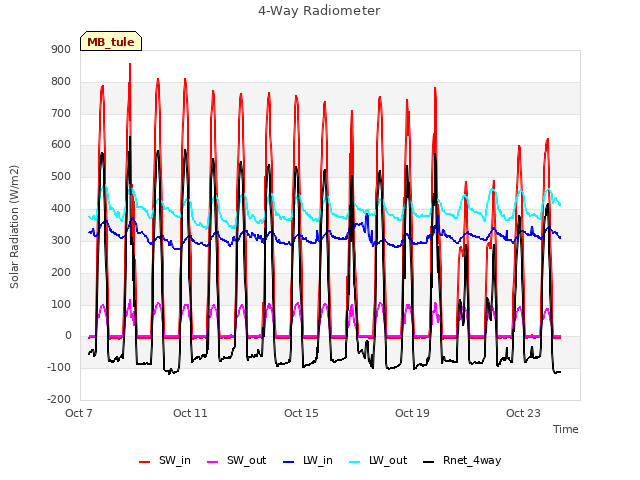

Explore the graph:4-Way Radiometer in a new window

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

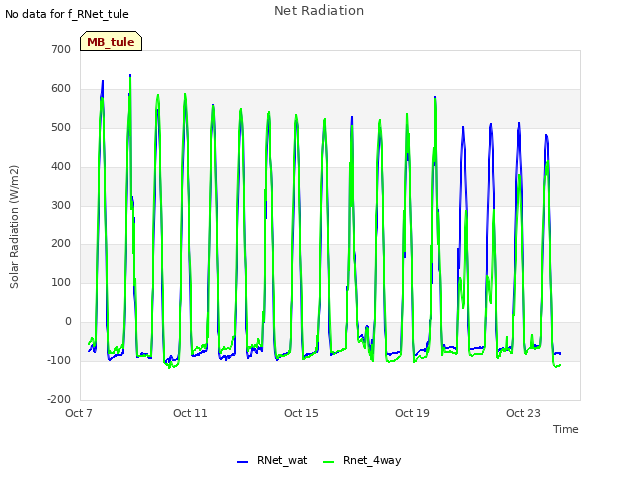

Explore the graph:Net Radiation in a new window

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

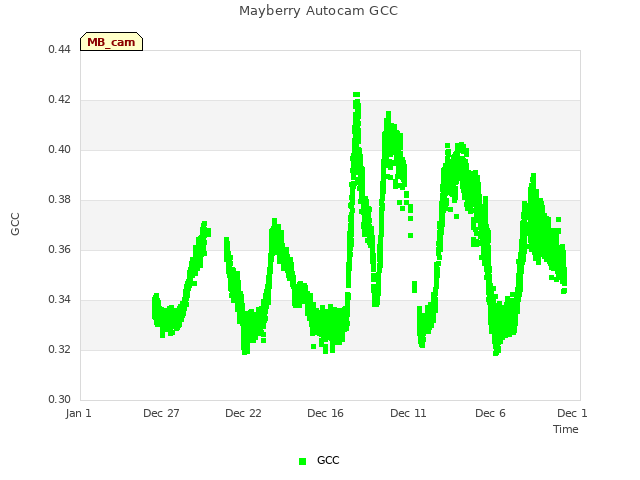

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
