Field Notes
<--2004-07-23 10:00:00 | 2004-07-25 10:00:00-->Other sites visited today: Vaira
Phenocam link: Searching...
Vaira: 2004-07-25 07:02:00 (DOY 207)
Author: Ted Hehn
Others:
Summary: Finish up rebuild of met system, set up software

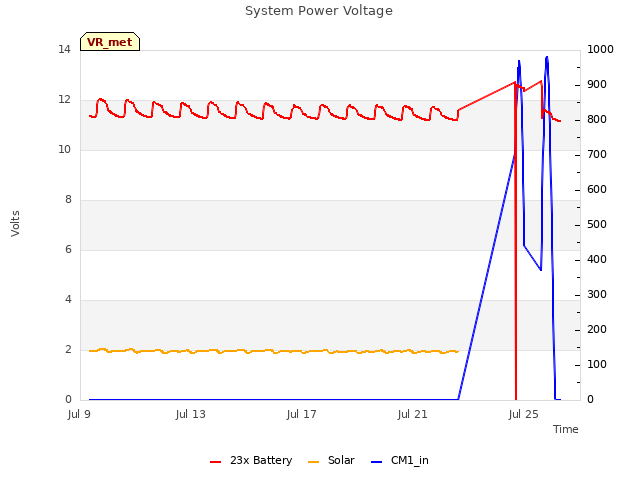

| 25Jul04 7:02 low batter warning on CR23x3. I used the CR23x battery to run my computer yesterday and may have drained it down. Install logic level relay from NOAA in Mux1 enclosure and power/control lead from CR23x3. Test soil moisture and it does actuate the power relay at the beginning of each 15 minute interval. Install watchdog timer portion of logger program and test. FAILURE. Change control port values in program to correct values and retest. Power failure driven reset tested and functions correctly. Time driven reset tested and functions correctly. Remove task 2 in PC208 software that initiates the MD92.exe program. Remove CR10x2 connection from PC208. Clean up site and cable tie all cables and leave site. Misc Notes Precip mount at Vaira need be replaced with vertical bar on rear of boom arm |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

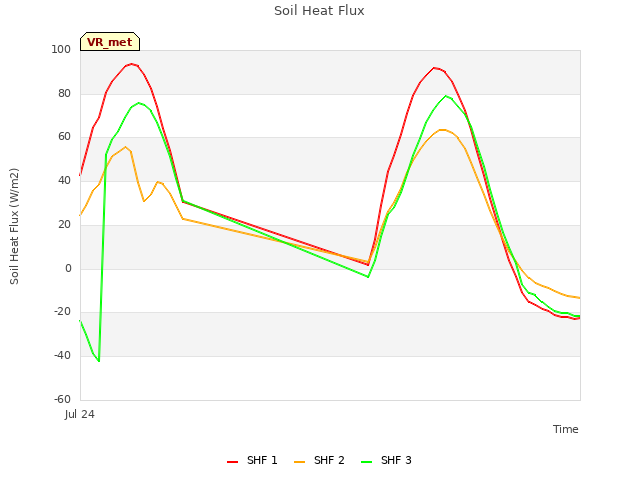

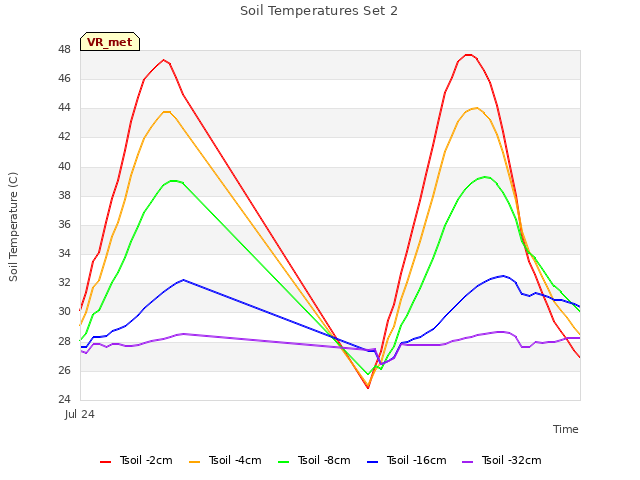

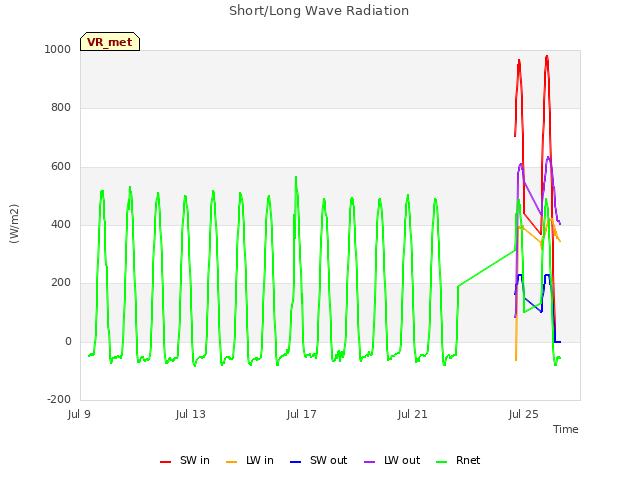

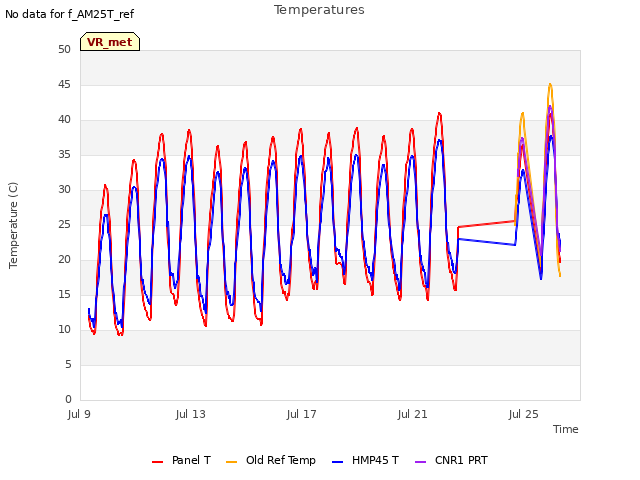

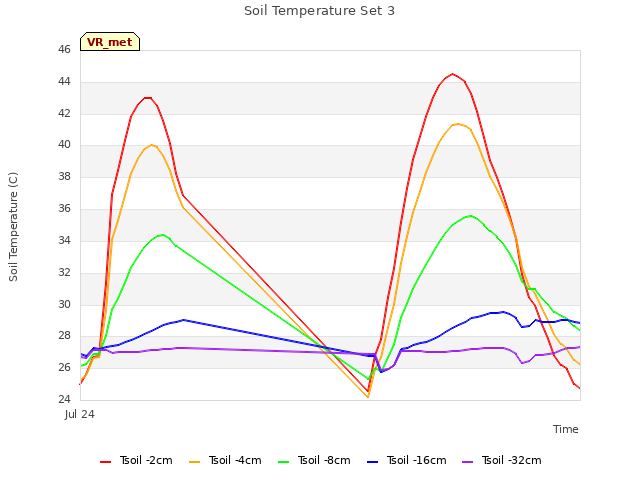

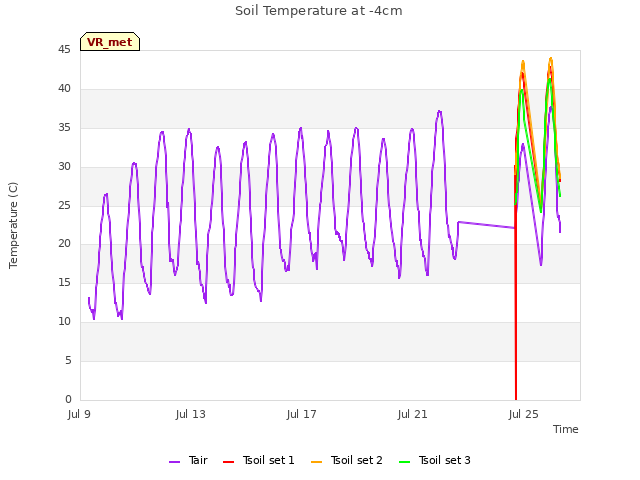

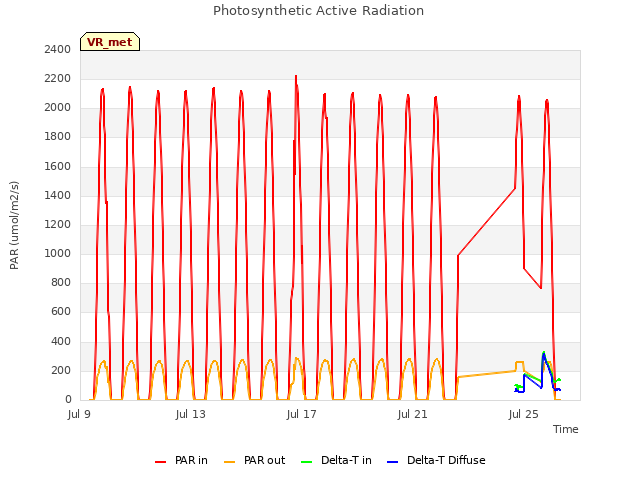

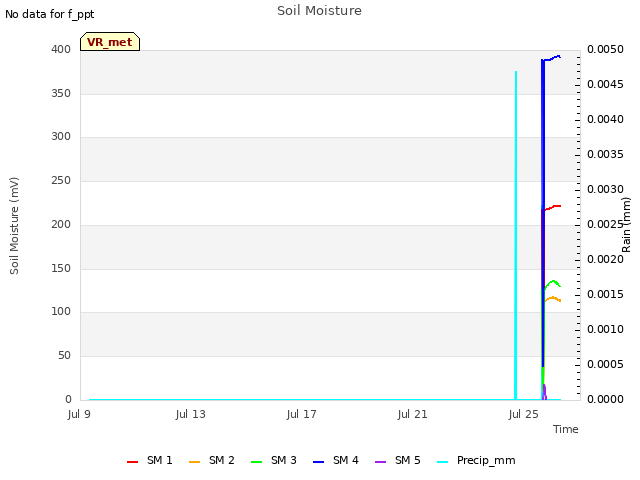

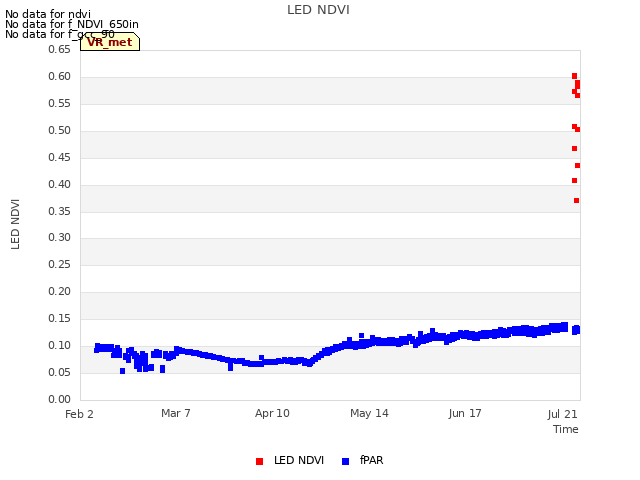

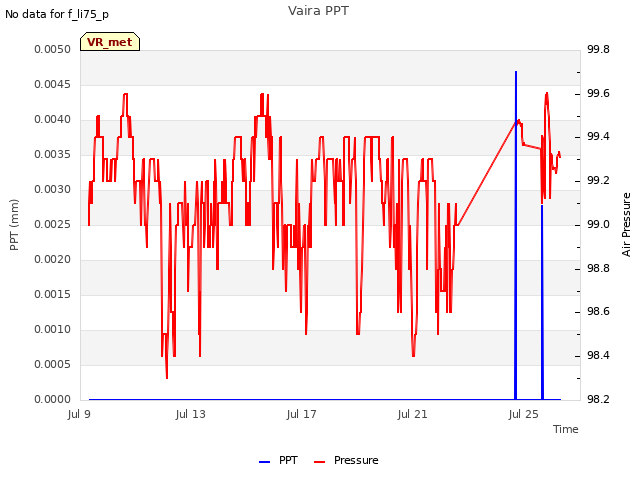

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
