Tonzi: 2004-05-31 09:48:00 (DOY 152)
Author: Ted Hehn
Others:

Summary: Data download, fix power on soil co2 system

When: Sun, 31May04 JD-152
Where: Tonzi/Vaira Ranches
Who: Ted Hehn
Weather Clear & Warm

Trip Purpose: Data download

Tonzi Ranch:
9:48
Bird spike fell off of LI7500 and was lying on the batteries.

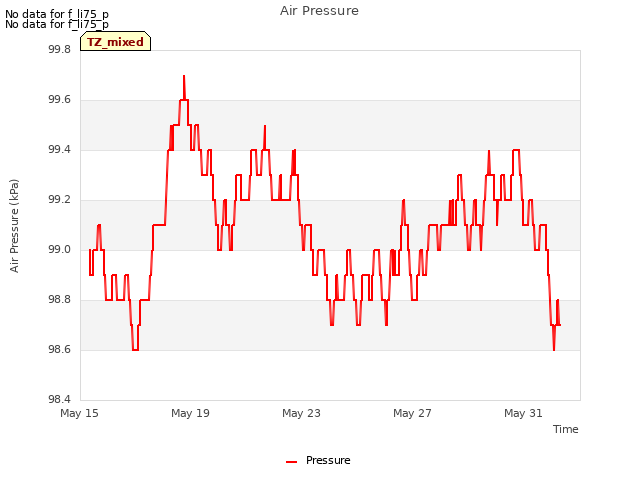

Profile system 2.75 LPM flow, pressure = 932.97mBar

11:15 floor system
CO2 soil profile system
Panel T = -99999
Bat Volt â€“5.54
CO2_1 = 0.032
CO2_2 = 0.06
CO2_3 = 0.33
CO2_4 = 0.29
TC_1 = -99999
TC_2 = â€œ
TC_3 = â€œ
TC_4 = â€œ

The data logger power return line is connected to 12 volt potential and the power line is connected to 24 volt potential. This is a problem and will be corrected.

I removed the data logger power leads from the 2 battery system used to power the CO2 transmitters (24 volt). I exchanged the drained battery that was originally used to power the data logger with the battery running the fencer at the floor system and the values displayed by the data logger are now reasonable. The battery installed at the floor fence had enough charge to power the fence to a full 10Kv.

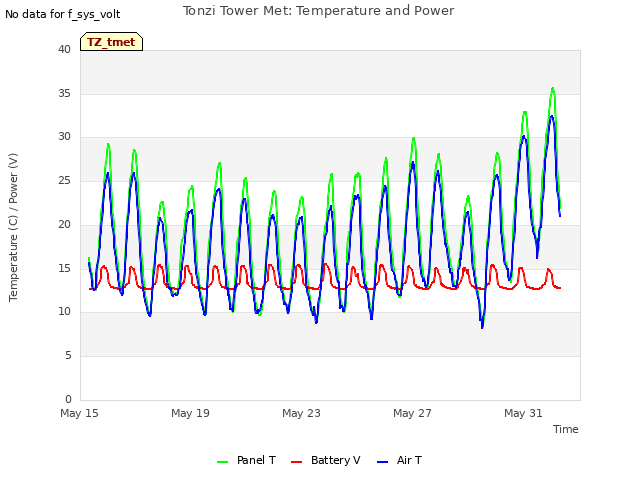

Panel T = 35.5
Bat Volt 11.8
CO2_1 = 37.8
CO2_2 = 74.3
CO2_3 = 154.9
CO2_4 = 142.35
TC_1 = 34.9
TC_2 = 31
TC_3 = 26.21
TC_4 = -99999

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found
