Tonzi: 2019-04-16 11:30:00 (DOY 106)
Author: Joe Verfaillie
Others: Siyan, Jiangong

Summary: Rain last night, radio connection for OSU SP1, new fan for Tower HMP45, old FLIR cal panel removed. First midday water potential of the season.

Tonzi
2019-04-16

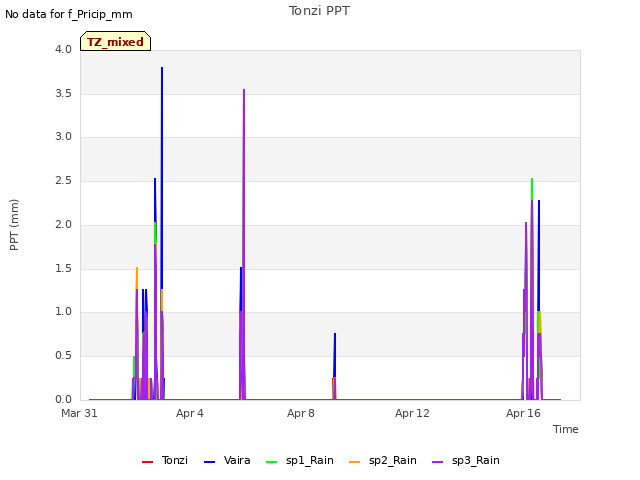

I arrived at about 11:30 with Siyan and Jiangong. It was partly cloudy and wet from last nightâ€™s rain. The ground is a little less soggy. Young cows are at play. I saw lots of small oak seedlings coming up but they probably will not make it. The trees are pretty much completely leafed out but still very light green of new leaves.

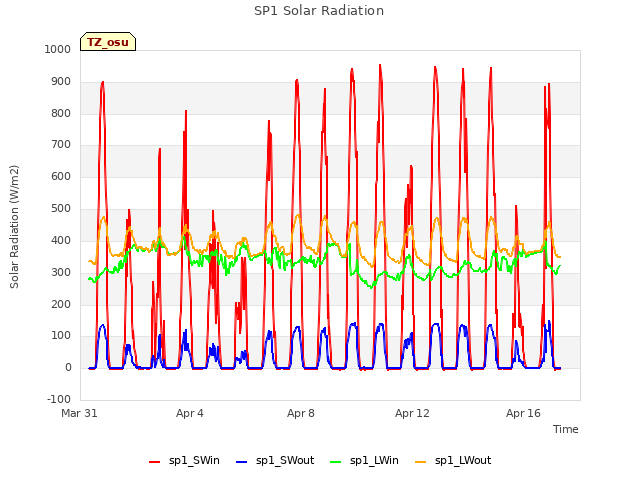

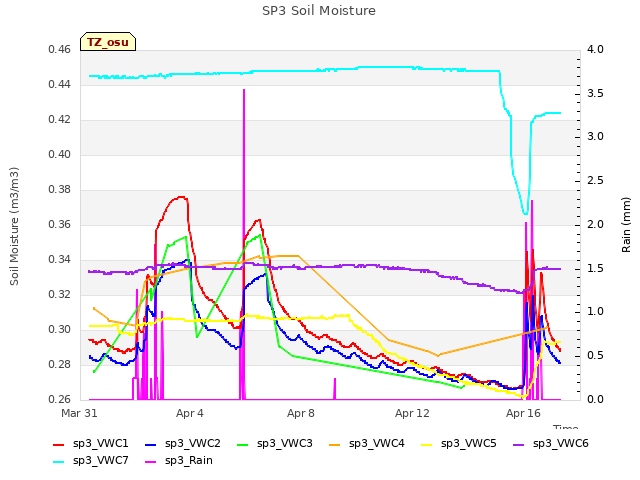

The LattePanda was okay. Itâ€™s still leaving most of the FLIR images in the Raw folder, but they rename fine using the creation date. The data logger files all seem to have accumulated correctly. I need to adjust names to match the database naming conventions. I manually collected the data from the OSU SP1 station and then added a radio sn 35785 to the box and connected it to the LattePanda. It seemed to work well.

The tower 7500 was still wet but read fine after cleaning.

Cows had chewed the wires on the old wooded FLIR cal panel. I took down the panel and brought it all back to the lab. I donâ€™t think it is needed any more. Apogee IRT sn 7385 and CR10x sn 47772 came in.

I forgot to bring fresh 7500s to swap for calibration.

I replaced the HMP45 fan at the top of the tower.

Siyan did the first midday water potential of the season.

I serviced the z-cams and brought in a couple of the tram tripods to use for instrument inter-comparisons at Oxford Tract.

Field Data

No tank data

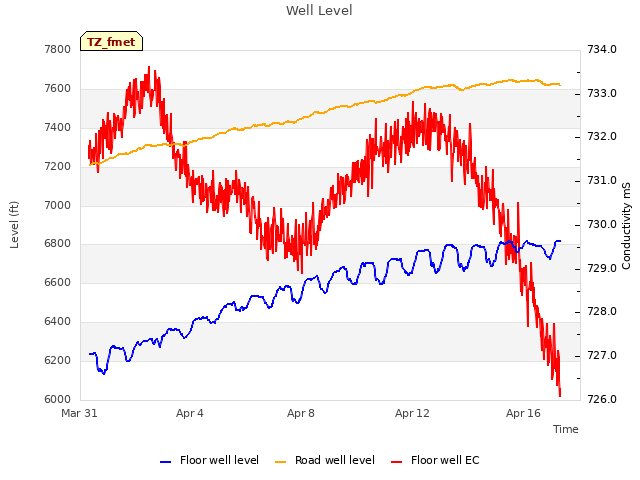

Well Depth

Date	Location	Depth (feet)
2019-04-16	VR_well	48.35
2019-04-16	TZ_floor	13.7
2019-04-16	TZ_tower	17.1
2019-04-16	TZ_road	23.65
2019-04-16	VR_pond	21.83

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-04-16	106	0	nan	38.2	33.5	54	27	26.7	28.5	31.4	37	34.1	28.2	34.7	49	33.2	30.7	30.1	31	17.6	27.1	21.3	29.5	35.7	42.7	41	31.5	28.8	32.1	31.3	33.5	32.9	38	42.5	55.7	57.2	35.1	41.7	48	31.4	46.8	50.3	48.3
2019-04-16	106	1	nan	37.9	32.6	39.9	25.6	26.7	28.8	30.2	37.3	33.8	27.9	34.7	32.9	32.6	30.4	30.1	30.7	17.6	27.4	21.6	30.1	36	41.9	41.6	31.3	29	33.2	31.6	33.2	33.2	37.7	43.4	56.3	44.5	35.7	43.1	48.6	30.2	44.8	49.4	48.8
2019-04-16	106	Avg	0-15cm																																									0
2019-04-16	106	Avg	15-30cm																																									0
2019-04-16	106	Avg	30-45cm																																									0
2019-04-16	106	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-04-16	106	0	nan	18.2	15.3	19.4	24.3	34.7	19.1	27.1	19.3	27.6	40.5	55.1	28.2
2019-04-16	106	1	nan	23.5	24.7	19.1	23.7	24.9	18.2	27.1	18.7	27.9	40	51.7	28.8
2019-04-16	106	Avg	0-15cm													0
2019-04-16	106	Avg	15-30cm													0
2019-04-16	106	Avg	30-45cm													0
2019-04-16	106	Avg	45-60cm													0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-04-16	1	15.0
2019-04-16	102	18.8
2019-04-16	2	12.4
2019-04-16	245	11.0
2019-04-16	3	13.4
2019-04-16	4	5.0
2019-04-16	5	11.9
2019-04-16	7	21.0
2019-04-16	72	19.9
2019-04-16	79	15.8
2019-04-16	8	7.9
