Field Notes

<--2019-03-29 09:15:00 | 2019-04-30 10:30:00-->
Other sites visited today: Tonzi | Tonzi
Phenocam link: Searching...

Vaira: 2019-04-16 10:30:00 (DOY 106)
Author: Joe Verfaillie
Others: Siyan, Jiangong

Summary: Standard fieldwork, rain last night but drying out, desiccant for BF3 and screen for tipping bucket.

Vaira
2019-04-16

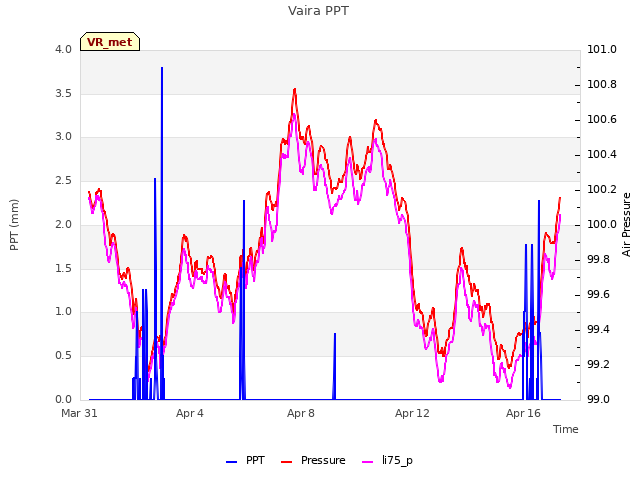

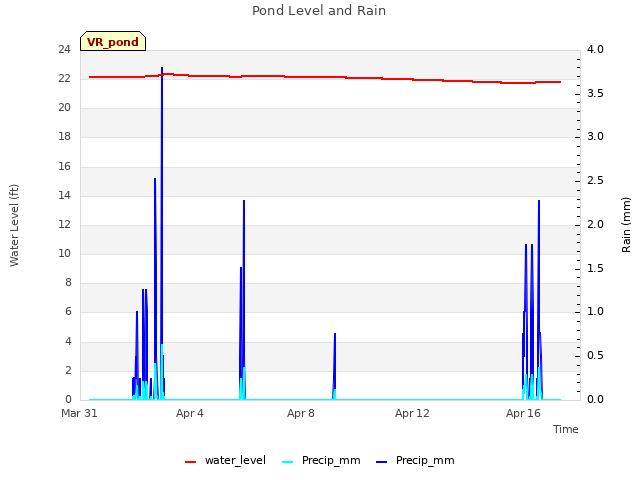

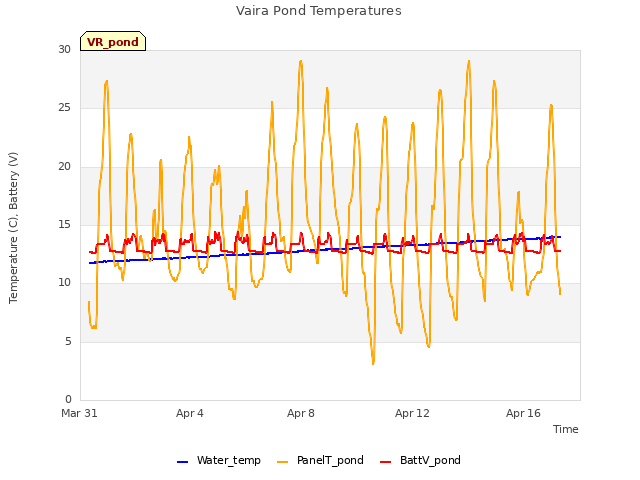

I arrived at about 10:30 with Siyan and Jiangong. It was cool and overcast with a little of last nightâ€™s rain still in the air. The grass was wet with the rain but the ground seems a little less soggy. We made it to the pond without four wheel drive. The pond level was 21.83ft

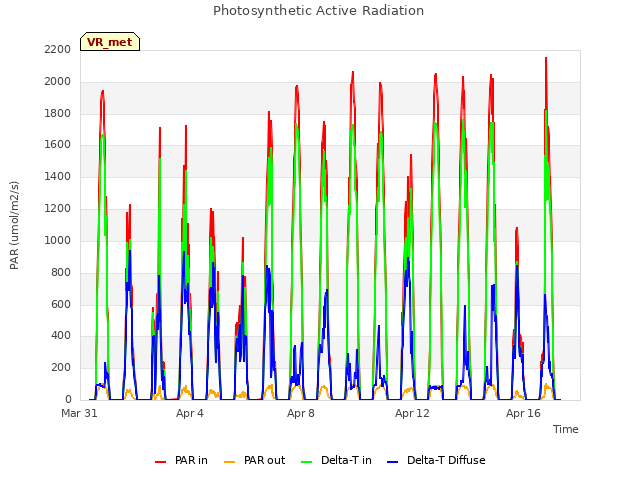

We did the standard fieldwork. We replaced the desiccant inside the BF3 diffuse PAR sensor. I added a homemade screen to the tipping bucket.

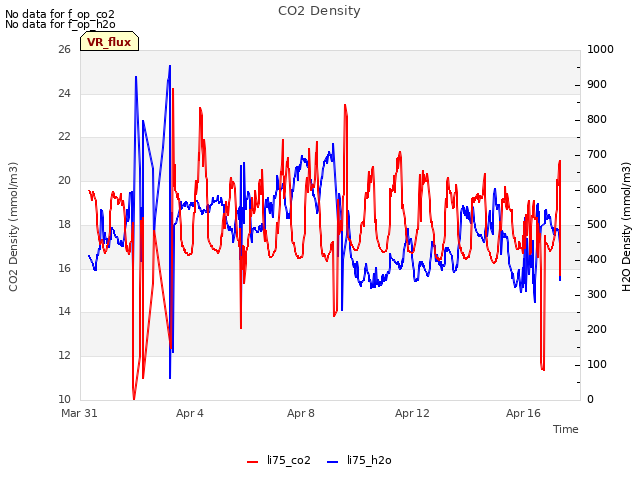

The 7500 was wet when we arrived â€“ after wiping off the water the readings were good.

I forgot to bring fresh 7500s to swap for calibration.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-04-16	VR_well	48.35
2019-04-16	TZ_floor	13.7
2019-04-16	TZ_tower	17.1
2019-04-16	TZ_road	23.65
2019-04-16	VR_pond	21.83

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-04-16	106	0	nan	38.2	33.5	54	27	26.7	28.5	31.4	37	34.1	28.2	34.7	49	33.2	30.7	30.1	31	17.6	27.1	21.3	29.5	35.7	42.7	41	31.5	28.8	32.1	31.3	33.5	32.9	38	42.5	55.7	57.2	35.1	41.7	48	31.4	46.8	50.3	48.3
2019-04-16	106	1	nan	37.9	32.6	39.9	25.6	26.7	28.8	30.2	37.3	33.8	27.9	34.7	32.9	32.6	30.4	30.1	30.7	17.6	27.4	21.6	30.1	36	41.9	41.6	31.3	29	33.2	31.6	33.2	33.2	37.7	43.4	56.3	44.5	35.7	43.1	48.6	30.2	44.8	49.4	48.8
2019-04-16	106	Avg	0-15cm																																									0
2019-04-16	106	Avg	15-30cm																																									0
2019-04-16	106	Avg	30-45cm																																									0
2019-04-16	106	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-04-16	106	0	nan	18.2	15.3	19.4	24.3	34.7	19.1	27.1	19.3	27.6	40.5	55.1	28.2
2019-04-16	106	1	nan	23.5	24.7	19.1	23.7	24.9	18.2	27.1	18.7	27.9	40	51.7	28.8
2019-04-16	106	Avg	0-15cm													0
2019-04-16	106	Avg	15-30cm													0
2019-04-16	106	Avg	30-45cm													0
2019-04-16	106	Avg	45-60cm													0
