Sherman Barn: 2019-04-11 11:10:00 (DOY 101)
Author: Daphne Szutu
Others: Joe, Jiangong
Summary: Calibrated 7700, windy day, updated CR1000 program

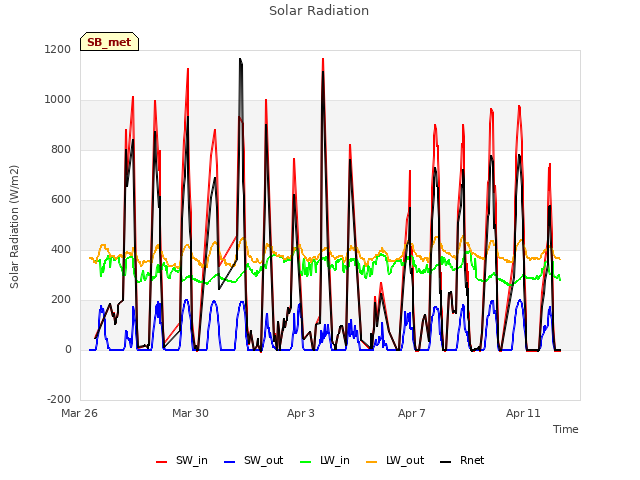

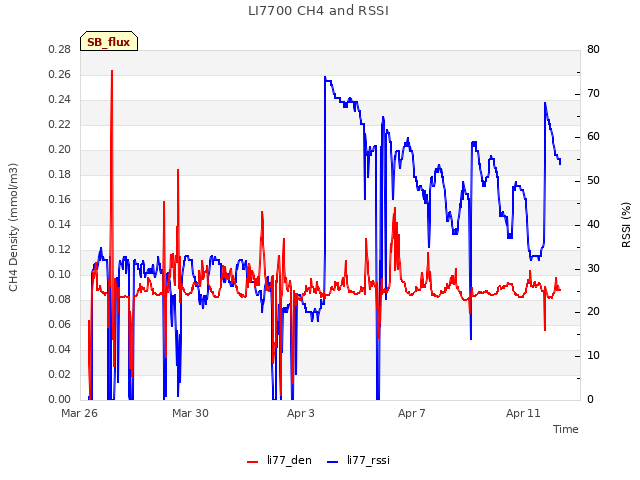

| 2019-04-11 Sherman Barn Joe, Jiangong, and I arrived at 11:10. It was an overcast, cool, and windy day. Mt. Diablo looked very green. PG&E were working on the power pole next to the barn. LI7700 readings: CH4 2.0ppm RSSI 37-->69 after cleaning We calibrated LI-7700 sn TG1-0357 after cleaning. I downloaded met data and swapped the desiccant for the water level sensor. The NR01 PRT looked ok in the past week, so I didn’t adjust that. I made some wiring changes on the mux to avoid gaps in data: • SWout: Still in port 27 • SWin: Moved from port 28 (probably bad port) to port 17 • PARout: Still in port 31 • PARin: Moved from port 32 (probably bad port) to port 18 I updated the CR1000 program with the new mux wiring and uploaded it. We left at 11:55. |
0 photos found
3 sets found

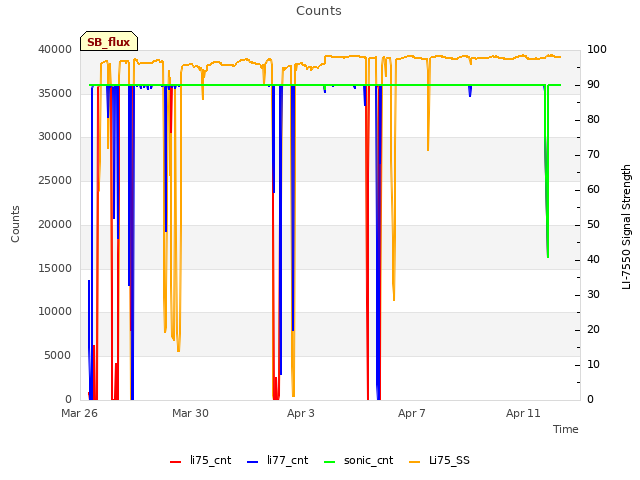

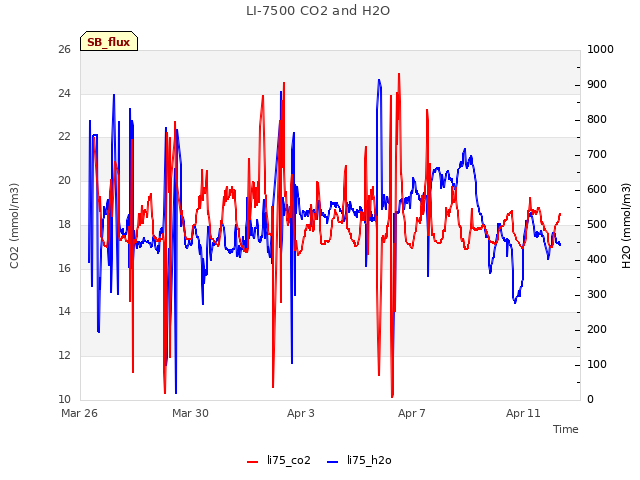

4 SB_flux graphs found

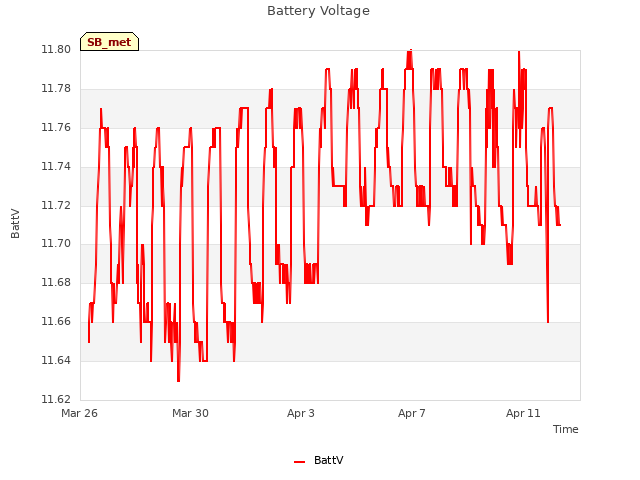

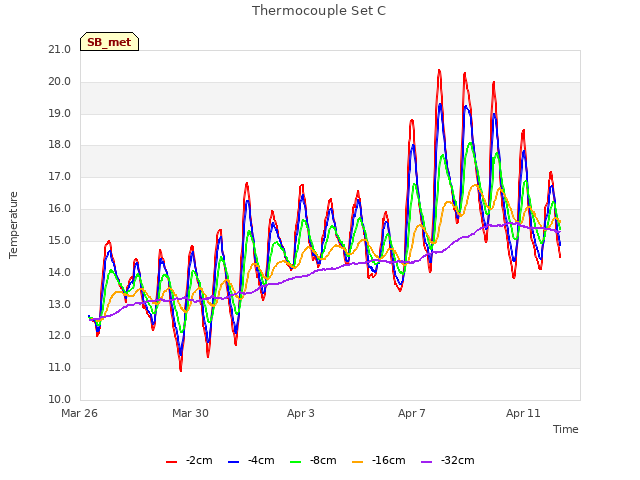

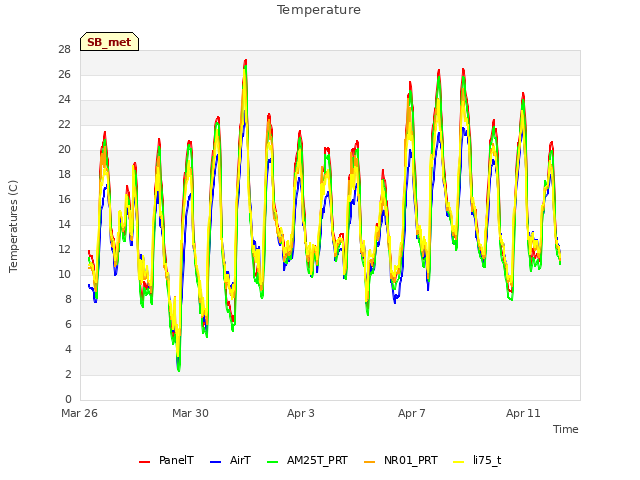

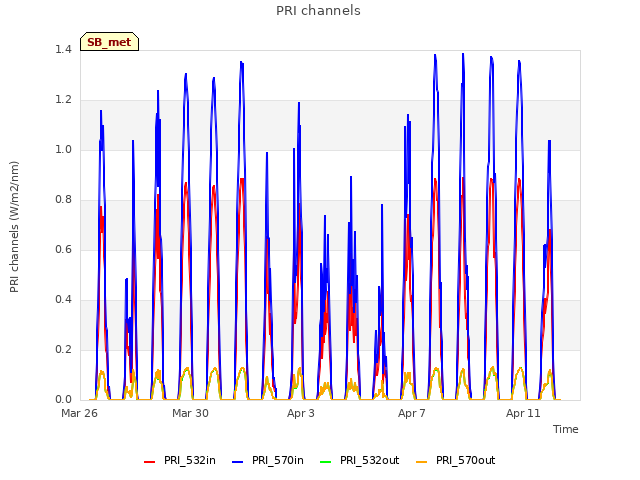

15 SB_met graphs found
