Field Notes

<--2019-02-20 09:00:00 | 2019-03-11 11:30:00-->
Other sites visited today: Vaira | Tonzi
Phenocam link: Searching...

Tonzi: 2019-02-20 10:30:00 (DOY 51)
Author: Joe Verfaillie
Others: Siyan

Summary: Cold and wet, reinstalled C4 dendrometer, standard fieldwork, updated soil co2 program

Tonzi
2019-02-20

I arrived at about 10:30 with Siyan. It was cold with a cold breeze and scattered showers. The ground is soggy and the pond looks completely full. The grass looks happy but still short, some of the native wild flowers are coming up. The rivers on the way up were brown and running high. I could see Mt Diablo but not the Sierras.

I put the dendrometer band back on Tree C4. It was mistakenly removed last time with the removal of the sap flow station.

I brought radios and a LattePanda to install but discovered I could not mount the LattePanda with touch screen in the box well. I think Iâ€™ll put a box together in the lab and swap the entire box at a later date.

I collected the eddy data from both towers. Siyan did the regular fieldwork, collected the other data and serviced the z-cams.

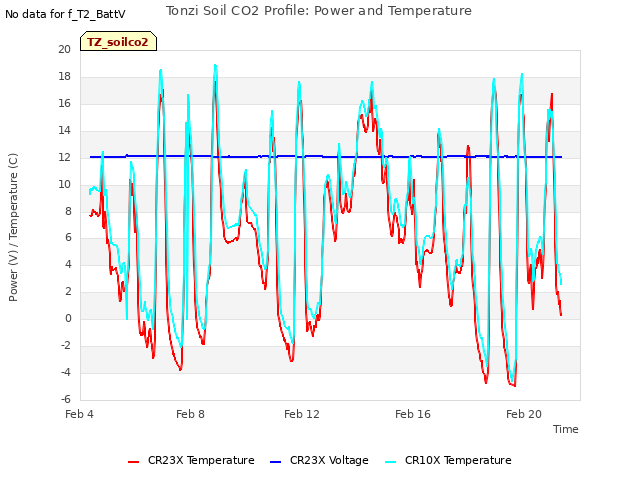

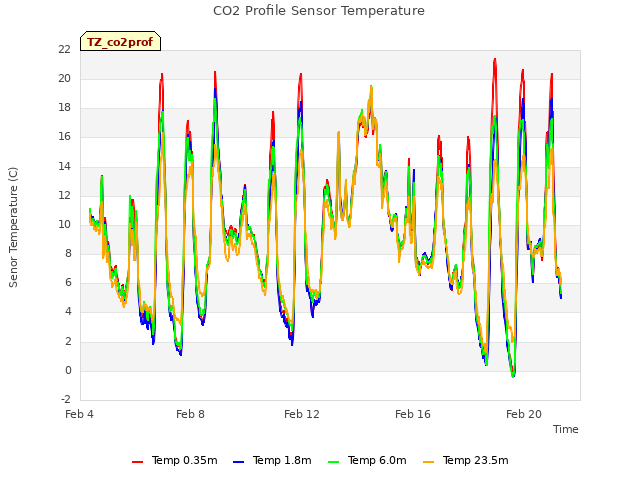

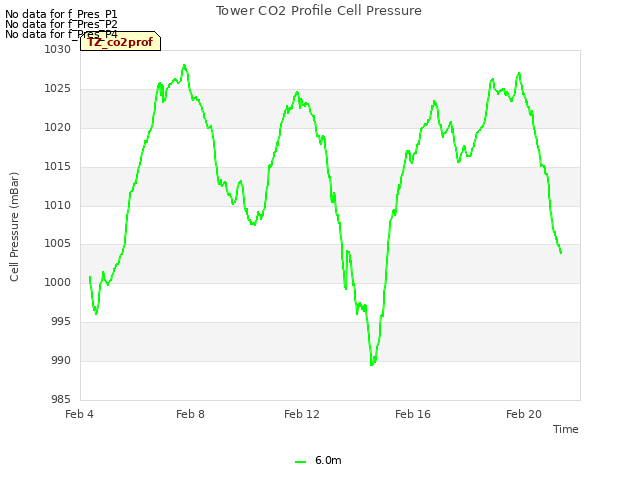

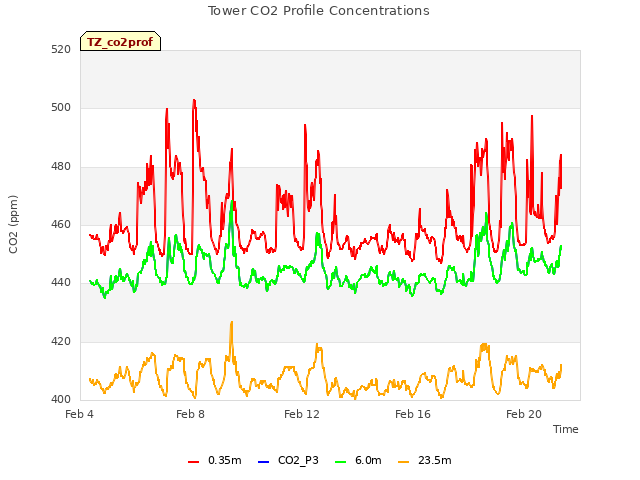

I updated the soil co2 program to use both C3 and C4 to drive the soil state switches. This seemed to fix the problem with the open CO2 profile not getting turned on.

The old cal panel for the FLIR was knocked around a bit. The ground is getting soft so I pounded in the posts a bit to firm them up and realigned things.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-02-20	VR_well	51.5
2019-02-20	TZ_floor	23
2019-02-20	TZ_tower	28.5
2019-02-20	TZ_road	30.2

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-02-20	51	0	nan	41.7	25.8	38.7	33.2	25.6	27.9	31.4	32.9	34.6	26.7	41.7	37.6	39	41.7	33.2	36.5	35	34.4	40.5	36.2	37.7	45.2	42.1	40.7	35.7	36.6	38.2	38	37.4	40.7	41.7	54.9	44.3	36	46.3	47.1	40.6	45.4	41.7	47.4
2019-02-20	51	1	nan	42	31.7	38.2	37.9	25.8	27.3	31.1	35.8	34.1	28.5	41.1	38.1	38.4	42	33.2	35.3	35	33.8	40.8	37.1	36.6	44.9	41	41.3	36.3	36.8	38	38	36.8	41.8	41.7	58.6	44.8	35.1	44.8	47.1	40.8	45.1	51.7	47.4
2019-02-20	51	Avg	0-15cm																																									0
2019-02-20	51	Avg	15-30cm																																									0
2019-02-20	51	Avg	30-45cm																																									0
2019-02-20	51	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2019-02-20	51	0	nan	34.9	22.3	39.9	22.9	28	30.1	50	23.4	32.1	19.3	39.6	33.2	42.5	68.6	41.4	33.4
2019-02-20	51	1	nan	34.3	22.3		23.8	27.4	30.7		23.4	31.8	19.3		32.4	43.4	28.7		33.1
2019-02-20	51	Avg	0-15cm																	0
2019-02-20	51	Avg	15-30cm																	0
2019-02-20	51	Avg	30-45cm																	0
2019-02-20	51	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-02-20	1	13.3
2019-02-20	102	19.5
2019-02-20	2	12.3
2019-02-20	245	11.5
2019-02-20	3	13.0
2019-02-20	4	4.9
2019-02-20	5	12.0
2019-02-20	7	9.9
2019-02-20	72	19.1
2019-02-20	79	15.8
2019-02-20	8	7.8
