Tonzi: 2018-12-19 10:00:00 (DOY 353)
Author: Joe Verfaillie
Others: Siyan, Dennis

Summary: Change FLIR restart time, Surface temp on OSU SP2 and SP3, LWin and LWout on SP1.

Tonzi
2018-12-19

I arrived at about 10:00 with Dennis and Siyan. It was mild and partly sunny. The ground is damp with some small puddles in the road but the pond is not filling.

I collected data from the Tower, Floor, and OSU loggers. At the tower I set the FLIR clock using telnet. After collecting the met data I changed the program to restart the FLIR at 15min after midnight instead of only 10sec after midnight. Hopefully this prevents the midnight photo from getting lost.

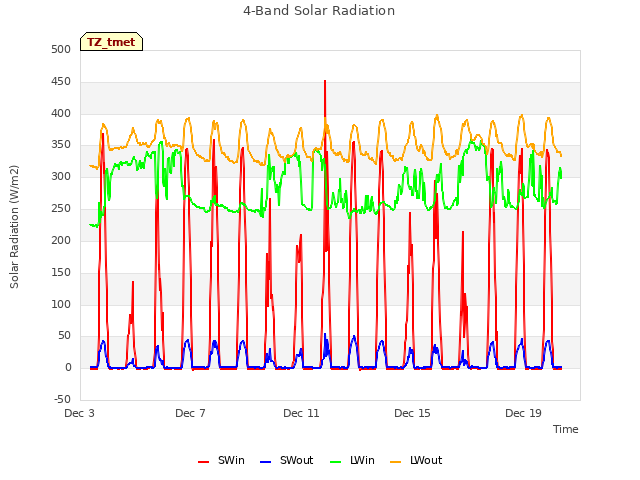

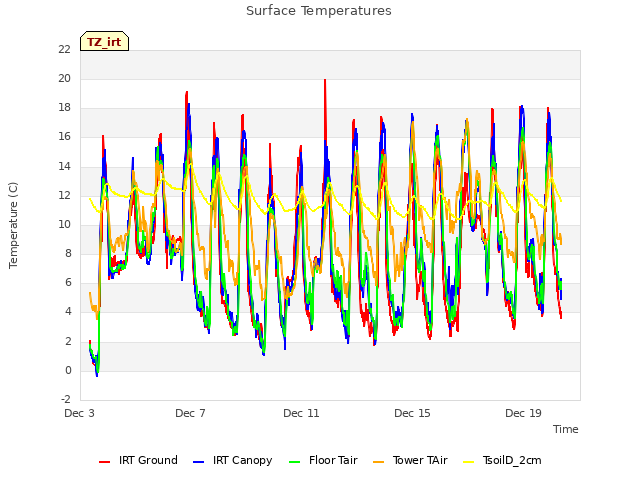

On the OSU SP2 and SP3 systems I collected the data (though I seemed to have missed the 30min table on SP3) then changed the program to store the surface temperature as C instead of 10*C. On the OSU SP1 system I collected the data then changed the program to store the LWin and LWout corrected for the NR01 PRT instead of uncorrected. I also removed the RF401 radios from SP3 (sn 35754) and SP1 (sn 35785) for testing in the lab. Iâ€™m thinking of setting the LattePanda up to collect SP2 and SP3 data.

The solar panel cable on the OSU SP1 system has been chewed by cows. It still seems to be working but needs to be spliced next time. I need to have the correct size heat shrink.

The cal panel and IRT for the FLIR were misaligned. Cows have been pushing on them. I pushed them back into place but they may not last long.

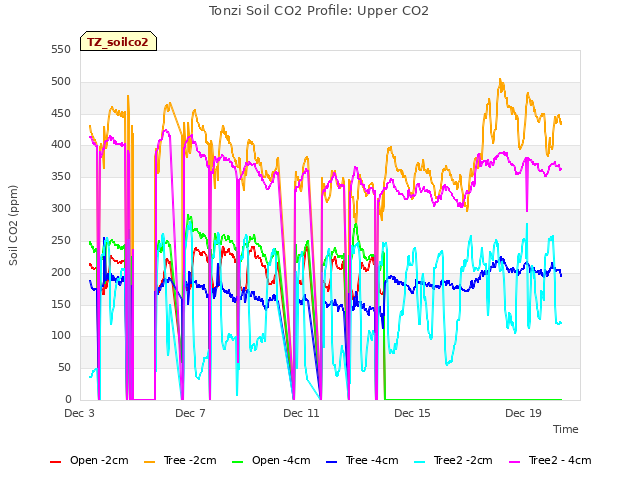

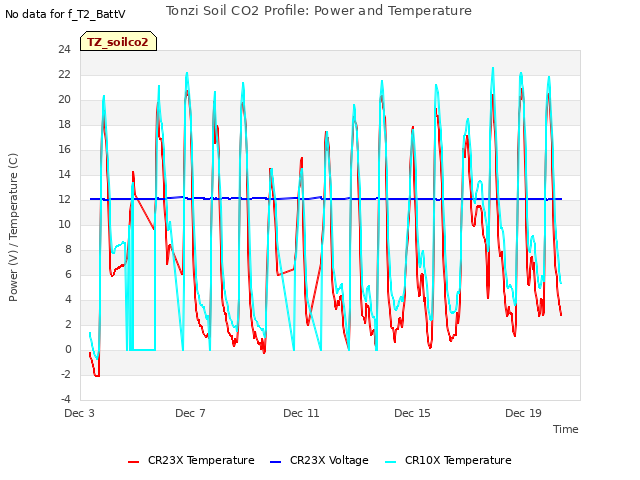

I looked at running an Ethernet line from the tz5 soil co2 CR23x to the box under the tree to alleviate some of the confusing wiring. There are conduit pipes there that probably have room for the wire but I will need a fish to get it through.

Siyan collected the other data loggers, manual well measurements, DBH and clip plots.

Dennis did the soil moisture and pulled out more of the old litter trap cages. We piled most of the wire fencing in the back of the truck and dropped it off in the scrap metal bins at the recycling center on Gilman.

Siyan and Dennis pulled most of the unused fence posts.

Field Data

No tank data

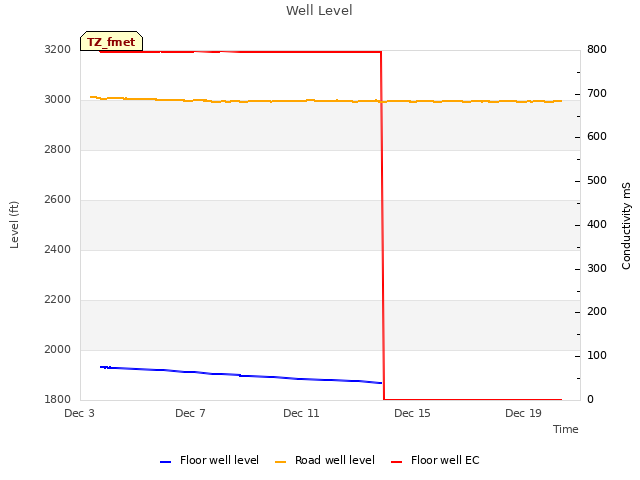

Well Depth

Date	Location	Depth (feet)
2018-12-19	TZ_floor	30.1
2018-12-19	TZ_tower	34.7
2018-12-19	TZ_road	38

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-12-19	353	0	nan	27.3	21.7	24.1	15.3	21.2	19.4	13.6	29.1	31.7	15	24.6	29.2	29.2	24	31	31.3	12.1	27.7	17	29.8	19.3	36	39.6	22.9	29.9	31	21.2	35.2	33.2	37.4	16.5	6.4	31.9	17.9	42.8	34	11.6	39.4	48.3	34.8
2018-12-19	353	1	nan	26.7	11.1	24.4	14.7	20.6	20.3	13.5	29.4	30.5	14.4	24	29.2	28.9	23.7	31.3	31.3	12.4	25.2	16.4	29.8	18.7	35.7	32.4	22.3	30.1	31.3	21.8	33.8	32.5	37.1	17.3	10.7	32.5	18.6	42.8	33.7	11.5	38.2	48	35.7
2018-12-19	353	2	nan	26.7	21.4	19.1	15	21.2	20.3	13.2	30.2	31.7	14.4	24	29.2	28.9	23.7	31	31	12.1	24.3	17	30.7	18.7	35.2	32.9	22.3	30.4	31.5	22.3	34.1	32.5	37.7	17.9	7	32.8	28.5	42.5	34.2	11.6	38.2	47.7	35.7
2018-12-19	353	Avg	0-15cm																																									0
2018-12-19	353	Avg	15-30cm																																									0
2018-12-19	353	Avg	30-45cm																																									0
2018-12-19	353	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-12-19	353	0	nan	28.2	10.6	26.4	15.6	28	35.6	23.7	21.6	31.5	25.7	24.6	32.1	43.7	21.9	34	32.8
2018-12-19	353	1	nan	28.5	13.2	26.4	15	28	37.4	23.4	22.2	31.5	27.1	24.6	32.1	43.1	20.5	34.5	32.8
2018-12-19	353	2	nan	28.5	6.6		15	27.4	38.1		21.6	31	27.6		31.8	42.5	20.2		32.5
2018-12-19	353	Avg	0-15cm																	0
2018-12-19	353	Avg	15-30cm																	0
2018-12-19	353	Avg	30-45cm																	0
2018-12-19	353	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2018-12-19	102	17.2
2018-12-19	2	11.1
2018-12-19	245	10.8
2018-12-19	3	9.5
2018-12-19	4	11.5
2018-12-19	5	10.9
2018-12-19	7	8.4
2018-12-19	72	17.9
2018-12-19	79	15.0
2018-12-19	8	6.8
