Field Notes

<--2001-05-17 09:00:00 | 2001-05-24 09:00:00-->
Other sites visited today: Tonzi

Vaira: 2001-05-20 13:49:00 (DOY 140)
Author: Ted Hehn
Others:

On Sunday, 20 May, the tower radiation system became operational. The Temp/RH sensor I installed did not work correctly and will be replaced on my next site visit. Although we are currently logging this data, the MD9/PC208 configuration has not been installed so we do not have pc communication at this time and data must be downloaded manually.

The output of the 23x on the tower is as follows: 10 sec execution interval - 30 min averages
all values are in milivolts except for the Panel T (degreeC), Batt_Volt (Volts), Temp ambient (degree C) and RH (%)

Output ID code
Date
Time
Panel Temp
Batt_volt
Par_up ave # 990019 5.26 uV/umol/sm2 cal 9Feb99
Par_Dn ave # 990017 5.16 " " "
Calib_Par ave # 990021 5.12 " " "
Pyranometer ave # 996981 5.03 uV/W/m2 cal 7Sept99
Net_Rad ave #990351 13.9 uV/W/m2 cal 29Jul99
Temp_ambient ave
RH ave
Par_up std dev
Par_Dn std dev
Calib_Par std dev
Pyranometer std dev
Net_Rad std dev
Temp_ambient std dev
RH std dev

Similarly, the net radiation standard was installed at the Vaira site and became operational on Sunday Model CNR1 # 990181 10.19 uV/W/m2 cal 20Aug99

23x output
Output ID code
Date Time
Panel_T (deg C)
Batt_Volt (Volt)
Net_Rad ave (mvolt)
Net_Rad std dev (mvolt)

To: Dennis Baldocchi ,
Lianhong Gu ,
Nancy Kiang ,
Liukang Xu

FYI

Last Sunday 20May I aligned the sonic anemometer on the tower such that its' North indicator line is pointing toward 13 degrees due west of magnetic north.

Field Data

No tank data

No VR Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

Explore the graph:Temperatures in a new window

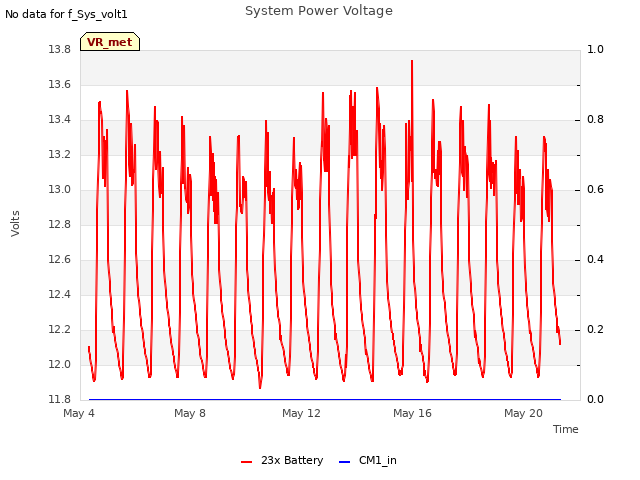

Explore the graph:System Power Voltage in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

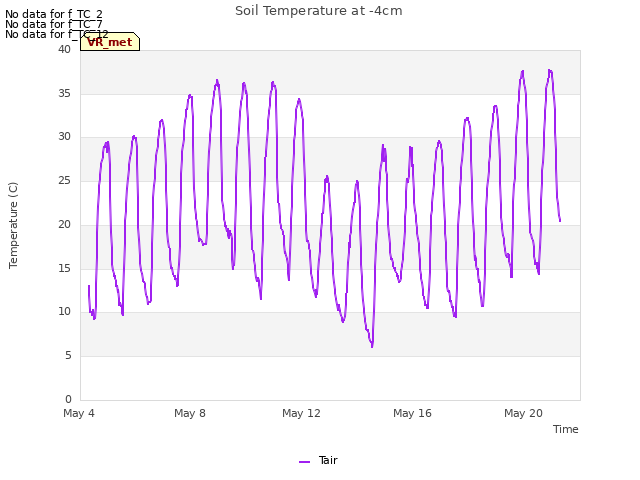

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

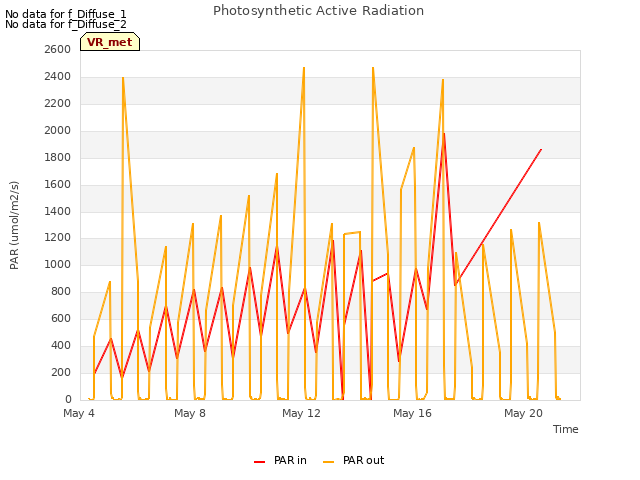

Explore the graph:Photosynthetic Active Radiation in a new window

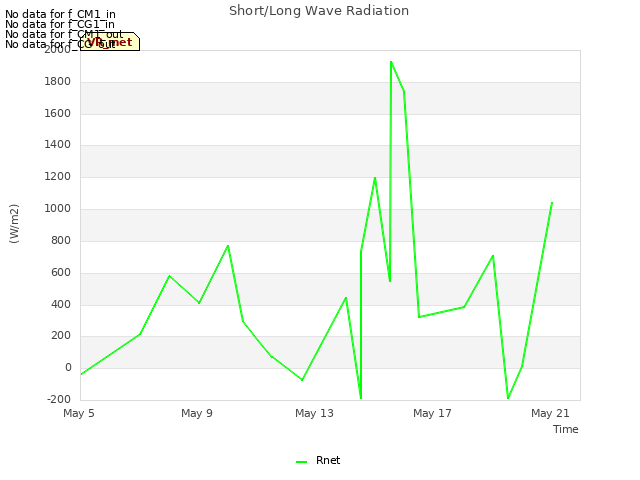

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

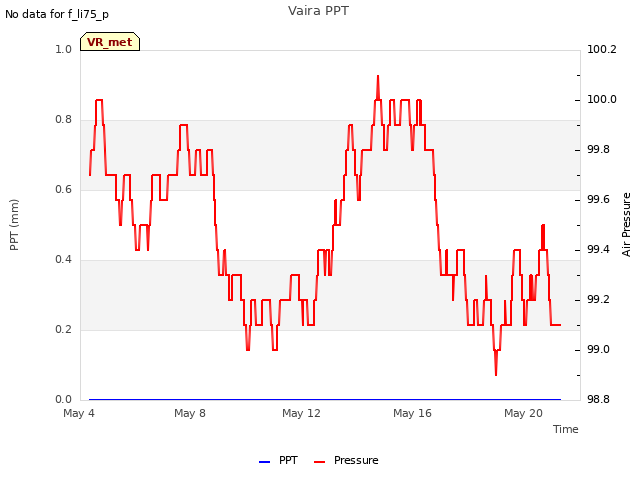

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

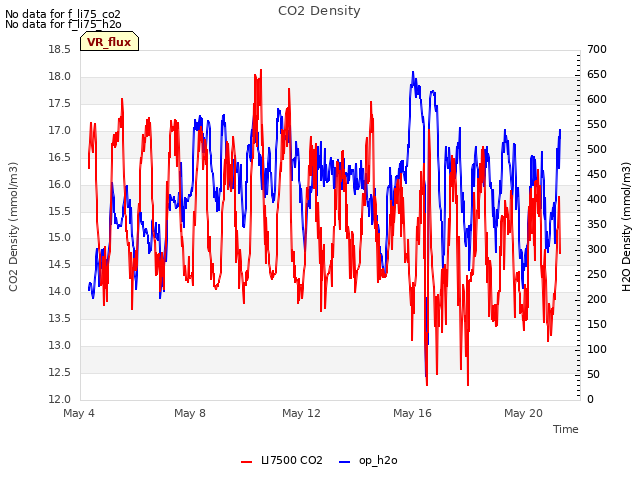

Explore the graph:CO2 Density in a new window

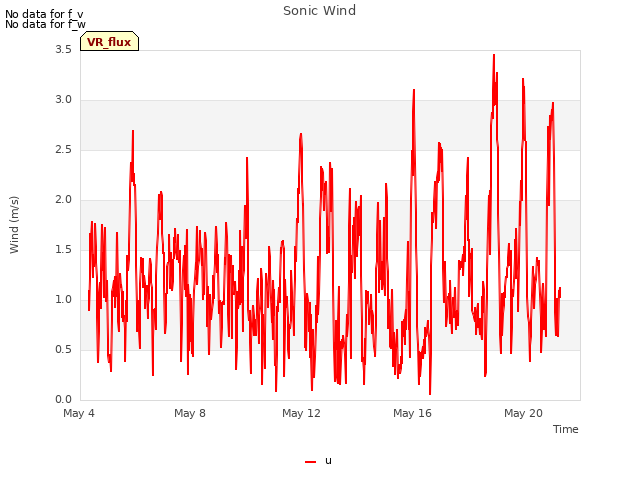

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
