Field Notes
<--2002-03-20 09:30:00 | 2002-04-03 14:26:00-->Tonzi: 2002-03-26 13:17:00 (DOY 85)
Author: Nancy Kiang
Others:
Summary: LAI 2000 measurements, sapflow measurements, check flux system, check soil, download data.
| At 10:01 AM 3/26/2001 -0800, Nancy Kiang wrote: WHO: Nancy Kiang WHERE: Tonzi Ranch WHEN: Overnight, 3/24/2001, returning 3/25/2001 WEATHER: 3/24/01 evening, clear, mild, 60's F 3/25/01 morning, overcast, mild, 50's F WHAT: Measure branch area index of transects and sapflow trees 3/24/01. Arrived ~5 pm. Sunset at 6:01 pm. Measured transects T1 and T3 with LAI-2000 (Tracy's in open, Biomet lab's for under canopy), 2 measures every 2 m. Too dark by 6:45 pm. 3/25/01. Measured transect T2 at 5:45-6:00 am. Good sky conditions until past 7:00 am, so re-measured center transect T1, and measured BAI of each sapflow tree (using 180-degree view caps on sensors to block trunk -- measured north and south side of trees). -Checked understory flux system 8:20-8:45 am. -Understory flux system was working fine. -Solar panel battery voltage 12.77 V at 9:15 am. -CR10X2 -- Soil temperatures okay, except Inloc #11 is showing -9999. -CR23X -- Soil moisture values look okay (0.8-0.9) -CR10X4 -- Sapflow Q okay. Downloaded CR10X4.dat, TZ4_01081.10x, TZ4_01082.10x -CR10X5 -- Sapflow P okay. Forgot to bring diskette with md9_5.c. Downloaded CR10X5.dat. Misc: Mr. Tonzi's grandson, Rob, has a well upstream of our site with same water source as our trees. The well is 225' deep, flow of 10-12 gal/minute. The well has a pump that can do 5 gal/minute. The well is not itself accessible for hand sampling. This could be a source for deep water isotopes. Comments: -Dennis or Ted: Could one of you please make up a concise, easy-to-read, one-page table of the configuration of the CR10X2 and CR23X sensors (sensor id's, their connections to the dataloggers, the corresponding Edlog program, and the output of the program). PLEASE SEE MY EXAMPLE for the sapflow sensors in: Amador:\Sites\Tonzi_Oak_Savanna\Sapflow\TonziSapflowConfig\TonziSapflowconfig.xls If we can keep copies of these configurations in the enclosure box, it would make it easier for anyone to debug the system. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

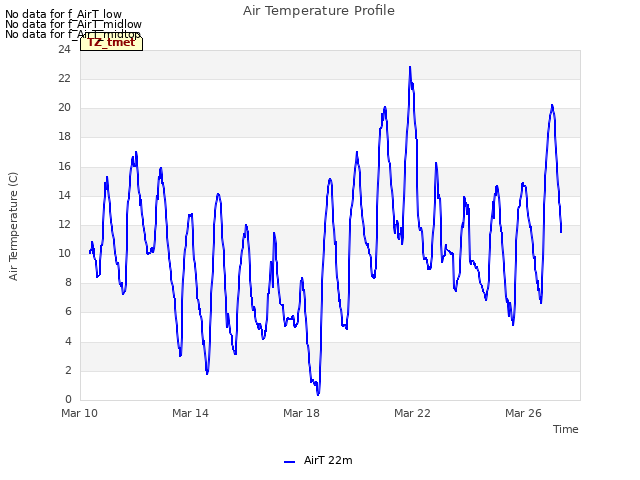

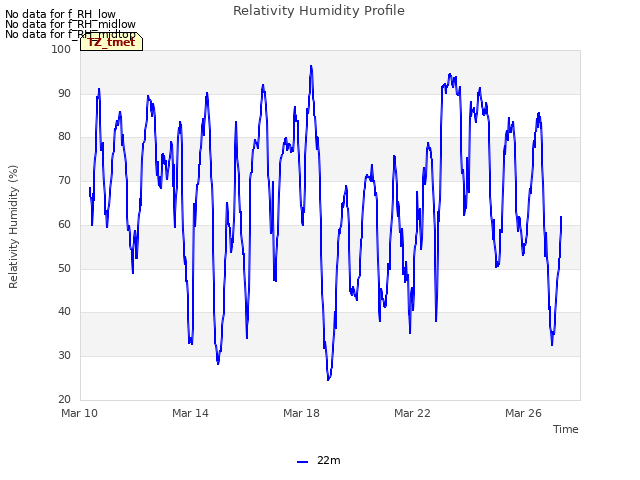

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

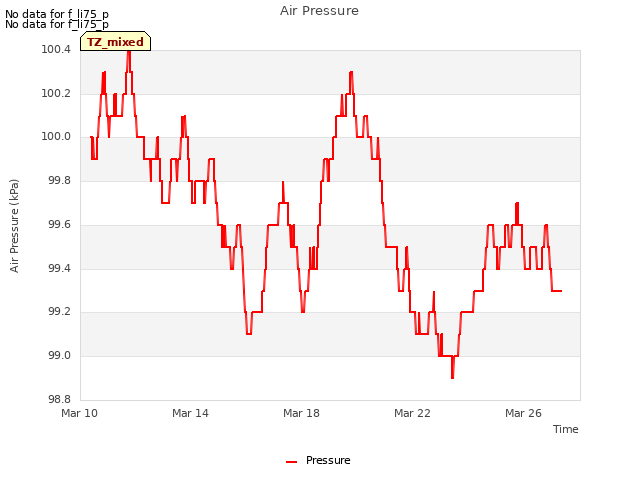

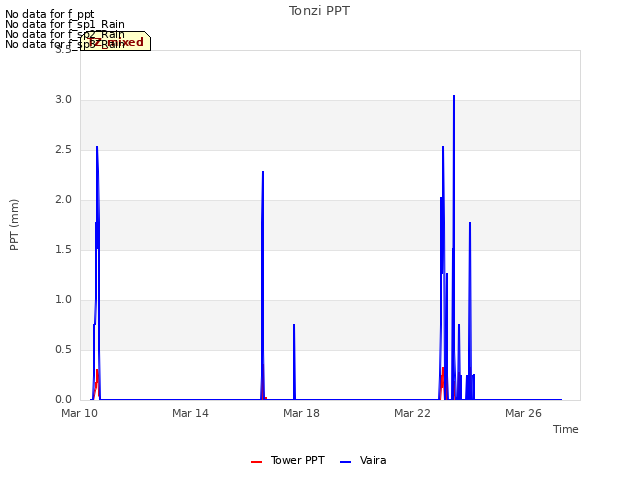

3 TZ_mixed graphs found
No data found for TZ_fflux.

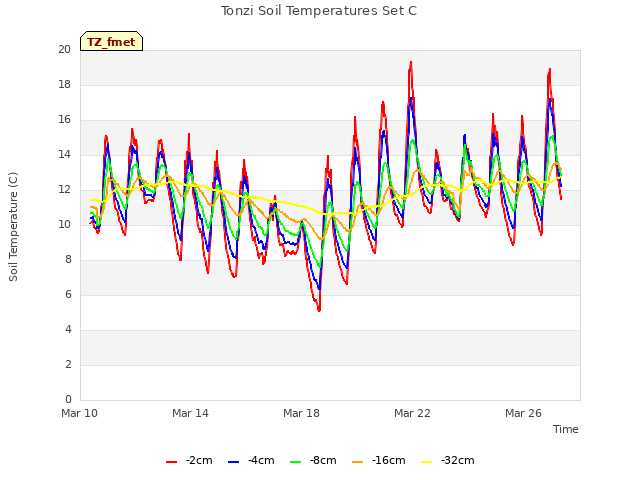

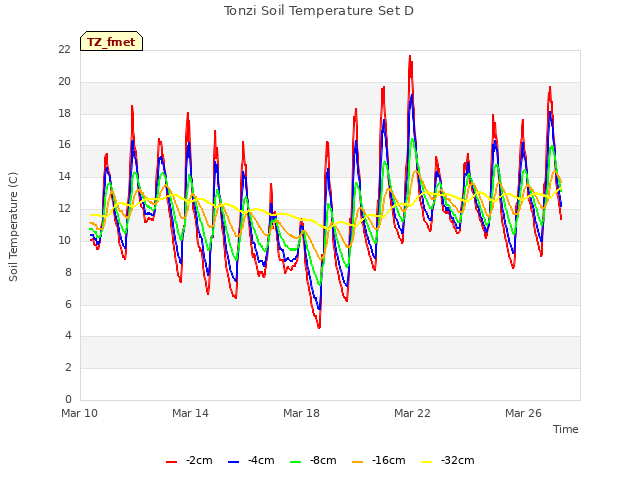

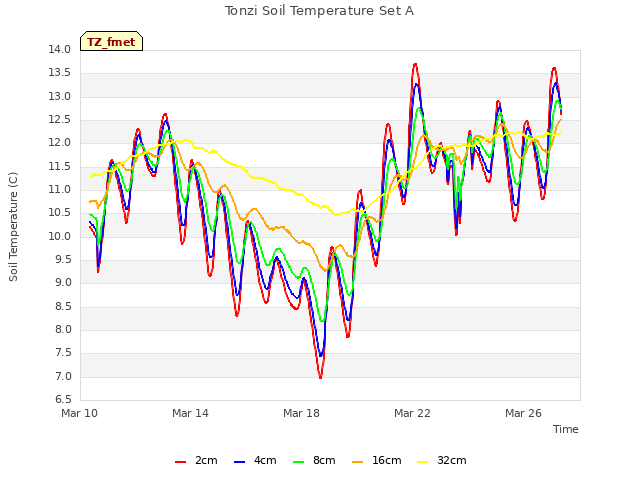

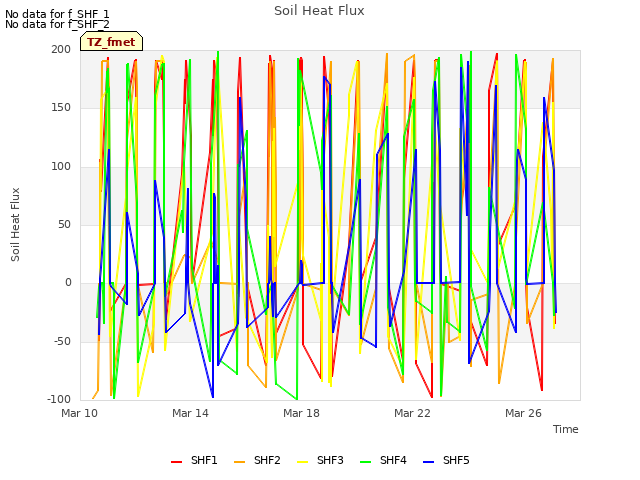

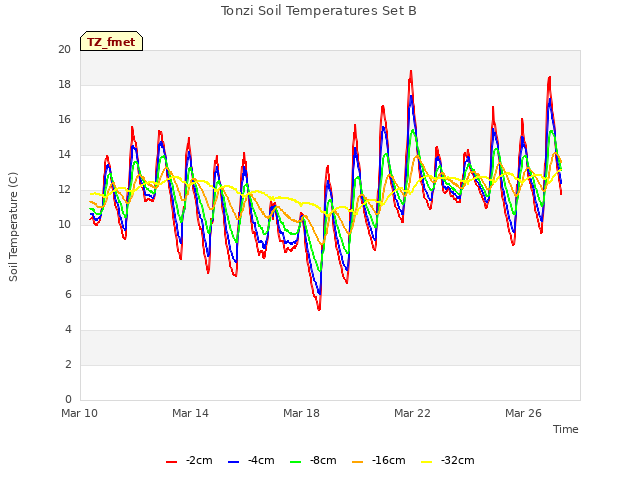

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

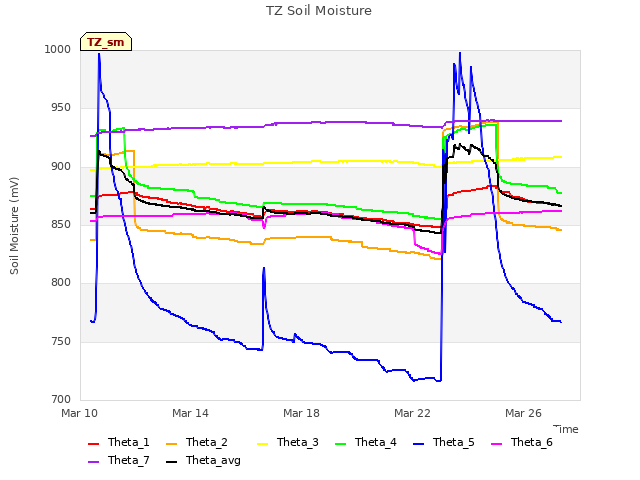

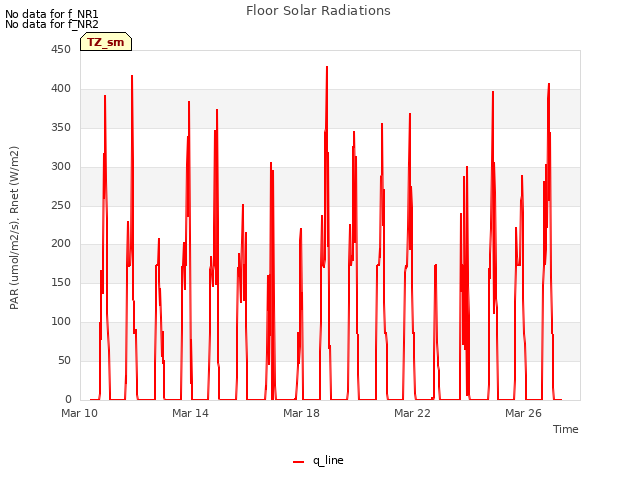

2 TZ_sm graphs found
Can't check TZ_met

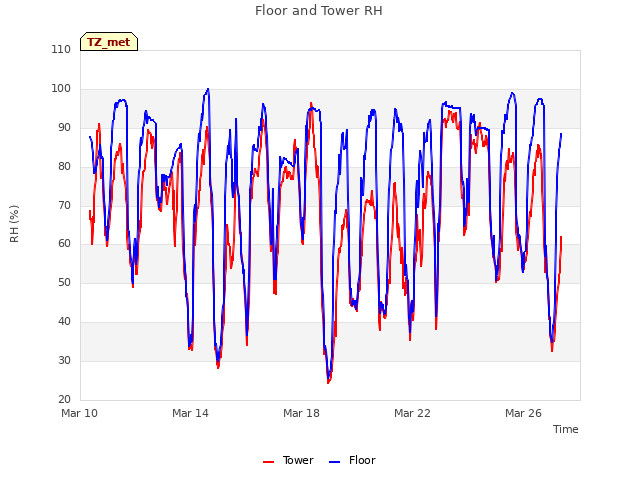

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
