Field Notes
<--2002-03-26 13:17:00 | 2002-04-04 10:00:00-->Tonzi: 2002-04-03 14:26:00 (DOY 93)
Author: Ted Hehn
Others:
Summary: Reset tower, replace electric fence, check sensors.
Tonzi Ranch -- Hehn arrives 09:00 overcast & cool; flowers beginning to bloom. Water level in pond beginning to decrease. Reset tower E_Fence posts to regain tension. Remove fence from floor flux tripod and PVM array -- move PVM arrays 8 meters to the south and erect new Electric fence around Flux tripod/PVM array. 17:45 Tower flux system failure: Licor 7500 showing incorrect voltages. Power all systems down and up – no help. No power inside translator box – bad power connection at bulkhead, secure connection and voltages now present and appear correct. 18:30 leave Tonzi ranch |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

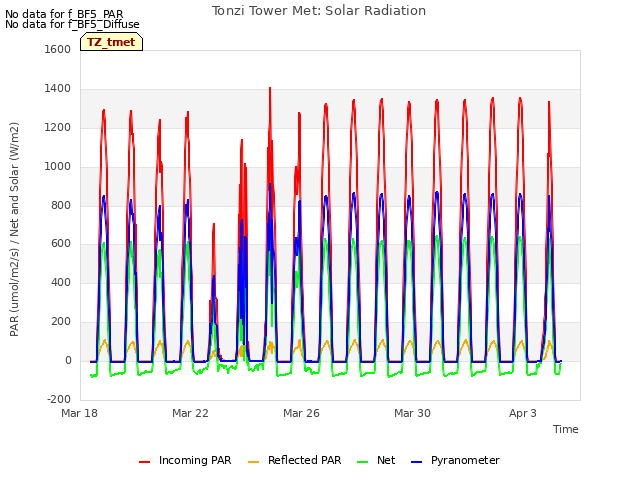

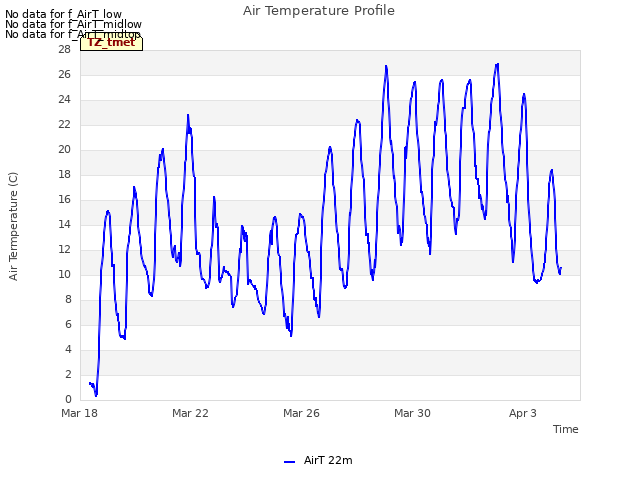

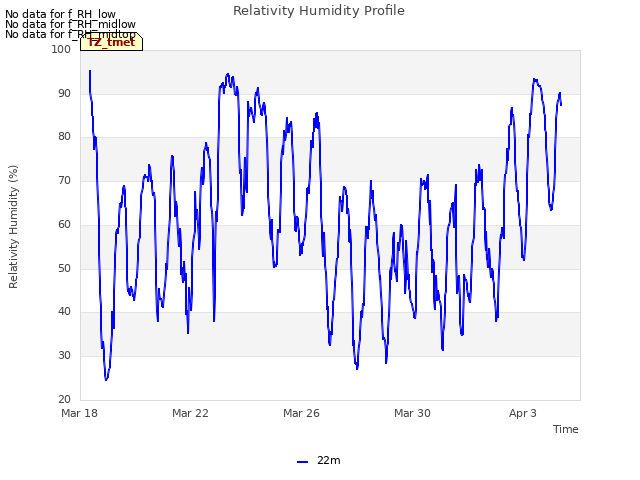

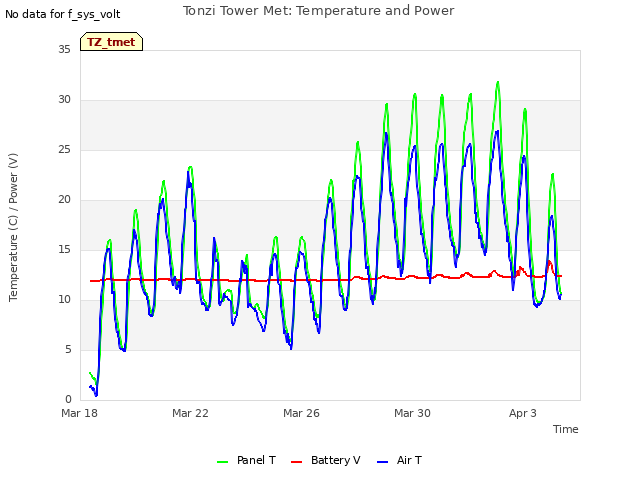

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

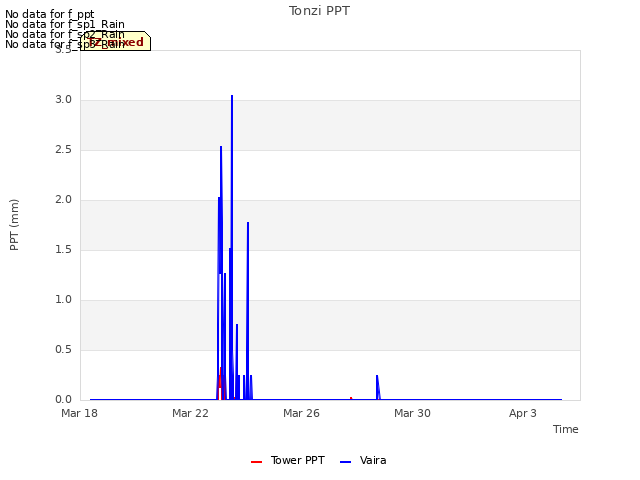

3 TZ_mixed graphs found
No data found for TZ_fflux.

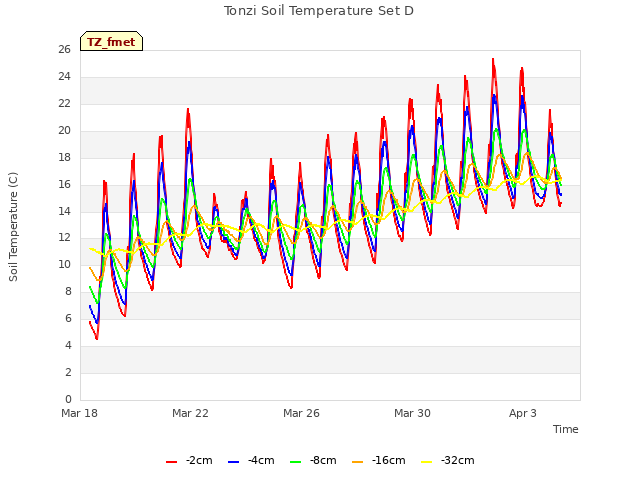

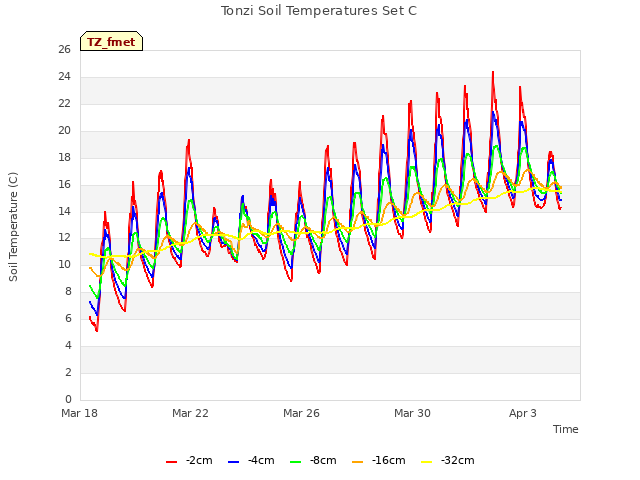

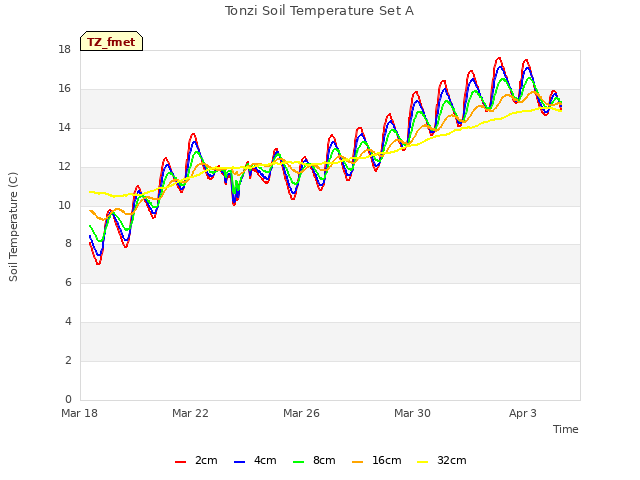

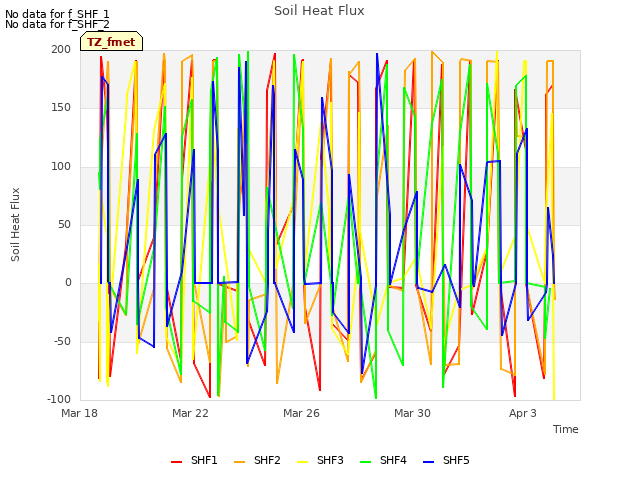

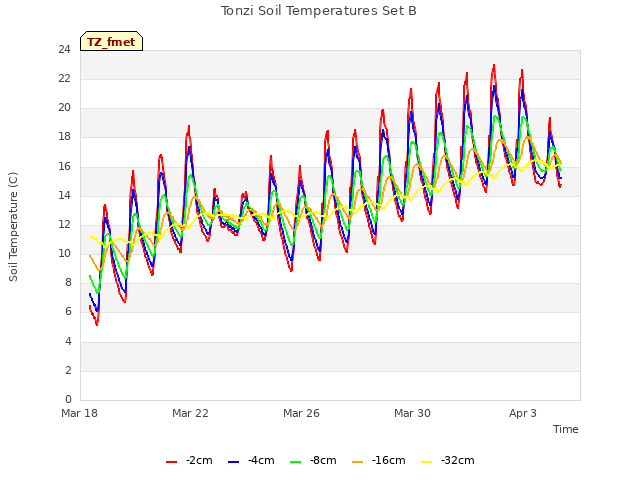

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

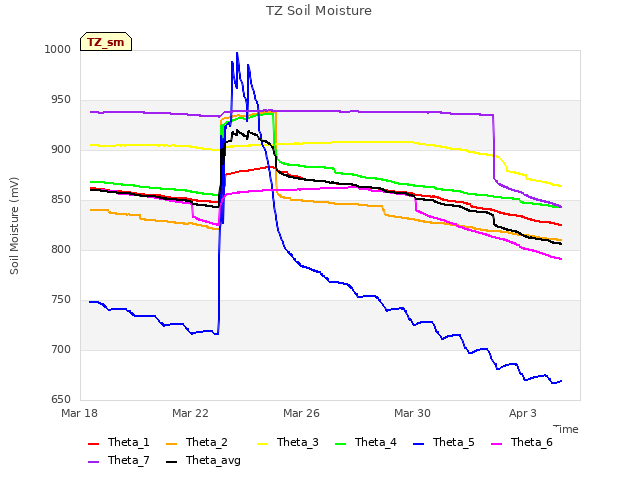

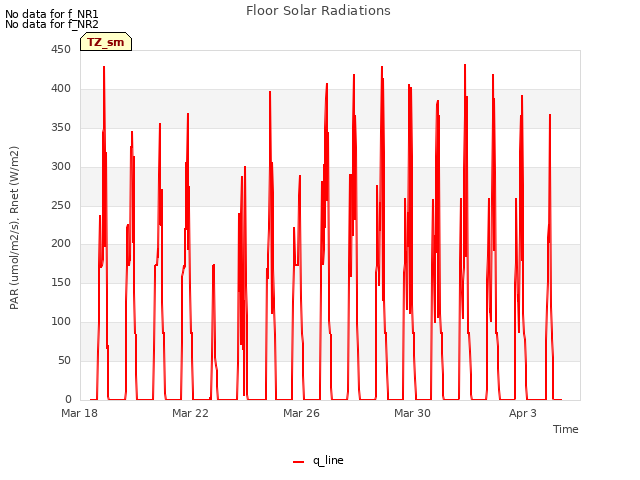

2 TZ_sm graphs found
Can't check TZ_met

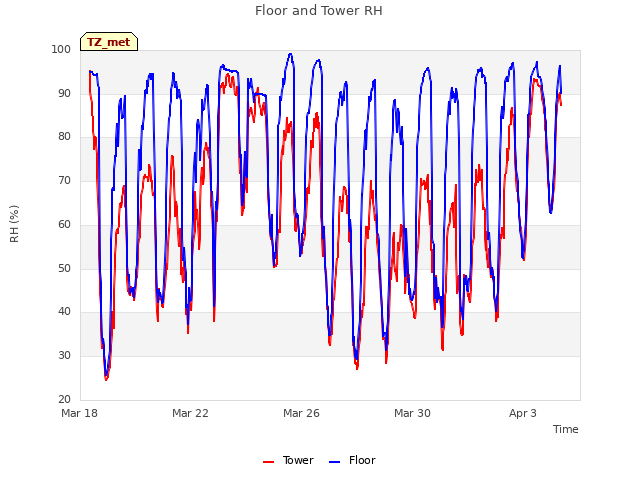

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
