Tonzi: 2002-11-06 15:25:00 (DOY 310)
Author: Ted Hehn
Others:
Summary: Floor system watchdog timer not functioning correctly – rain/CO2 event expected tomorrow.
| Arrive around 13:30. Overcast & cool, road into Tonzi ranch dry and dusty Begin diagnostics on floor system watchdog timer: 1.)Test1: Power down/up system with PVM regulator switch. OK- watchdog functions correctly -- computer powers up. 2.)Test2: 5:00am time event power reset changed to current time (14:23). Watchdog functions correctly for both computer states: a.) PC on => power off then on b.) PC off => power on 3.)Remove fencer voltage leads from CR10x 4.)Manually reprogram CR10x with original PCWATCHDOG program written in Aug2001 with the exception that I placed the program in table 1 of the CR10x. The floor pcwatchdog program that I modified 2-3 weeks ago was in CR10X program table 2. It may have possibly failed because I placed command codes in table 1 to read the fencer voltage and assigned program table 1 the same execution interval as program table 2 (2 seconds). Program table 1 has priority over table 2. Table 2 has delay commands that sequence port activation/deactivation. If table 2s execution is interrupted by table 1, the sequence of port activation stops and remains in the random status it was at the time table 2 was interrupted. This may be the reason for the random nature of the half-hourly data file graphics. Problems: Net radiometer on tripod near floor met station (closest to data logger enclosures) appears to be skewed. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.
11 TZ_tmet graphs found
No data found for TZ_soilco2.

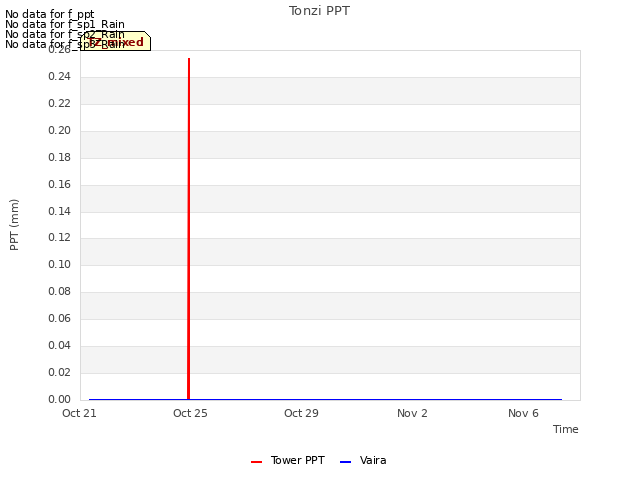

Can't check TZ_mixed

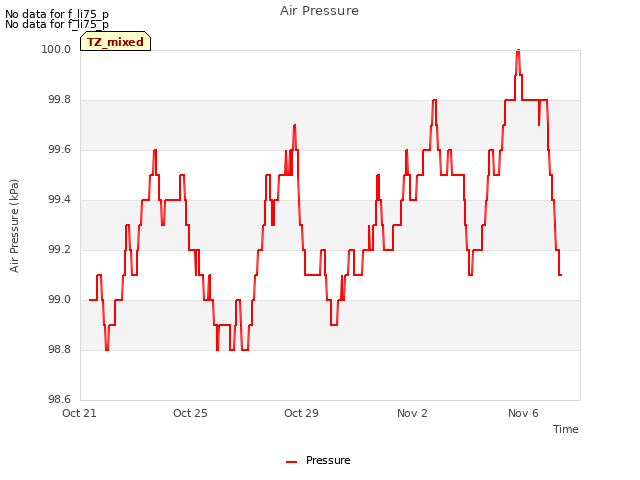

3 TZ_mixed graphs found
No data found for TZ_fflux.

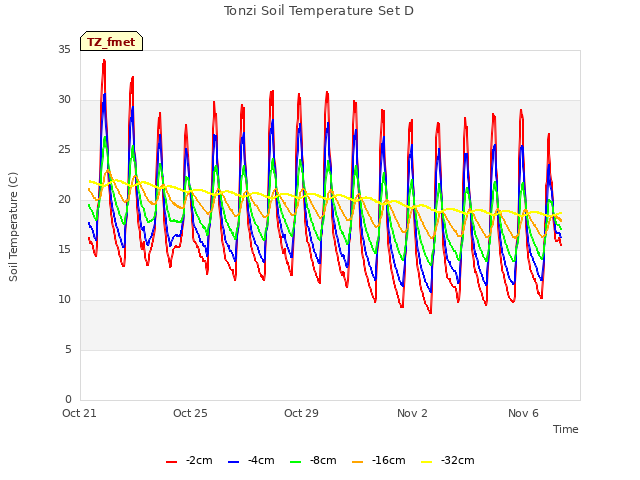

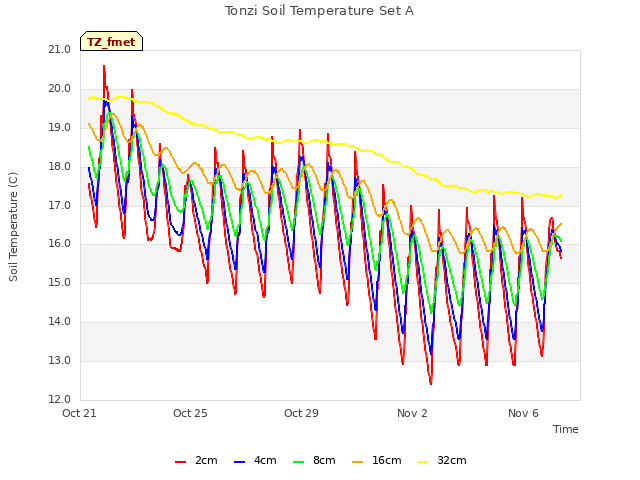

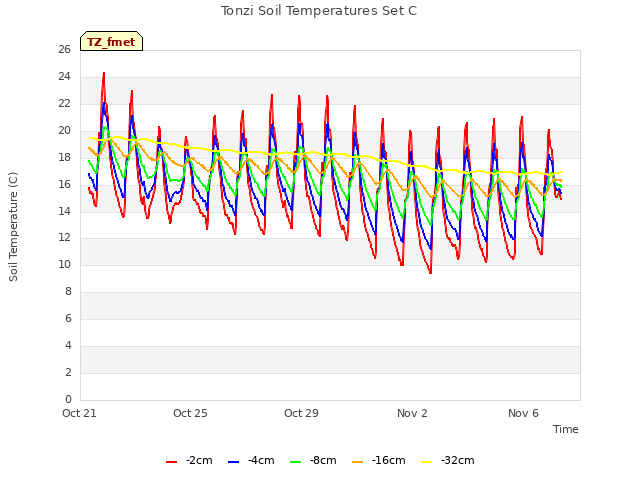

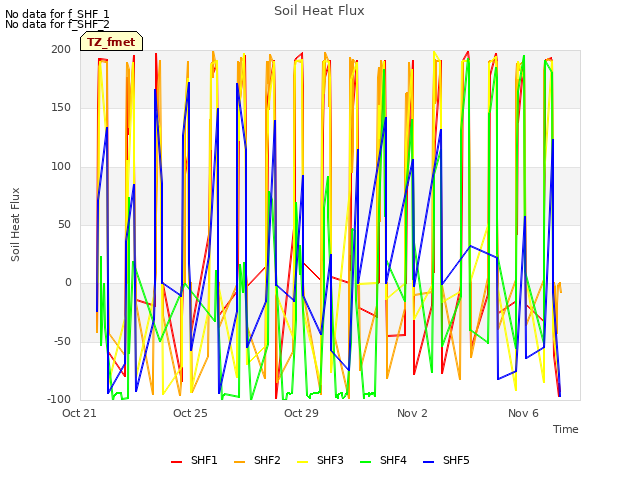

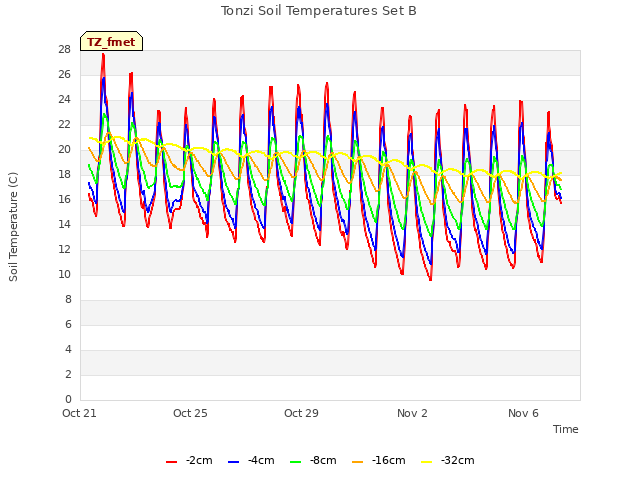

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

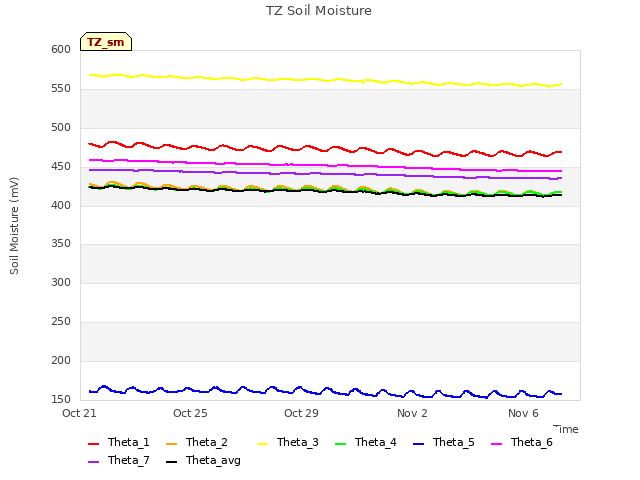

2 TZ_sm graphs found
Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
