Field Notes

West Pond: 2018-07-12 11:25:00 (DOY 193)
Author: Katrina Cone
Others: Daphne, Alex, Kuno

Summary: Regular data collection/cleaning, swapped 7500 for calibration, downloaded miniDOT data, added staff gauge.

West Pond
2018-07-12

We arrived at 11:25. Weather was sunny, warm, mostly clear (few clouds were present) and there was a very slight breeze.

Water level was low. The West Pond pump was on and releasing a strong flow of water.

Kuno cleaned flux and rad sensors. The wash reservoir was mostly full and topped off.

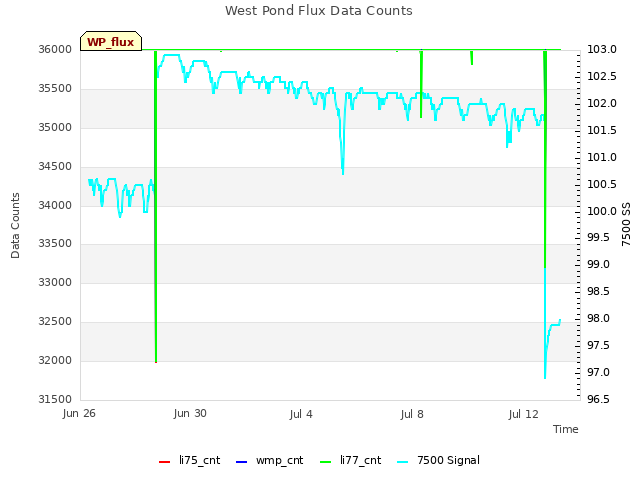

We swapped 7500 sensors: sn 75H-2514 came down and sn 0042 went up. Daphne uploaded new configuration files, updated the pressure coefficients, and reset the box.

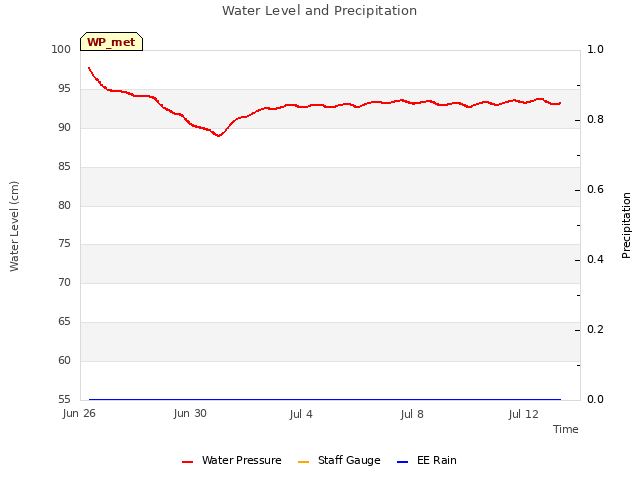

Alex put up a staff gauge on the scaffolding below the wash reservoir. The water level was 55 cm.

Daphne collected USB, cam, and met data. When collecting cam data, the card supposedly had a problem but the files still opened.

We left at 12:02.
---------------------------------------------------------

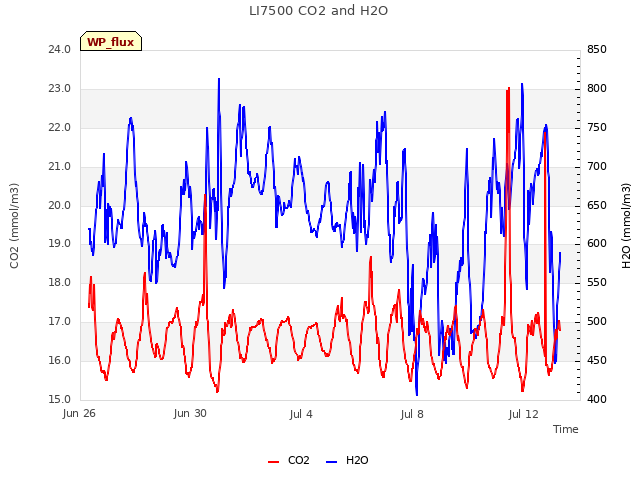

Li-7500:

Sn 2514
CO2: 390ppm --> 405ppm (after cleaning)
H2O: 770ppm --> 725ppm
T: 26.9C --> 26C
P: 101.3kPa --> 101.3kPa
SS: 101 --> 101

Sn 42
CO2: 407ppm
H2O: 641ppm
T: 27.9C
P: 101.2kPa
SS: 97
----------------------------------------------------------

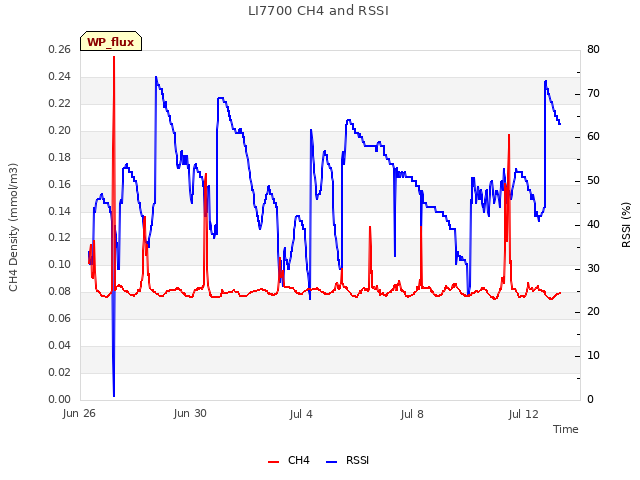

Li-7700:
CH4: 1.97ppm
RSSI: 45ppm --> 73ppm (after cleaning)

0 photos found

8 sets found

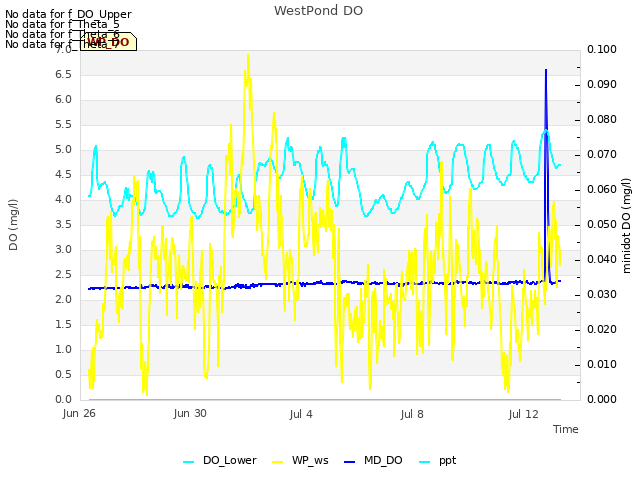

Can't check WP_DO

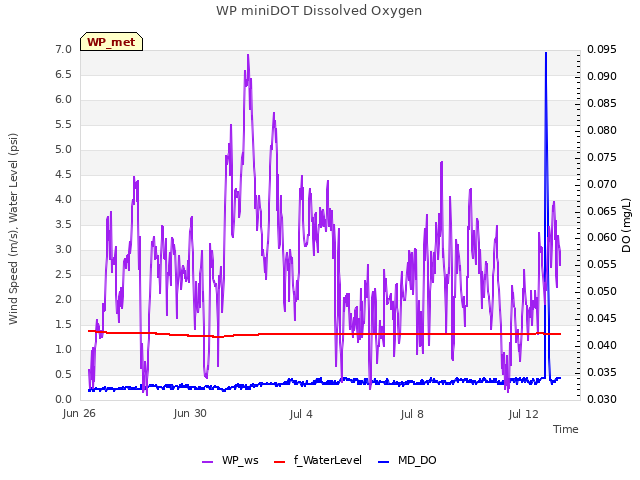

1 WP_DO graphs found
