<--2006-05-28 10:00:00 | 2006-06-23 09:20:00-->Tonzi: 2006-06-15 00:00:00 (DOY 166)
Author: Ted Hehn
Others:
| Weather Clear and hot.
Trip Purpose Radiobot repair Replace CO2 profile pump on tower. Reset CO2 profile system to 12 iterations to reinstate ½ hour data output. CR23x6 had flag 3 set low so Par Down 2 measurements were lost. Set flag 3 hi CR10x7 had communications lines for both rs232 and MD9 which may cause problems. Remove MD9 connection Loggers connected to floor pc 2 minutes behind tower PC time causing automated Webcam picture capture failure. Reset time on both PC. Reinstall Radiobot and reestablish communication with tower PC. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

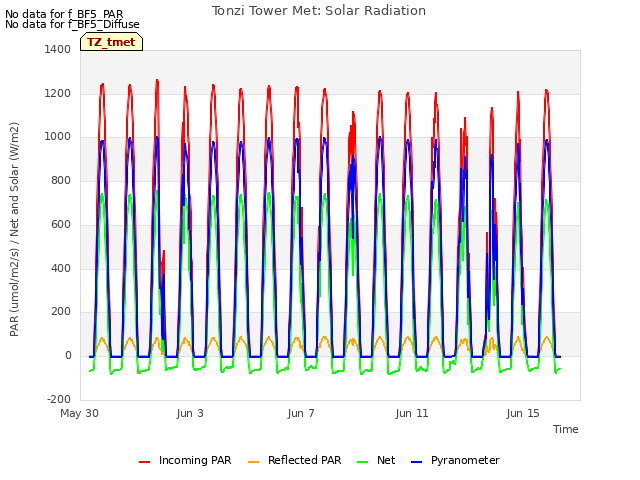

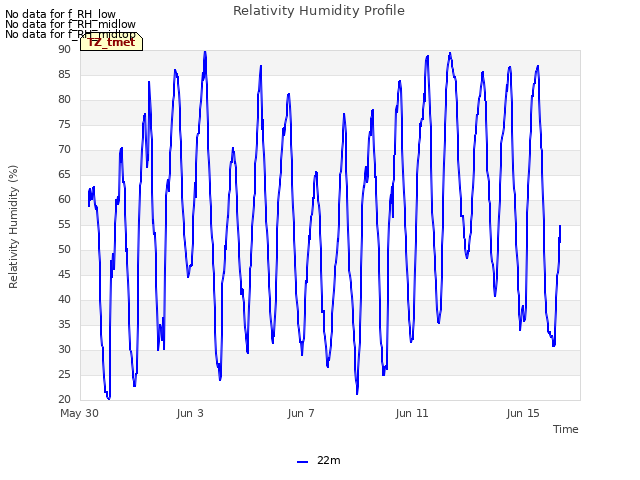

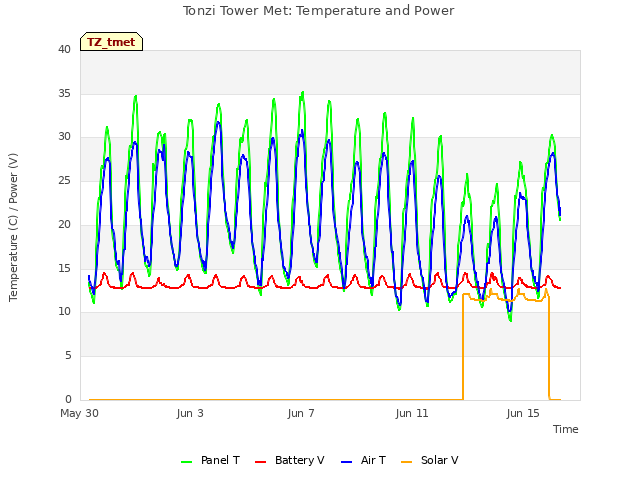

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

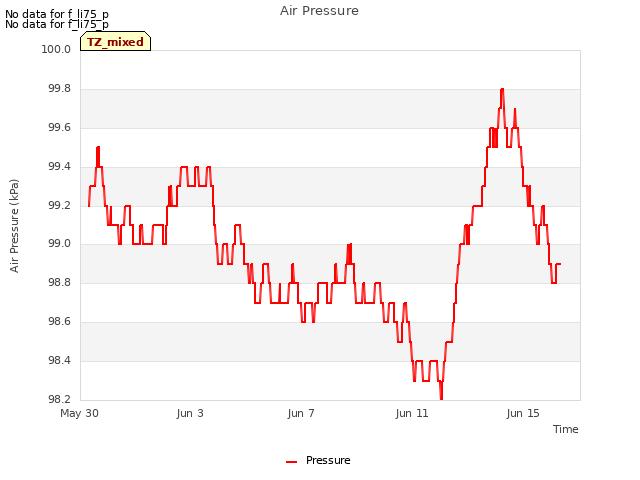

3 TZ_mixed graphs found
No data found for TZ_fflux.

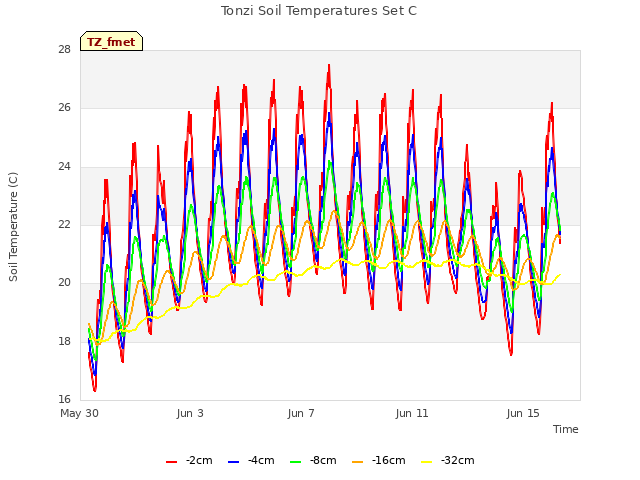

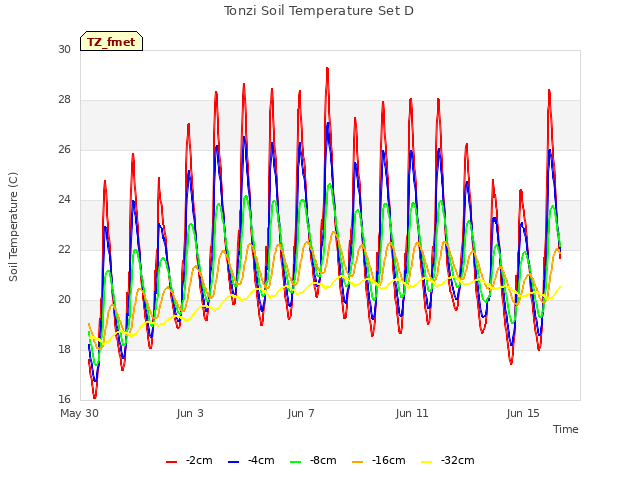

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
1 TZ_windprof graphs found
No data found for TZ_tflux.

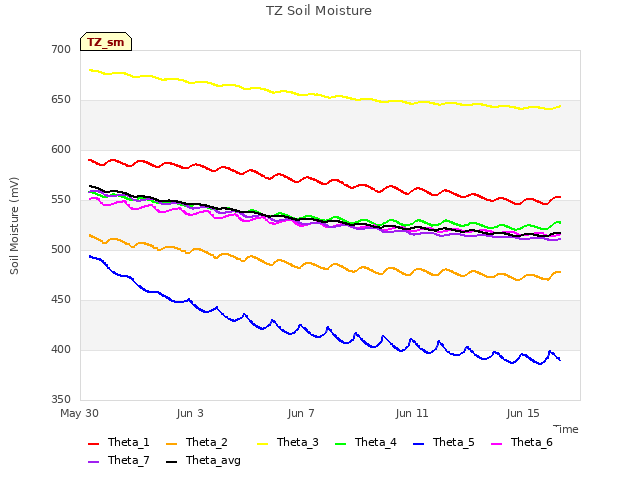

2 TZ_sm graphs found
Can't check TZ_met

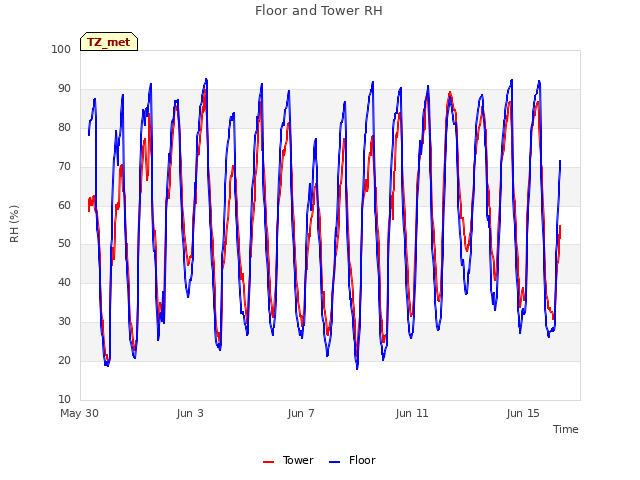

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
