Field Notes

<--2018-01-03 10:00:00 | 2018-01-15 10:00:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2018-01-03 10:45:00 (DOY 3)
Author: Joe Verfaillie
Others: Siyan

Summary: Fixed z-cam clocks, few Phenocam images

Tonzi
2018-01-03

I arrived at about 10:45 with Siyan. It was cool with a thin overcast and little to no wind. Rain is coming later today. The surface of the ground here is dry and the tips of the grass sprouts have browned especially in the open areas.

I collected the tower, z-cams and soil CO2 data. Siyan collected the Floor data and did the regular field work including clip plots.

The Tower had only recorded a handful of Phenocam images again. I poked at the camera and the CR1000. The camera seemed okay but could not ftp images to the CR1000. Swapping the CFM card fixed the problem. So it seems something was locking up the ftp service on the CR1000. It might be a poor Ethernet cable from the Phenocam to the Ethernet switch. I should probably leave a spare Ethernet cable there for the computer too.

I changed the LI7550 IP address to 192.168.2.75 and plugged it into the Ethernet switch. The old eddy Campbell enclosure now only has a 24V power strip in it that should be moved in the CR1000 box.

I cleaned the radiometers.

I service the z-cams and checked all their clocks.
Z-cam 1: 4 days ahead - 2018-01-07 to 2018-01-04
Z-cam 2: 6 min ahead – 12:03 to 11:75
Z-cam 3: 2 min ahead – 12:09 to 12:07

I think I reset the z-cam 1 & 2 CR10X clock recently. The CR200 for z-cam 3 was 12 min ahead. I reset it from 12:30 to 12:18.

I collected the soil co2 data and the FD Chamber data.

The electric fences seemed okay but the batteries on the soil co2 and tower seemed a little low maybe.

I made some measurements of the tower dimensions:
N-S width is 4ft
E-W width is 5ft
269cm to first cross piece with a stud
6ft between cross pieces with studs
First inlet is 20cm above the slab
Second inlet is 124cm above the slab

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2018-01-03TZ_floor29
2018-01-03TZ_road37.6
2018-01-03TZ_tower34
2018-01-03VR_pond15.65

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => Soil_Transect_4 [5] => Soil_Transect_3 [6] => Soil_Transect_2 [7] => Soil_Transect_1 [8] => SoilCO2_West_A [9] => SoilCO2_West_B [10] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2018-01-03 3 0 0-15cm 15.9 13.5 21.2 24.1 10.9 23.5 18.8 9.1 22.3 23.5 12.1
2018-01-03 3 0 15-30cm 24.6 25.2 51.2 18.8 20.8 30.7 28.6 10.6 24 17.9 28
2018-01-03 3 0 30-45cm 24.8 33.8 39.6 30.7 18.7 28.2 39.3 24.3 34.1 31.5 34.1
2018-01-03 3 0 45-60cm 33.8 33.4 45.7 23.6 40.5 40 17.6 38 45.7 44.3
2018-01-03 3 1 0-15cm 15.6 12.7 19.1 27 10.3 18.8 18.2 8.8 27.9 22.3 11.2
2018-01-03 3 1 15-30cm 25.2 24.9 43.9 20.3 20.3 29.8 28.6 11.2 24.9 17.9 28.3
2018-01-03 3 1 30-45cm 25.1 33.2 39.6 30.1 18.4 29 30.1 24.3 33.2 31.7 34.1
2018-01-03 3 1 45-60cm 34 33.1 23.8 23.7 41.1 40 17.6 30.5 46.3 44.8
2018-01-03 3 Avg 0-15cm 15.75 13.1 20.15 25.55 10.6 21.15 18.5 8.95 25.1 22.9 11.65 17.58 11 22
2018-01-03 3 Avg 15-30cm 24.9 25.05 47.55 19.55 20.55 30.25 28.6 10.9 24.45 17.9 28.15 25.26 11 22
2018-01-03 3 Avg 30-45cm 24.95 33.5 39.6 30.4 18.55 28.6 34.7 24.3 33.65 31.6 34.1 30.36 11 22
2018-01-03 3 Avg 45-60cm 33.9 33.25 23.8 45.7 23.65 40.8 40 17.6 34.25 46 44.55 34.86 11 20

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2018-01-03 3 0 0-15cm 19.7 17.1 22.1 12.1
2018-01-03 3 0 15-30cm 25.2 27.7 13.8 18.2
2018-01-03 3 0 30-45cm 28.2 14.3 23.6 28.2
2018-01-03 3 0 45-60cm 38.8 25.9 17.6 28.5
2018-01-03 3 1 0-15cm 19.4 16.5 18.8 11.5
2018-01-03 3 1 15-30cm 4.6 27.7 14.8 18.2
2018-01-03 3 1 30-45cm 27.9 13.4 23.2 27.9
2018-01-03 3 1 45-60cm 38.8 26.2 17.9 28.5
2018-01-03 3 Avg 0-15cm 19.55 16.8 20.45 11.8 17.15 4 8
2018-01-03 3 Avg 15-30cm 14.9 27.7 14.3 18.2 18.78 4 8
2018-01-03 3 Avg 30-45cm 28.05 13.85 23.4 28.05 23.34 4 8
2018-01-03 3 Avg 45-60cm 38.8 26.05 17.75 28.5 27.78 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2018-01-03113.6
2018-01-031028.7
2018-01-03221.3
2018-01-032458.0
2018-01-03313.1
2018-01-0347.2
2018-01-0355.8
2018-01-03719.9
2018-01-037210.6
2018-01-037910.2
2018-01-03822.9

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

1 photos found

The reason to be a morning person
The reason to be a morning person

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

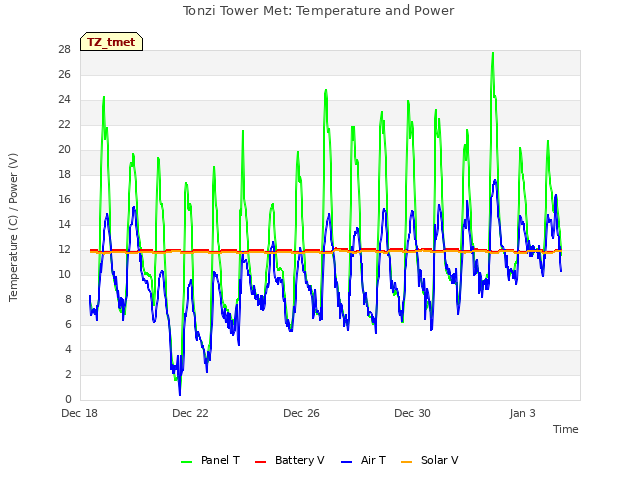

Tonzi Tower Met: Temperature and Power

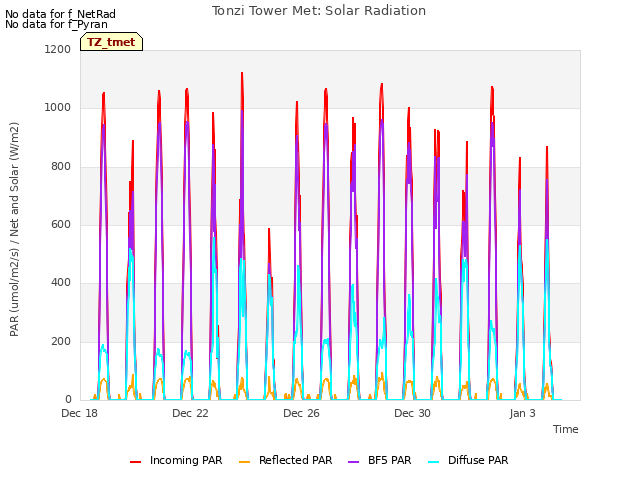

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

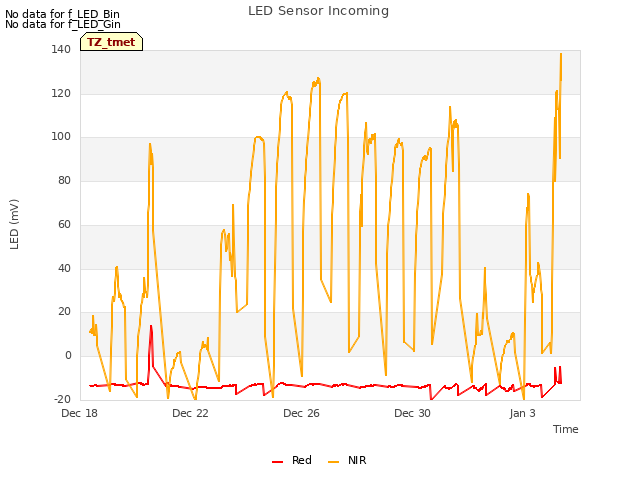

LED Sensor Incoming

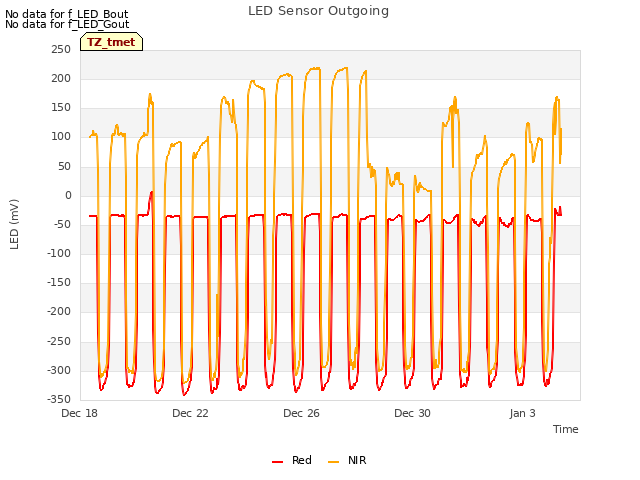

LED Sensor Outgoing

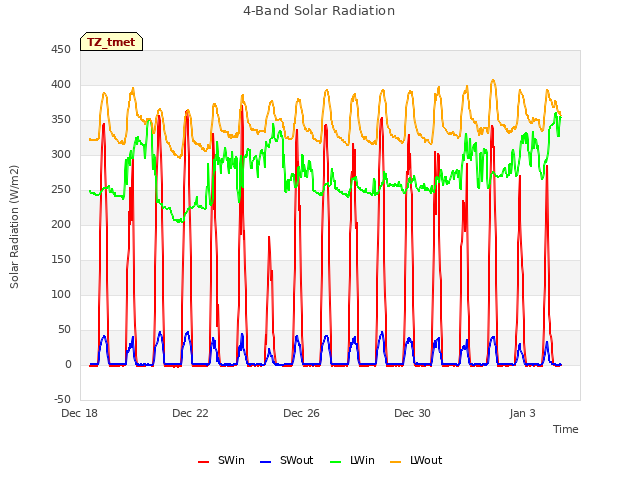

4-Band Solar Radiation

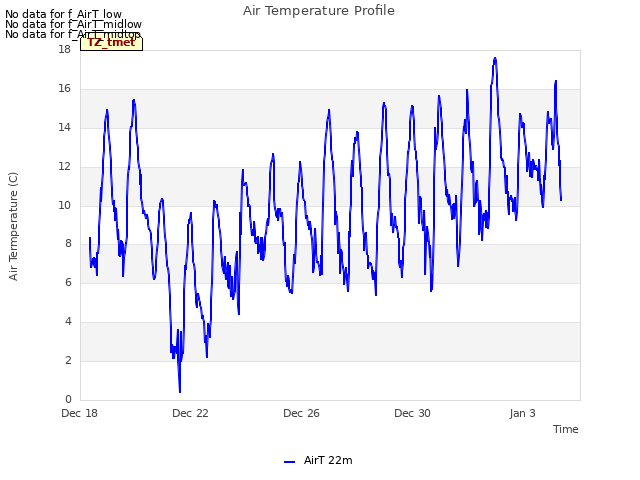

Air Temperature Profile

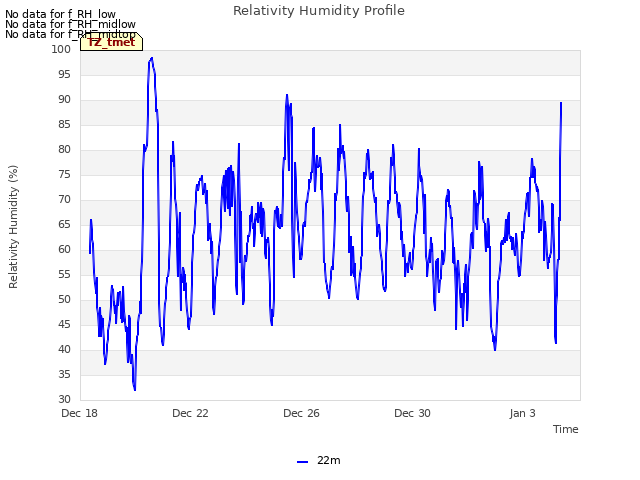

Relativity Humidity Profile

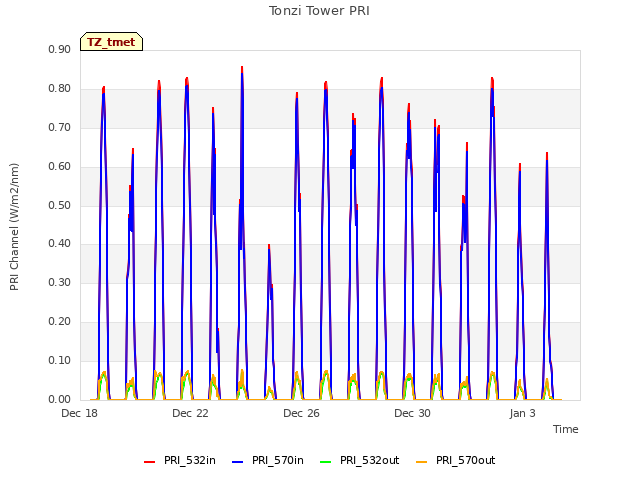

Tonzi Tower PRI

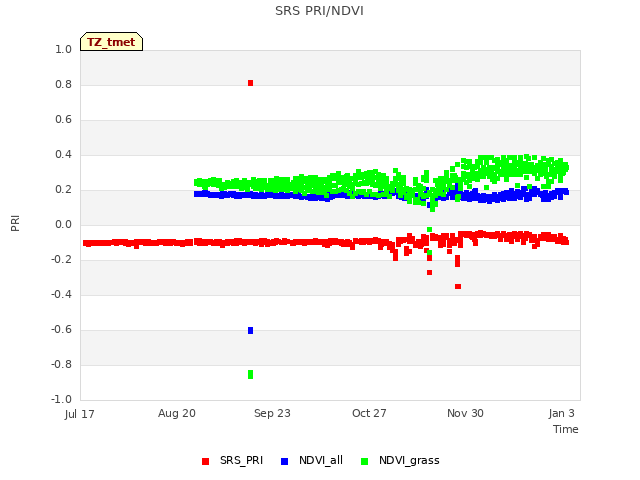

SRS PRI/NDVI

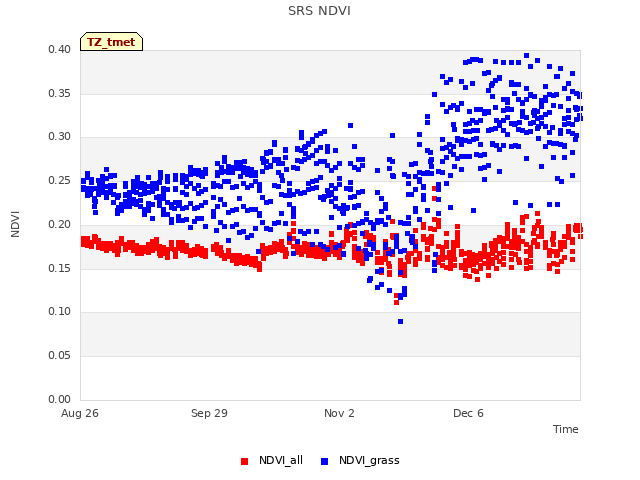

SRS NDVI

11 TZ_soilco2 graphs found

Tonzi Soil CO2 Profile: Open (East) CO2

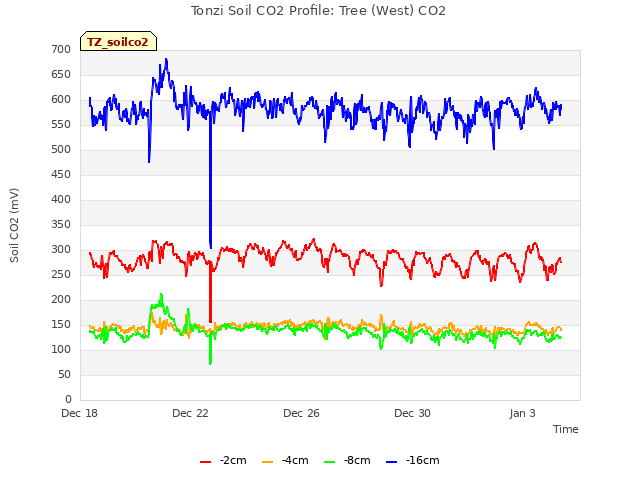

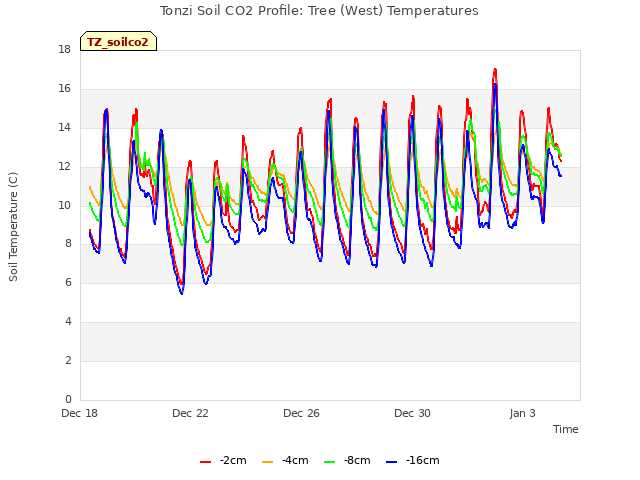

Tonzi Soil CO2 Profile: Tree (West) CO2

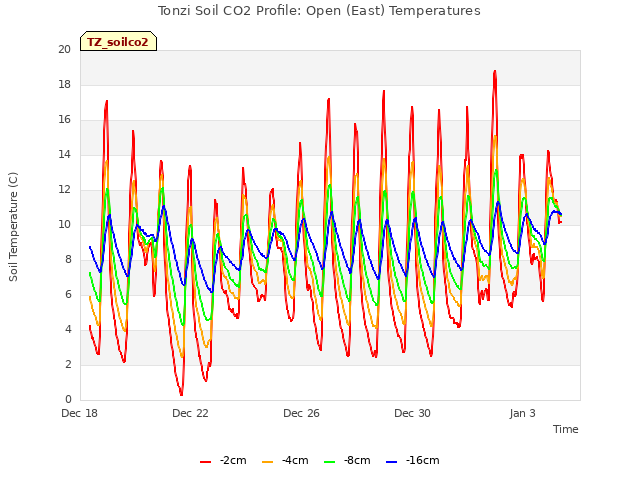

Tonzi Soil CO2 Profile: Open (East) Temperatures

Tonzi Soil CO2 Profile: Tree (West) Temperatures

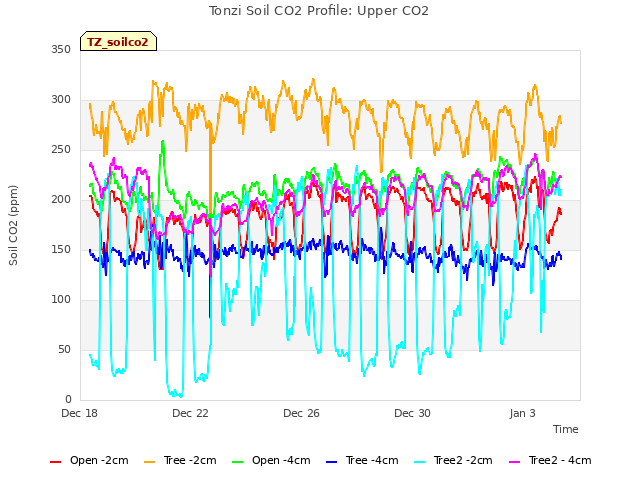

Tonzi Soil CO2 Profile: Upper CO2

Tonzi Soil CO2 Profile: Lower CO2

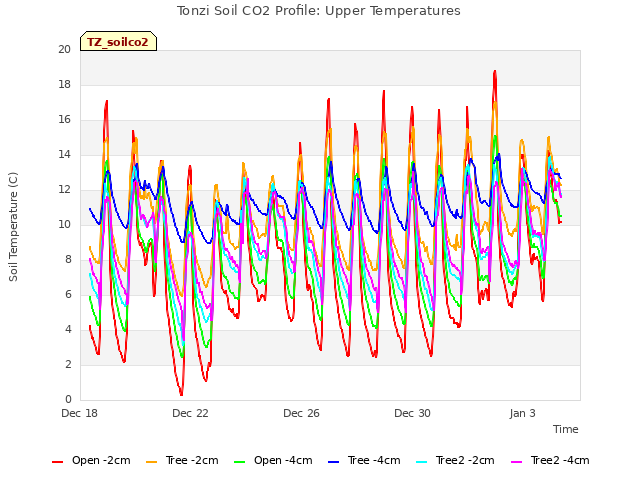

Tonzi Soil CO2 Profile: Upper Temperatures

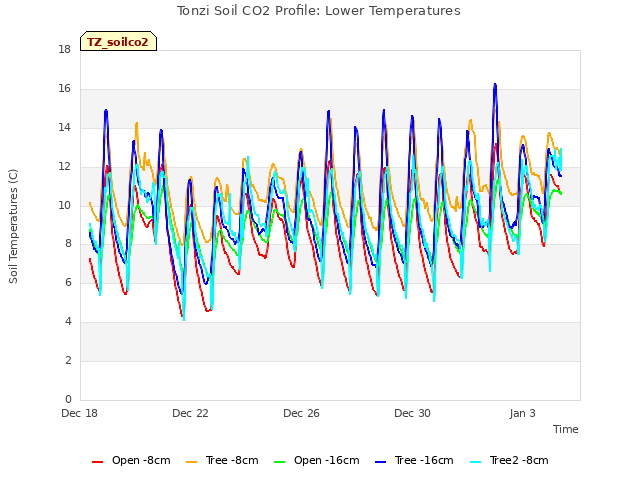

Tonzi Soil CO2 Profile: Lower Temperatures

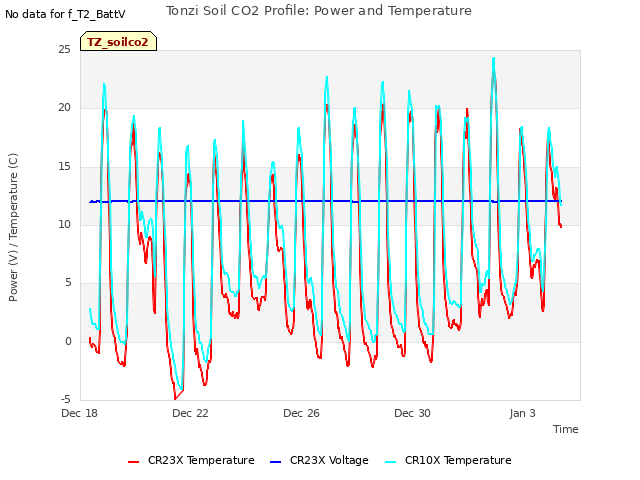

Tonzi Soil CO2 Profile: Power and Temperature

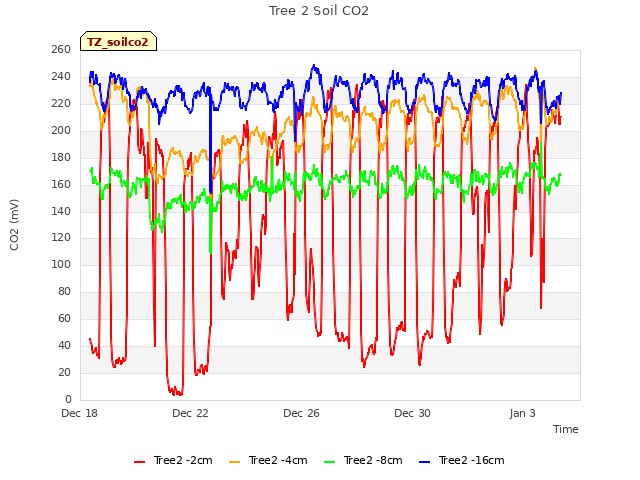

Tree 2 Soil CO2

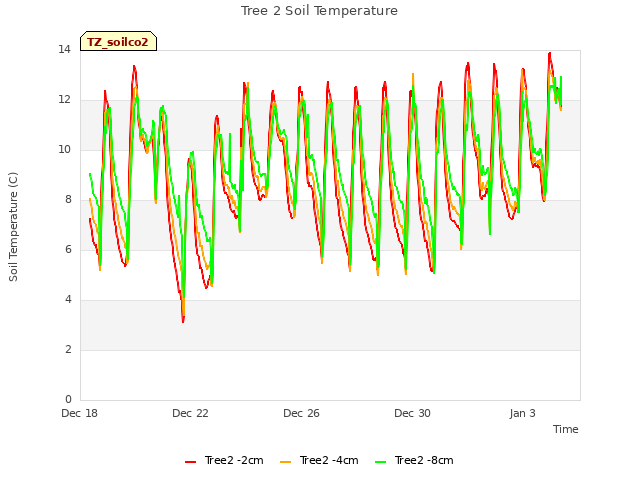

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

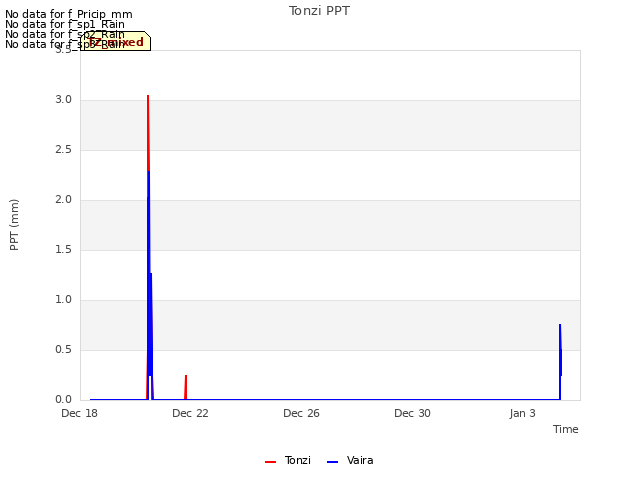

Tonzi PPT

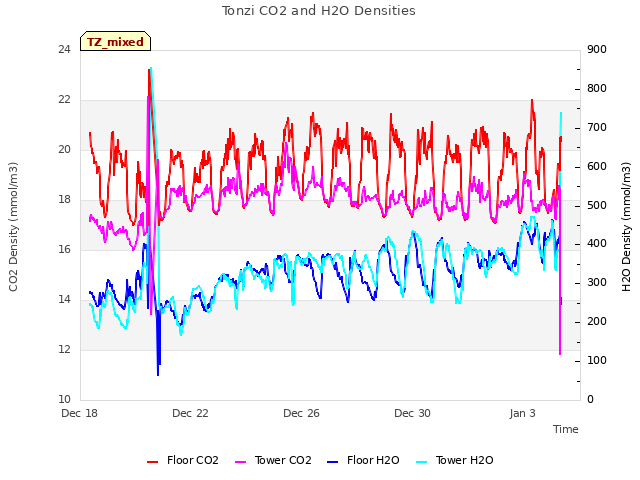

Tonzi CO2 and H2O Densities

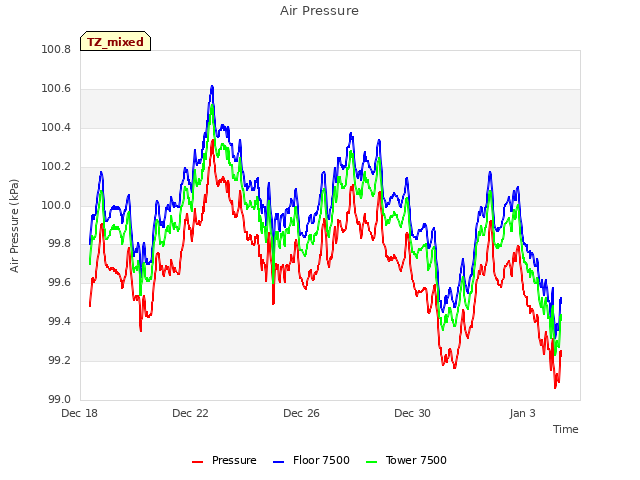

Air Pressure

1 TZ_fflux graphs found

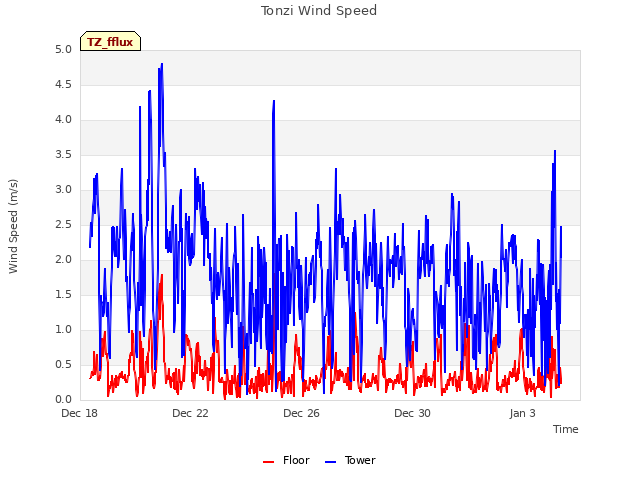

Tonzi Wind Speed

8 TZ_fmet graphs found

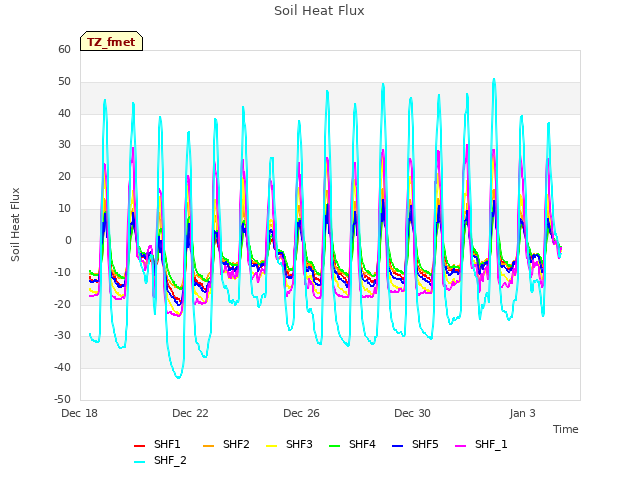

Soil Heat Flux

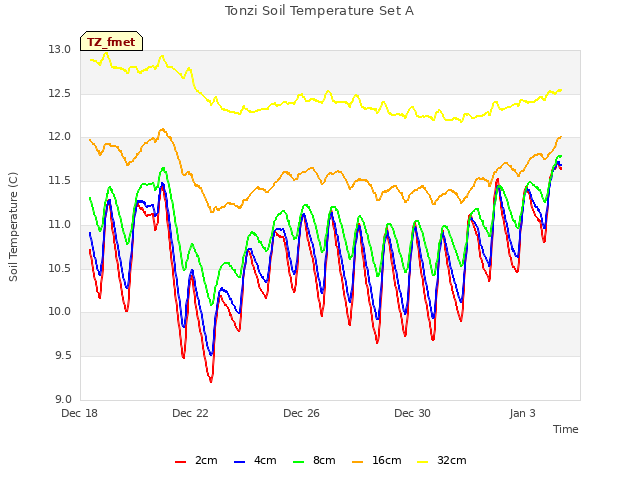

Tonzi Soil Temperature Set A

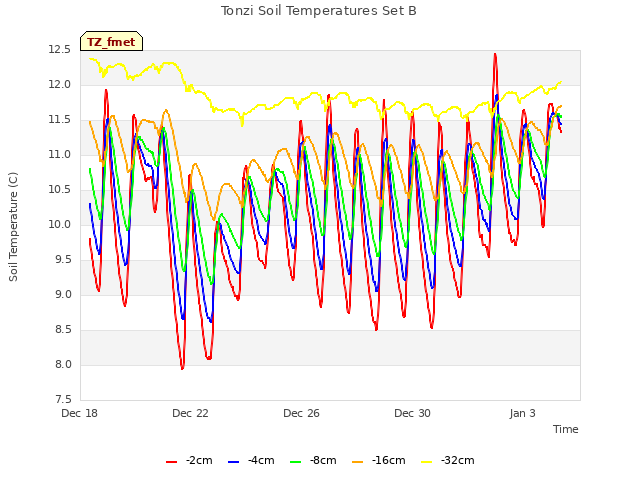

Tonzi Soil Temperatures Set B

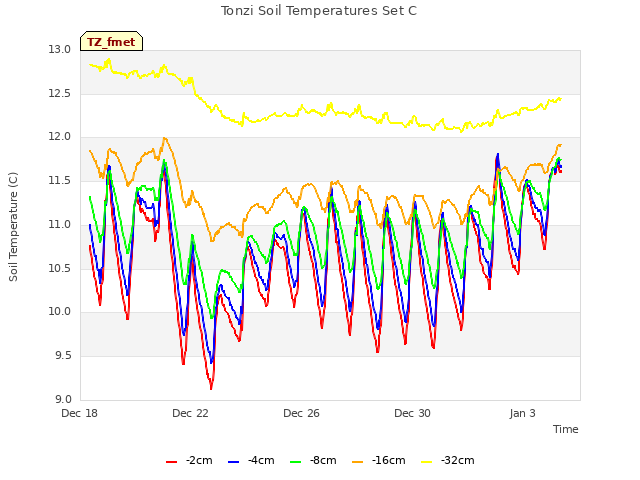

Tonzi Soil Temperatures Set C

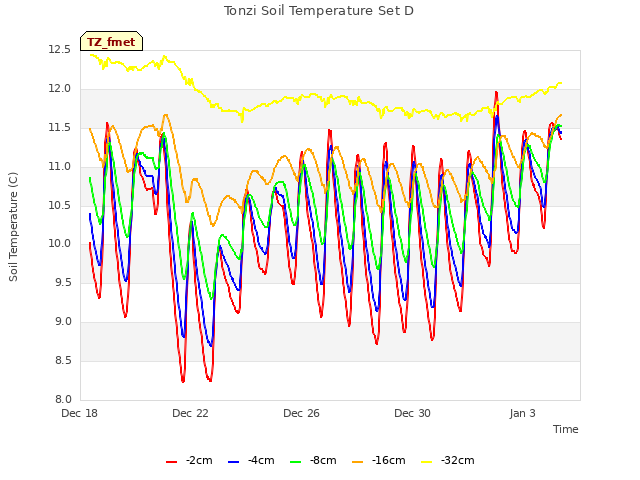

Tonzi Soil Temperature Set D

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

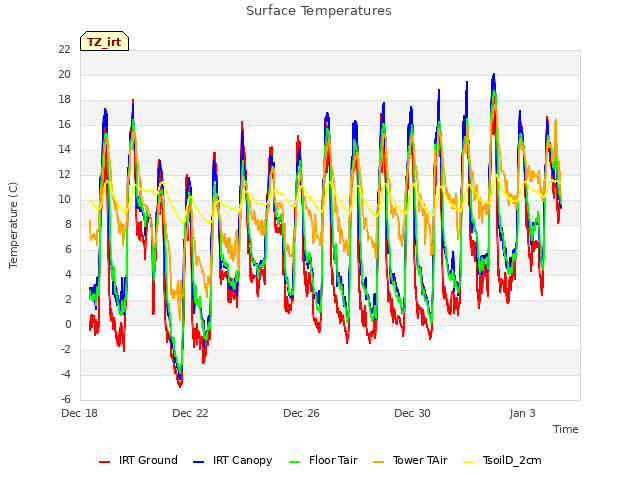

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

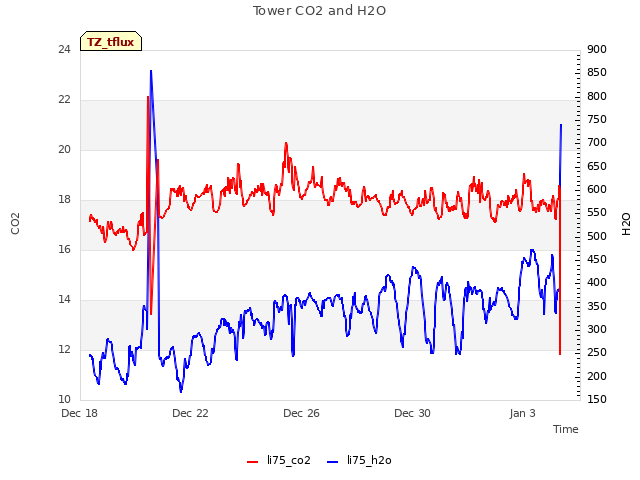

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

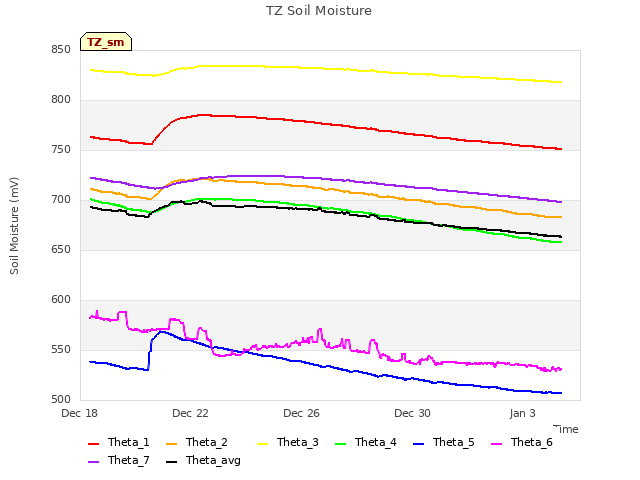

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

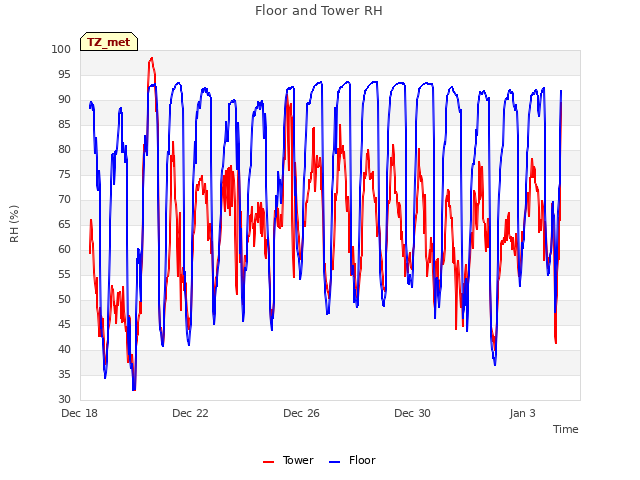

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
3 TZ_fd graphs found

Tonzi Forced Diffusion Soil CO2

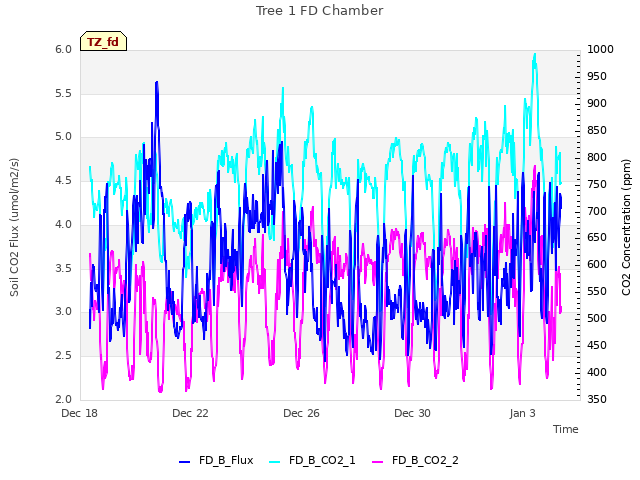

Tree 1 FD Chamber

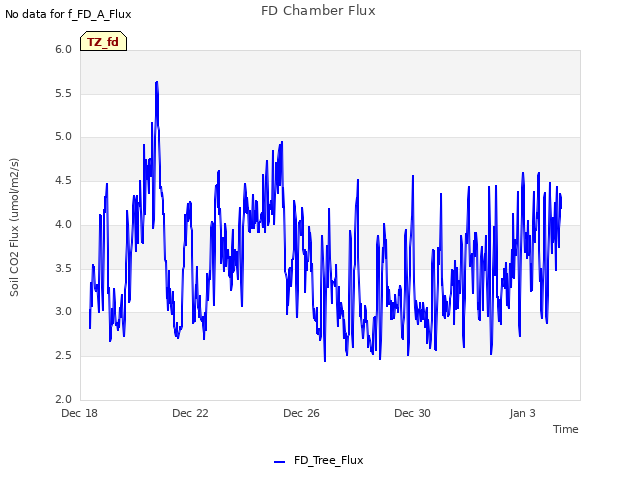

FD Chamber Flux
