Tonzi: 2017-11-07 11:00:00 (DOY 311)
Author: Joe Verfaillie
Others: Siyan, Dennis

Summary: Met JPL folks to plan install of thermal radiometer, worked on Tower co2 profile, new clock battery for zcam 1, fix bad settings on Tower phenocam ftp.

Tonzi
2017-11-07

I arrived with Dennis and Siyan at about 11am. It was clear and sunny. There was a little more rain but the ground is still dry.

Gerardo Rivera from NASA JPL and Lynn (?) arrived about 11:30 to take measurements for installing a thermal radiometer on the tower.

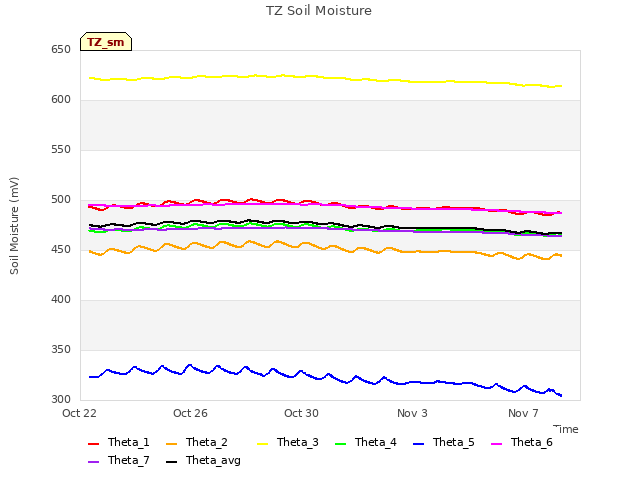

Dennis start the soil moisture measurements then talked to Gerardo and Lynn.

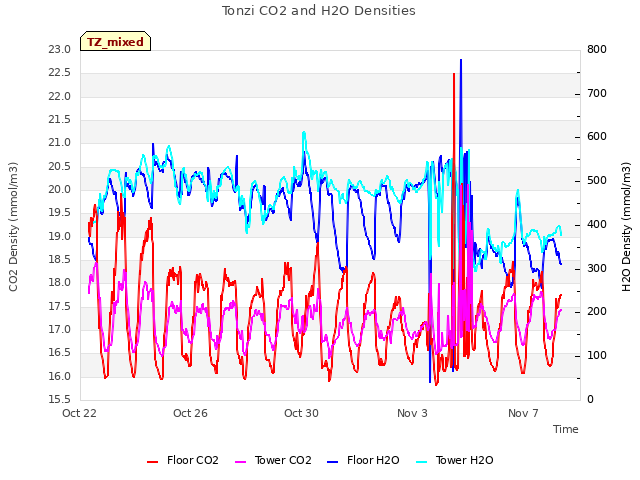

I got tower CO2 profile running. The LI-820 looked noisy and I tried to clean it but it still seemed noisy, so we brought it in for lab calibration. In this process I discovered that the solenoid box got wet inside and corroded. I removed the box and connected the tanks directly to the lowest inlet to test the LI-820. Both tanks were turned off at the main valve when we left. There is also a power line into the solar controller box that needs 12V to run the cal gas solenoids.

I collected data from the tower top. The camera has not been storing images. I discovered that the CR1000 FTP service was not running. I started it and manually sent a set of images.

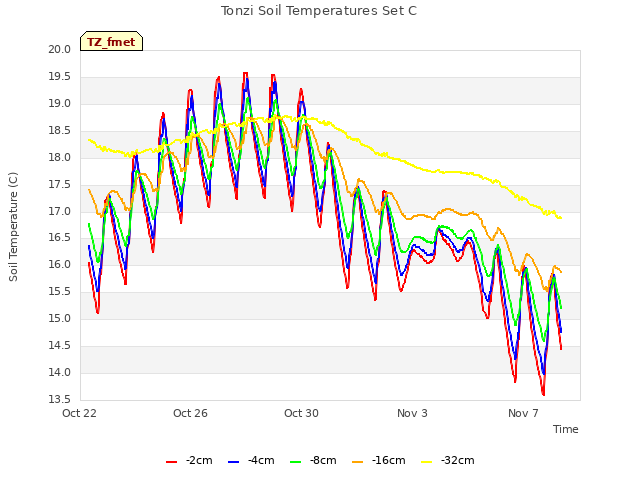

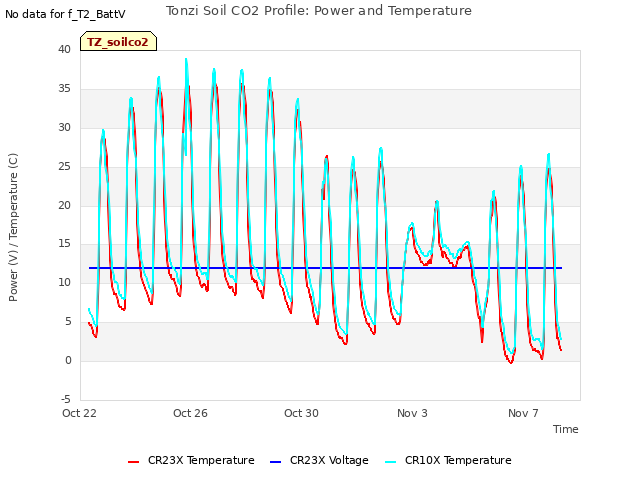

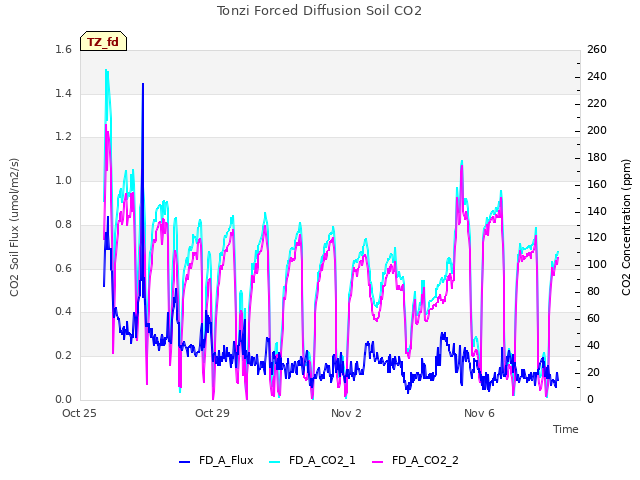

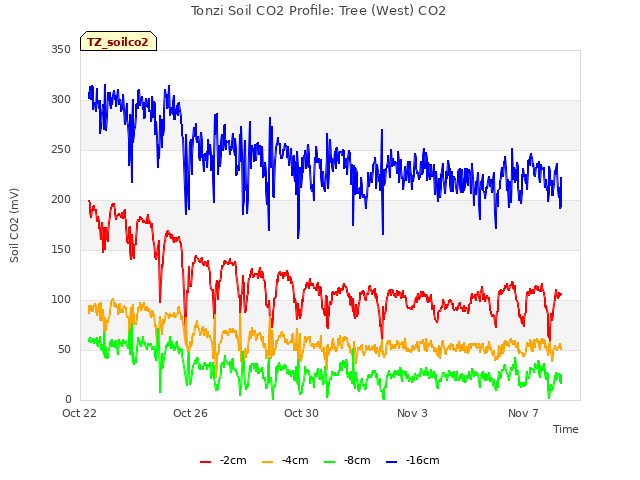

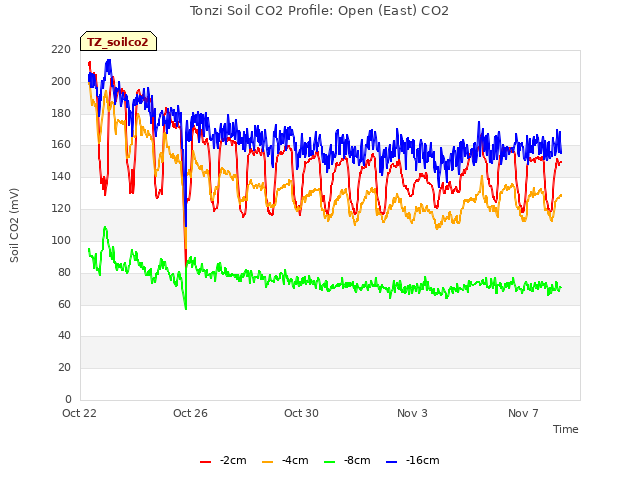

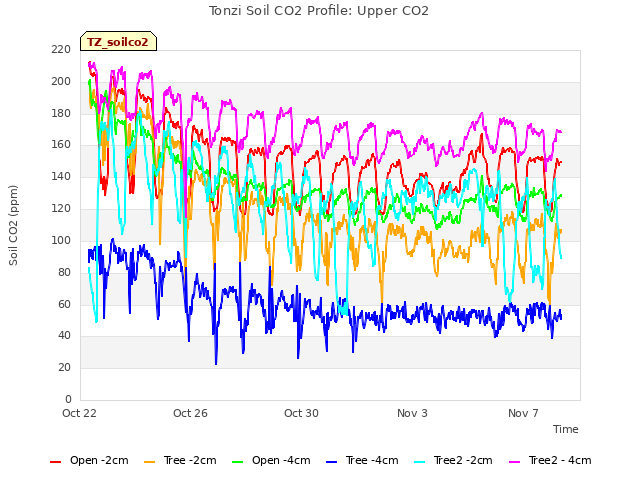

I checked on the wiring of the soil CO2 sensors. They are in order shallow to deep.

I replaced the coin cell battery in zcam 1 and reset its clock.

Siyan finished the soil moistures and did the other regular fieldwork.

Field Data

No tank data

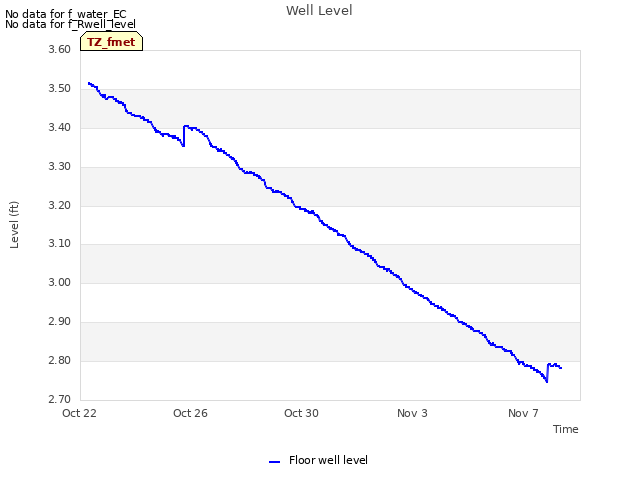

Well Depth

Date	Location	Depth (feet)
2017-11-07	TZ_floor	27.7
2017-11-07	TZ_road	36.6
2017-11-07	TZ_tower	32.6

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_C_2 [21] => Tower_3 [22] => Floor_South_3 [23] => Floor_East_3 [24] => Floor_West_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Tower_4 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => Soil_Transect_4_4 [37] => Soil_Transect_3_4 [38] => Soil_Transect_2_4 [39] => Soil_Transect_1_4 [40] => SoilCO2_West_A_4 [41] => SoilCO2_West_B_4 [42] => SoilCO2_West_C_4 [43] => SoilCO2_West_B_2 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	SoilCO2_West_B_2	Spacial Count
2017-11-07	311	0	nan	3.9	3.9	6.8	3.3	0.7	3	4.2	0.1	3.1	5.6	2.2	11.8	11.5	8.4	7.8	6.9	13	12.1	3.9	9	11.2	13.4	6.4	11.5	10.9	9.2	12.9	15.6	13.7	16.5	15.4	12	14.5	3.3	14.5	15.6	11.6	17.9	25.6	11.6	14.5	11.3	21.9
2017-11-07	311	1	nan	4.2	4.8	6.8	1.8	1	1.8	3.6	0.1	3.1	5	2.8	11.8	11.8	9	2.3	7.5	13	12.1	3.9	8.7	11.2	14	7.6	11.5	11.2	9.2	11.5	15.5	12.9	16.8	15.4	12.9	13.9	2.2	13.9	15	11.3	17.6	25.6	10.7	13.3	11.3	22.2	0.9
2017-11-07	311	2	nan	3.6		7.4									11.8		9.7								15.1		12.3									14.2		14.5
2017-11-07	311	3	nan			7.1											9.7										9.8											13.9
2017-11-07	311	4	nan			7.4											9										11.7											15.3
2017-11-07	311	Avg	0-15cm																																													0
2017-11-07	311	Avg	15-30cm																																													0
2017-11-07	311	Avg	30-45cm																																													0
2017-11-07	311	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-11-07	311	0	nan	4.2	1.2	3.6	0.6	9.7	7.5	4.8	4.8	13.7	4.5	9	13.7	26.5	15	10.5	16.8
2017-11-07	311	1	nan	4.2	2.7	3.3	0.6	9.7	6.3	5.1	4.8	14.6	3.9	9	14.8	26.6	14.8	11.6	16.8
2017-11-07	311	2	nan	4.2	2.4	3.6	0.6	9.7	6.6	5.1	5.1	14.6	3.4	9.2	14	27.1	14.8	11.6	16.8
2017-11-07	311	Avg	0-15cm																	0
2017-11-07	311	Avg	15-30cm																	0
2017-11-07	311	Avg	30-45cm																	0
2017-11-07	311	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2017-11-07	1	10.3
2017-11-07	102	6.3
2017-11-07	2	20.5
2017-11-07	245	5.5
2017-11-07	3	6.8
2017-11-07	4	6.9
2017-11-07	5	2.9
2017-11-07	7	18.8
2017-11-07	72	7.1
2017-11-07	79	9.1
2017-11-07	8	21.9
