Twitchell Alfalfa: 2017-09-19 09:30:00 (DOY 262)
Author: Daphne Szutu
Others: Sam Chamberlain

Summary: Regular data collection/cleaning, clip plots/veg height, LAI, uploaded master config file, bought FD chamber back to lab

2017-09-19
Twitchell Alfalfa

We arrived at 9:30. It was sunny and cool, breezy with thin clouds.

Sam took soil respiration measurements and did veg height/clip plots. We did not do spectral since it was partly cloudy.

Clip plot average heights:
1: 30 cm
2: 28 cm
3: 23 cm
4: 30 cm
5: 19 cm

I took 1-wand LAI measurements. Ignore first B measurement b/c I accidentally pressed LOG.

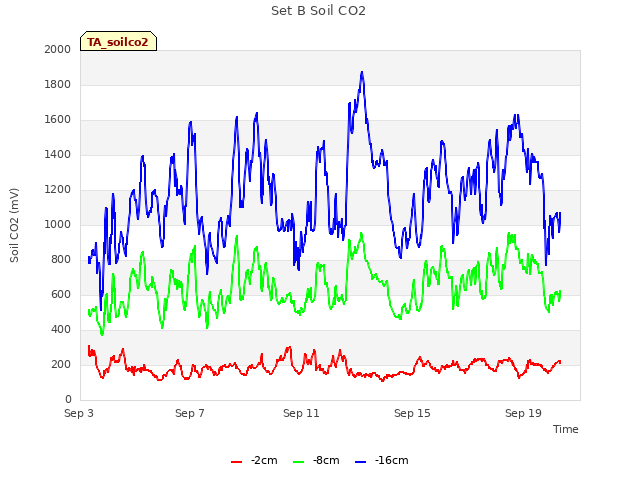

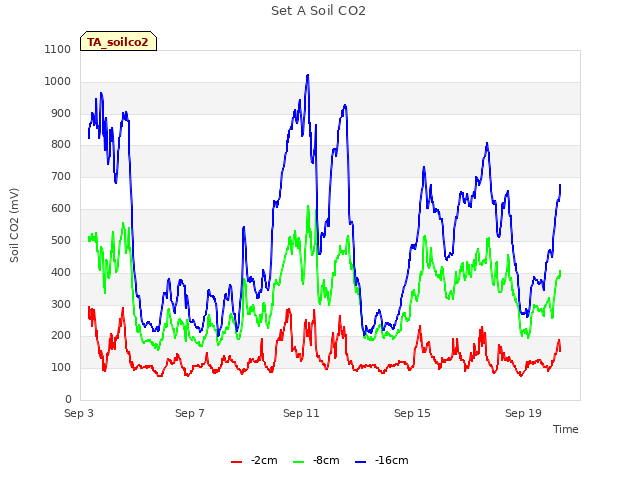

I collected met, soil CO2, camera, and USB GHG data. Sam cleaned radiation sensors and I cleaned the 7500.

I downloaded the 7550 configuration file, "sn0035_1557_TA-all_20170919.l7x" and uploaded the master configuration file, "AIU-0674_MASTER_20170912.l7x". I checked the pressure coefficients, renamed the site/station names, and reset the box.

LI-7500 readings:
CO2 383.7
H2O 496.3
T 20.4

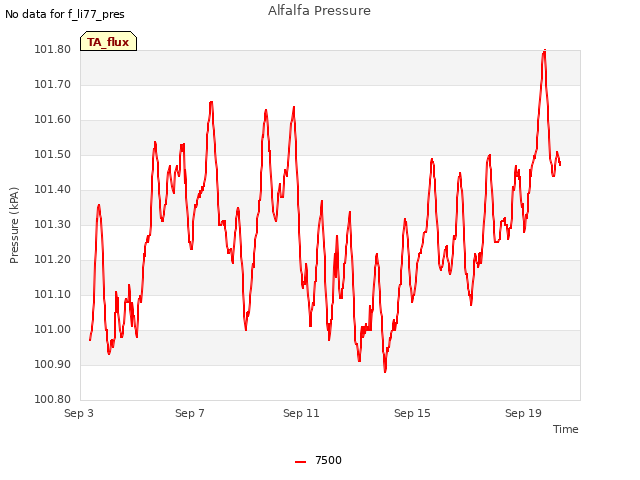

P 101.8
SS 99.2 --> (did not write down after cleaning)

I had trouble connecting to the Eosense forced diffusion chamber. When we arrived, it was buzzing but Sam did not hear the chamber pumping down. I cycled power, re-attached cable at chamber, and refreshed COM ports before I could connect. There was some data from 2017-09-05 and 2017-90-06, then no data until today at 10:08 when I was tinkering with it. Some of the rows of data in the past 2 weeks were 0, so I disconnected the chamber and brought it back in to the lab.

We left at 10:20.

Veg Height (cm): Tape measure from ground to top of plant
11, 28, 22, 12, 18, 17, 28, 36, 25, 22, 28, 13, 31, 25, 9, 20, 31, 20, 17, 22, avg = 21.8, stdev = 7.35

0 photos found

7 sets found

Can't check TA_met

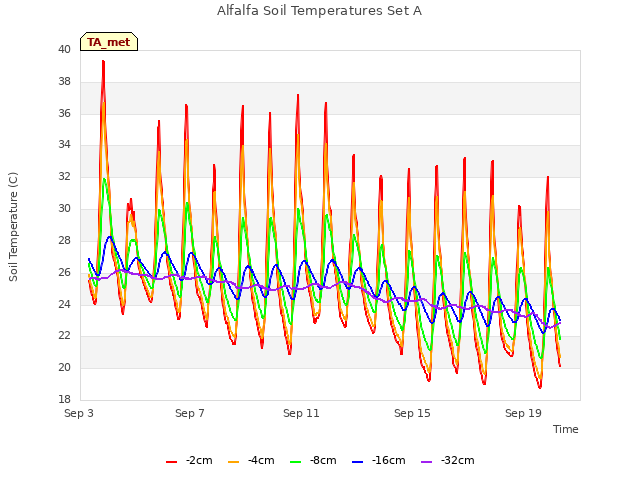

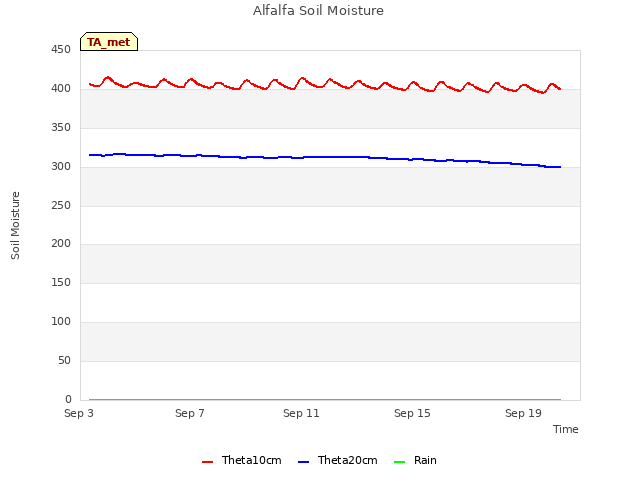

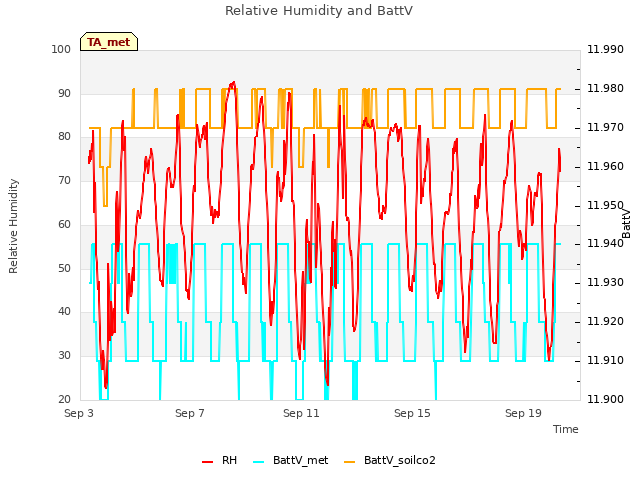

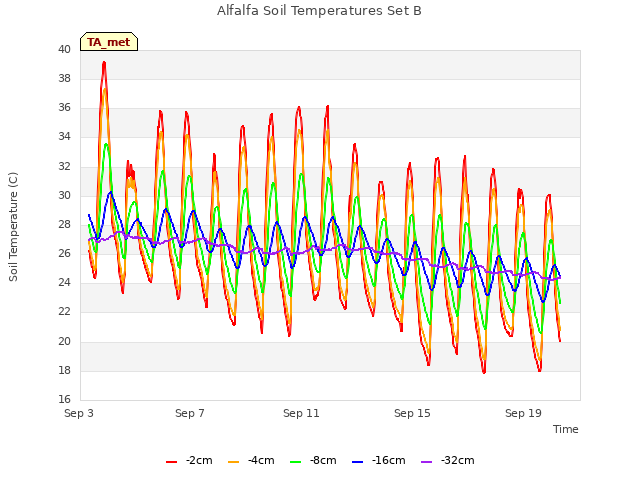

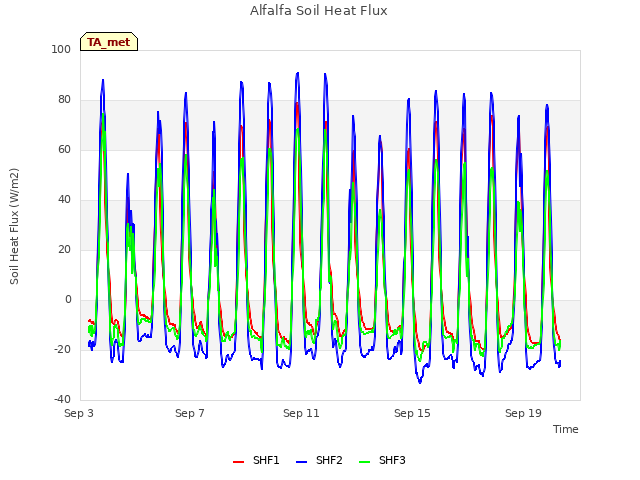

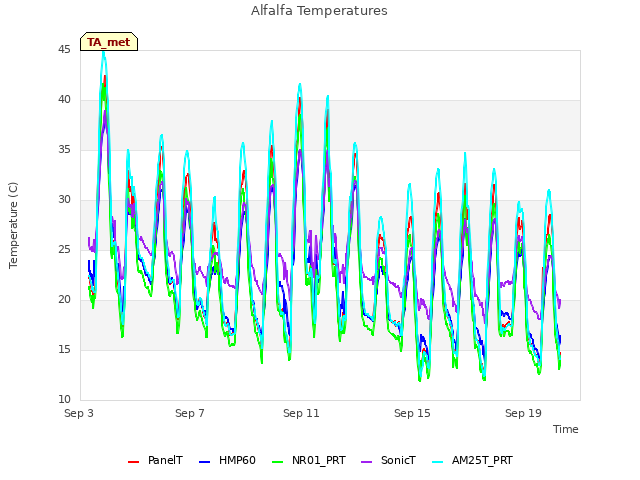

11 TA_met graphs found
