Field Notes

<--2017-08-23 10:00:00 | 2017-09-19 11:00:00-->
Other sites visited today: Bouldin Corn | Twitchell Alfalfa

Bouldin Alfalfa: 2017-09-06 09:30:00 (DOY 249)
Author: Joe Verfaillie
Others: Kyle

Summary: Standard fieldwork, camera pointing down - fixed, clipped under tower.

Bouldin Alfalfa
2017-09-06

Kyle and I arrived at 9:30. It was mild and sunny but hazy with a light breeze from the northwest. They were picking up big bales from the fields to the north and there were spots where bales had been removed recently from our field. We clipped around and under our tower.

The 7550 box here is still using v8.0
The 7500 read: 389.0ppm CO2, 749.2mmol/m3 H2O, 24.9C, 101.4kPa, 95.9SS – 98.8 after cleaning
Lots of bird poop on the tower from starling or black birds.
The ATP USB drive started to log then quit. I checked it with the laptop but couldn’t get the 7550 box to recognize it. I put the APRO drive I removed back in and it seemed to work fine. The USB port seem a bit loose on this box.

The camera was pointing down. I repositioned it at about 50-50 sky-ground.

I cleaned bird poop out of the tipping bucket. I did not clean the radiometers.

Kyle did clip plots, veg height and spectral. The alfalfa was too short for LAI.

We left about 10:15

Next Mowing: 2017-09-29

Veg Height (cm): Tape measure from ground to top of plant
10, 12, 12, 8, 8, 7, 6, 8, 11, 9, 9, 8, 8, 7, 13, 7, 15, 11, 11, 13, avg = 9.7, stdev = 2.48

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

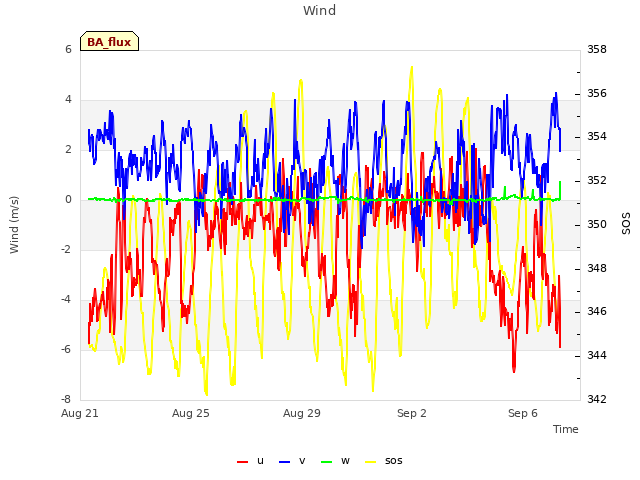

Explore the graph:Wind in a new window

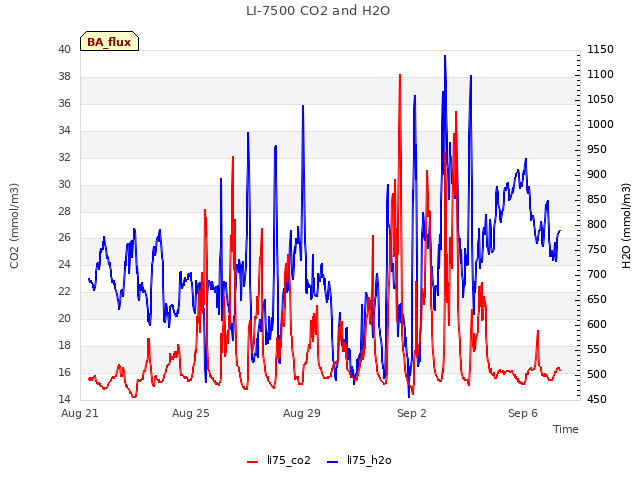

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

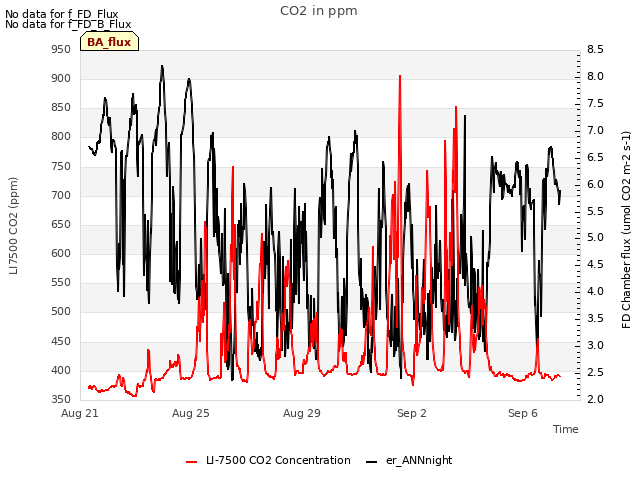

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

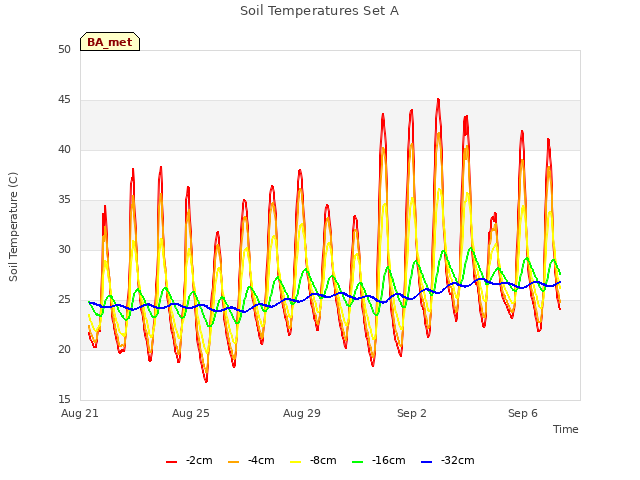

Explore the graph:Soil Temperatures Set A in a new window

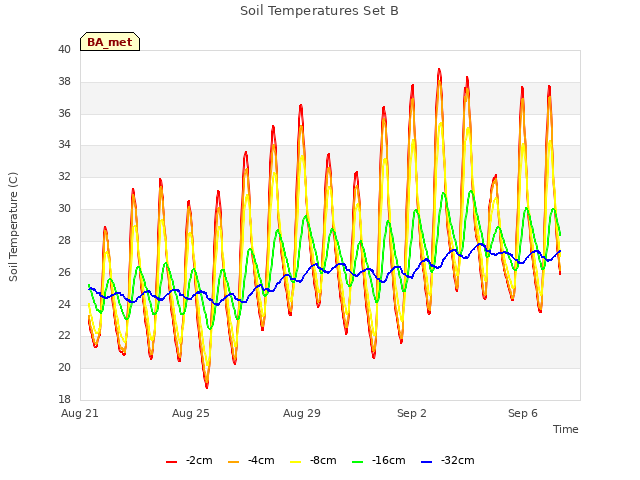

Explore the graph:Soil Temperatures Set B in a new window

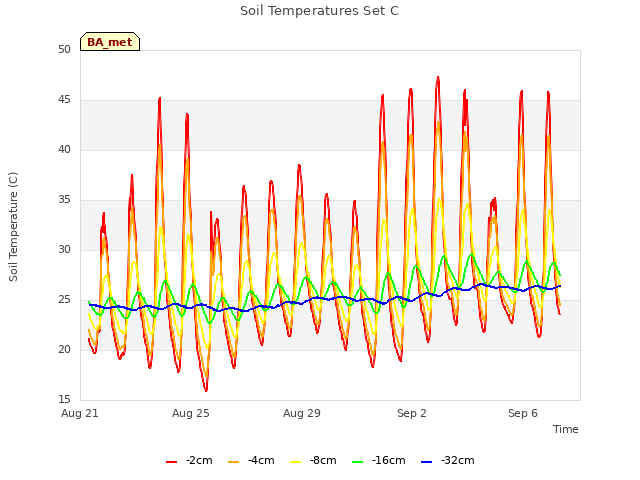

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

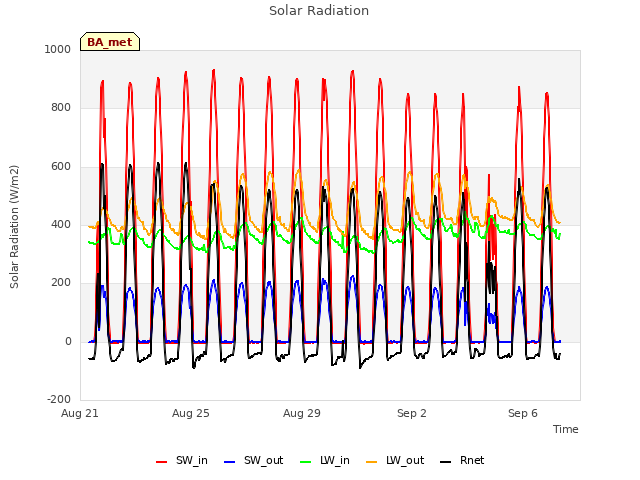

Explore the graph:Solar Radiation in a new window

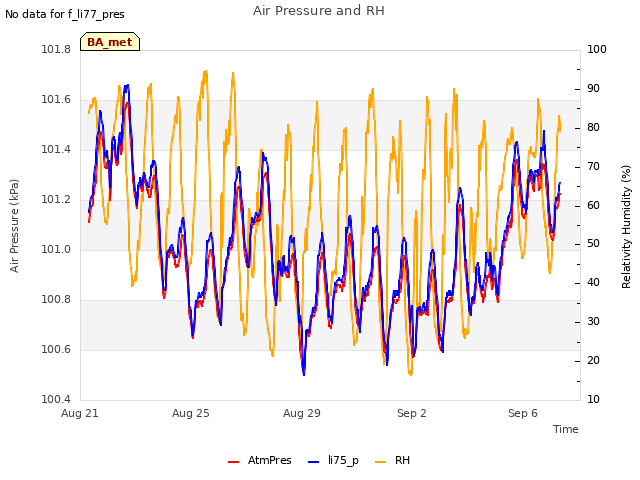

Explore the graph:Air Pressure and RH in a new window

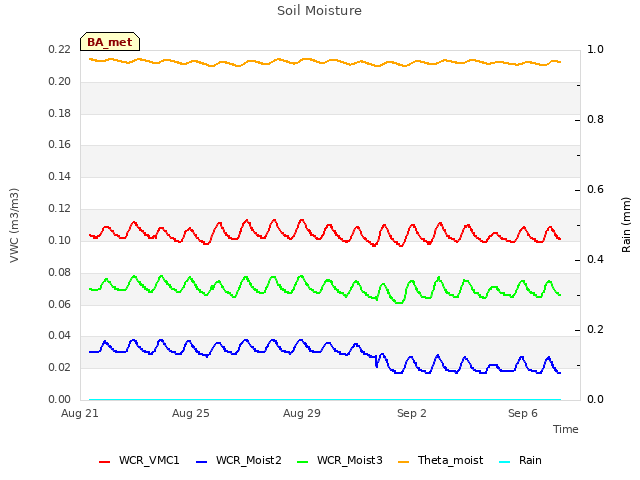

Explore the graph:Soil Moisture in a new window

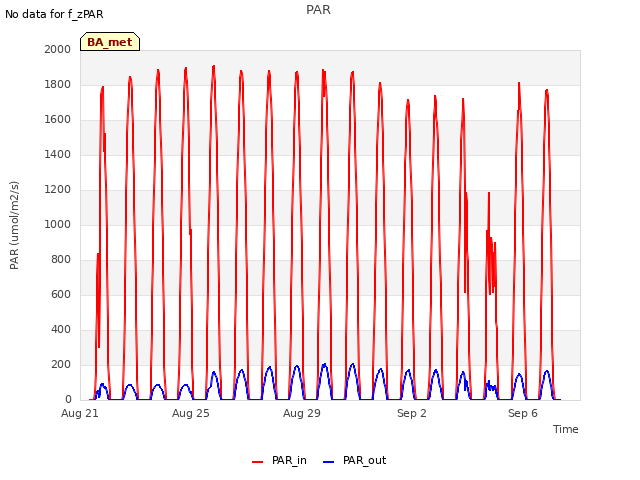

Explore the graph:PAR in a new window

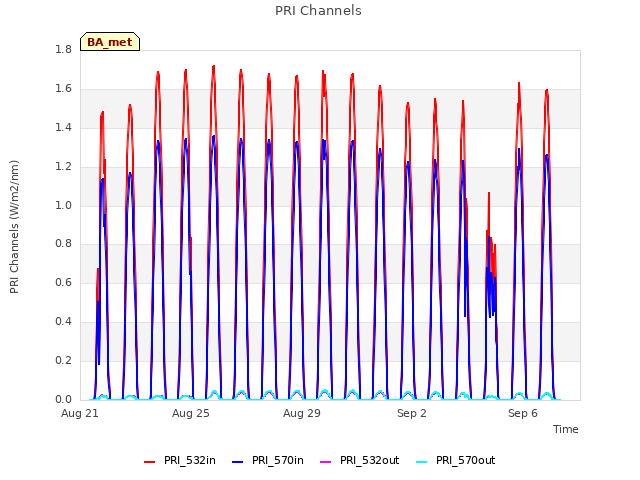

Explore the graph:PRI Channels in a new window

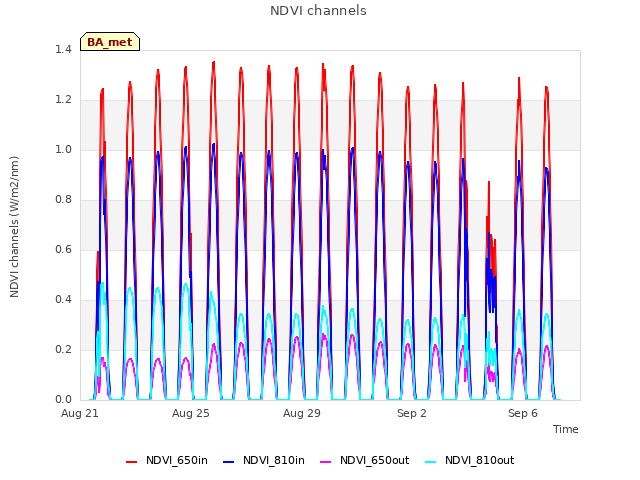

Explore the graph:NDVI channels in a new window

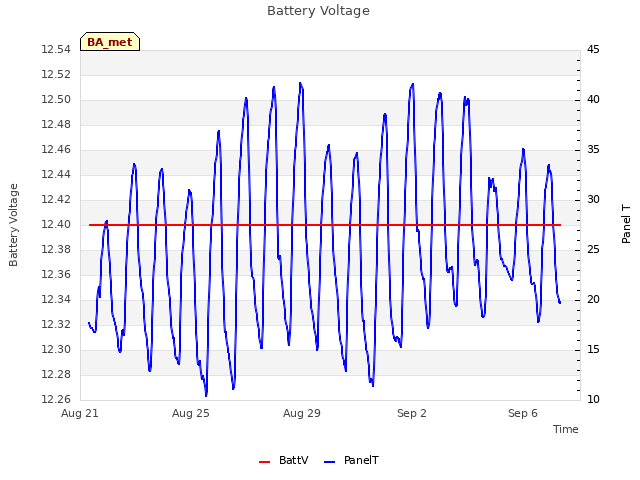

Explore the graph:Battery Voltage in a new window

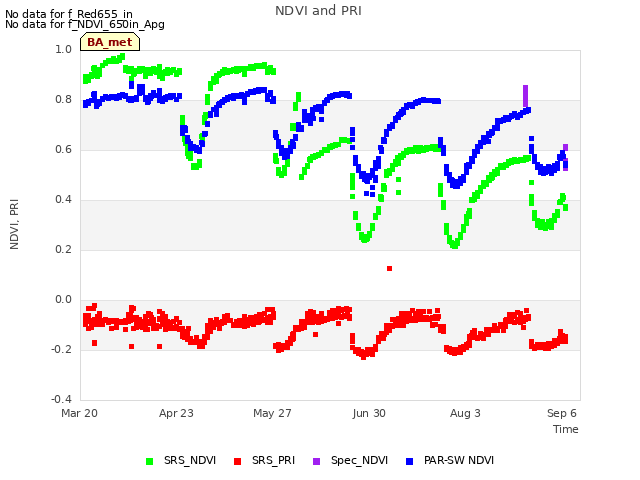

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

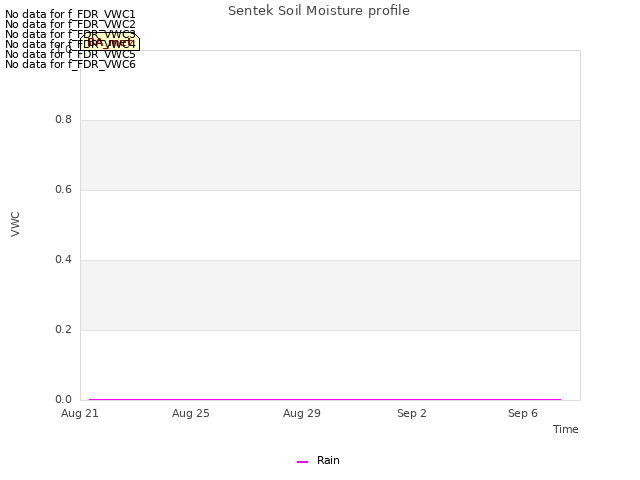

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

No data found for BA_arable.
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Explore the graph:Energy in a new window

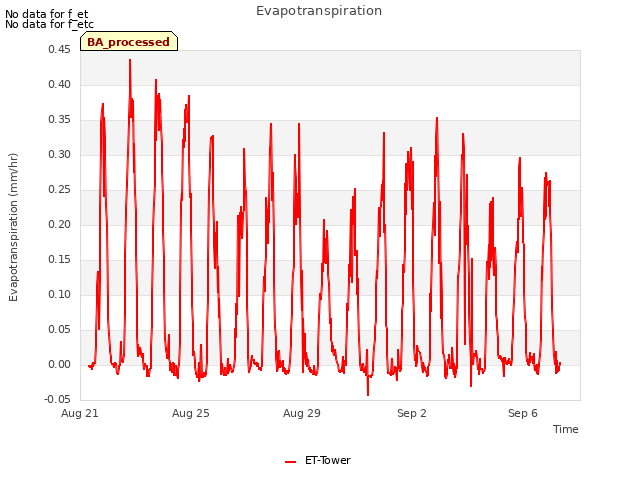

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
