Tonzi: 2017-05-24 11:00:00 (DOY 144)
Author: Joe Verfaillie
Others: Siyan, Daphne

Summary: standard fieldwork, removed old eddy system from TT and TF

Tonzi
2017-05-24

I arrived about 11am with Daphne and Siyan. Lots of flowers here and more green that at Vaira.

Daphne removed the eddy system from the Floor tower: sonic sn 000023, PCI sn 000193, LI-7500 sn 0418, CR1000 sn 50889, CFM sn 6761. She did not remove the box that housed the CR1000 and PCI because it has the main power connection to the solar panels and the CR200 that runs the z-cam. The computer box could not be removed because it has the MD9 connection in it. We need to do some work to combine the contents of these two boxes into one and removed the other.

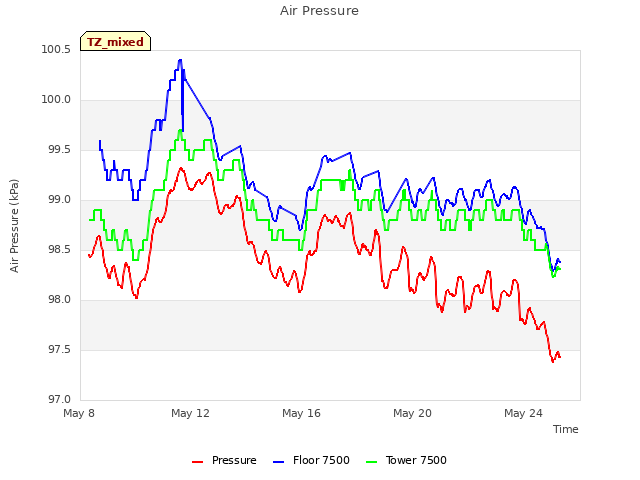

The Floor 7500A read: 422.5ppm CO2, 535.7mmol/m3 H2O, 28.02C, 98.6kPa, 100.2SS

I removed the old eddy system from the Tower: sonic sn 000019, LI7500 sn 0976. I did not remove the CR1000 and CFM because it is collecting the diffuse PAR and phenocam images. I had to rewrite the CR1000 program because the eddy program was triggered by the sonic. The new program should run every 0.1sec and collect the diffuse PAR. I checked the heading on the tower sonic. It was 60 deg true. This should be the same as the old one that was moved two weeks ago.

The Tower 7500A read: 392.85ppm CO2, 545.8mmol/m3 H2O, 24.27C, 98.54kPa,92.6SS

We collected met data directly from each of the data loggers. We did not have the spare z-cam memory cards so Daphne moved the images from the cards to the laptop and replaced the cards.

Siyan did the standard fieldwork including midday water potential.

Field Data

No tank data

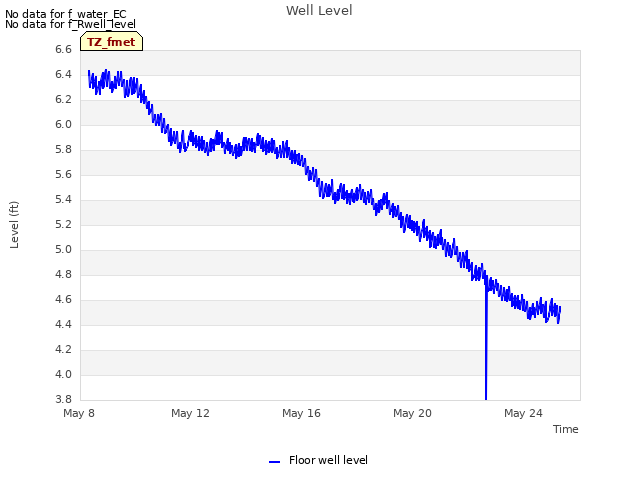

Well Depth

Date	Location	Depth (feet)
2017-05-24	TZ_floor	9.55
2017-05-24	TZ_road	19
2017-05-24	TZ_tower	14.8

mode = both

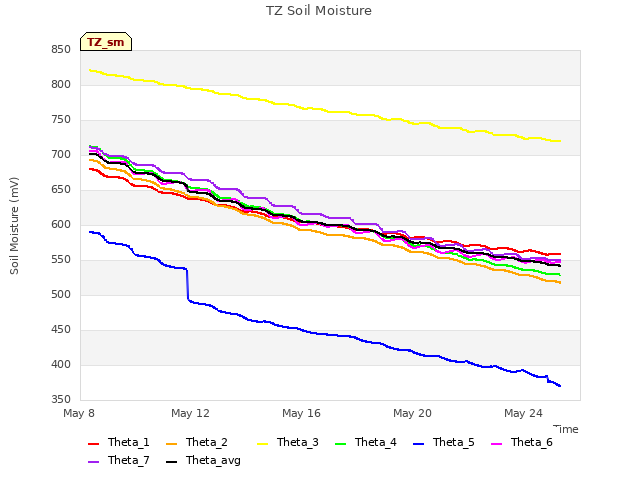

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Tower_3 [22] => Floor_South_3 [23] => Floor_East_3 [24] => Floor_West_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Tower_4 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => Soil_Transect_4_4 [37] => Soil_Transect_3_4 [38] => Soil_Transect_2_4 [39] => Soil_Transect_1_4 [40] => SoilCO2_West_A_4 [41] => SoilCO2_West_B_4 [42] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2017-05-24	144	0	nan	9.7	3.9	13.8	11.1	3.4	3	8.3	9.7	9.7	7.1	15.8	14.2	17	6.3	9	16.4	14.5	0.4	13	1.7	14.8	18.7	14.8	24	15.6	11.2	17.6	19	16.8	21.5	19	21.5	22.2	21.3	40.3	25.1	13.9	24.8	31.1	14.2	21.9	19.1	29.7
2017-05-24	144	1	nan	8.8	3.9	15.6	11.1	6.2	5	8.8	10	9.7	7.4	5.2	14.2	14.2	6	9.3	17	14.2	5.1	14.8	0.8	15.2	18.2	14.5	23.7	15.6	11.7	17.6	19.3	16.8	20.9	19.3	21.8	23.4	21.1	37.1	21.1	13.9	24.8	21.4	15	21.9	18.5	29.9
2017-05-24	144	Avg	0-15cm																																												0
2017-05-24	144	Avg	15-30cm																																												0
2017-05-24	144	Avg	30-45cm																																												0
2017-05-24	144	Avg	45-60cm																																												0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-05-24	144	0	nan	5	5.3	1.2	0.6	11.8	8.1	9.3	12.4	15.4	5	12.9	15.9	28.5	17.6	13.3	13.9
2017-05-24	144	1	nan	4.7	4.2	1.2	0.1	11.2	8.1	8.7	12.7	16.2	4.5	9.2	17.6	28.2	17	10.5	14.5
2017-05-24	144	Avg	0-15cm																	0
2017-05-24	144	Avg	15-30cm																	0
2017-05-24	144	Avg	30-45cm																	0
2017-05-24	144	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2017-05-24	1	25.6
2017-05-24	2	20.5
2017-05-24	245	23.9
2017-05-24	3	23.8
2017-05-24	4	21.5
2017-05-24	5	22.0
2017-05-24	7	18.6
2017-05-24	72	23.8
2017-05-24	79	23.0
2017-05-24	8	21.9

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2017-05-24 13:23:00	OAK	102	-9	-14	-12
2017-05-24 13:23:00	OAK	35	-18	-23	-17
2017-05-24 13:23:00	OAK	92	-22	-27	-20
2017-05-24 13:47:00	PINE	OLD	-3	-19	-1
2017-05-24 13:47:00	PINE	YNG	-1	-5	-4
