Field Notes

<--2016-07-28 10:00:00 | 2016-09-13 10:30:00-->
Phenocam link: Searching...

Tonzi: 2016-08-23 10:00:00 (DOY 236)
Author: Siyan Ma
Others:

Summary: Standard fieldwork, very dry, swapper all 7500s, manual well meter not working - estimated by wetness, floor fence charger not working, understory HMP fan not working.

When: Date: 8/23/2016 , Day: 236 , Watch Time: 10:00 am . Where: Tonzi/Vaira Ranch Who: Siyan Weather: clear, sunny Phenology: Vaira pond dry, oak water stressed Summary Swapped IRGAs at the three towers. Swapped memory cards of CR1000s at three sites. Everything worked well. Checked and downloaded phenocam images and met data from PC at Floor and Vaira. Checked the soil CO2 probes at Tonzi and Vaira; Read dendrometers Measured soil moisture Measure groundwater well Measure midday water potential of oak leaves Vaira_Grass Site Downloaded Phenocam images. Swapped IRGA: sn 0042 on; sn 0073 off. Swapped the memory cards of CR1000. Checked the fans of air temp and relative humidity sensors at Vaira. YES! Downloaded met and soil CO2 profile data: Checked levels of Radiation sensors, clear up surfaces.YES! Checked rain gage, make sure not clogged. YES! Closed gate and set up fence. YES! Tonzi_Tower Site Fence and gate power: 12 v. Swapped IRGA: sn 0418 on; sn 0041 off. swapped the memory cards of CR1000. download Phenocam images. Yes! checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES! Checked rain gage, make sure not clogged. YES! Screens of met dataloggers: CR23X3 – floor-Met CR23X6 – tower-Met CR10X2 – floor-Met Soil CO2 profile: CR23X5 – soil CO2 profile Calibrate CO2 profile system before zero before span after 9. closed gate and set up fence. YES! Toniz_Floor Site Fence and gate power: something wrong? No power. Swapped IRGA:sn 0976 on, sn 0035 off. Swapped the memory cards of CR1000. Closed gate and set up fence. YES! But no power.

Field Data

No tank data

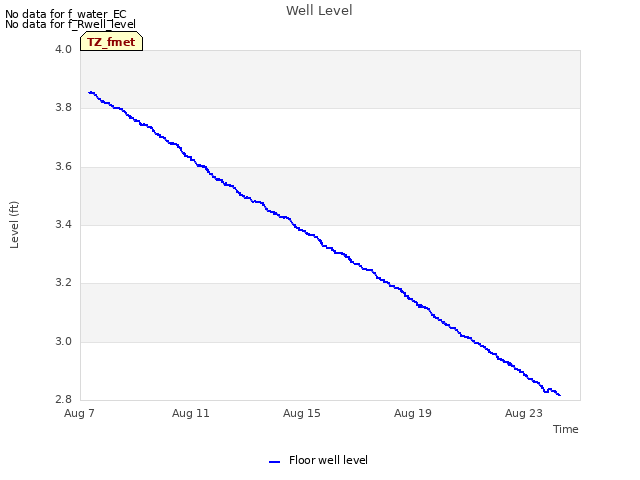

Well Depth

Date	Location	Depth (feet)
2016-08-23	TZ_floor	23
2016-08-23	TZ_road	36.3
2016-08-23	TZ_tower	32.3

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2016-08-23	236	0	nan	5.3	5.9	7.1	5.3	7.7	0.1	3	3.9	6.8	6.8	1.5	1.8	10.3	11.8	9.3	4.5	6.9	9.3	14.2	11.8	0.2	7.2	1.5	11.5	16.5	7	22.1	22.9	5.3	9.5	16.2	16.2	14.3	16.5	16.5	10.3	10.7	3.6	20.2	11.1	19.9	12.2	17	23.6	10.7	18.5	15.3	22.5
2016-08-23	236	1	nan	5.3	5.9	7.1		7.4	0.1	7.7	4.5	6.5	6.8	4.5	1.2	9.7	12.1	10.3	4.2	6.6	9.7	3.6	11.5	4.5	7.2	1.5	11.2	16.5	7	19.8	19.9	5.3	9.2	15.9	16.5	13.7	16.8	15.9	16.5	10.2	3.6	19.1	11.1	19.5	11	17.3	23.1	10.9	17.3	14.5	21.9
2016-08-23	236	Avg	0-15cm																																																		0
2016-08-23	236	Avg	15-30cm																																																		0
2016-08-23	236	Avg	30-45cm																																																		0
2016-08-23	236	Avg	45-60cm																																																		0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2016-08-23	236	0	nan	0.4	1	1.8	0.1	8.7	6.3	6.3	2.9	14.3	4.2	11.2	13.4	27.6	14.8	11.6	16.5
2016-08-23	236	1	nan	0.4	0.4	1.8	0.1	8.1	6.3	6	3.2	14.3	5	11.7	13.1	27.4	15.3	11.3	15.9
2016-08-23	236	Avg	0-15cm																		0
2016-08-23	236	Avg	15-30cm																		0
2016-08-23	236	Avg	30-45cm																		0
2016-08-23	236	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2016-08-23	102	19.9
2016-08-23	2	18.8
2016-08-23	245	22.8
2016-08-23	3	22.1
2016-08-23	4	16.0
2016-08-23	5	18.5
2016-08-23	7	15.8
2016-08-23	72	23.4
2016-08-23	79	23.2
2016-08-23	8	18.7

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2016-08-23 01:13:00	OAK	102	-48	-42	-33
2016-08-23 01:13:00	OAK	35	-40	-41	-35
2016-08-23 01:13:00	OAK	92	-35	-41	-30
2016-08-23 01:30:00	PINE	OLD	-19	-7	-6
2016-08-23 01:30:00	PINE	YNG	-1	-1	-0.9

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display: days

16 sets found

No data found for TZ_Fenergy.

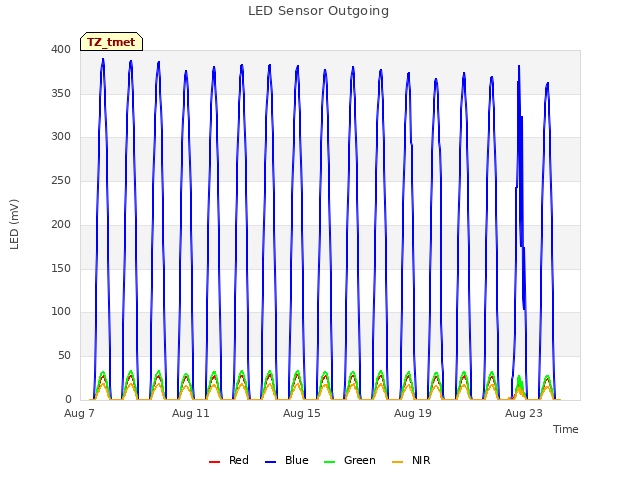

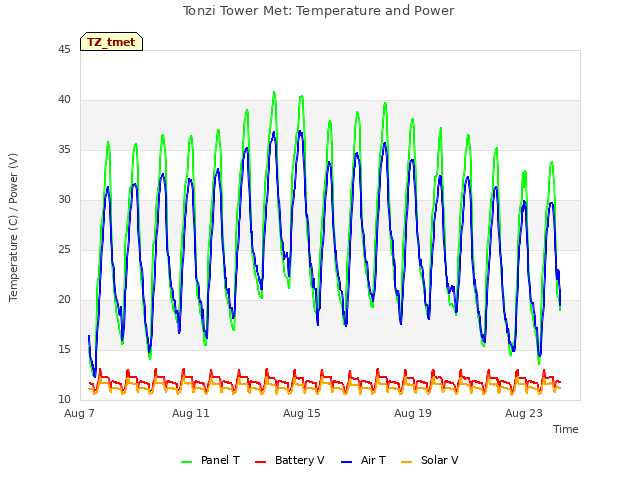

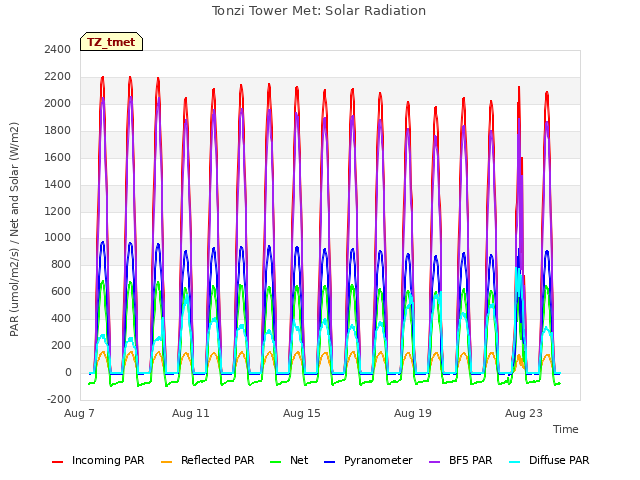

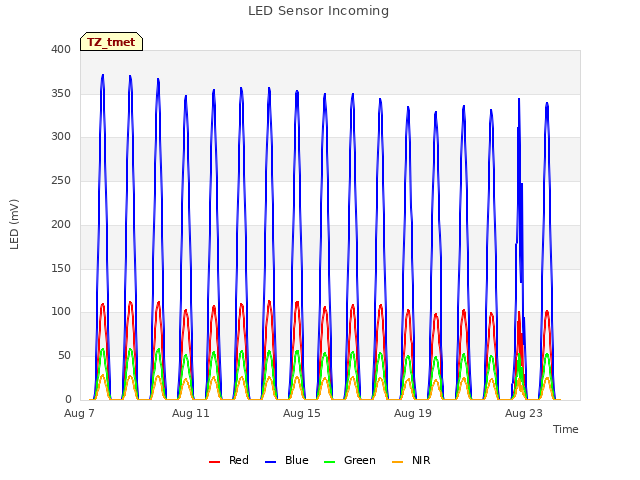

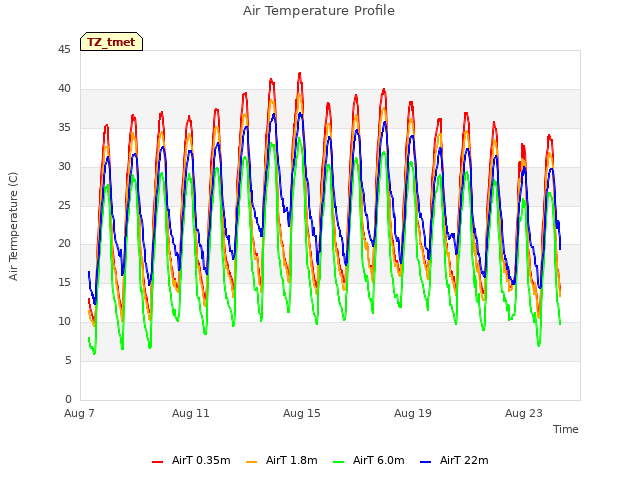

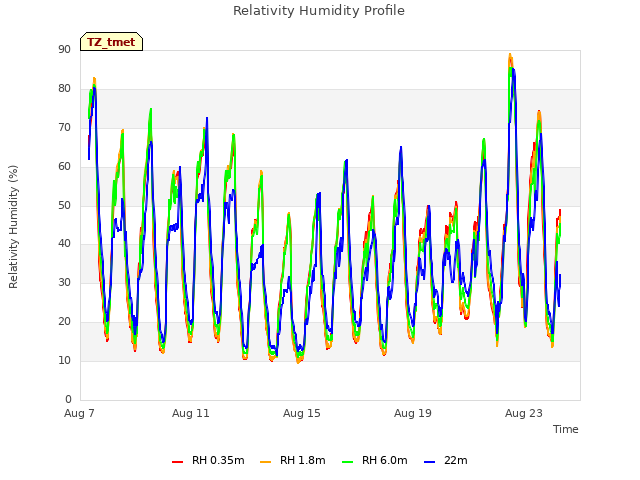

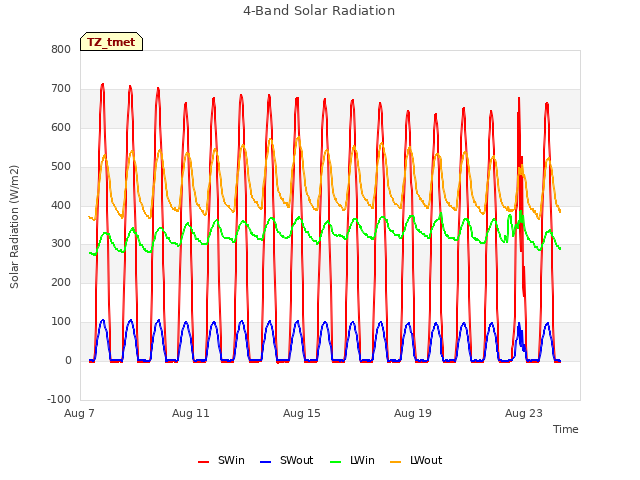

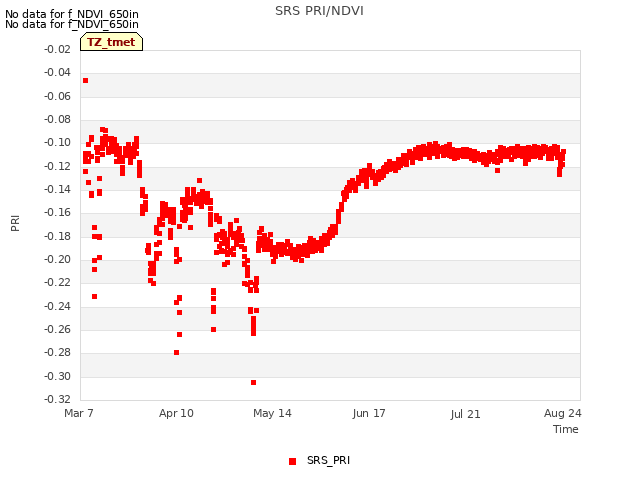

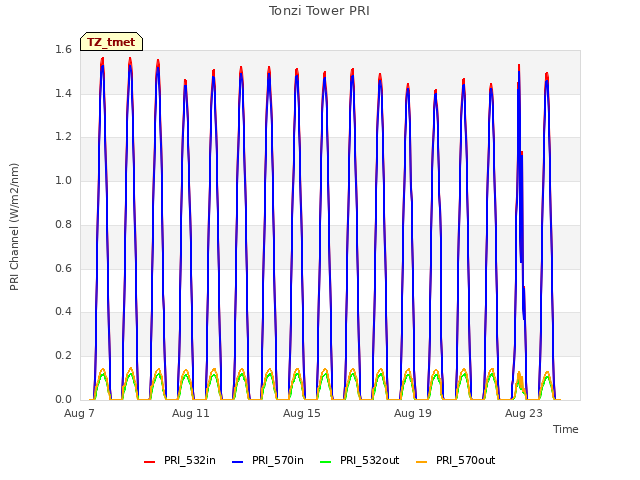

11 TZ_tmet graphs found

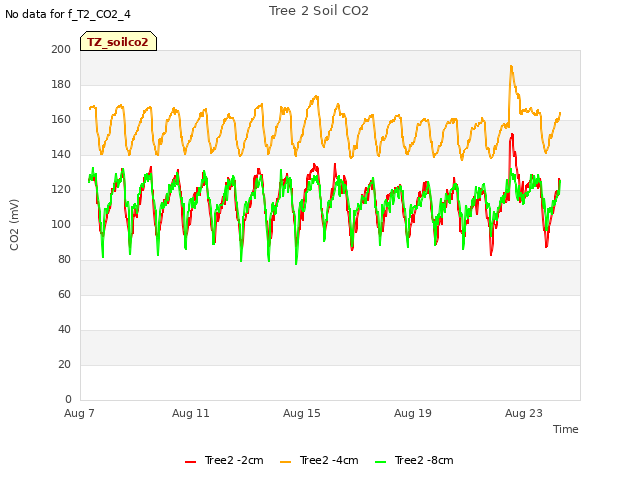

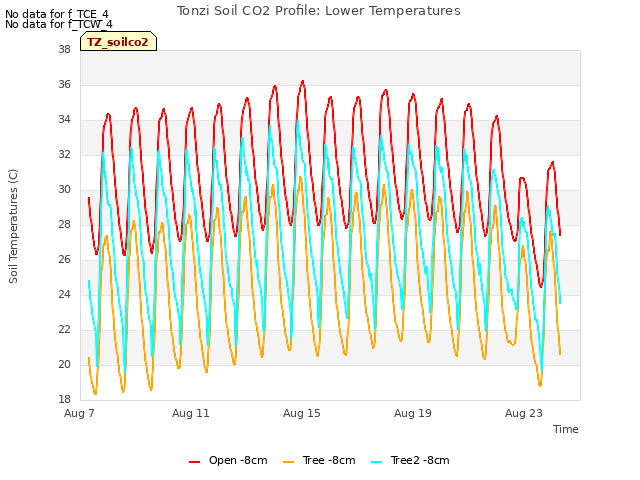

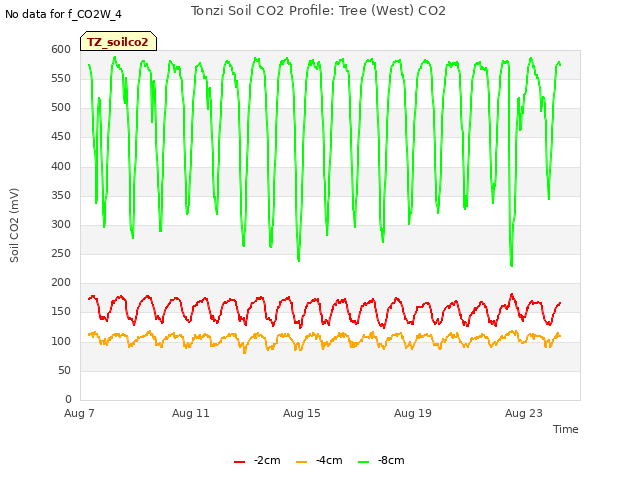

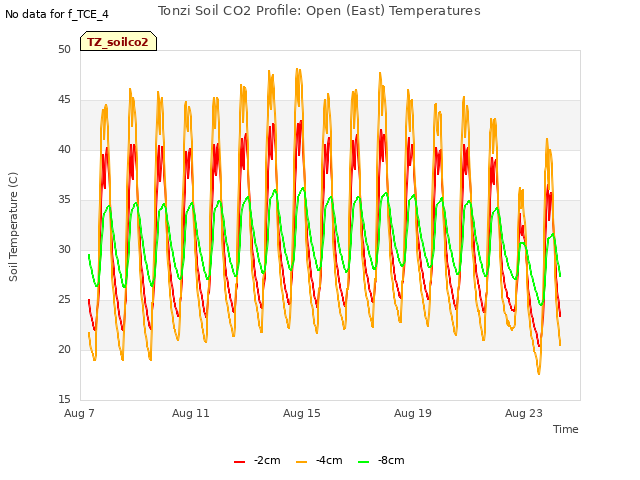

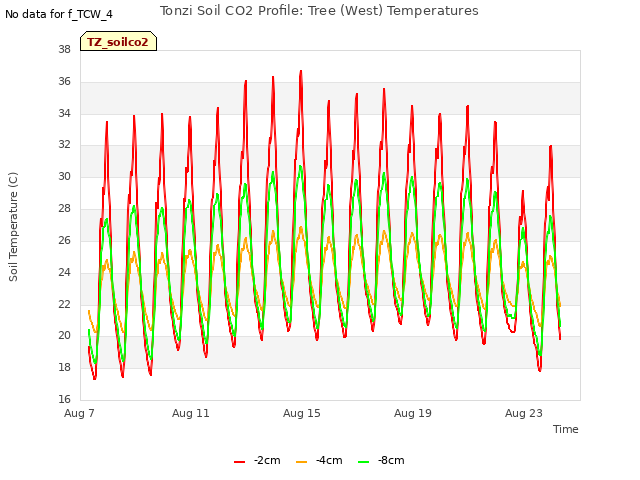

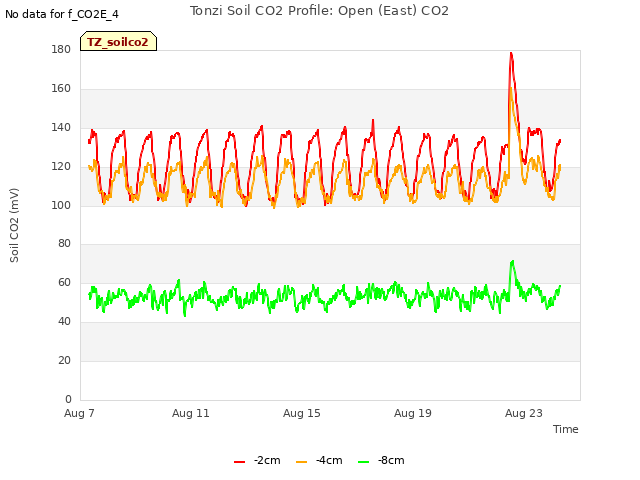

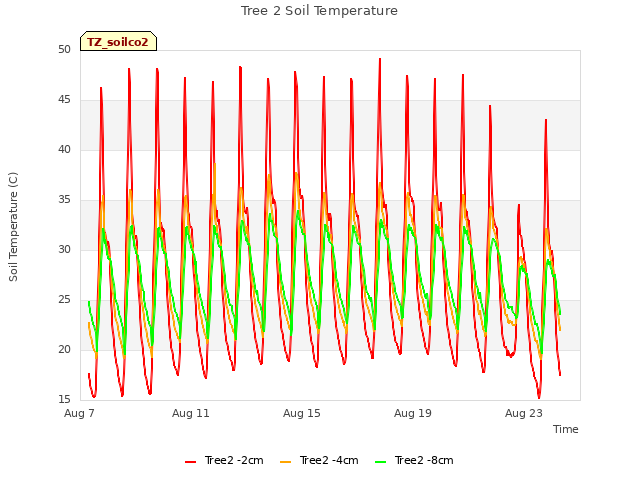

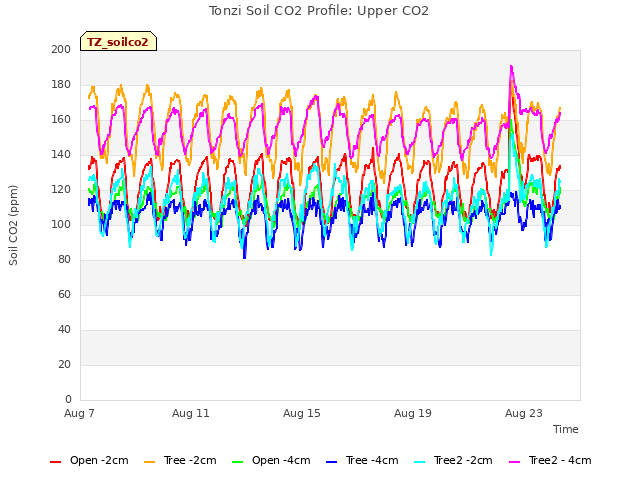

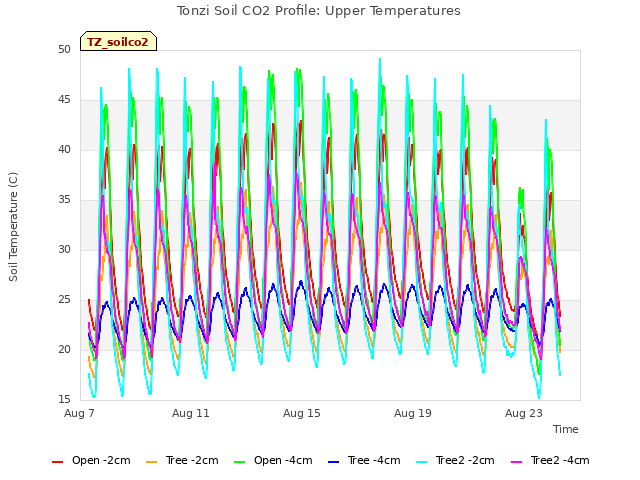

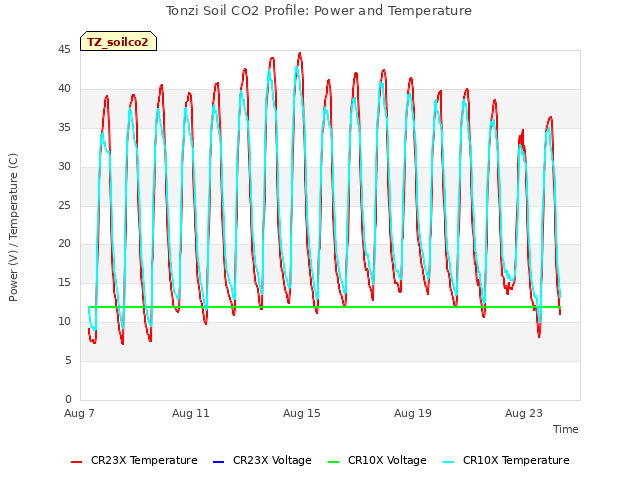

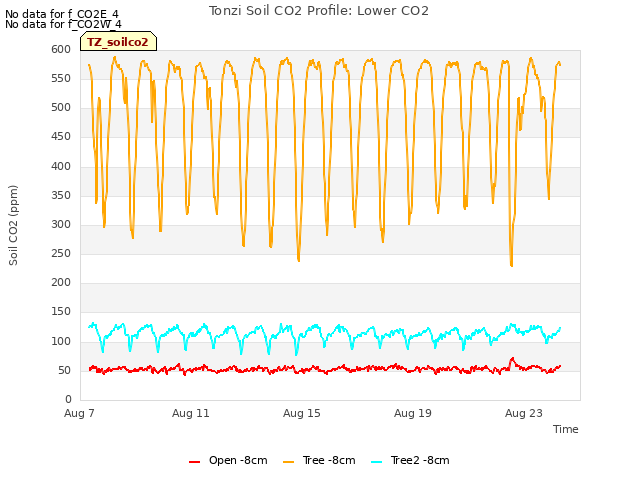

11 TZ_soilco2 graphs found

Can't check TZ_mixed

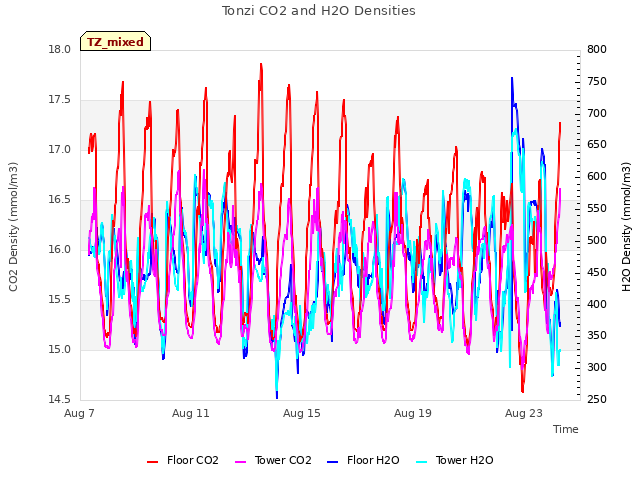

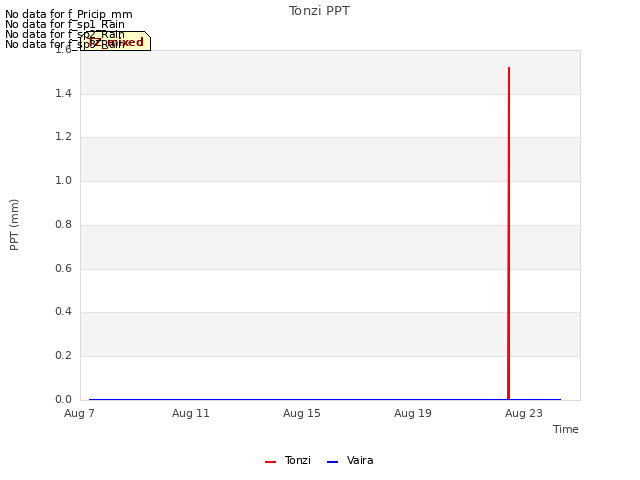

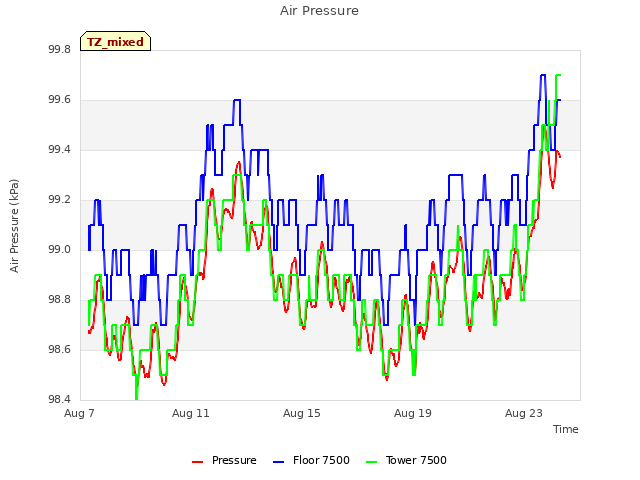

3 TZ_mixed graphs found

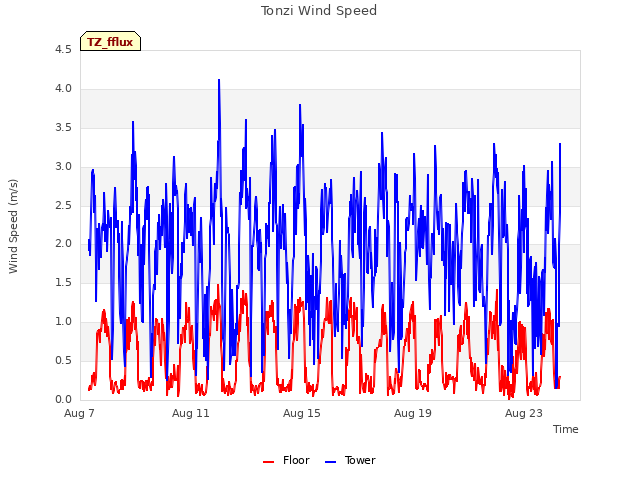

1 TZ_fflux graphs found

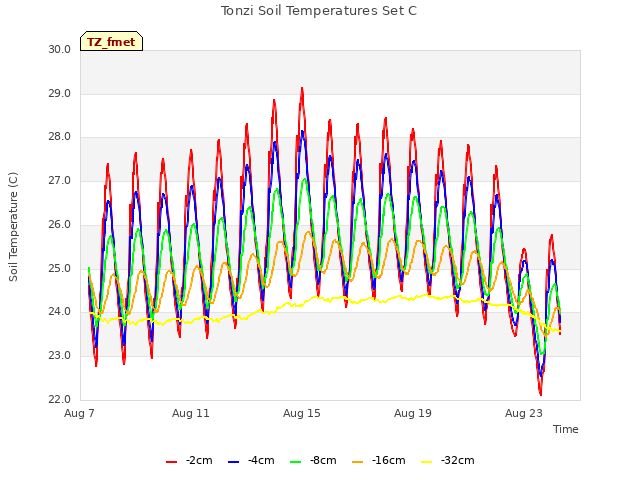

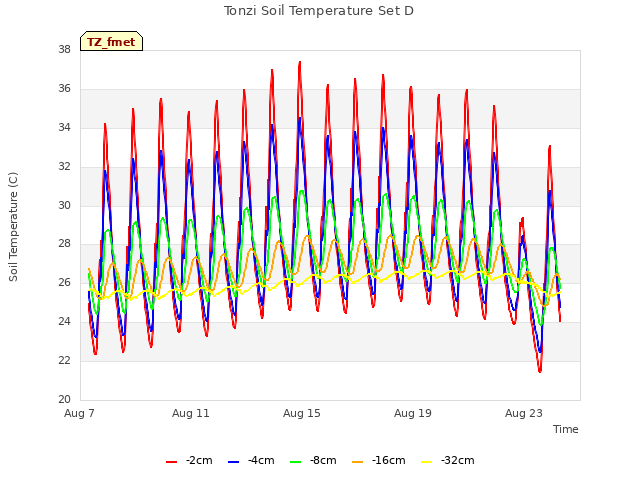

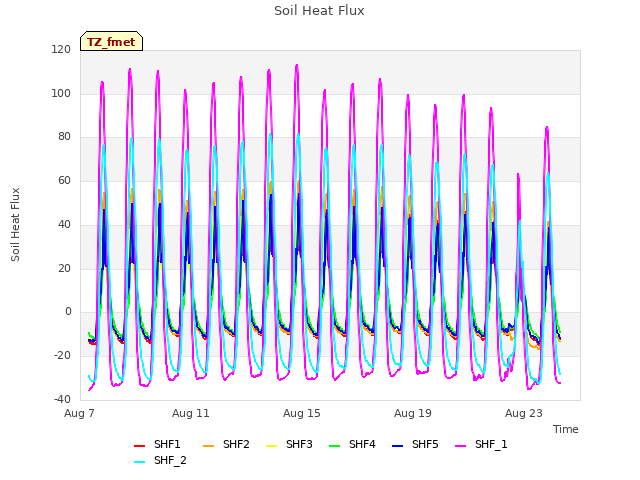

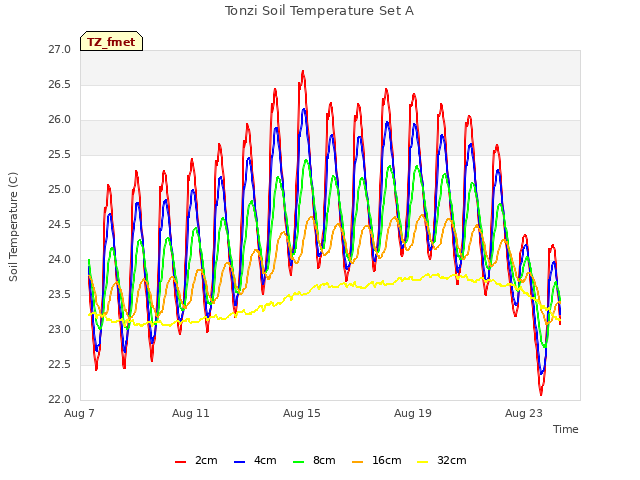

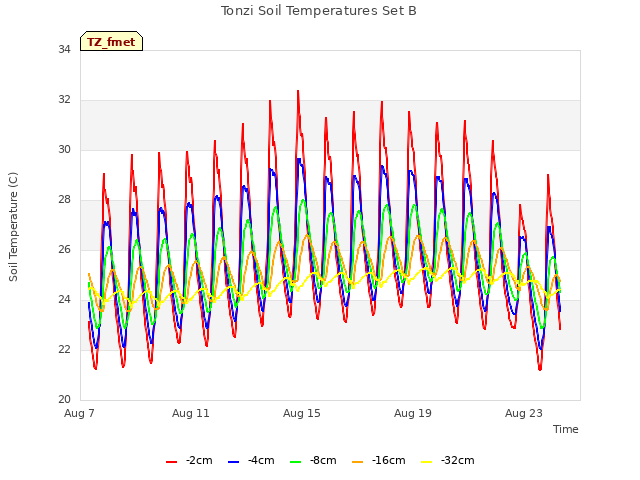

8 TZ_fmet graphs found

No data found for TZ_tram.

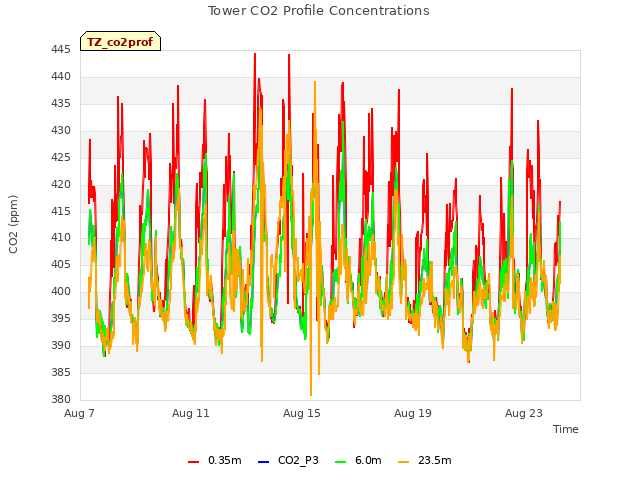

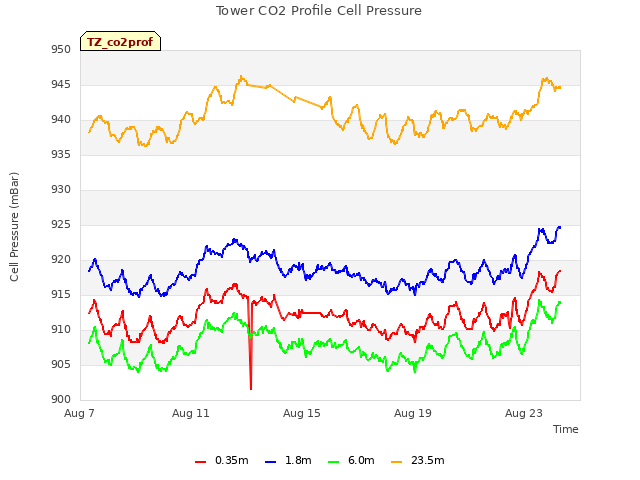

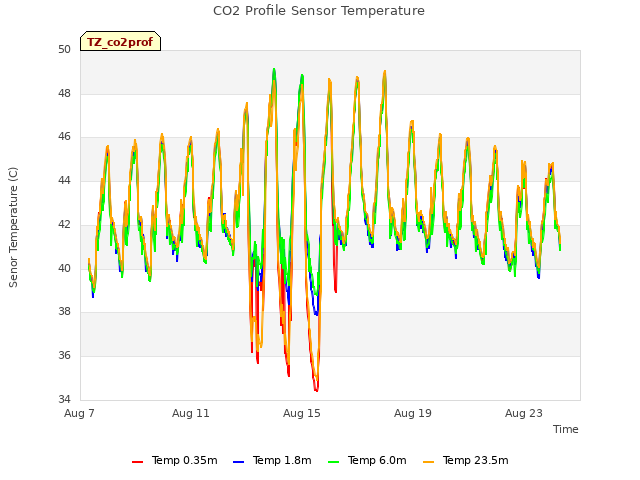

3 TZ_co2prof graphs found

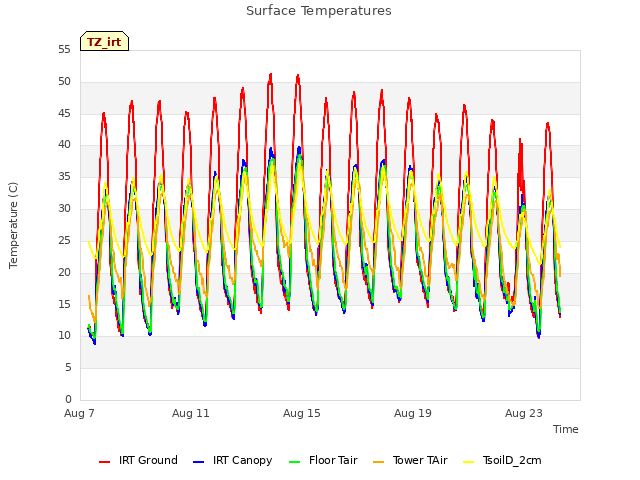

1 TZ_irt graphs found

No data found for TZ_windprof.

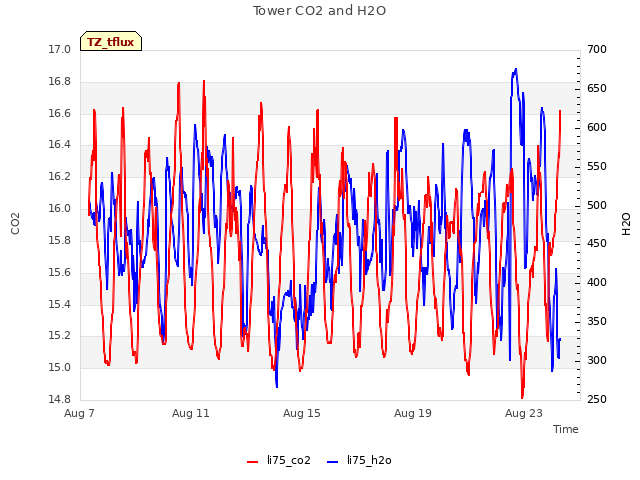

1 TZ_tflux graphs found

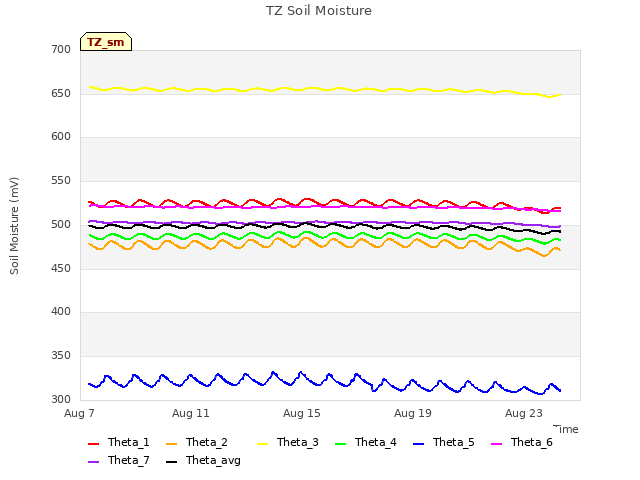

2 TZ_sm graphs found

Can't check TZ_met

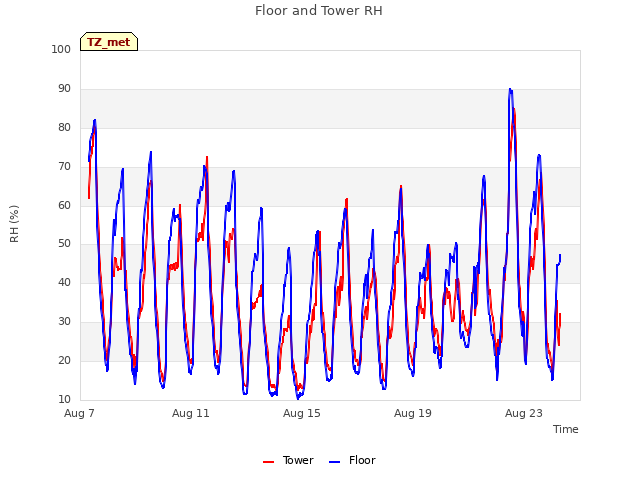

1 TZ_met graphs found

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
