Tonzi: 2016-07-28 10:00:00 (DOY 210)
Author: Siyan Ma
Others: Alison

Summary: Standard fieldwork, left electric fence off at Vaira, showing Alison the sites

When: Date: 7/28/2016 , Day: 210 , Watch Time: 10:00 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Alison

Weather: clear, sunny, hot

Phenology: dead grasses, oak canopy had less leaves; a lot of dead branches



Summary

  1. Swapped memory cards of CR1000s at three sites. Everything worked well.
  2. Checked and downloaded phenocam images and met data from PC at Floor and Vaira.
  3. Calibrate CO2 profile system
  4. Checked the soil CO2 probes at Tonzi and Vaira;
  5. Read dendrometers
  6. Measured soil moisture
  7. Measure groundwater well
  8. Measure midday water potential of oak leaves
  9. Collect litter samples

Vaira_Grass Site

  1. Downloaded Phenocam images.
  2. Swapped the memory cards of CR1000.
  3. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  4. Downloaded met and soil CO2 profile data:
  5. Checked levels of Radiation sensors, clear up surfaces.YES!
  6. Checked rain gage, make sure not clogged. YES!
  7. Closed gate and set up fence. YES! (but didn’t turn on the electronic one for reducing fire risk since the site was supper dry).

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. swapped the memory cards of CR1000.
  3. download Phenocam images. Yes!
  4. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  5. Checked rain gage, make sure not clogged. YES!
  6. Screens of met dataloggers

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile






7. Calibrate CO2 profile system



8. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence and gate power: 12 v.
  2. Swapped the memory cards of CR1000.



  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2016-07-28TZ_floor24
2016-07-28TZ_road34.9
2016-07-28TZ_tower29.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2016-07-28 210 0 0-15cm 5.6 6.2 6.8 11.1 9.7 0.6 2.7 4.5 6.8 0.5 4.5 3.3
2016-07-28 210 0 15-30cm 10.6 11.8 11.5 2.9 6.9 9 14.2 12.4 4.5 7.5 0.2 12.4
2016-07-28 210 0 30-45cm 16.5 7.8 14 13.1 7.8 10.3 16.2 16.8 13.7 17 17 6.7
2016-07-28 210 0 45-60cm 9.9 3.6 18.2 18.5 18.8 11 18.5 23.6 10.5 19.3 17.6 30.8
2016-07-28 210 1 0-15cm 5.9 5.9 5.6 7.7 8 0.1 2.7 3.9 6.5 5 3.9 3.3
2016-07-28 210 1 15-30cm 10.6 11.5 11.8 1.1 9 8.7 14.8 11.8 4.5 8.1 12.4
2016-07-28 210 1 30-45cm 16.8 7.8 13.7 12.9 9 9.8 16.2 16.8 13.1 17 17.3 10.1
2016-07-28 210 1 45-60cm 10.2 3.3 18.2 18.2 19.6 13.9 18.5 23.4 10.7 20.8 17.6 33.1
2016-07-28 210 Avg 0-15cm 5.75 6.05 6.2 9.4 8.85 0.35 2.7 4.2 6.65 2.75 4.2 3.3 5.03 12 24
2016-07-28 210 Avg 15-30cm 10.6 11.65 11.65 2 7.95 8.85 14.5 12.1 4.5 7.8 0.2 12.4 8.68 12 23
2016-07-28 210 Avg 30-45cm 16.65 7.8 13.85 13 8.4 10.05 16.2 16.8 13.4 17 17.15 8.4 13.23 12 24
2016-07-28 210 Avg 45-60cm 10.05 3.45 18.2 18.35 19.2 12.45 18.5 23.5 10.6 20.05 17.6 31.95 16.99 12 24

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2016-07-28 210 0 0-15cm 0.6 0.3 2.7 0.3
2016-07-28 210 0 15-30cm 9.3 6.6 6.3 3.2
2016-07-28 210 0 30-45cm 14.5 5 11.5 13.7
2016-07-28 210 0 45-60cm 27.1 13.9 10.5 15.9
2016-07-28 210 1 0-15cm 0.6 0.1 2.1 0.3
2016-07-28 210 1 15-30cm 9.3 6.6 6.3 3.2
2016-07-28 210 1 30-45cm 14.3 5 11.2 13.4
2016-07-28 210 1 45-60cm 26.5 14.8 12.5 16.5
2016-07-28 210 Avg 0-15cm 0.6 0.2 2.4 0.3 0.88 4 8
2016-07-28 210 Avg 15-30cm 9.3 6.6 6.3 3.2 6.35 4 8
2016-07-28 210 Avg 30-45cm 14.4 5 11.35 13.55 11.08 4 8
2016-07-28 210 Avg 45-60cm 26.8 14.35 11.5 16.2 17.21 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2016-07-2810218.5
2016-07-28218.6
2016-07-2824523.9
2016-07-28322
2016-07-28416.1
2016-07-28518.4
2016-07-28715.5
2016-07-287223.5
2016-07-287923.3
2016-07-28818.1

Water Potential - mode: raw

Time< h>SpeciesTreereadings (bar)
2016-07-28 13:08:00 OAK 102 -22 -11 -26
2016-07-28 13:08:00 OAK 35 -30 -27 -25
2016-07-28 13:08:00 OAK 92 -28 -33 -25.5
2016-07-28 13:36:00 PINE OLD -3 -3 -20
2016-07-28 13:36:00 PINE YNG -3 -1 -4.5

OAK_102 Whole Study20160728 13:08:00 twig/leaf cluster -2 0.78 3
OAK_35 Whole Study20160728 13:08:00 twig/leaf cluster -2.7 0.25 3
OAK_92 Whole Study20160728 13:08:00 twig/leaf cluster -2.9 0.38 3
PINE_OLD Whole Study20160728 13:36:00 twig/leaf cluster -0.9 0.98 3
PINE_YNG Whole Study20160728 13:36:00 twig/leaf cluster -0.3 0.18 3

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

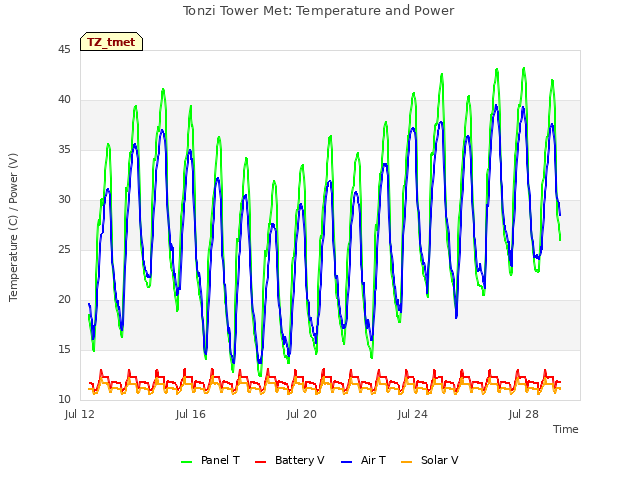

Tonzi Tower Met: Temperature and Power

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

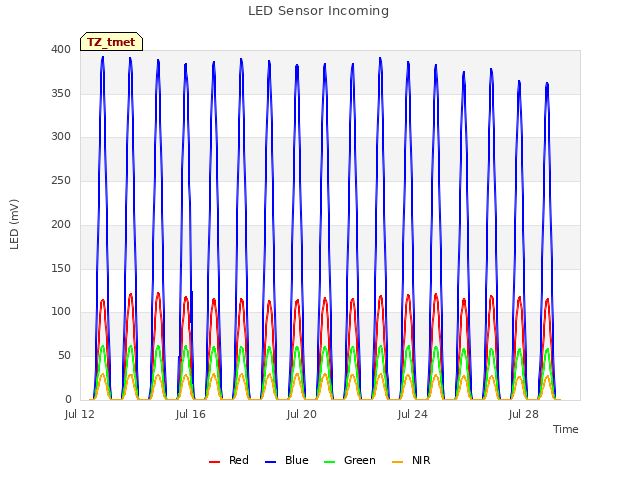

LED Sensor Incoming

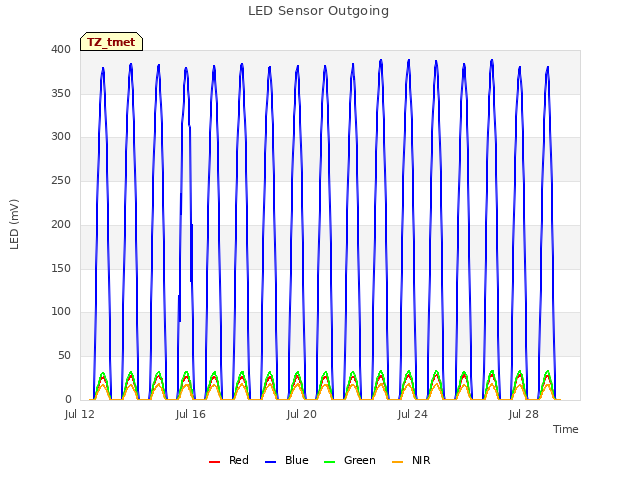

LED Sensor Outgoing

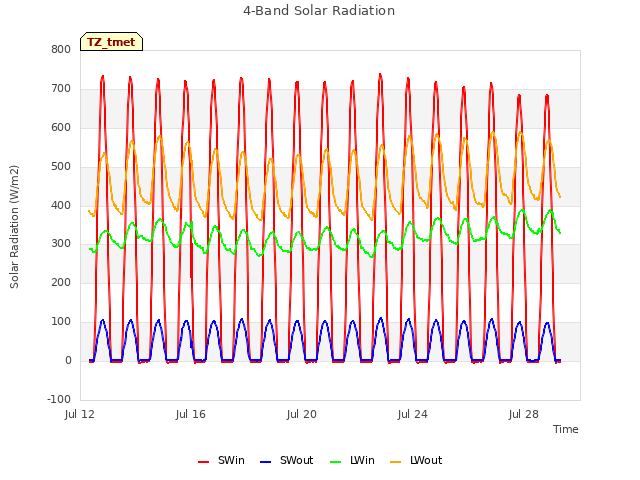

4-Band Solar Radiation

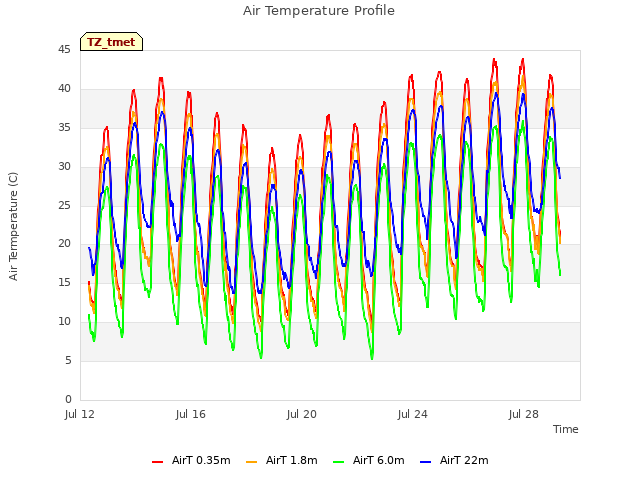

Air Temperature Profile

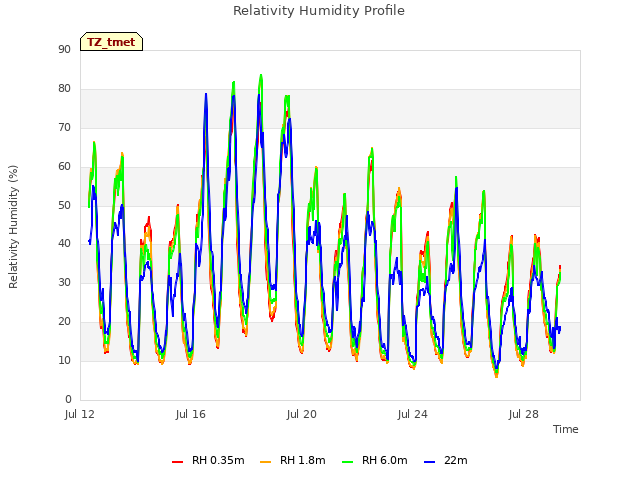

Relativity Humidity Profile

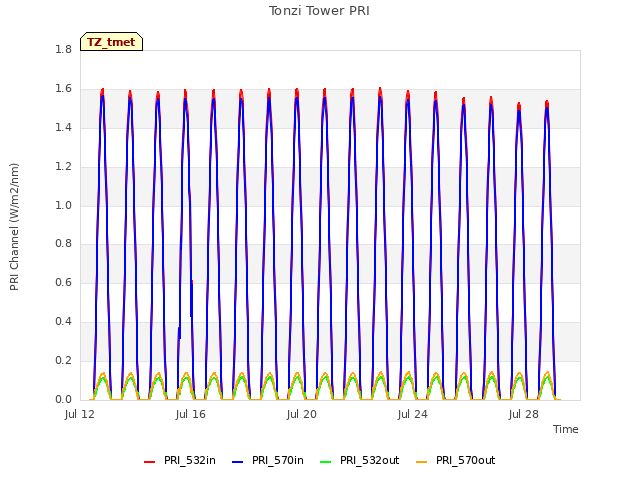

Tonzi Tower PRI

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

Tonzi Soil CO2 Profile: Open (East) CO2

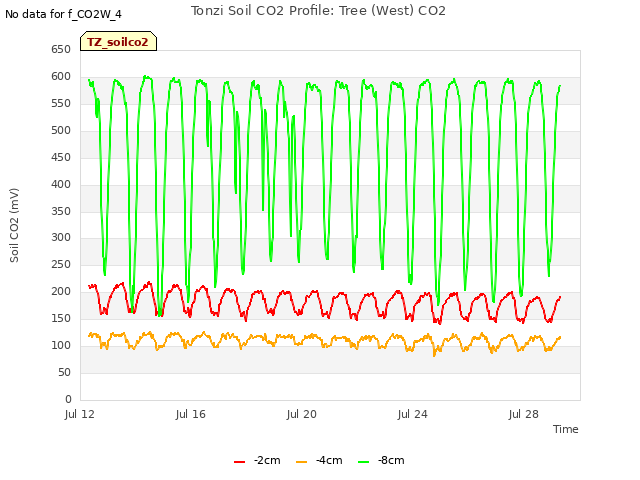

Tonzi Soil CO2 Profile: Tree (West) CO2

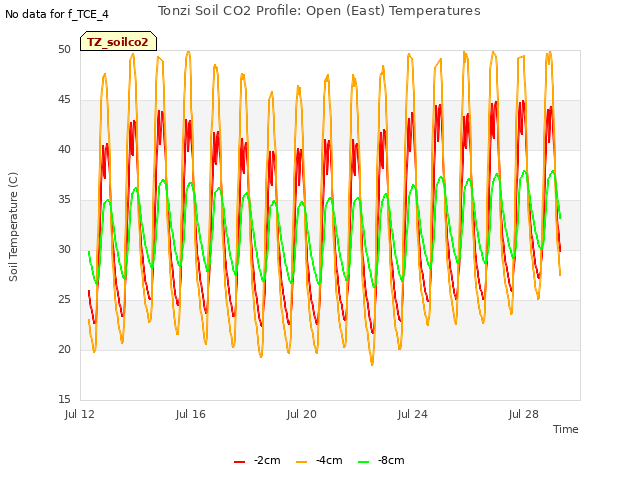

Tonzi Soil CO2 Profile: Open (East) Temperatures

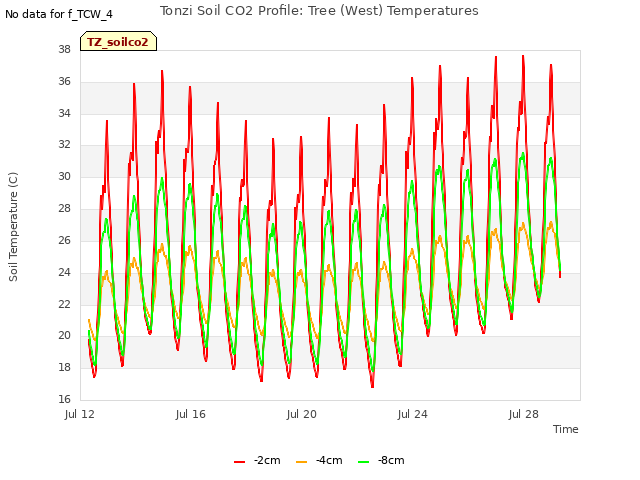

Tonzi Soil CO2 Profile: Tree (West) Temperatures

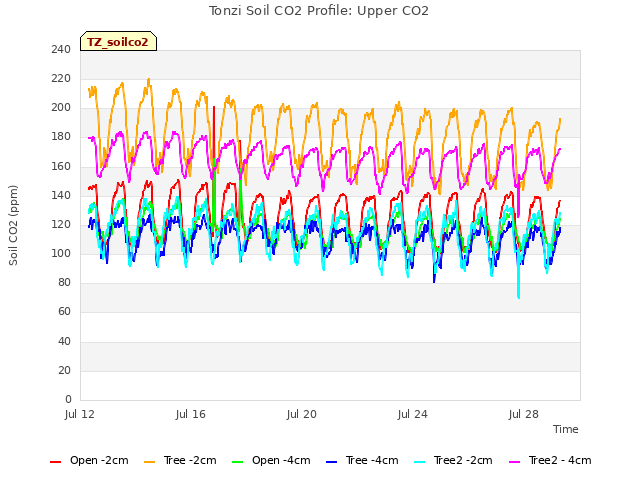

Tonzi Soil CO2 Profile: Upper CO2

Tonzi Soil CO2 Profile: Lower CO2

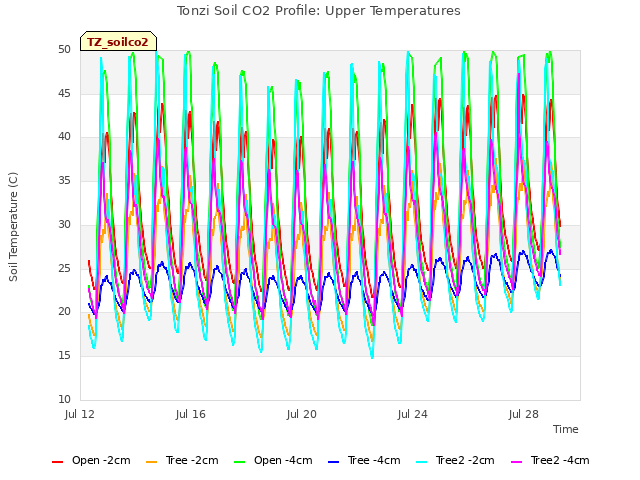

Tonzi Soil CO2 Profile: Upper Temperatures

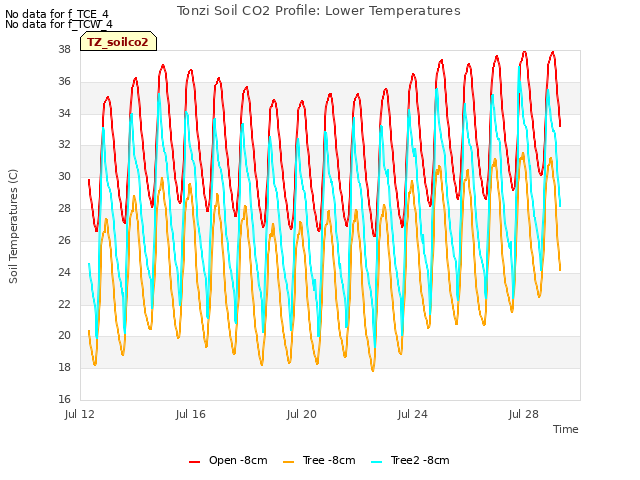

Tonzi Soil CO2 Profile: Lower Temperatures

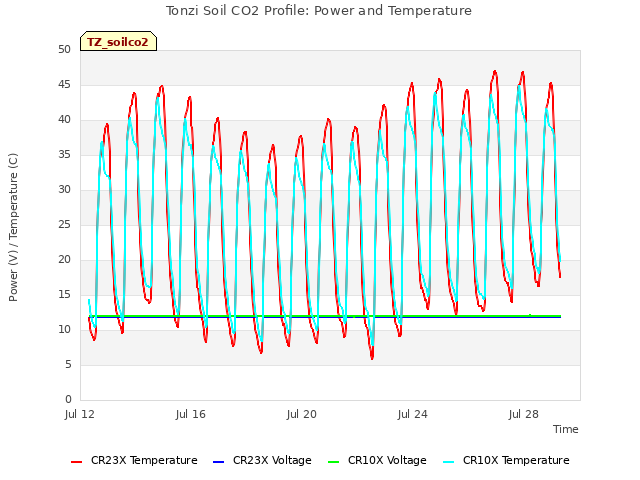

Tonzi Soil CO2 Profile: Power and Temperature

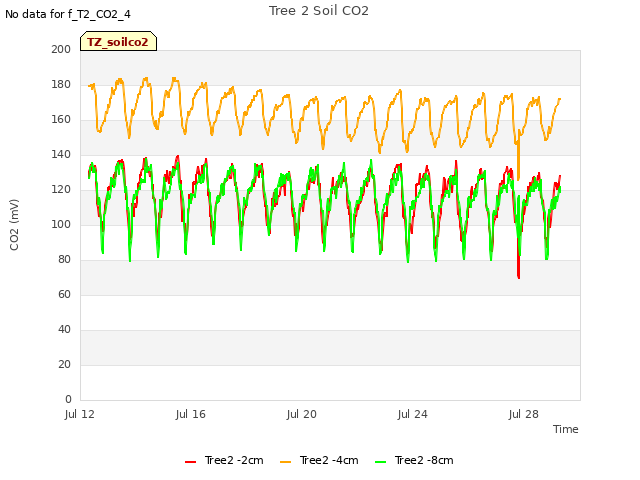

Tree 2 Soil CO2

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

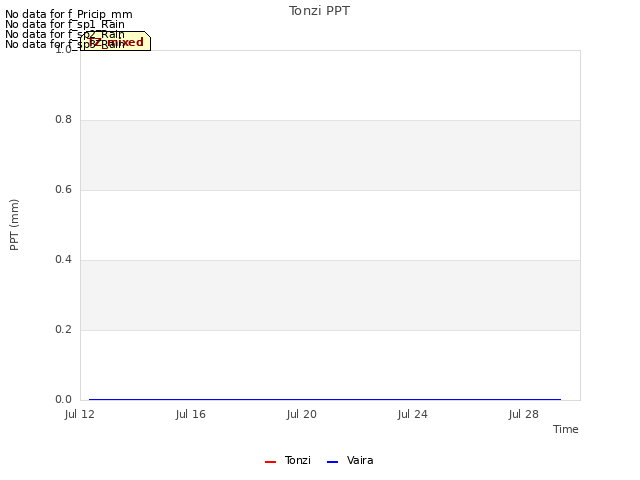

Tonzi PPT

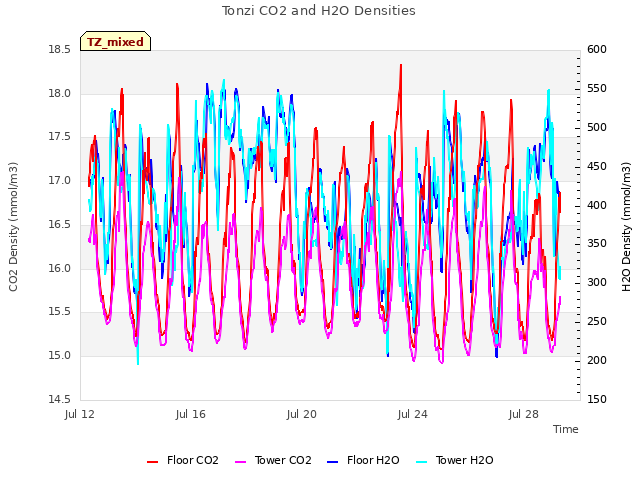

Tonzi CO2 and H2O Densities

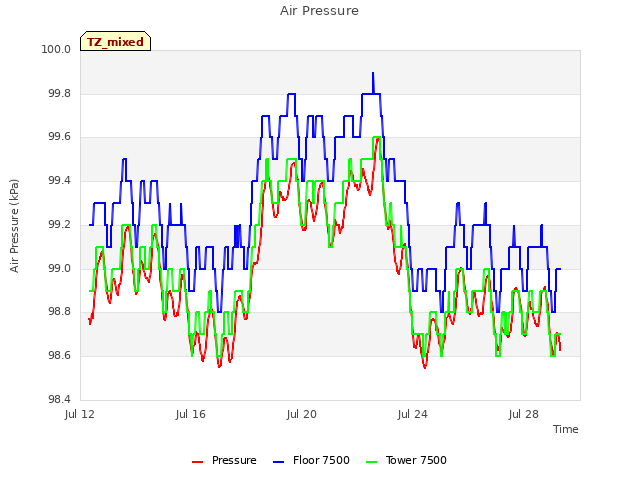

Air Pressure

1 TZ_fflux graphs found

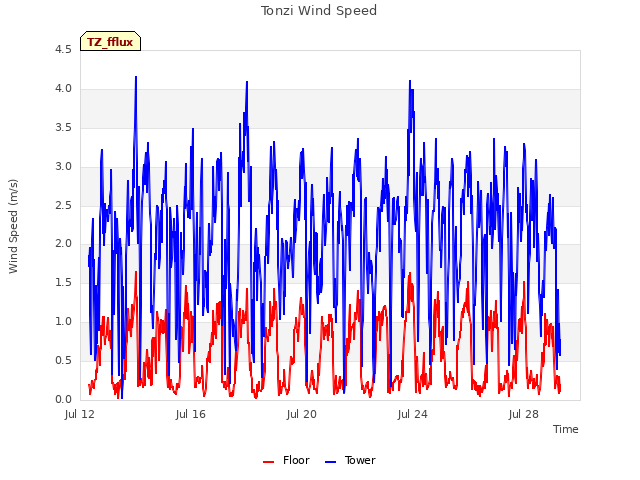

Tonzi Wind Speed

8 TZ_fmet graphs found

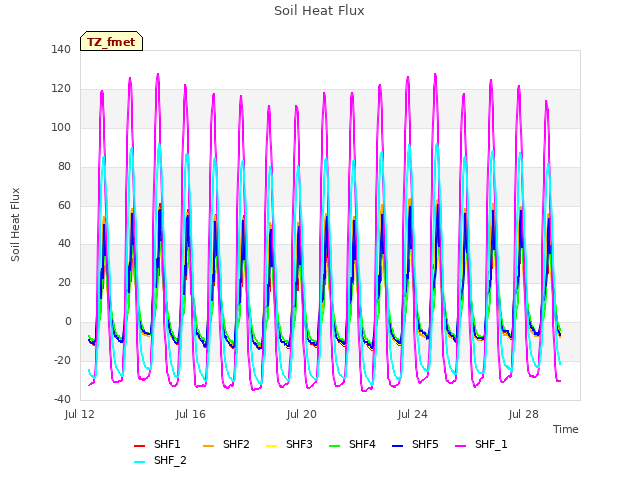

Soil Heat Flux

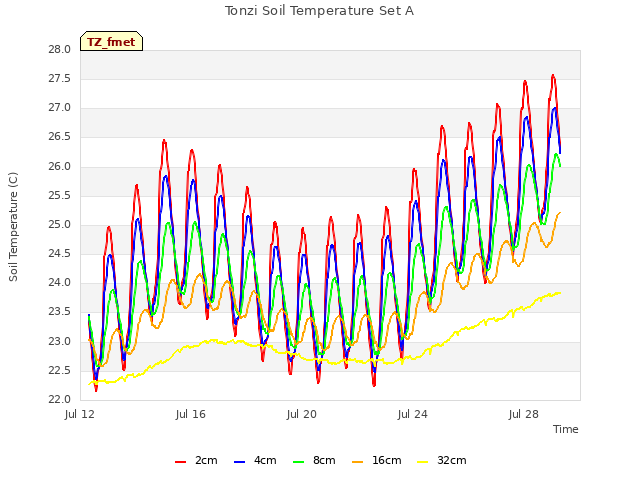

Tonzi Soil Temperature Set A

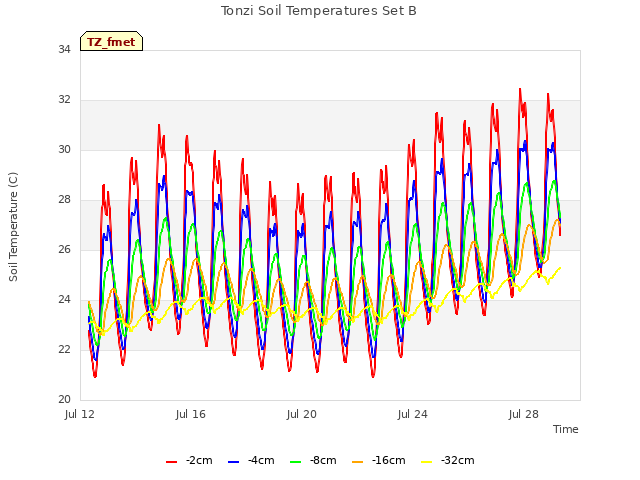

Tonzi Soil Temperatures Set B

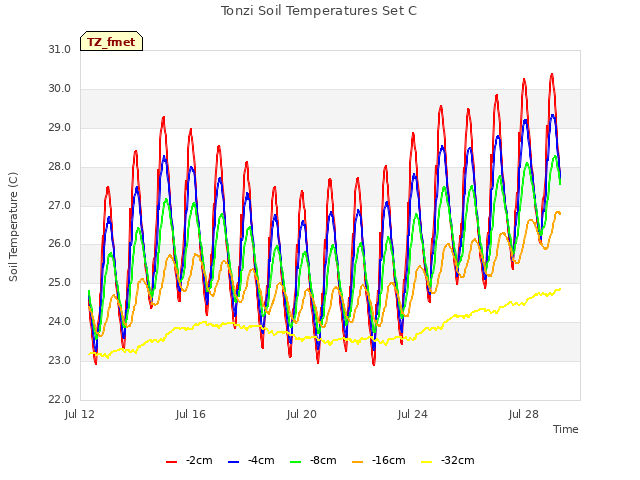

Tonzi Soil Temperatures Set C

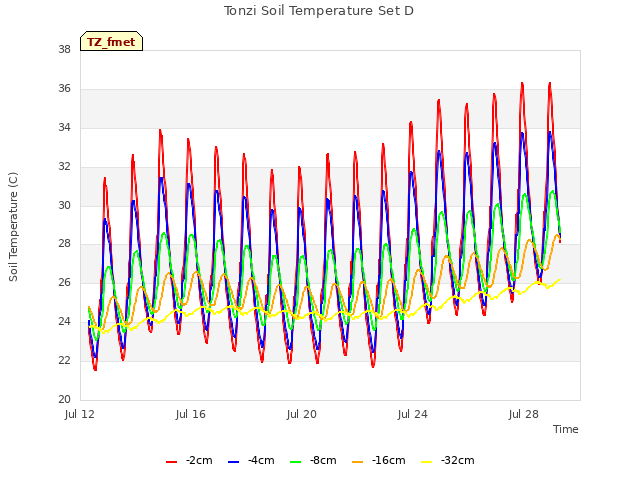

Tonzi Soil Temperature Set D

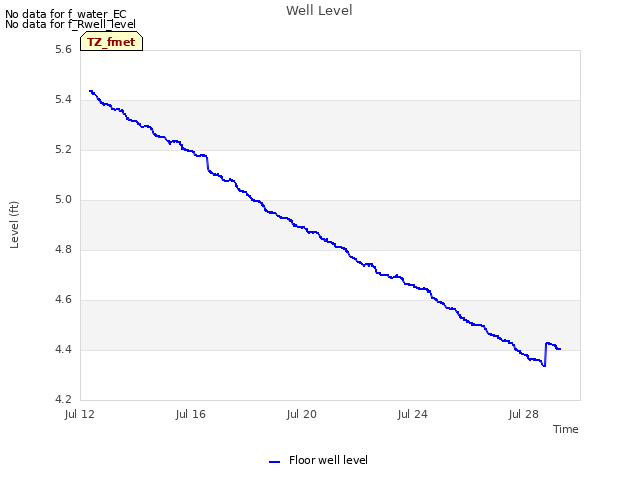

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
3 TZ_co2prof graphs found

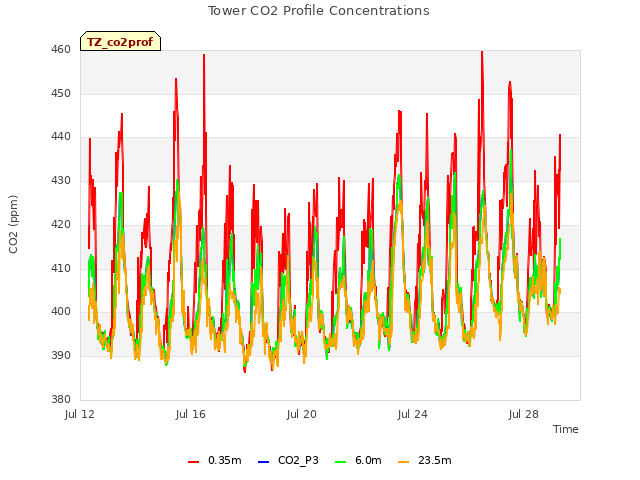

Tower CO2 Profile Concentrations

Tower CO2 Profile Cell Pressure

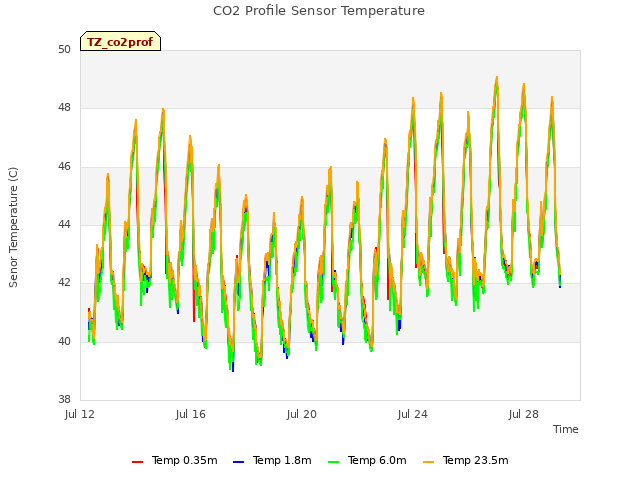

CO2 Profile Sensor Temperature

1 TZ_irt graphs found

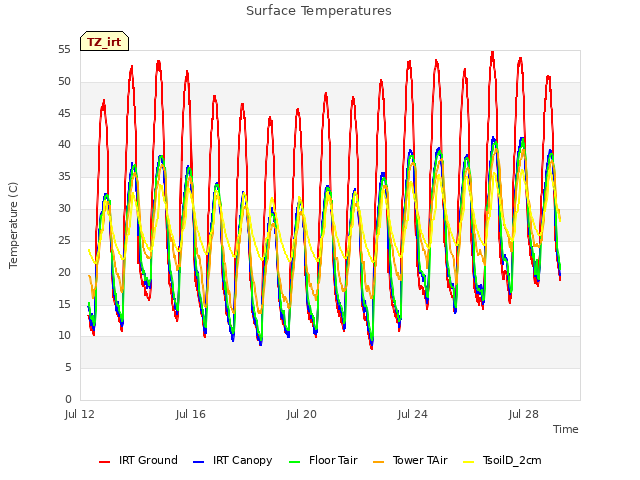

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

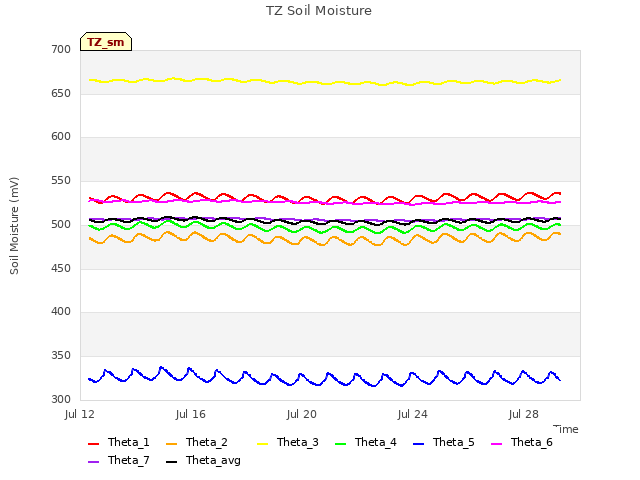

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

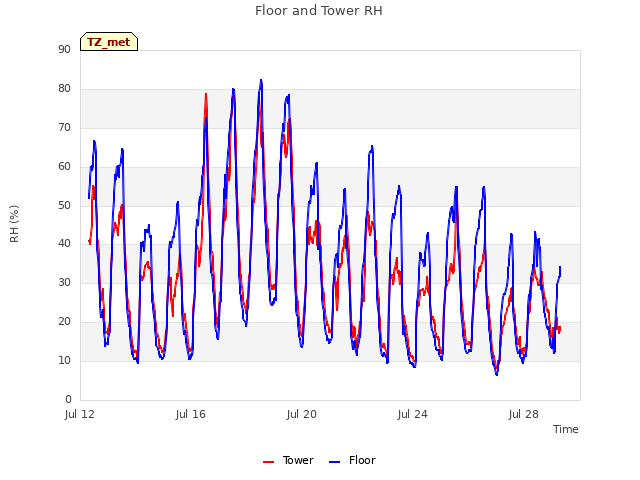

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
