Field Notes

<--2016-02-23 11:00:00 | 2016-03-08 09:30:00-->

Tonzi: 2016-03-03 10:20:00 (DOY 63)
Author: Siyan Ma
Others: Jan

Summary: Standard field work. The trees have leaves!

When: Date: 3/3/2016 , Day: 63 , Watch Time: 10:20 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Jan

Weather: cloudy

Phenology: oak leaves came out, 100%, at least 20 days earlier than the average



Summary

  1. Swapped memory cards of CR1000s at three sites.
  2. Checked and downloaded met data from PC at Tower, Floor, and Vaira.
  3. Read dendrometers
  4. Measured soil moisture

Vaira_Grass Site

  1. Downloaded Phenocam images.
  2. Swapped the memory cards of CR1000.
  3. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  4. Downloaded met and soil CO2 profile data.
  5. Checked levels of Radiation sensors, clear up surfaces.YES!
  6. Checked rain gage, make sure not clogged. YES!
  7. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. downloaded tram data from PC. No. Cannot connect to the datalogger!
  3. swapped the memory cards of CR1000.
  4. download Phenocam images. Yes!
  5. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  6. Checked rain gage, make sure not clogged. YES!
  7. Downloaded met data from PC


  1. CO2 profile: under construction

9. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence and gate power: 12 v.
  2. Swapped the memory cards of CR1000.



  1. downloaded met data from PC. YES!

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile




  1. Closed gate and set up fence. YES!

Field Data

No tank data

No TZ Well data found

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2016-03-03 63 0 0-15cm 29.9 20.6 39.9 25 11.1 14.4 16.8 19.7 19.4 24.4 19.1 20.9
2016-03-03 63 0 15-30cm 34.7 25.8 30.1 31.3 31.3 26.5 28 28.9 18.5 25.5 17 28.6
2016-03-03 63 0 30-45cm 39.4 38.5 35.7 38.2 46 28.2 30.4 32.7 31.8 34.9 33.5 26.5
2016-03-03 63 0 45-60cm 41.1 54.3 60.6 46.3 39.1 31.9 43.1 47.4 31.4 44.3 50 41.4
2016-03-03 63 1 0-15cm 28.8 13.5 39.9 24.7 31.1 20.6 15.9 20 19.1 25 19.7 21.7
2016-03-03 63 1 15-30cm 34.1 27.7 30.1 31.3 30.1 25.8 28 28.9 18.8 25.5 15.8 28
2016-03-03 63 1 30-45cm 38.2 37.7 35.4 38.8 44.6 26.2 29 32.9 32.1 34.6 32.4 26
2016-03-03 63 1 45-60cm 41.7 54.6 60.6 46 39.1 31.7 42.3 47.1 30.8 43.7 50.3
2016-03-03 63 Avg 0-15cm 29.35 17.05 39.9 24.85 21.1 17.5 16.35 19.85 19.25 24.7 19.4 21.3 22.55 12 24
2016-03-03 63 Avg 15-30cm 34.4 26.75 30.1 31.3 30.7 26.15 28 28.9 18.65 25.5 16.4 28.3 27.1 12 24
2016-03-03 63 Avg 30-45cm 38.8 38.1 35.55 38.5 45.3 27.2 29.7 32.8 31.95 34.75 32.95 26.25 34.32 12 24
2016-03-03 63 Avg 45-60cm 41.4 54.45 60.6 46.15 39.1 31.8 42.7 47.25 31.1 44 50.15 41.4 44.18 12 23

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2016-03-03 63 0 0-15cm 16.5 14.7 11.5 6.5
2016-03-03 63 0 15-30cm 24.3 24.6 13.6 15.5
2016-03-03 63 0 30-45cm 12.9 26 17.3 24
2016-03-03 63 0 45-60cm 24.8 40.5 15.9 26.8
2016-03-03 63 1 0-15cm 16.5 15 11.2 5.9
2016-03-03 63 1 15-30cm 24 24.6 13.3 15.8
2016-03-03 63 1 30-45cm 12.9 26.2 17.9 24
2016-03-03 63 1 45-60cm 24.2 40 14.8 26.2
2016-03-03 63 Avg 0-15cm 16.5 14.85 11.35 6.2 12.23 4 8
2016-03-03 63 Avg 15-30cm 24.15 24.6 13.45 15.65 19.46 4 8
2016-03-03 63 Avg 30-45cm 12.9 26.1 17.6 24 20.15 4 8
2016-03-03 63 Avg 45-60cm 24.5 40.25 15.35 26.5 26.65 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2016-03-03118.2
2016-03-0310214.4
2016-03-03216.1
2016-03-0324522.7
2016-03-03318.9
2016-03-03413.0
2016-03-03516.2
2016-03-03713.5
2016-03-037221.9
2016-03-037920.6
2016-03-03816.9

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

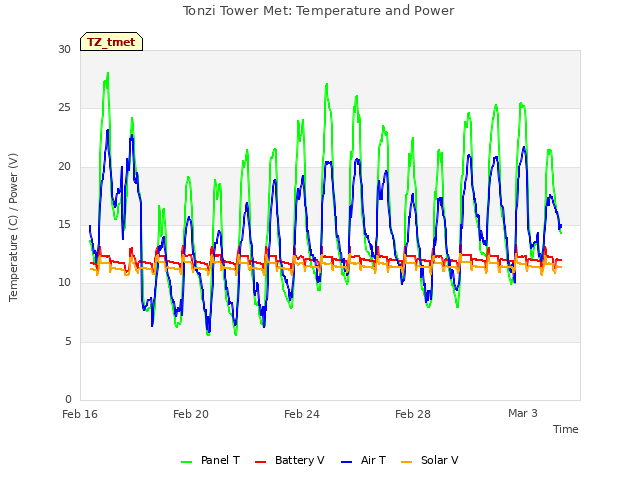

Tonzi Tower Met: Temperature and Power

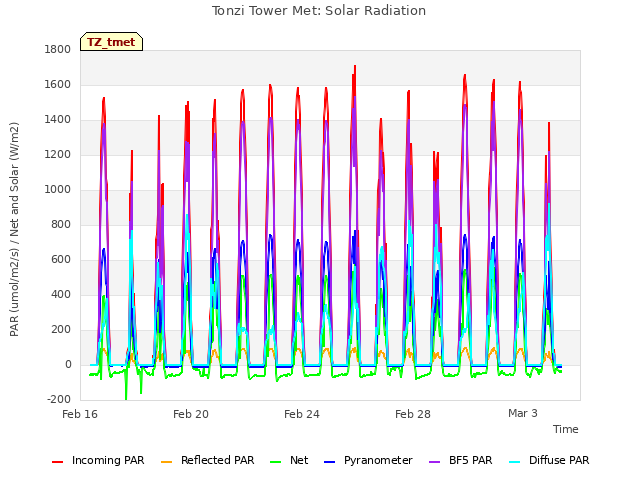

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

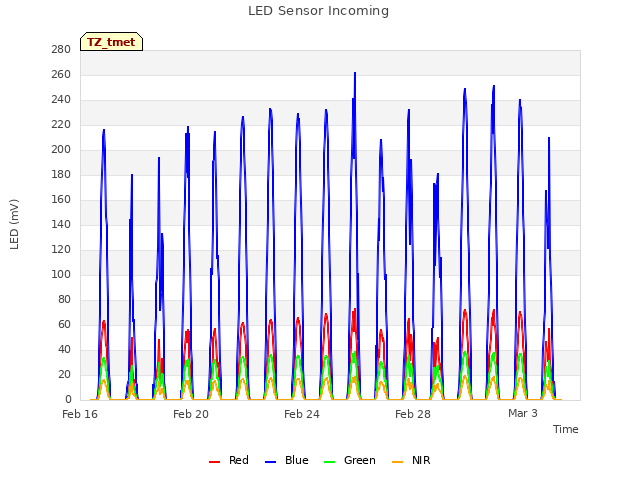

LED Sensor Incoming

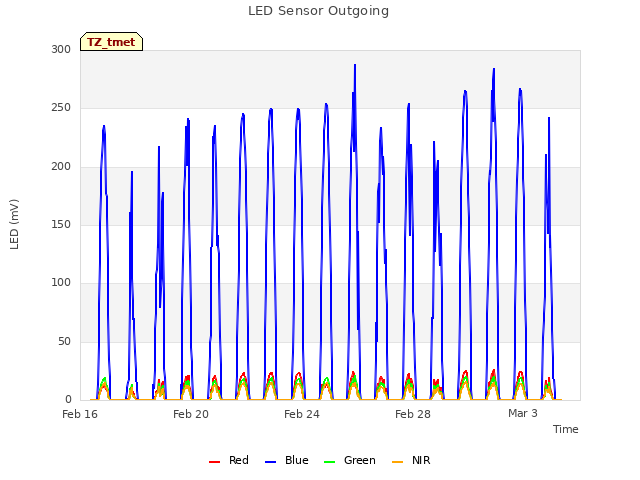

LED Sensor Outgoing

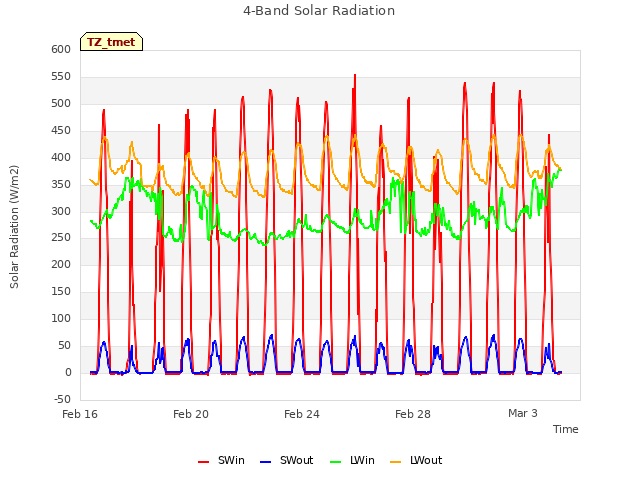

4-Band Solar Radiation

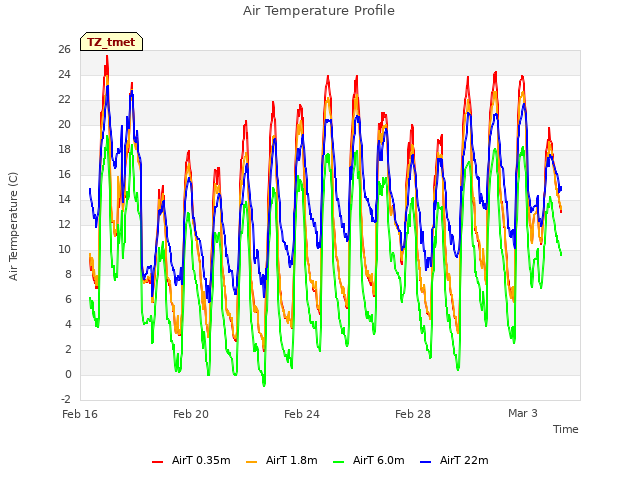

Air Temperature Profile

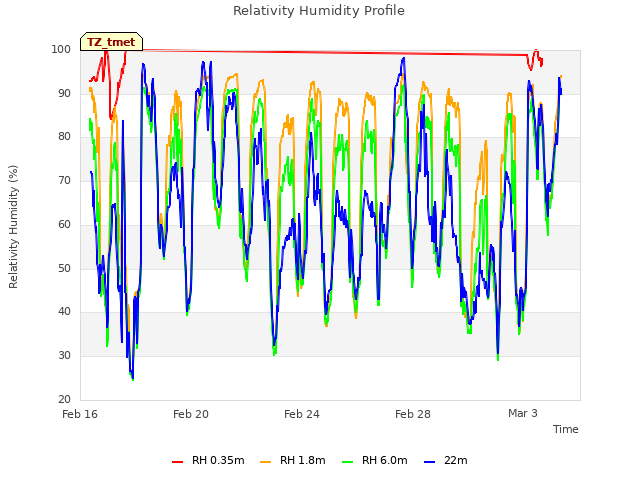

Relativity Humidity Profile

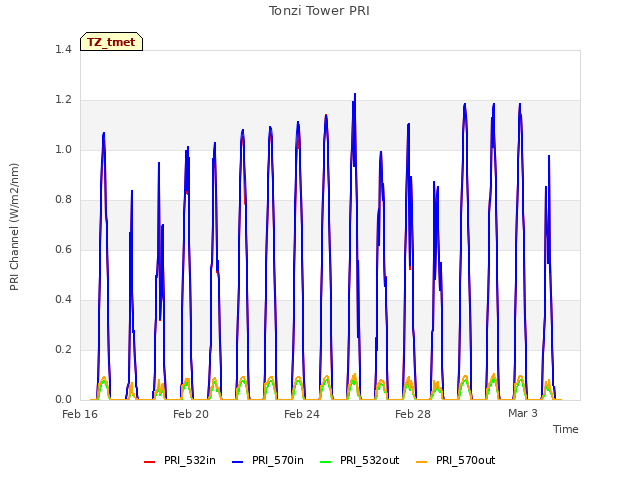

Tonzi Tower PRI

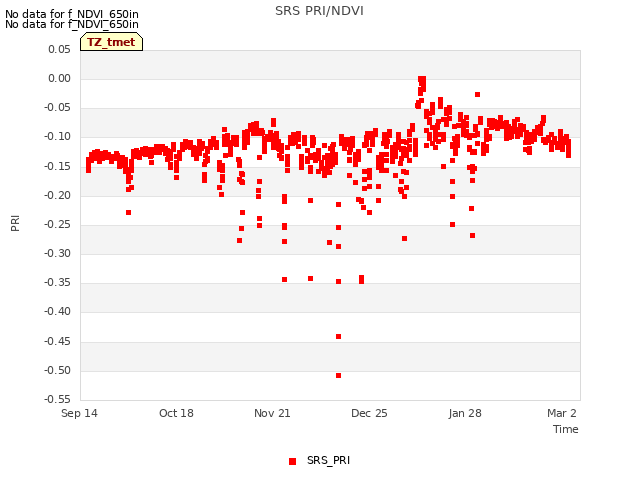

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

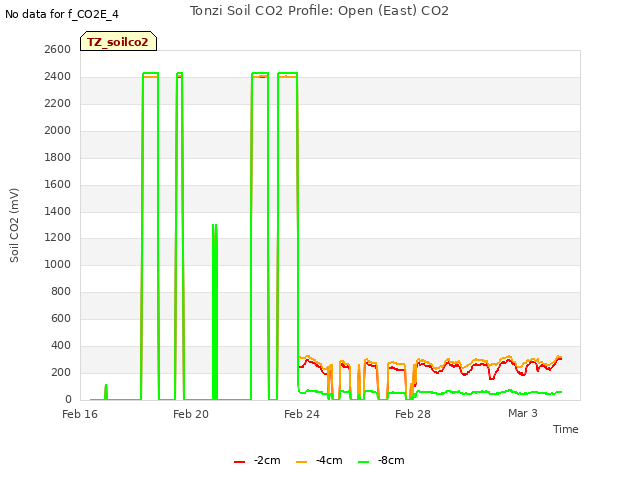

Tonzi Soil CO2 Profile: Open (East) CO2

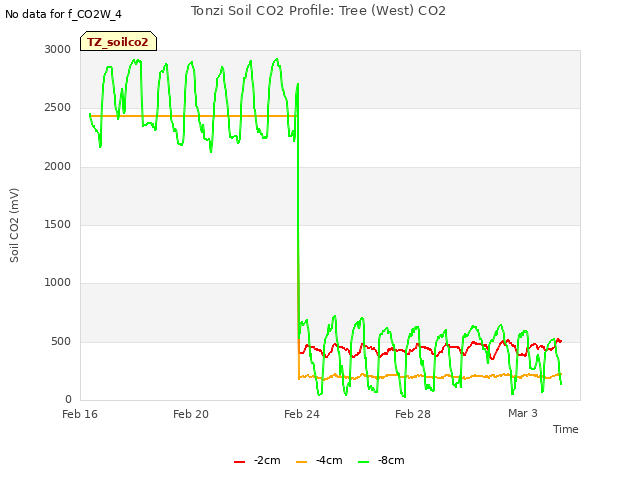

Tonzi Soil CO2 Profile: Tree (West) CO2

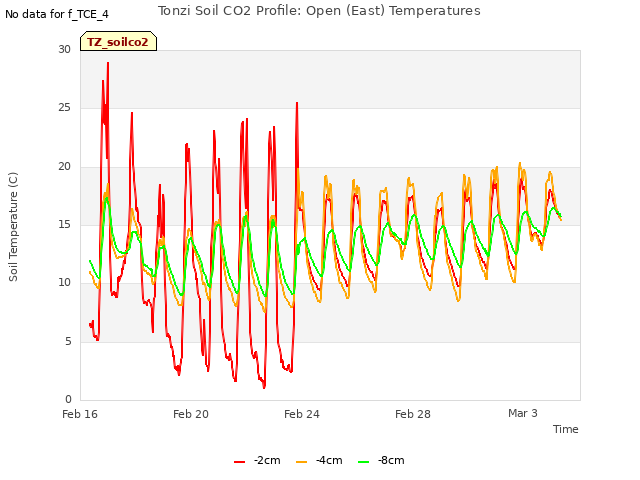

Tonzi Soil CO2 Profile: Open (East) Temperatures

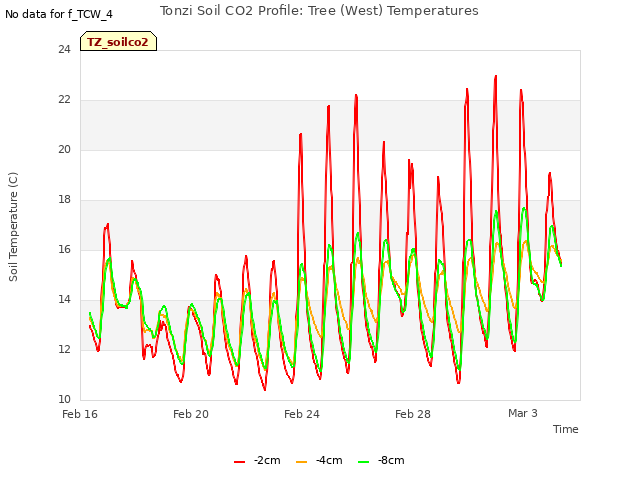

Tonzi Soil CO2 Profile: Tree (West) Temperatures

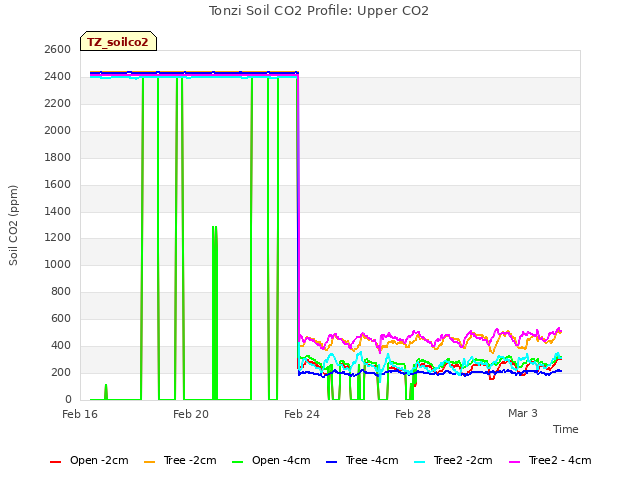

Tonzi Soil CO2 Profile: Upper CO2

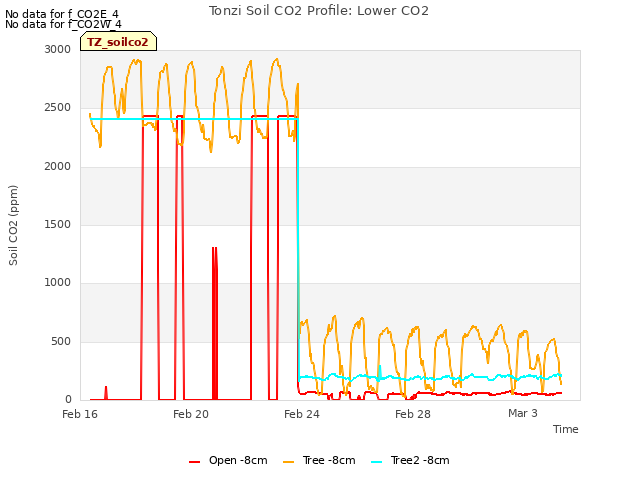

Tonzi Soil CO2 Profile: Lower CO2

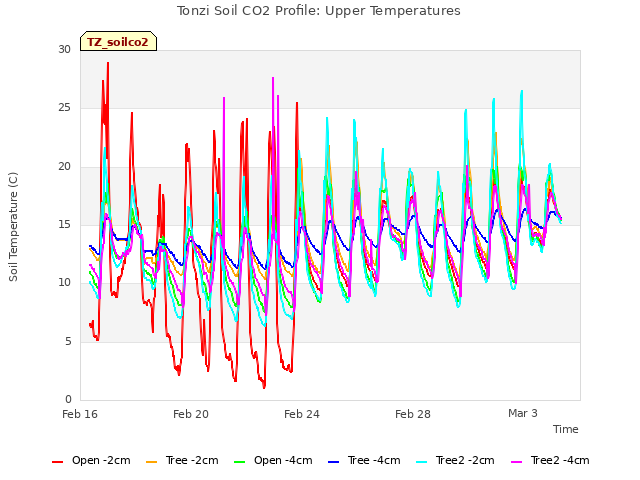

Tonzi Soil CO2 Profile: Upper Temperatures

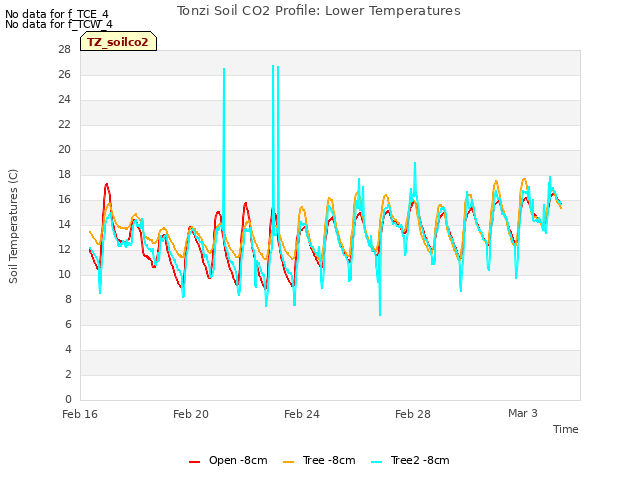

Tonzi Soil CO2 Profile: Lower Temperatures

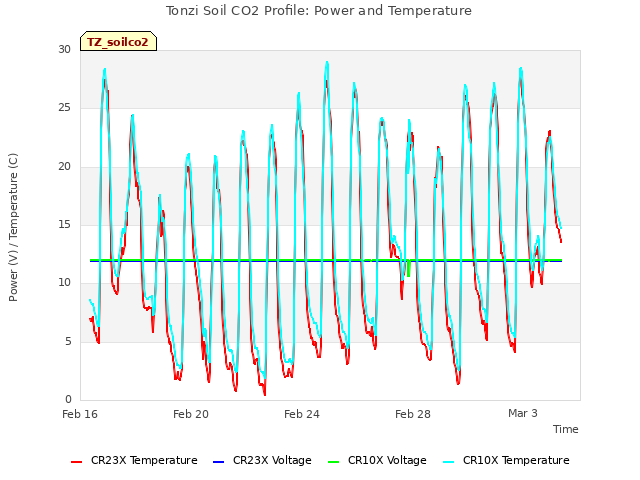

Tonzi Soil CO2 Profile: Power and Temperature

Tree 2 Soil CO2

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

Tonzi PPT

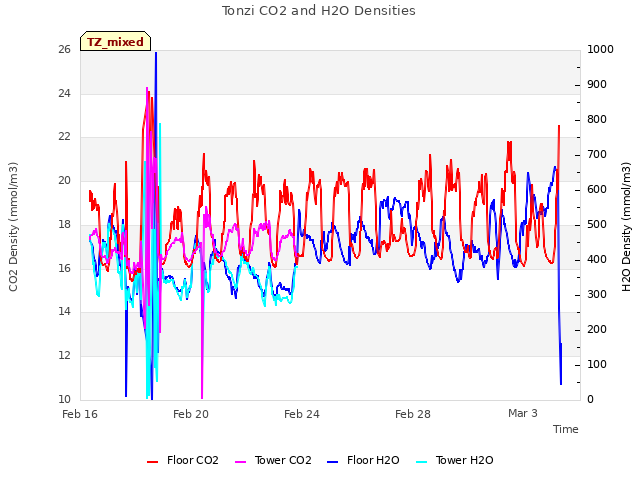

Tonzi CO2 and H2O Densities

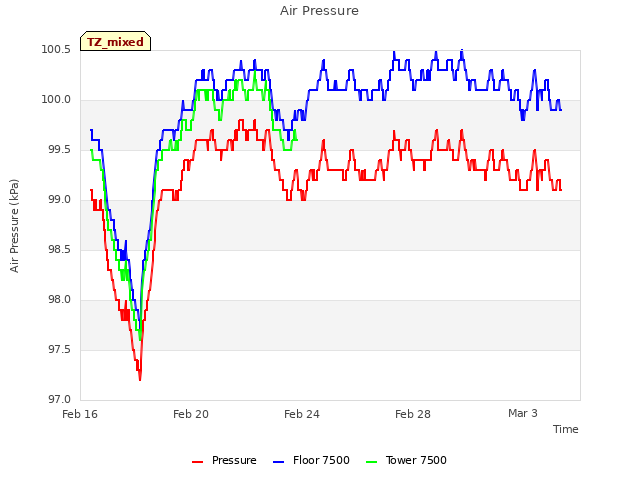

Air Pressure

1 TZ_fflux graphs found

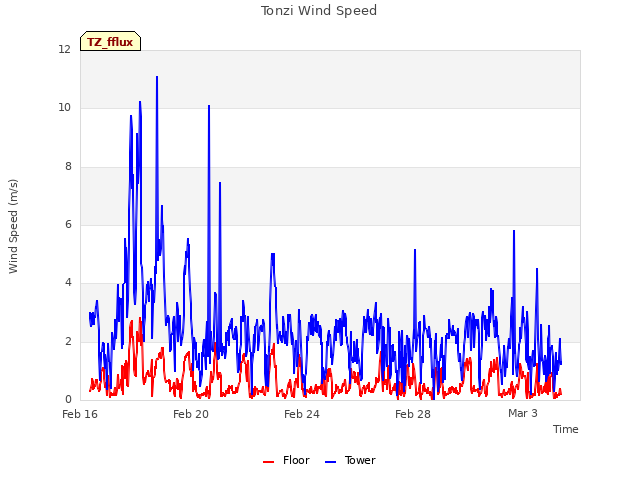

Tonzi Wind Speed

8 TZ_fmet graphs found

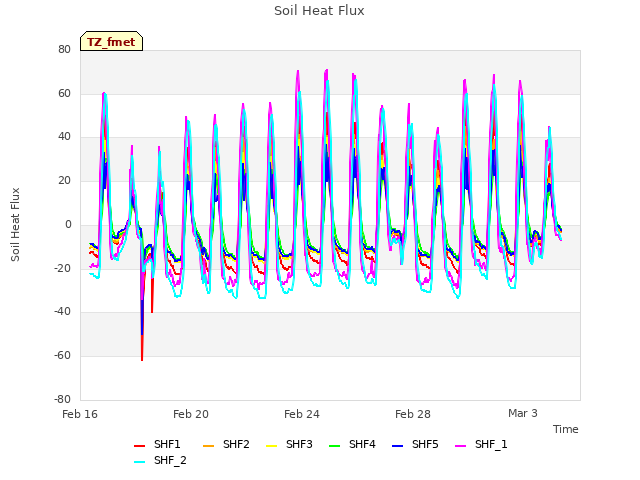

Soil Heat Flux

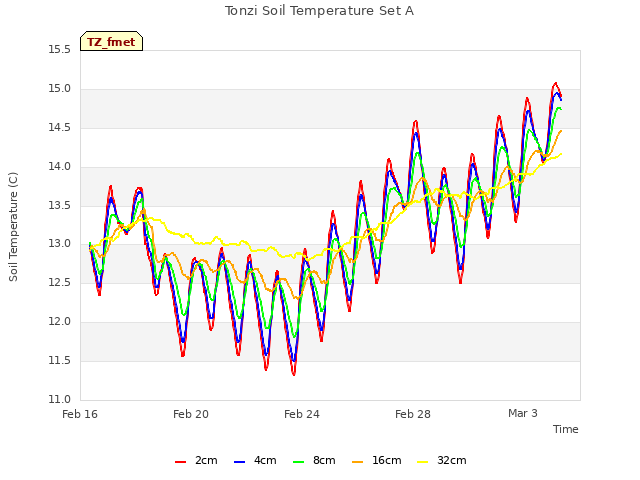

Tonzi Soil Temperature Set A

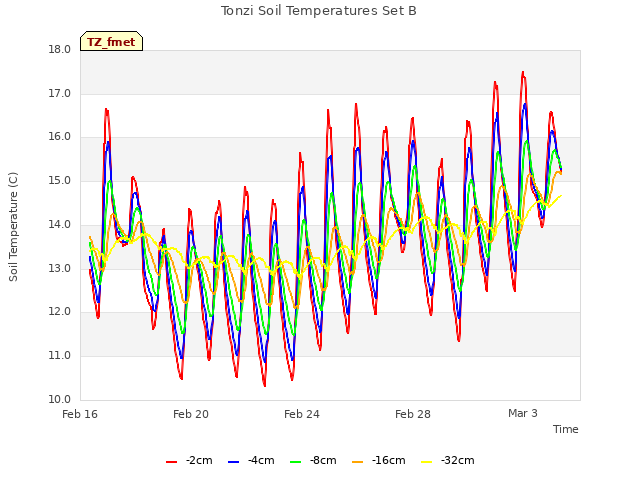

Tonzi Soil Temperatures Set B

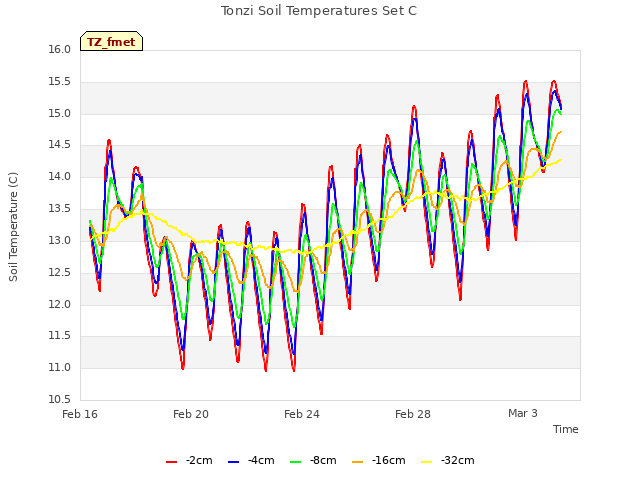

Tonzi Soil Temperatures Set C

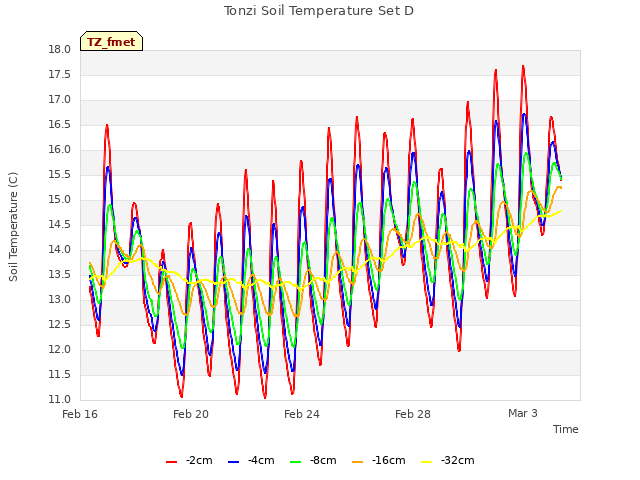

Tonzi Soil Temperature Set D

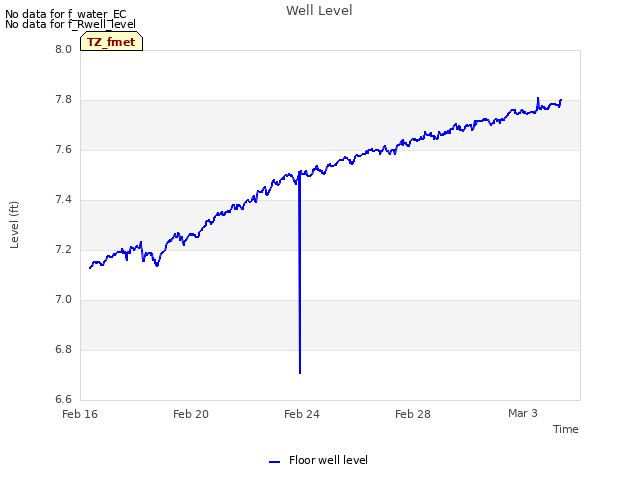

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

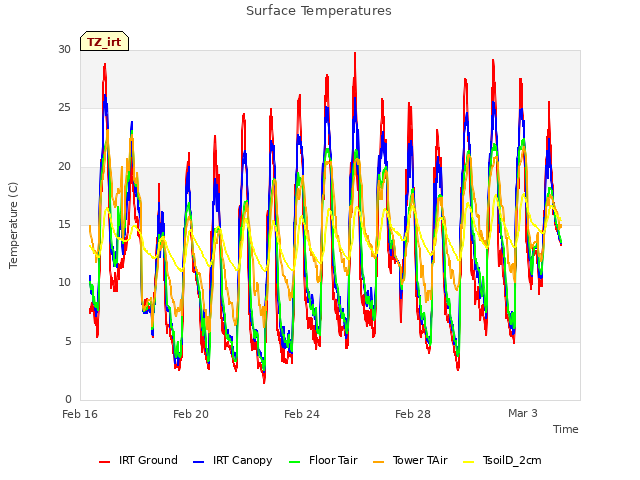

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

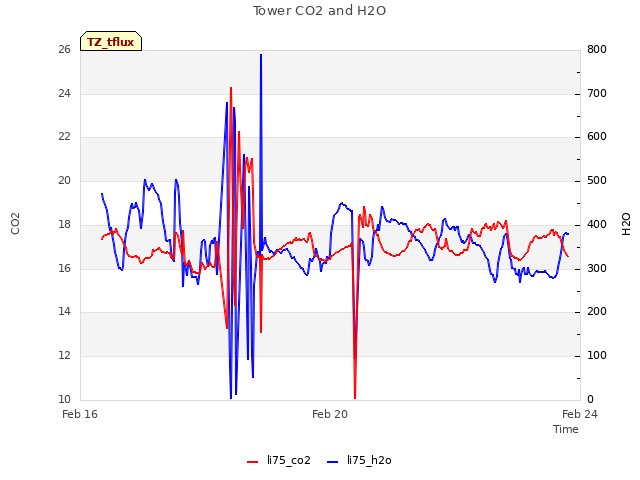

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

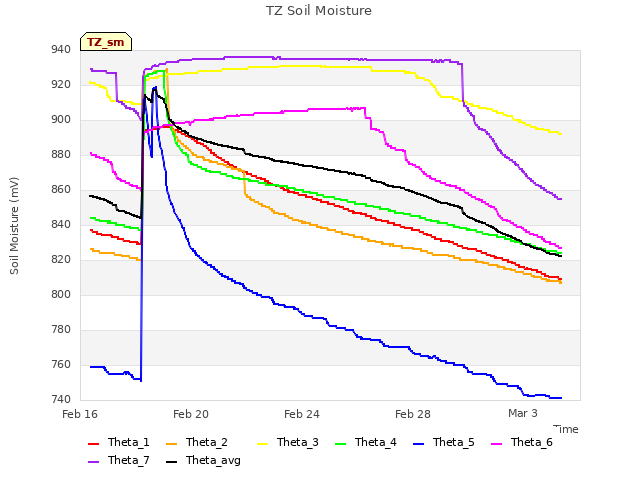

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

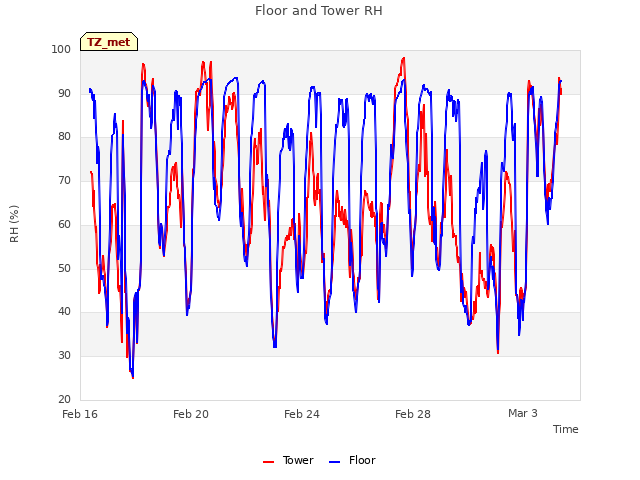

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
