Field Notes

<--2016-01-21 11:15:00 | 2016-02-11 11:55:00-->
Other sites visited today: West Pond | Twitchell Rice | East End
Phenocam link: Searching...

Twitchell Alfalfa: 2016-01-28 00:00:00 (DOY 28)
Author: Joe Verfaillie
Others: Dennis, Elke, Andrew

Summary: Data collection, replaced missing Vaisala CO2 probe, sheep fence still around sensors.

Alfalfa
2016-01-28

I arrived about 13:35 with Dennis, Andrew and Elke. It was cool and overcast with a little bit on rain just before arriving at the field. The sheep fence is still around the instruments. We moved the roll of fencing away from the radiometers.

The 7500 read: 403.8ppm CO2, 517.4mmol/m3 H2O, 90.81SS, 13.23C, 102.23kPa

We installed another Vaisala CO2 probe sn Y2009100 in profile A at 8cm. The initial readings looked low, but the board was not showing an error so we left it running.

Dennis made some veg height measurements: 9, 6, 9, 5, 8, 4, 7, 3, 5, 6, 8cm

Veg Height (cm): Tape measure from ground to top of plant
9, 6, 9, 5, 8, 4, 7, 3, 5, 6, 8, avg = 6.4, stdev = 2.01

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

Explore the graph:Alfalfa Temperatures in a new window

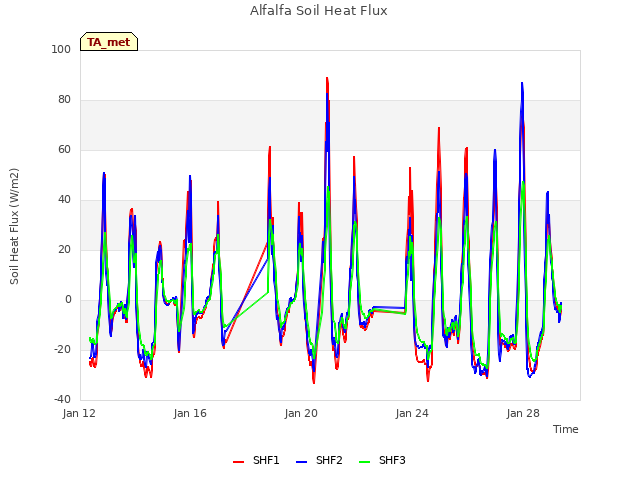

Explore the graph:Alfalfa Soil Heat Flux in a new window

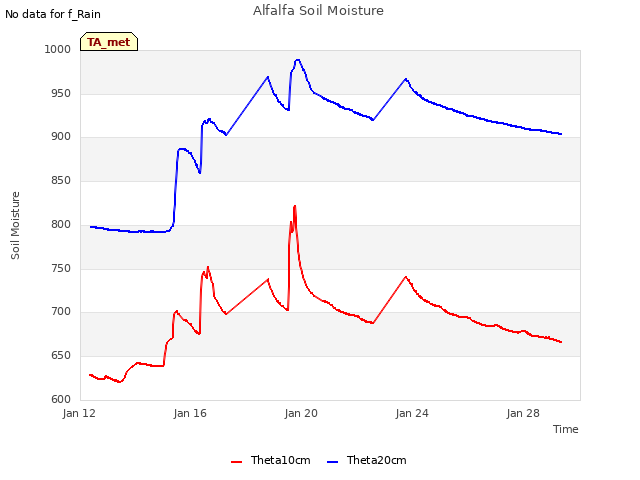

Explore the graph:Alfalfa Soil Moisture in a new window

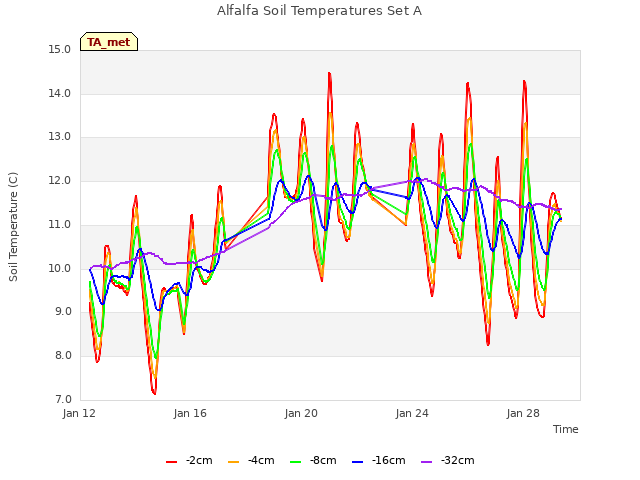

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

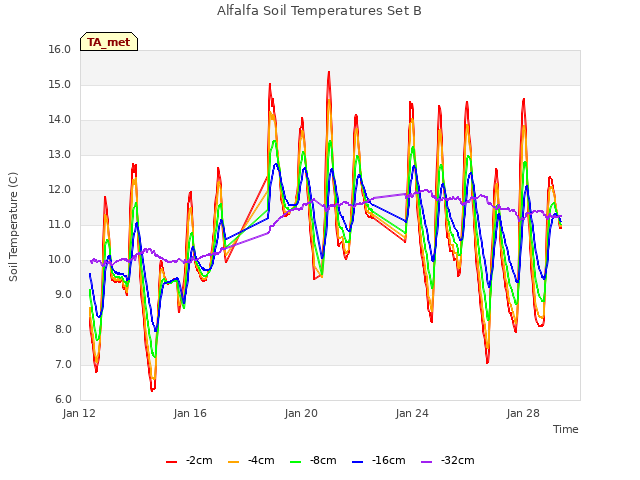

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

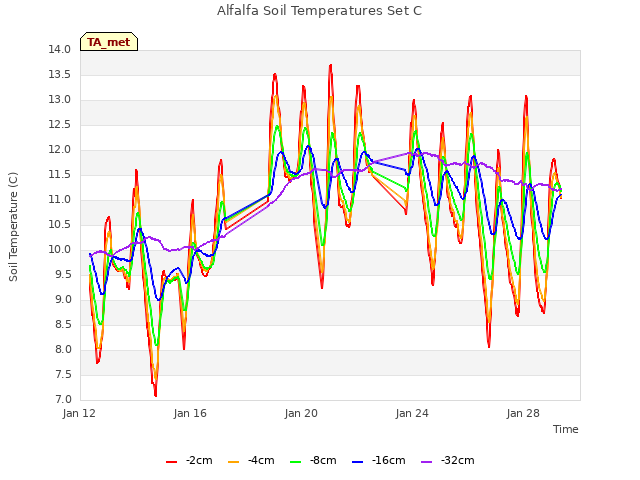

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

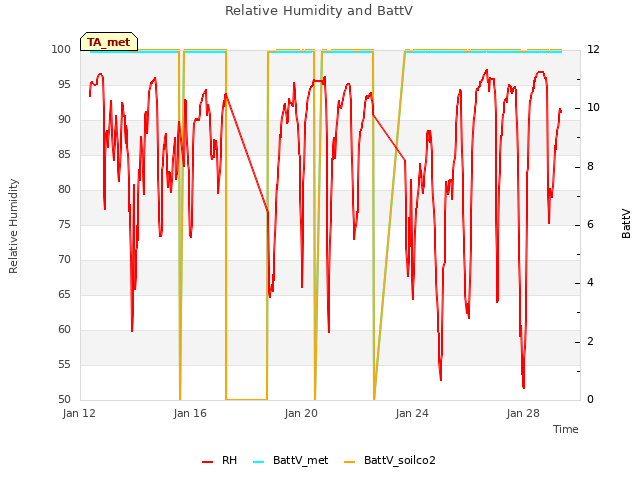

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

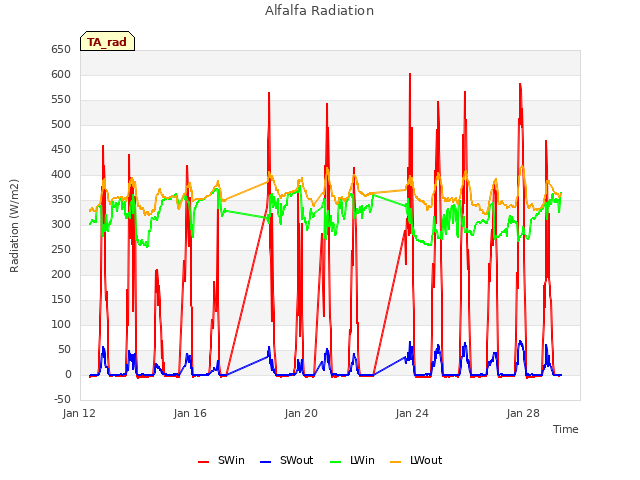

Explore the graph:Alfalfa Radiation in a new window

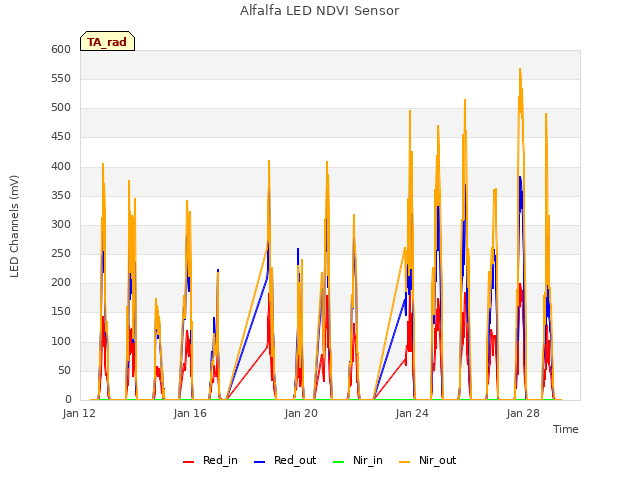

Explore the graph:Alfalfa LED NDVI Sensor in a new window

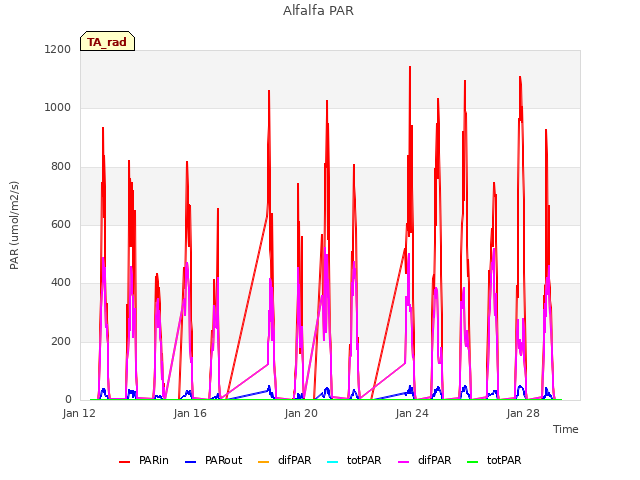

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

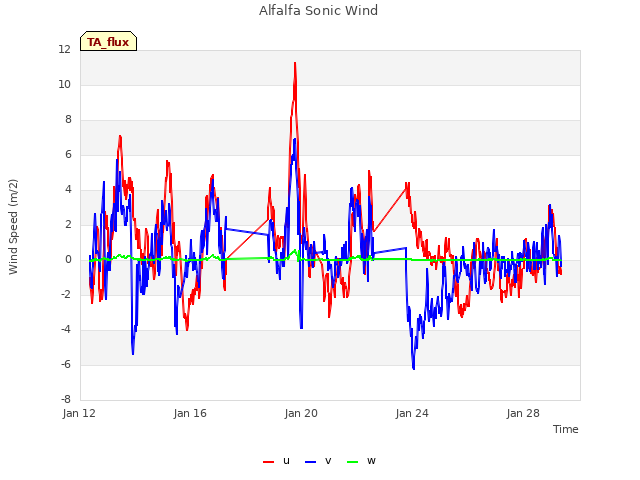

Explore the graph:Alfalfa Sonic Wind in a new window

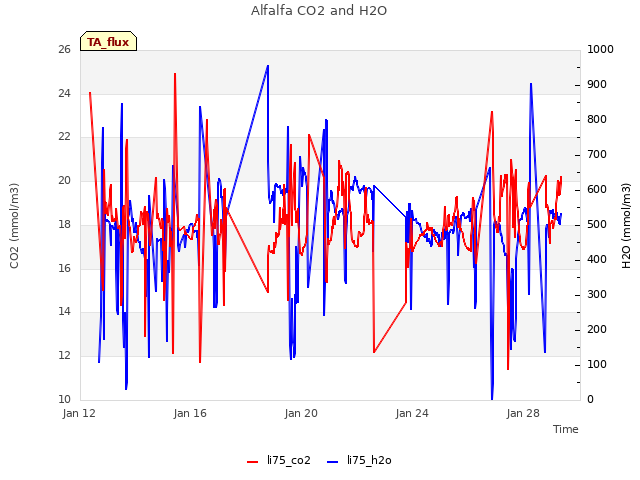

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

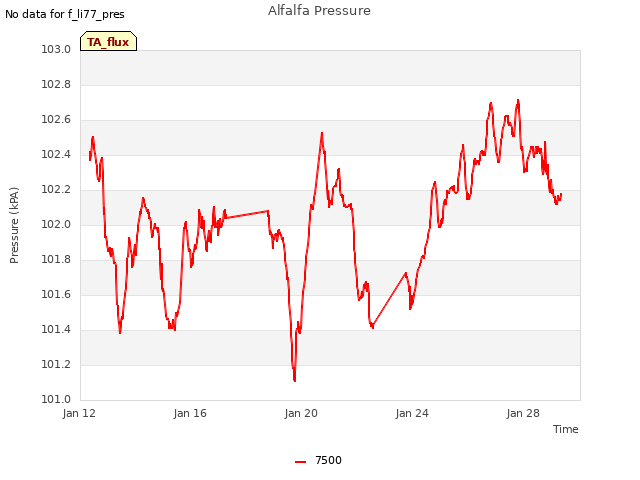

Explore the graph:Alfalfa Pressure in a new window

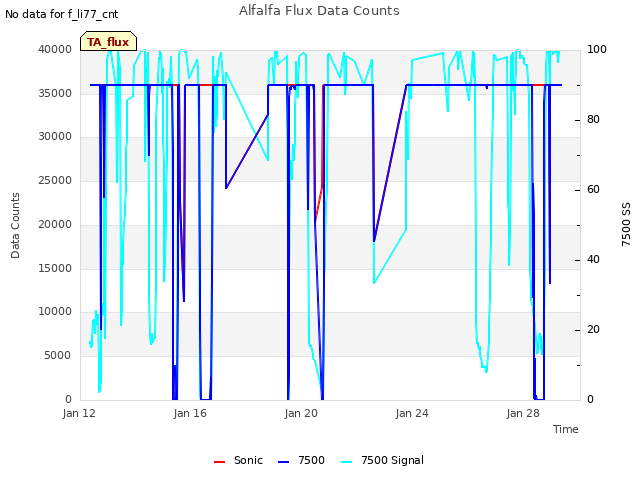

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

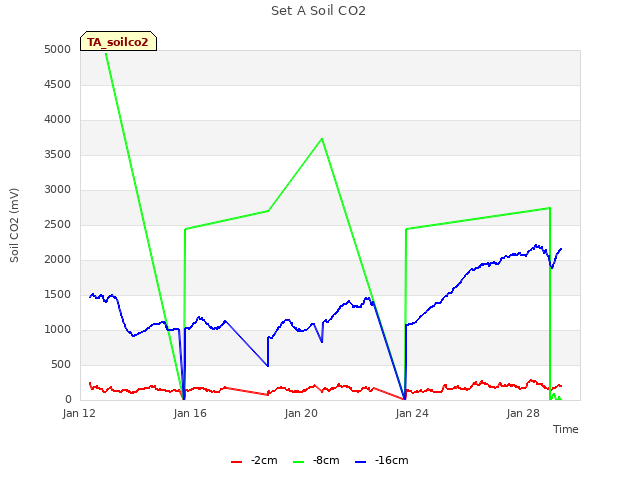

Explore the graph:Set A Soil CO2 in a new window

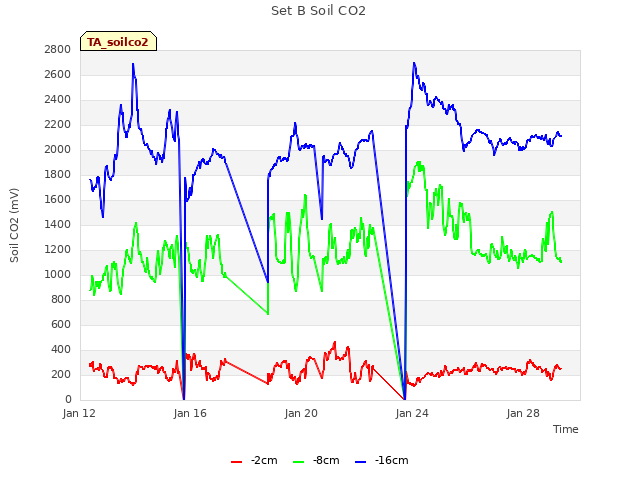

Explore the graph:Set B Soil CO2 in a new window

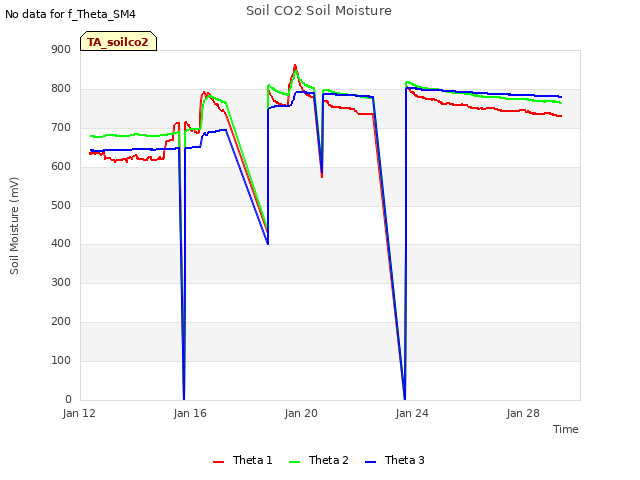

Explore the graph:Soil CO2 Soil Moisture in a new window

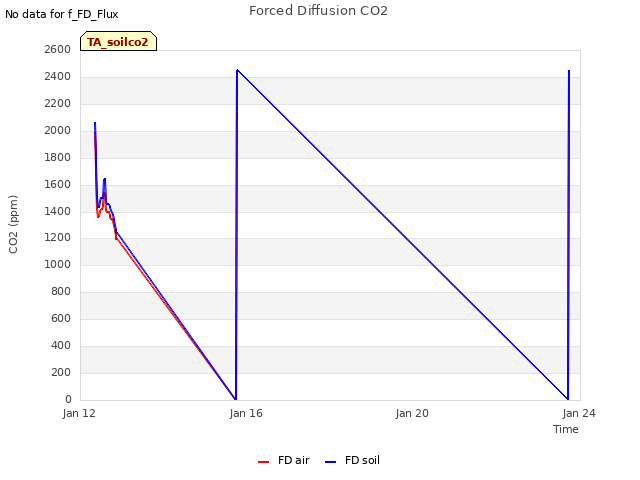

Explore the graph:Forced Diffusion CO2 in a new window

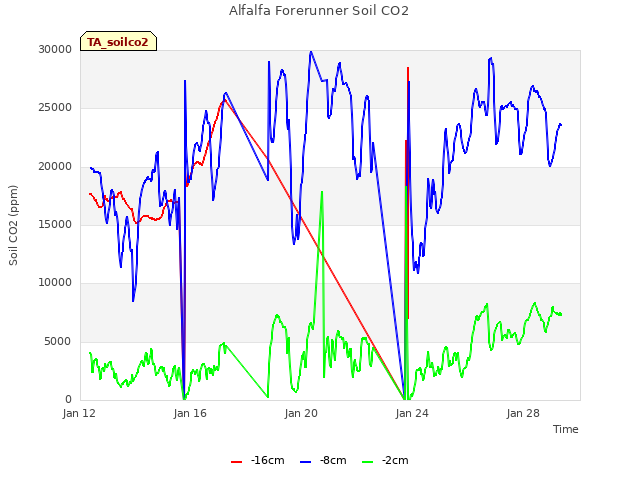

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

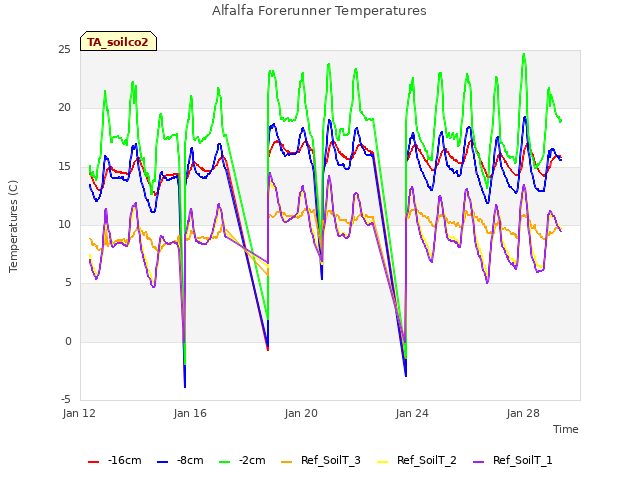

Explore the graph:Alfalfa Forerunner Temperatures in a new window

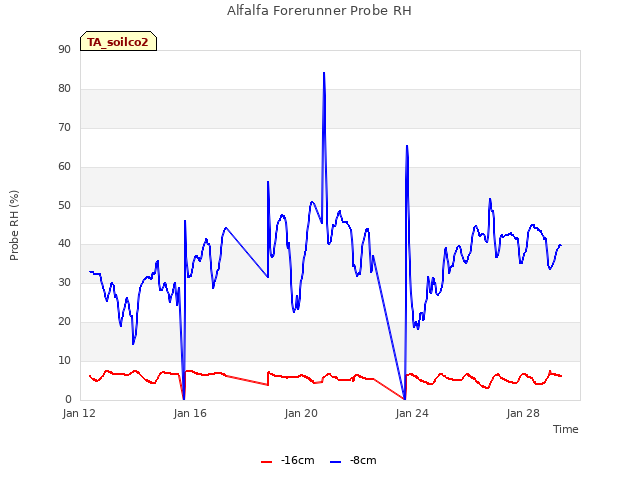

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

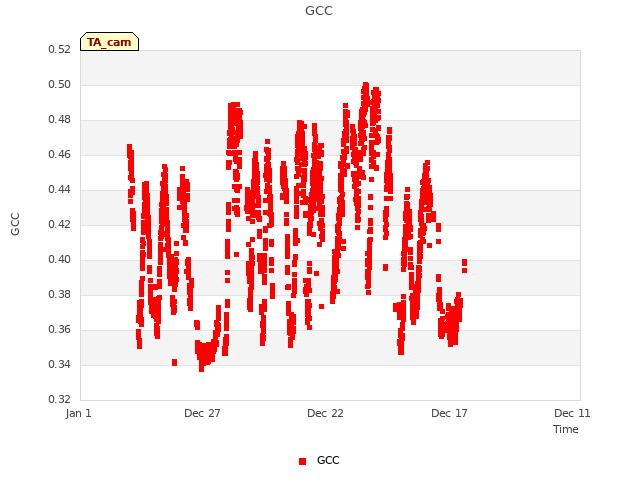

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
