Twitchell Rice: 2015-12-11 11:45:00 (DOY 345)
Author: Joe Verfaillie
Others: Elke

Summary: Check on COS experiment, maybe restart after AGU

Twitchell
2015-12-11

I arrived about 11:45 with Elke. Du from LGR was not there yet. At the temporary COS experiment site, all looked well, but something it the box was beeping. We went to East End while we waited for Du. He arrived while we were at East End, and when we returned to the COS site, Du had all of the LGR equipment removed from the box. Du said the noise was a laser temperature alarm and wasn’t sure how much good data they had collected.

We checked our system and notice a warning on the 7700 saying it was not synchronized. I think we traced the problem to a loose Ethernet connector at the 7550 box going to the 7700. We collected the data.

We left our system running for the possibly of reinstalling the COS sensor after AGU. If the data collected so far is not good or enough, then LGR will probably reinstall their stuff after AGU.

0 photos found

Graphs display:
6 sets found

12 TW_met graphs found

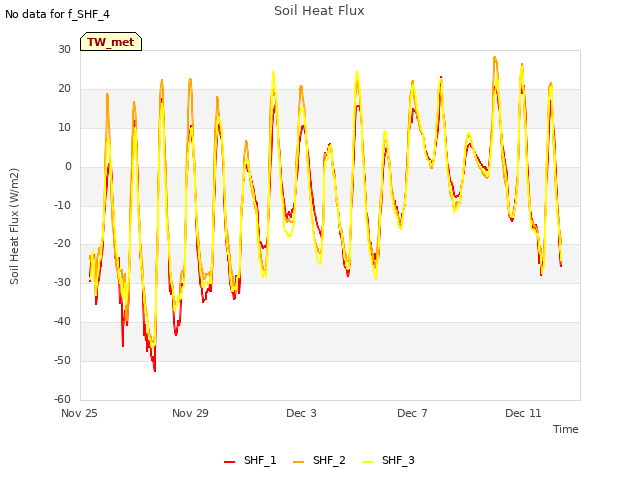

Explore the graph:Soil Heat Flux in a new window

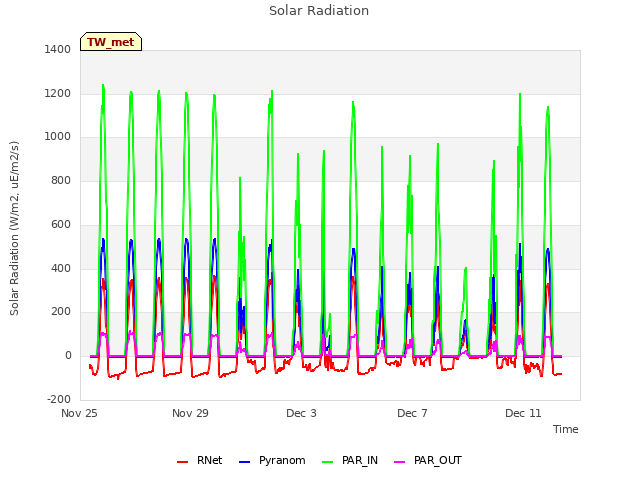

Explore the graph:Solar Radiation in a new window

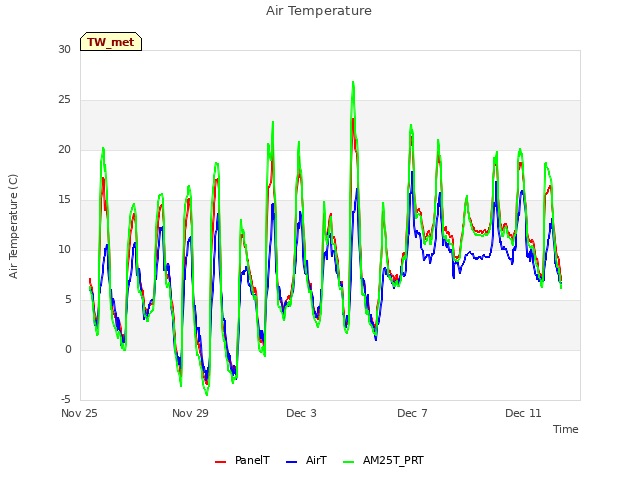

Explore the graph:Air Temperature in a new window

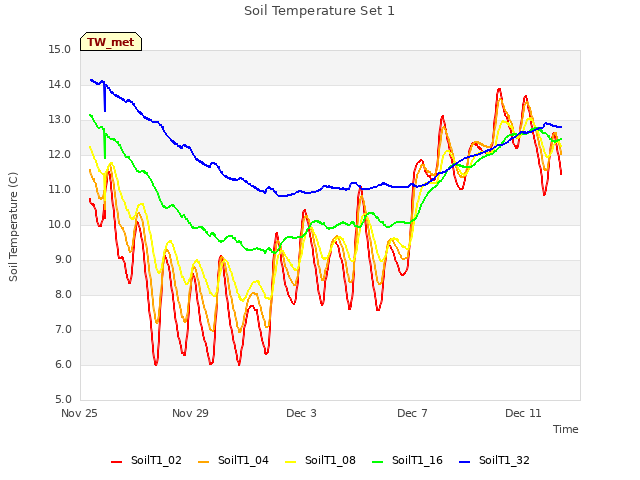

Explore the graph:Soil Temperature Set 1 in a new window

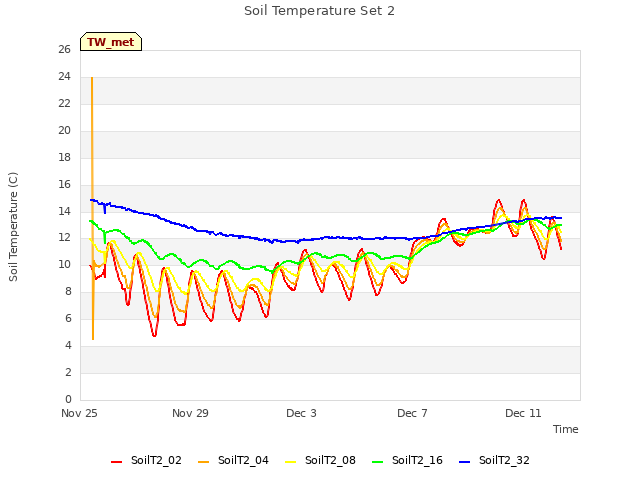

Explore the graph:Soil Temperature Set 2 in a new window

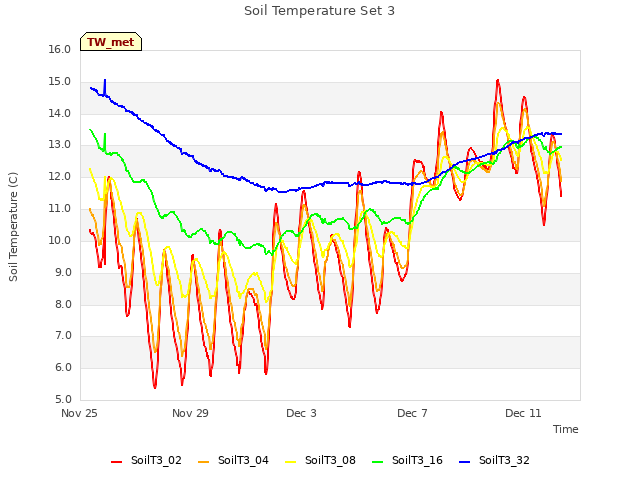

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Water Temperature in a new window

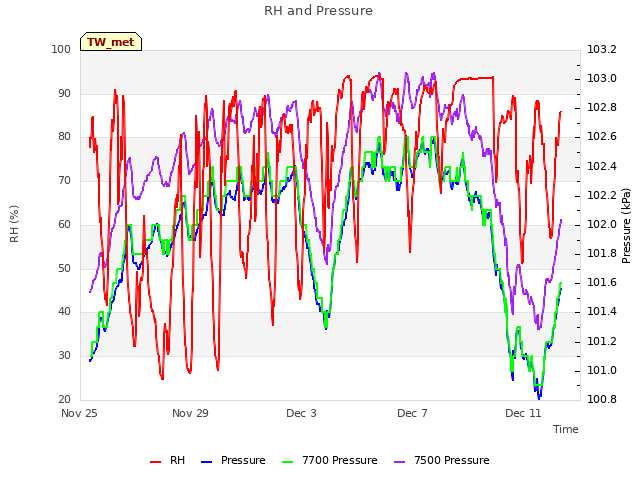

Explore the graph:RH and Pressure in a new window

Explore the graph:Soil Moisture in a new window

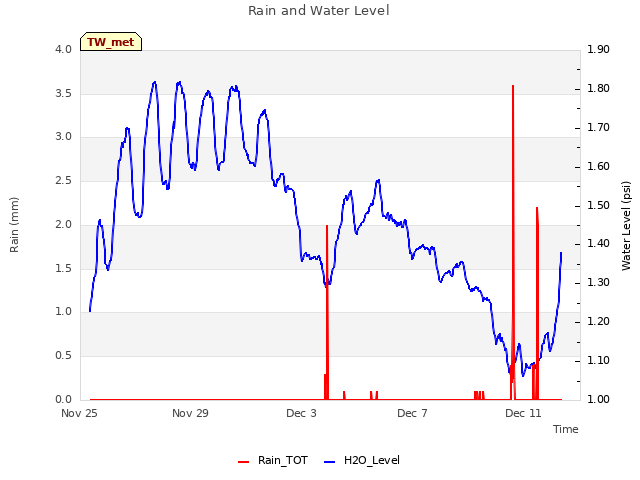

Explore the graph:Rain and Water Level in a new window

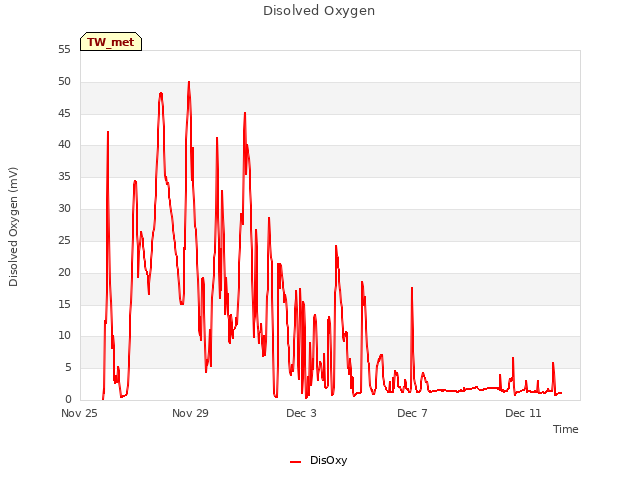

Explore the graph:Disolved Oxygen in a new window

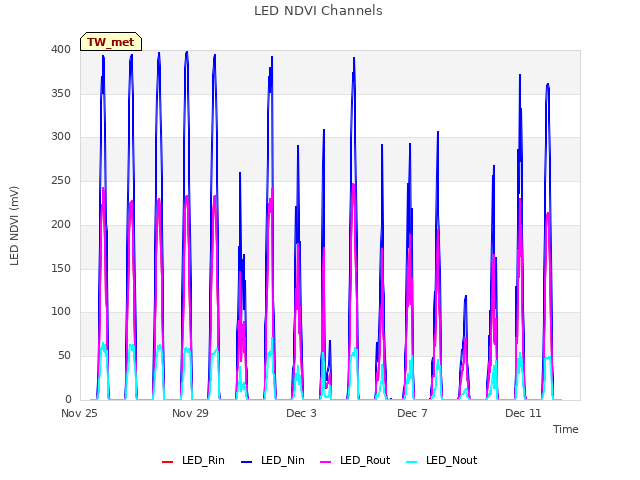

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

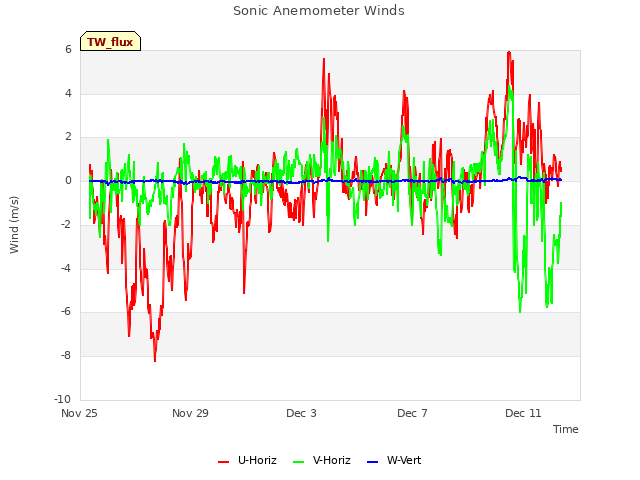

Explore the graph:Sonic Anemometer Winds in a new window

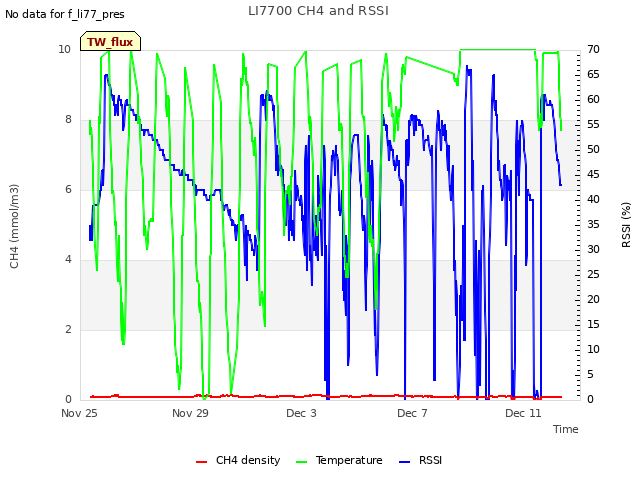

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Twitchell CH4 in a new window

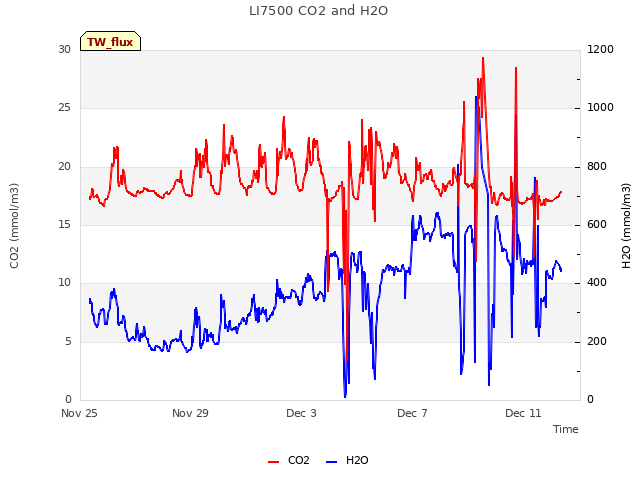

Explore the graph:LI7500 CO2 and H2O in a new window

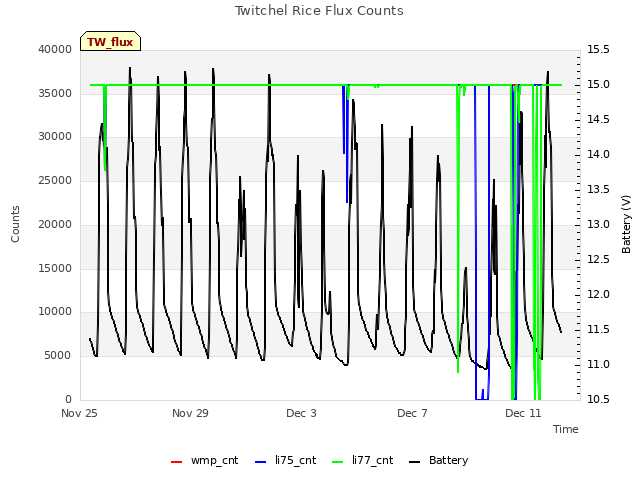

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

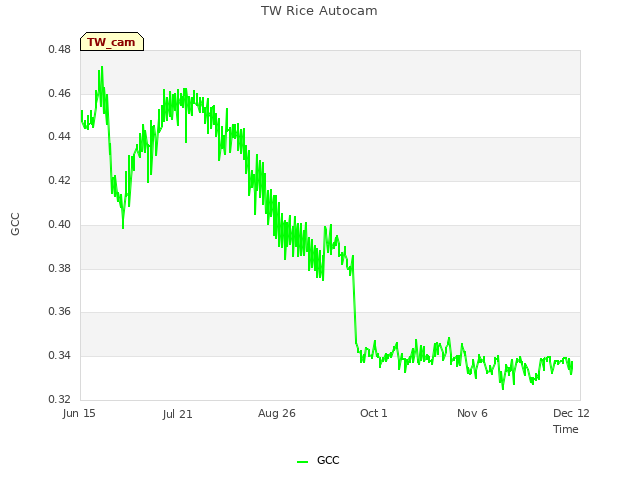

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
