Sherman Island: 2009-05-20 07:30:00 (DOY 140)
Author: Joe Verfaillie
Others: Oliver

Summary: Standard field work, Loggernet having problems, moved web cam task to Windows scheduler.

Sherman
5/20/2009

Arrived about 7:30 with Oliver. Clear, sunny, west breeze. No apparent change in the pepperweed since last week, perhaps more flowers.

System was running, though Loggernet was misbehaving. I moved the task for taking web cam photos out of Loggernets Task manager and put under the Windows scheduler to run every 30 minutes between 7:15 and midnight – need to check the end time and roll it back to some time just after dark. This should prevent web cam images being lost if Loggernet locks up.

Copied all data and moved to archive folder. This will be added to the Data PC shortly.

LGR status:

1.87 ppm
25.03 C
140.1 Torr
16.8 us
7897.1 hours on pump

Left Oliver at Sherman while I went to Twitchell, returned about 1pm to pick up Oliver and swapped flash cards on the CR1000.

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

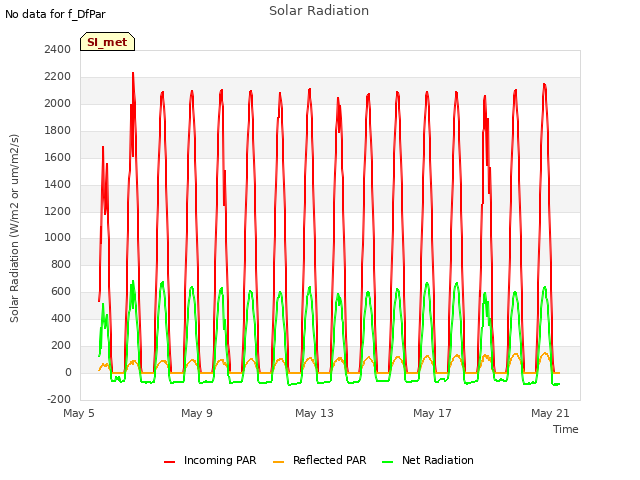

Explore the graph:Solar Radiation in a new window

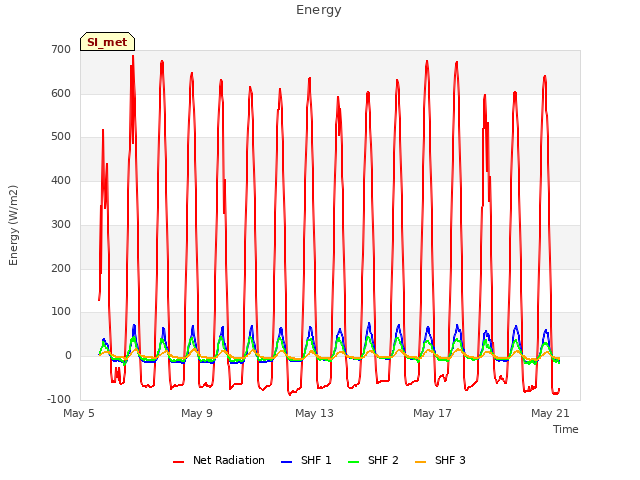

Explore the graph:Energy in a new window

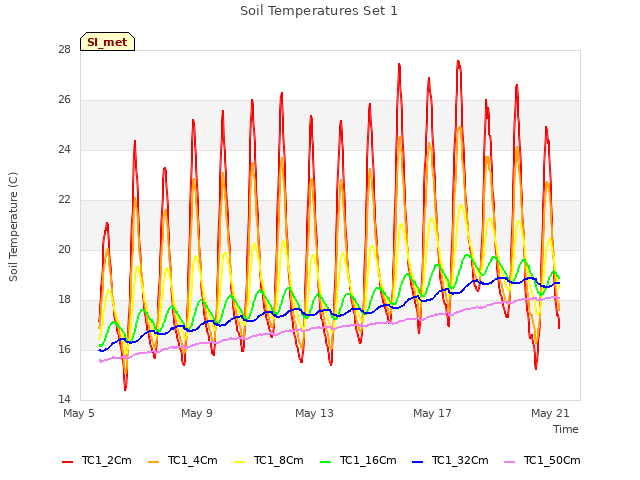

Explore the graph:Soil Temperatures Set 1 in a new window

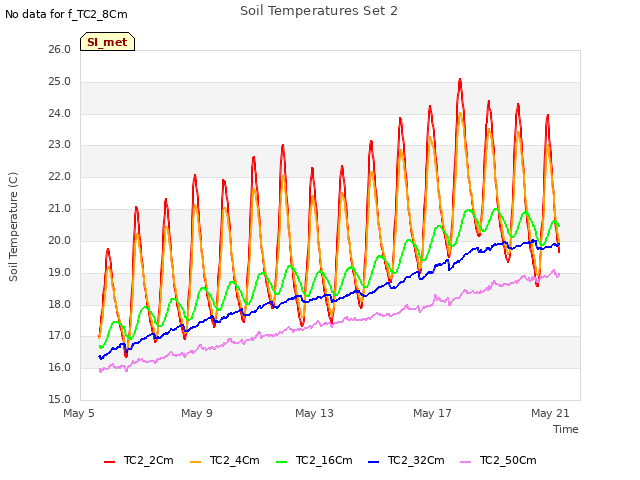

Explore the graph:Soil Temperatures Set 2 in a new window

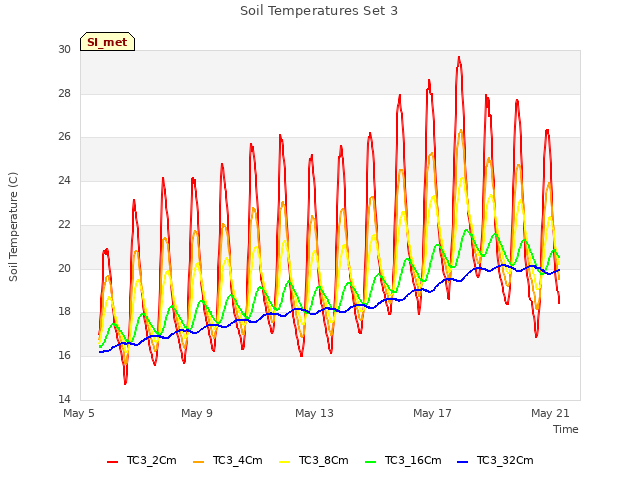

Explore the graph:Soil Temperatures Set 3 in a new window

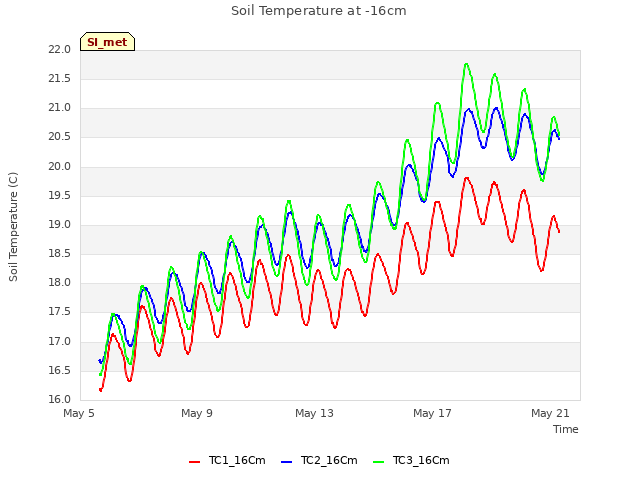

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

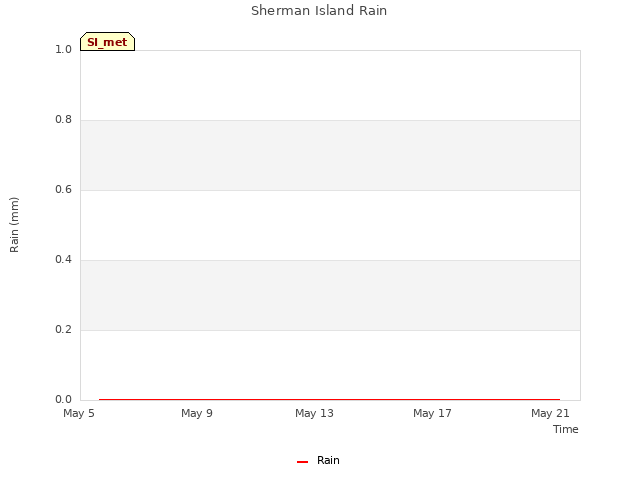

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

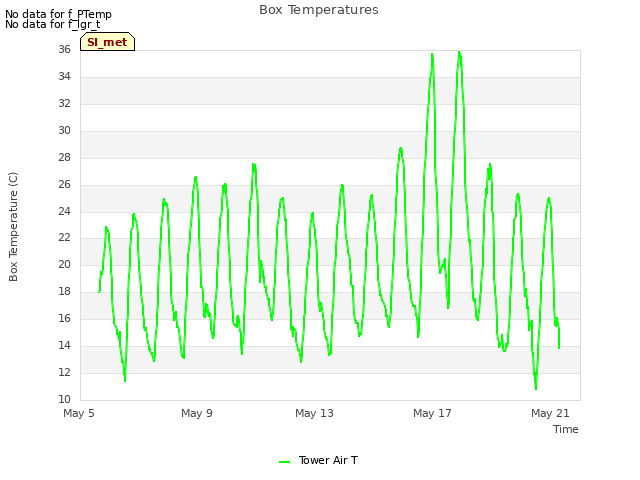

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

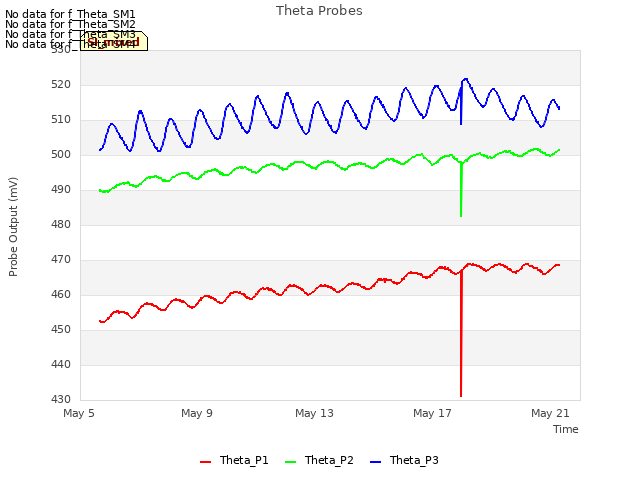

Explore the graph:Theta Probes in a new window

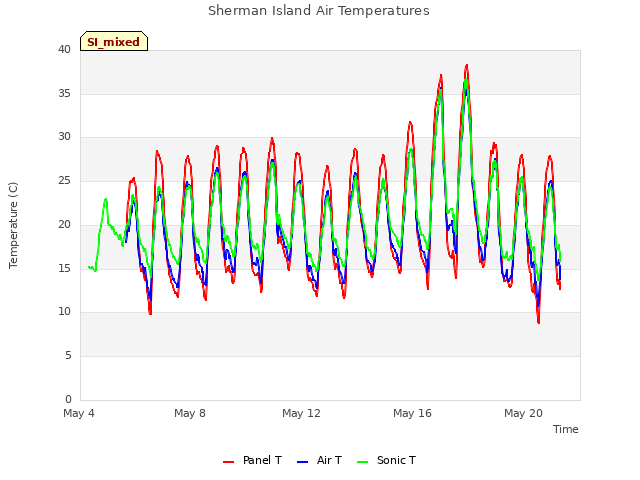

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

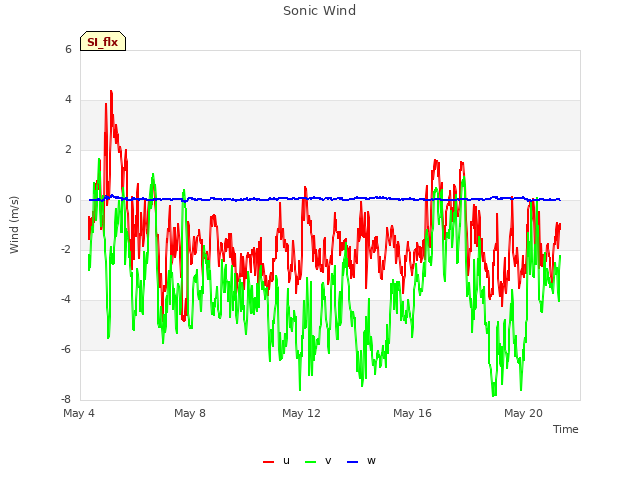

Explore the graph:Sonic Wind in a new window

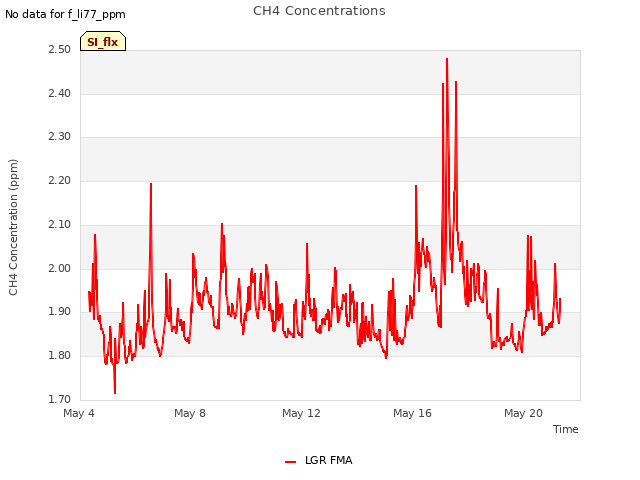

Explore the graph:CH4 Concentrations in a new window

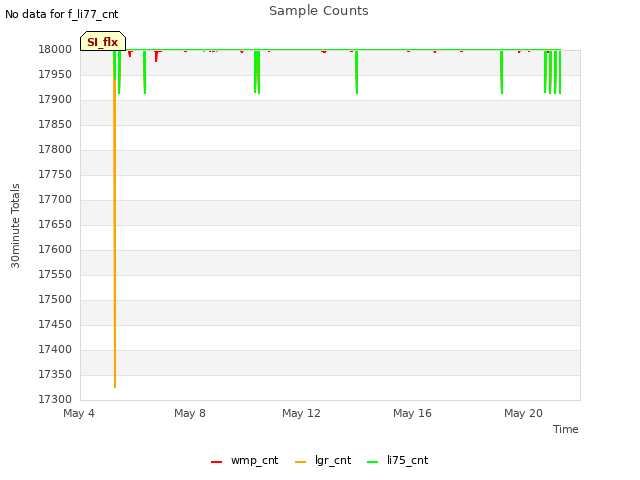

Explore the graph:Sample Counts in a new window

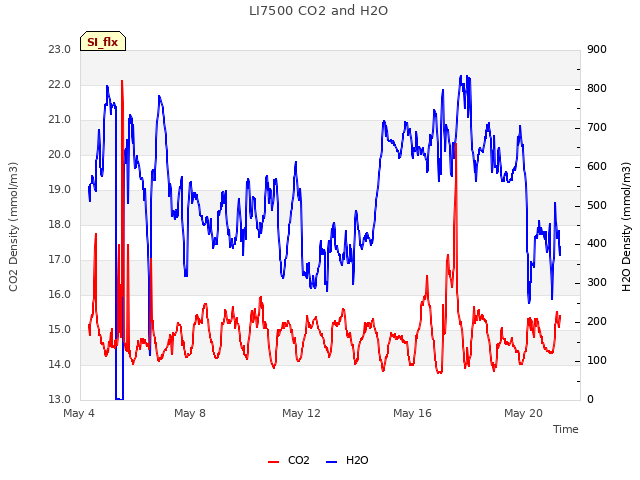

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
