Field Notes
<--2001-02-23 09:00:00 | 2001-03-01 16:00:00-->Other sites visited today: Vaira
Vaira: 2001-02-23 10:10:00 (DOY 54)
Author: Dennis Baldocchi
Others:
Summary: Replaced Li-cor 7500; finished setting up step relay MUX for soil temperature and moisture measurements.
| Here is my note from last visit (2/23/01) 10:10 am arrive, cloudy with most of cumulus (50% sky cover), heavy rain the previous night, can still see water accumulated at soil surface someplace. Download *.raw, *.23x, and *10x (only 1 file due to the problem of solid state mux ), and flux file to zip disk. then moved all the file to different sub-directory on the labtop at field (Vaira2001). Copy CR23x3 to zip disk. Replaced Li-Cor 7500 (SN 75H-0035) with the one (SN 75H-0073). Ted finished setting up the step relay MUX at MET station (for soil temperature and soil mositure measurement). Took 5 soil samples each with two depths (1-15 cm and 15-30 cm ) to determine the gravimetric water content. finished around 2:00 pm. At Tonzi Ranch: Took 6 LAI samples along the footprint direction with 3 from under the tree and 3 from open space. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

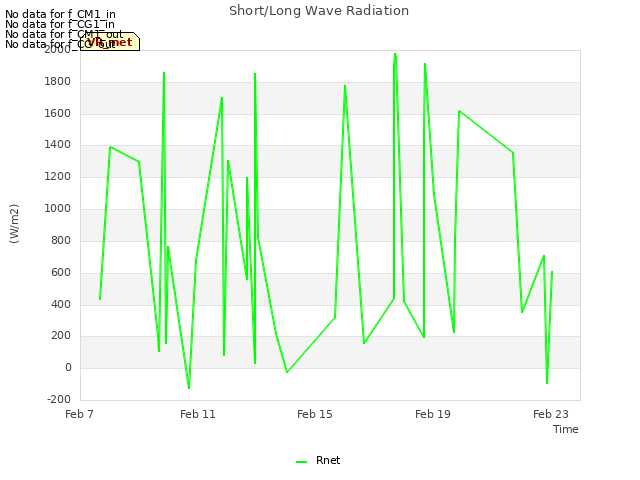

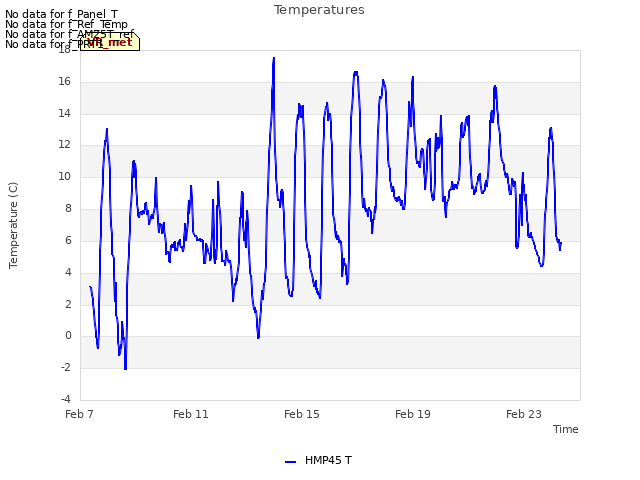

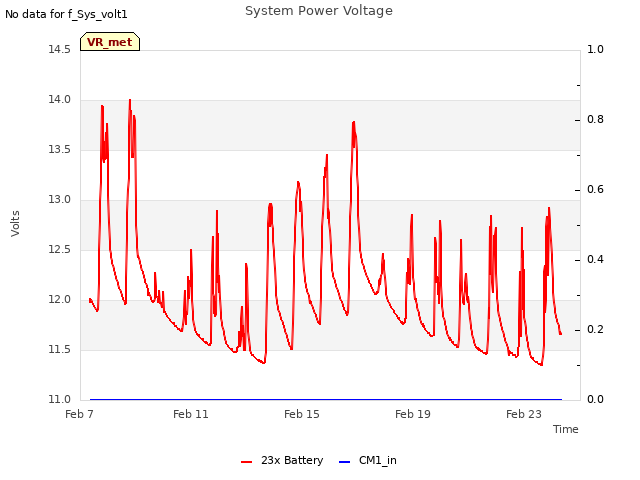

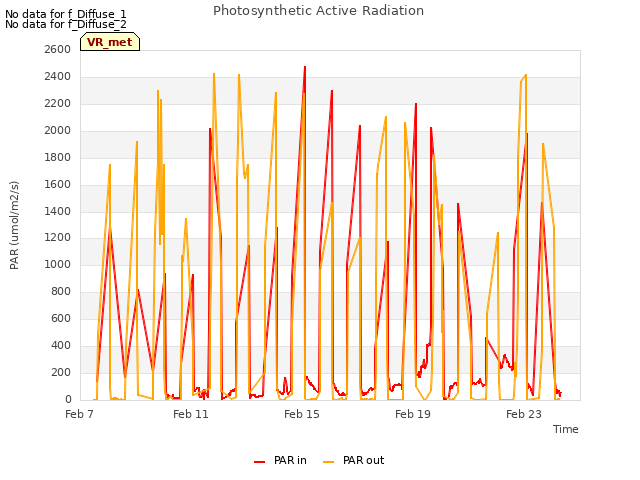

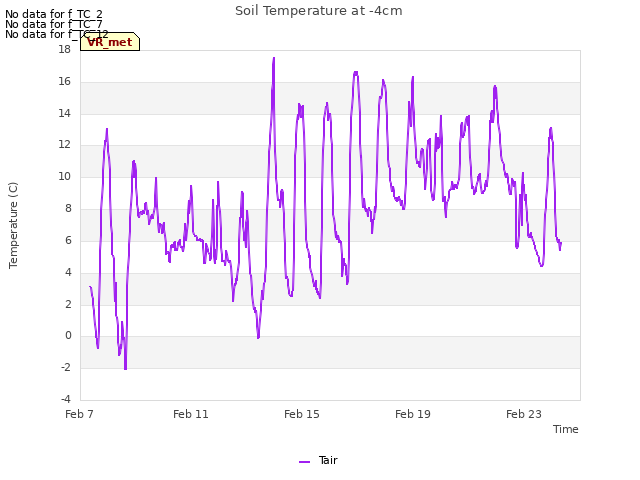

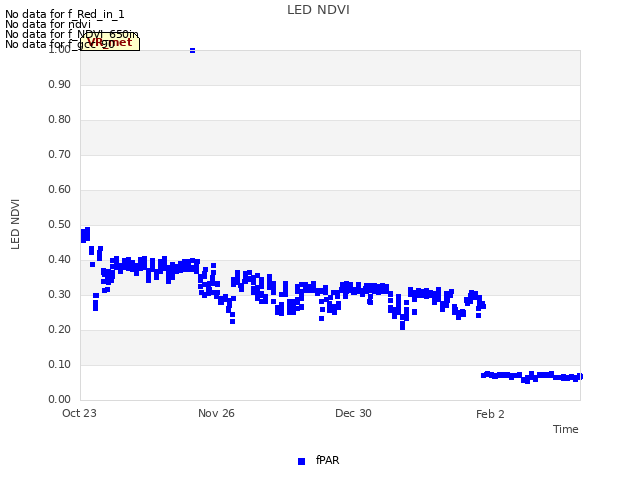

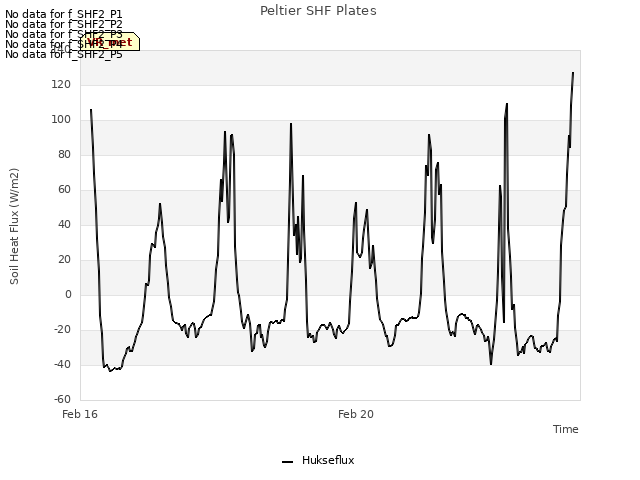

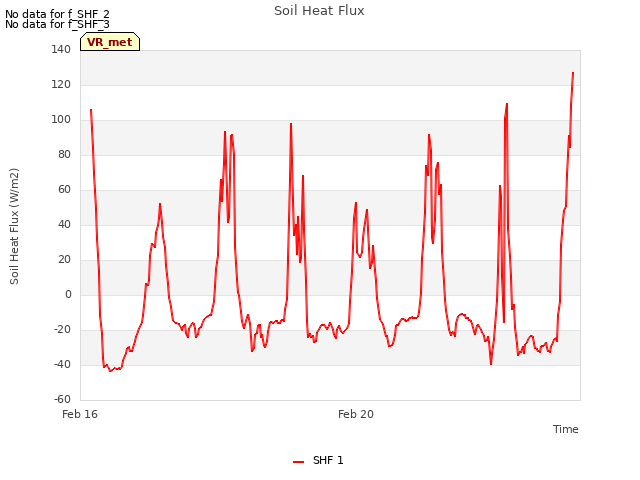

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
