Tonzi: 2001-03-24 17:00:00 (DOY 83)
Author: Nancy Kiang
Others:

Summary: LAI-2000 measurements, BAI, sapflow, two days

WHO: Nancy Kiang
WHERE: Tonzi Ranch
WHEN: Overnight, 3/24/2001, returning 3/25/2001
WEATHER: 3/24/01 evening, clear, mild, 60's F
3/25/01 morning, overcast, mild, 50's F
WHAT: Measure branch area index of transects and sapflow trees

3/24/01. Arrived ~5 pm. Sunset at 6:01 pm. Measured transects T1 and T3 with LAI-2000 (Tracy's in open, Biomet lab's for under canopy), 2 measures every 2 m. Too dark by 6:45 pm.

3/25/01. Measured transect T2 at 5:45-6:00 am. Good sky conditions until past 7:00 am, so re-measured center transect T1, and measured BAI of each sapflow tre2001e (using 180-degree view caps on sensors to block trunk --
measured north and south side of trees).

-Checked understory flux system 8:20-8:45 am.
-Understory flux system was working fine.
-Solar panel battery voltage 12.77 V at 9:15 am.
-CR10X2 -- Soil temperatures okay, except Inloc #11 is showing -9999.
-CR23X -- Soil moisture values look okay (0.8-0.9)
-CR10X4 -- Sapflow Q okay. Downloaded CR10X4.dat, TZ4_01081.10x,
TZ4_01082.10x
-CR10X5 -- Sapflow P okay. Forgot to bring diskette with md9_5.c.
Downloaded CR10X5.dat.

Misc:
Mr. Tonzi's grandson, Rob, has a well upstream of our site with same water source as our trees. The well is 225' deep, flow of 10-12 gal/minute. The well has a pump that can do 5 gal/minute. The well is not itself accessible for hand sampling. This could be a source for deep water isotopes.

Comments:

-Dennis or Ted: Could one of you please make up a concise, easy-to-read, one-page table of the configuration of the CR10X2 and CR23X sensors (sensor id's, their connections to the dataloggers, the corresponding Edlog program, and the output of the program). PLEASE SEE MY EXAMPLE for the sapflow sensors in:
Amador:\Sites\Tonzi_Oak_Savanna\Sapflow\TonziSapflowConfig\TonziSapflowconfig.xls

If we can keep copies of these configurations in the enclosure box, it would make it easier for anyone to debug the system.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
No data found for TZ_tmet.
No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

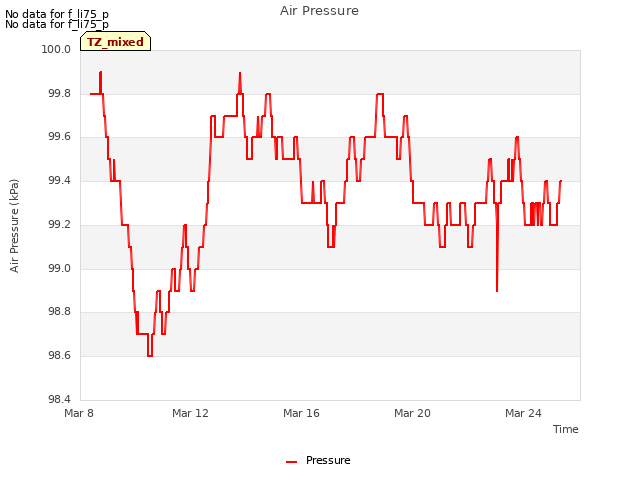

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

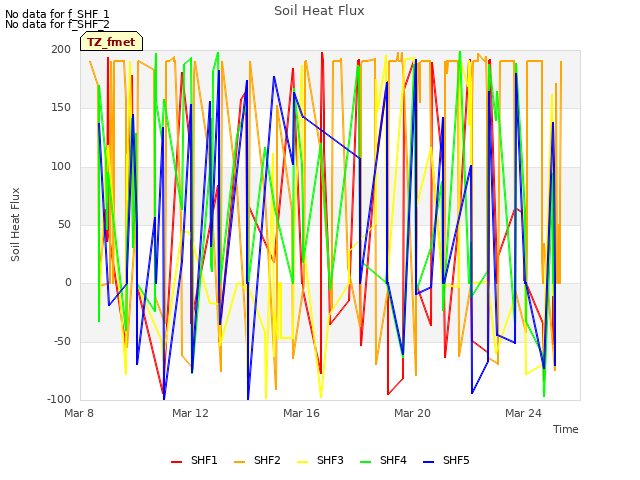

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

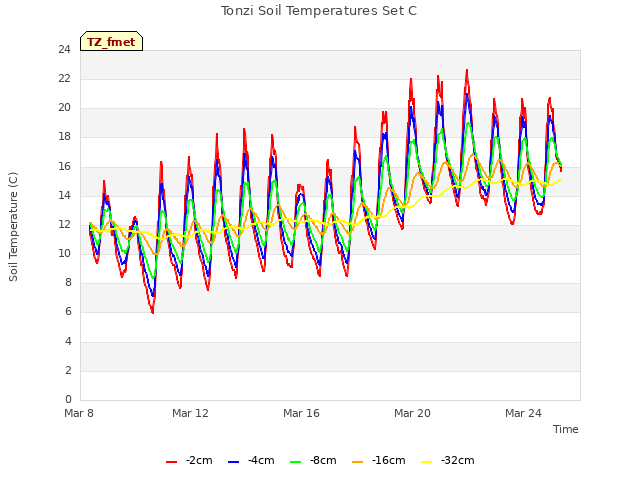

Explore the graph:Tonzi Soil Temperatures Set C in a new window

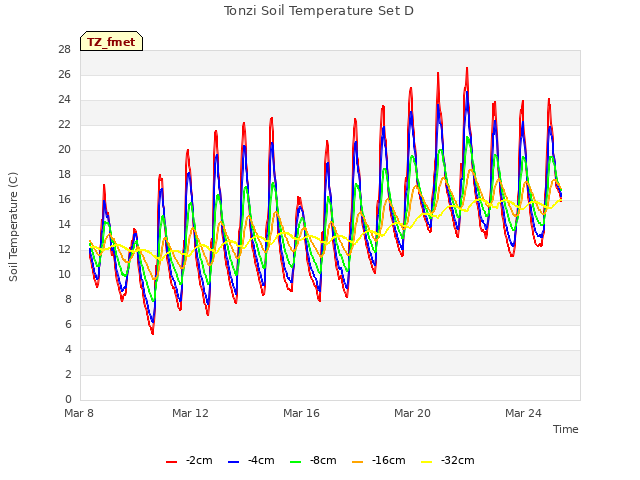

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

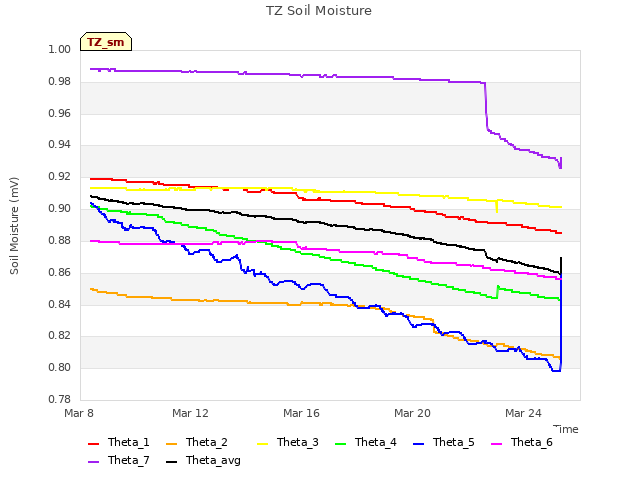

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

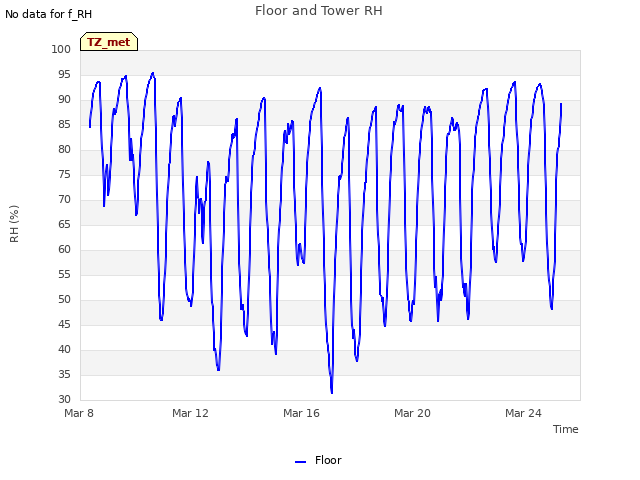

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
