Sherman Island: 2007-12-18 12:00:00 (DOY 352)
Author: Matteo Detto
Others: Ben

Summary: Swapped Li-corr and took soil moisture TDR and samples.

Sherman Island - Methane Study

Date 18 December 2007

Day 352

Standard Time in: 12:00 Out: 14:00

Who: MD & BR

Weather: rainy, light wind

Phenology: dry weed, few spots of green short grass

Tasks

  1. Swap Li-corr
  2. take soil moisture TDR and samples

Check list

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: OK
  3. Reading from Gillsonic NO POWER

Time

Path/File

D:\Data\SI07 .raw

mean

std

mean

std

w

Ts

u

H2O

v

CO2

CH4

  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

Cell Pressure – near 159

Cell Temperature

Mirror time

Sample rate

Methane low flow put back in high flow !

Pump status

Filter Status

Water traps

  1. If Swapping Li-7500 Analyzer. (sn 0042 came off and sn 0035 went on)
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

water table depth 5.6 feet

Li-7500 analog output range 11-29

Remember next time to:

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

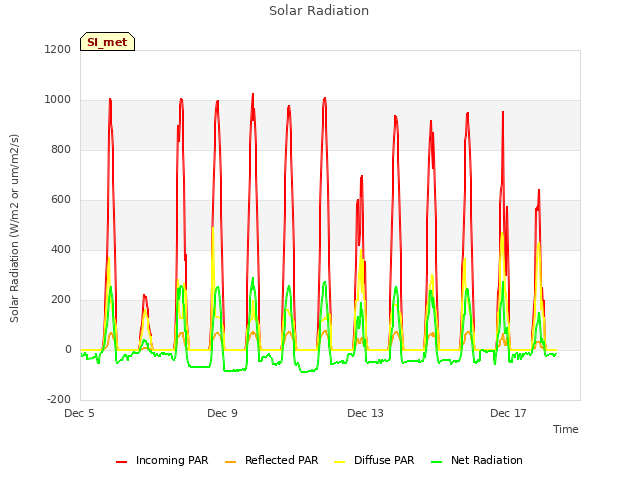

Explore the graph:Solar Radiation in a new window

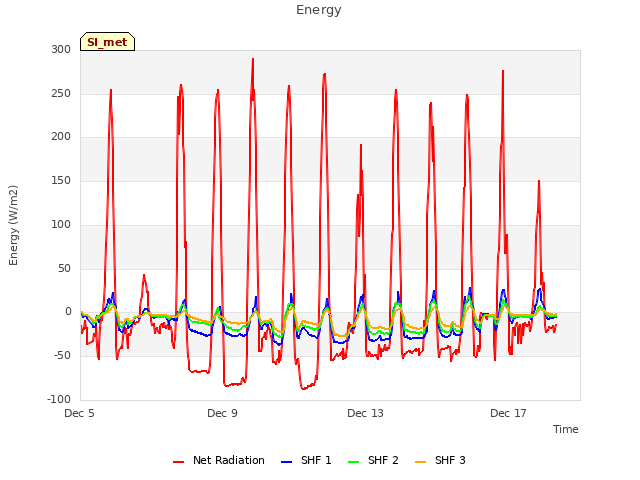

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

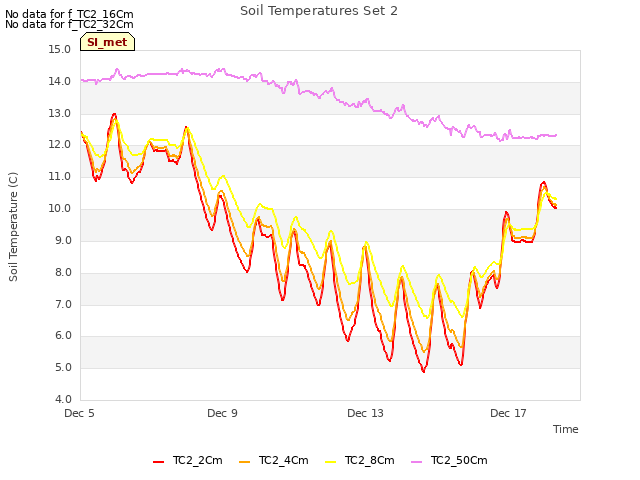

Explore the graph:Soil Temperatures Set 2 in a new window

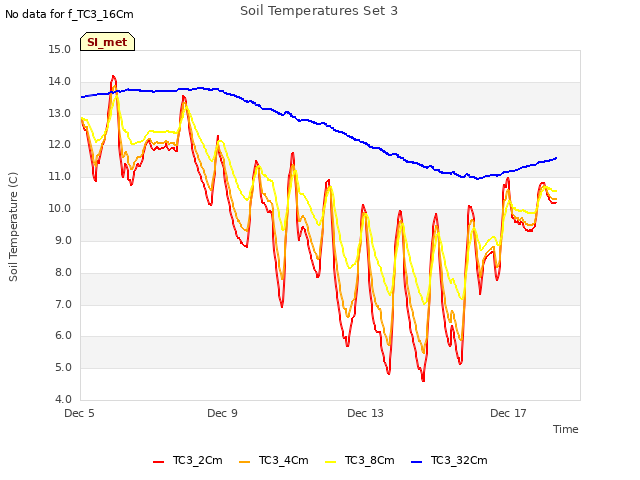

Explore the graph:Soil Temperatures Set 3 in a new window

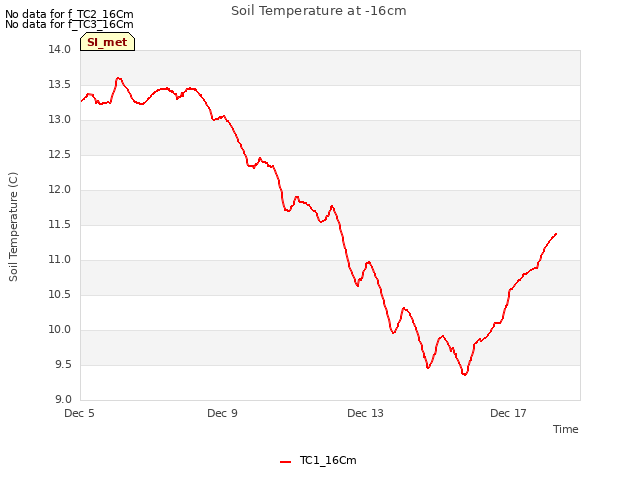

Explore the graph:Soil Temperature at -16cm in a new window

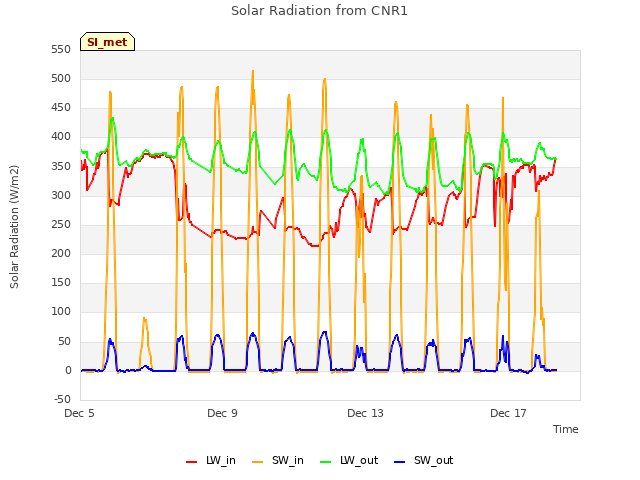

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

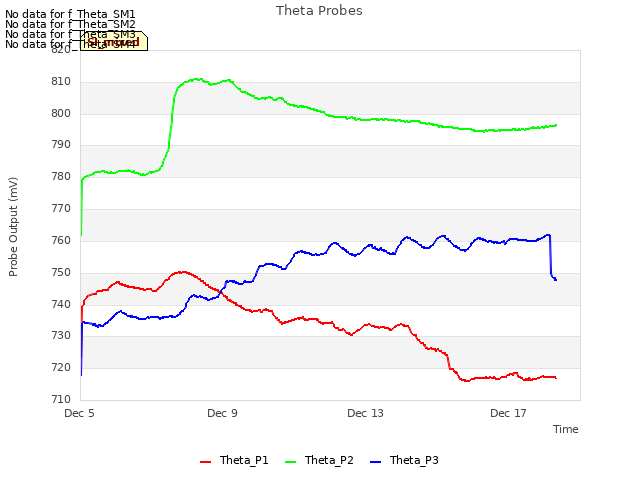

Explore the graph:Theta Probes in a new window

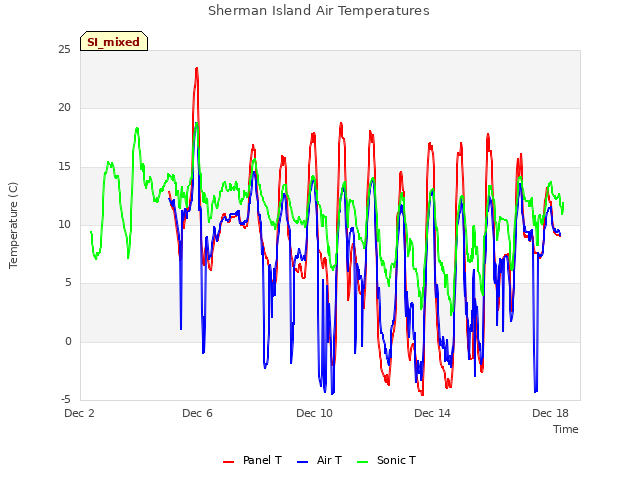

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

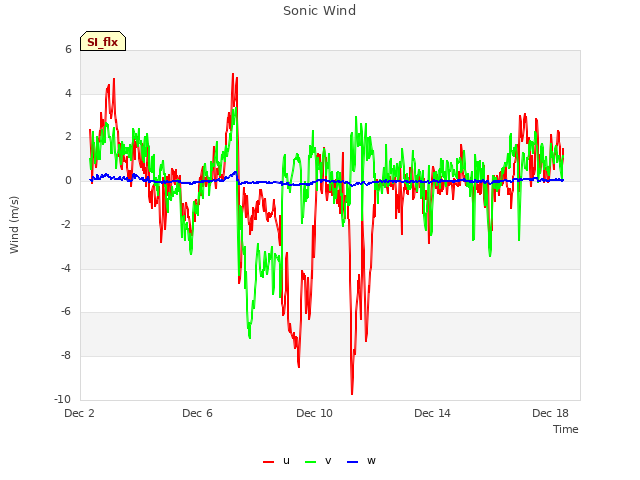

Explore the graph:Sonic Wind in a new window

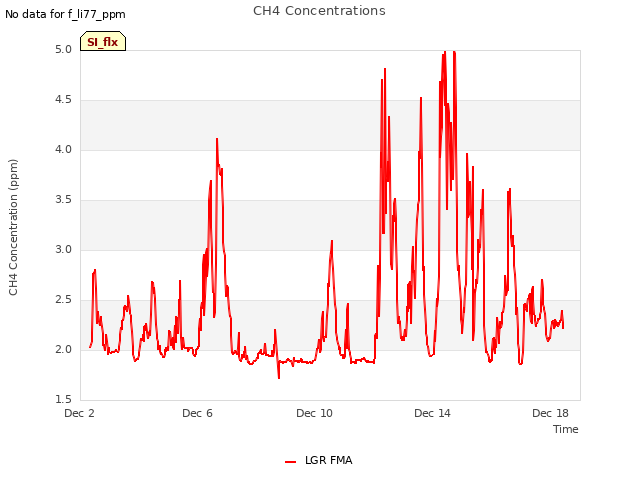

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

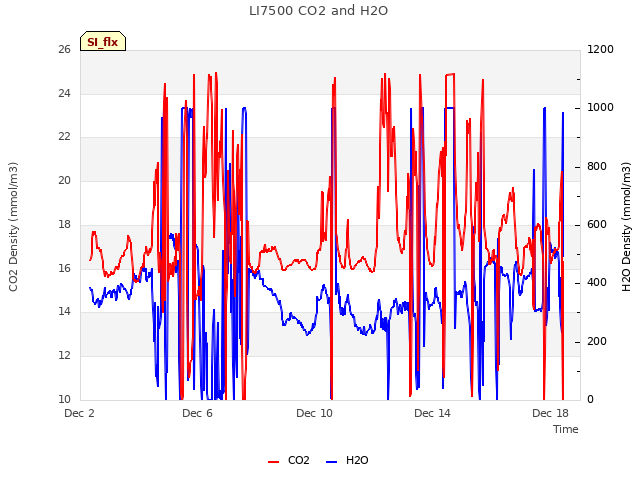

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
