Sherman Island: 2007-11-28 01:20:00 (DOY 332)
Author: Matteo Detto
Others: Rodrigo

Summary: Took soil moisture and downloaded data for Sherman Island.

Sherman Island - Methane Study

Date November 28 2007

Day 332

Standard Time in: 1:20 Out: 3:30

Who: MD & Rodrigo

Weather: clear sky, light wind

Phenology: dry weed

Tasks

  1. check and download data at Sherman Island
  2. take soil moisture

Check list

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: battery low
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File

D:\Data\SI07 .raw

mean

std

mean

std

w

-0.59

Ts

16.4

u

1.3

H2O

1.3

v

-0.2

CO2

1.8

CH4

1.8

  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

1.870

Cell Pressure – near 159

144.8

Cell Temperature

26.93

Mirror time

16.42

Sample rate

10 Hz

Methane low flow put back in high flow !

1.909

Pump status

ok

Filter Status

We replaced the 2micron

Water traps

No water

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

Water table depth, from the top of the tube 7.6 feet

A lot of bugs around

Remember next time to:

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

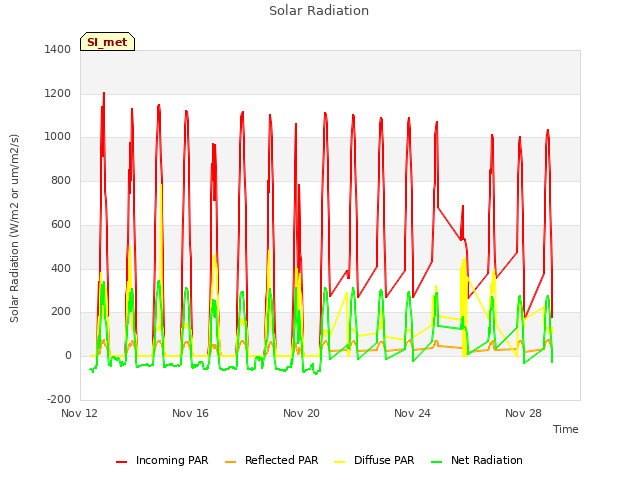

Explore the graph:Solar Radiation in a new window

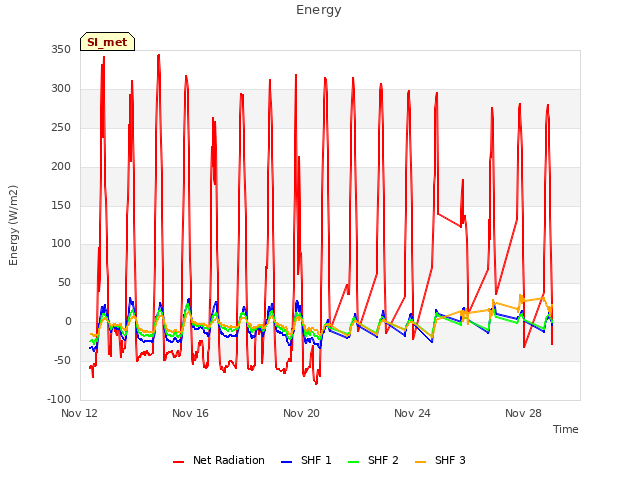

Explore the graph:Energy in a new window

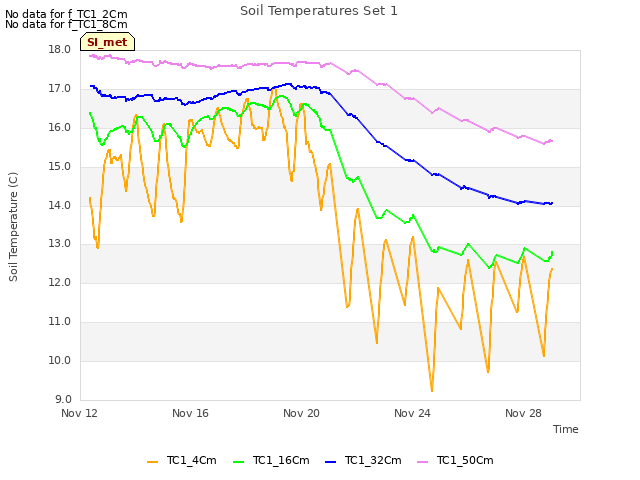

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

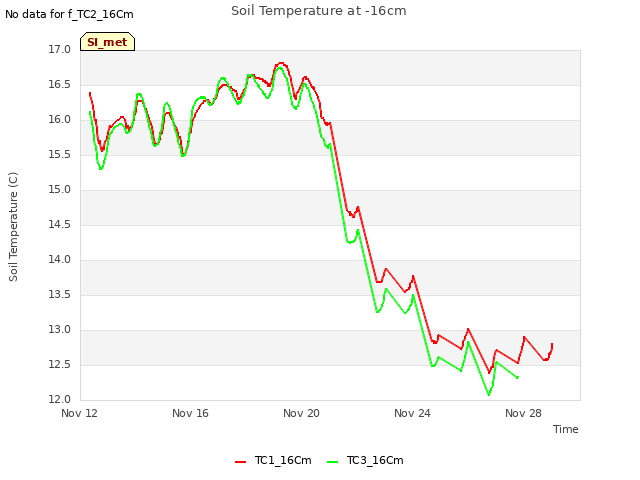

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

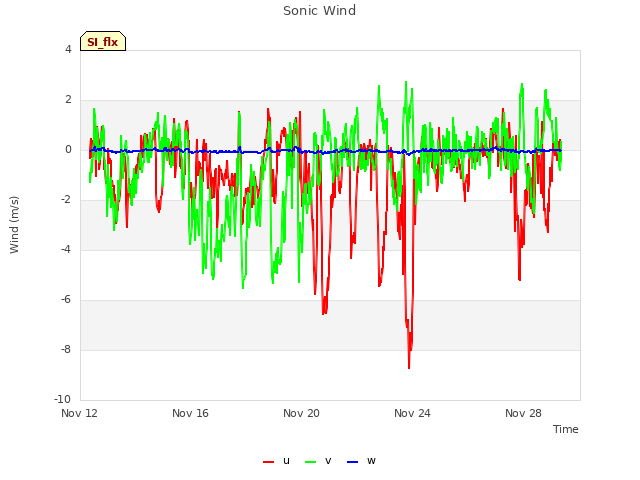

Explore the graph:Sonic Wind in a new window
