Sherman Island: 2007-11-15 12:30:00 (DOY 319)
Author: Matteo Detto
Others: Ben

Summary: Soil moisture TDR readings taken and samples collected; downloaded data from laser and for Sherman Island.

Sherman Island - Methane Study

Date: 15 November 2007

Day: 319

Standard Time in: 12:30 Out: 16:30

Who: MD & Ben

Weather: clear sky, very light wind

Phenology: pepper weed dry

Tasks

  1. check and download data at Sherman Island
  2. download data from laser and calibrate
  3. take soil moisture TDR and samples

Check list

  1. Fence and gate power: OK
  2. Datalogger Solar Panel and Batteries: OK
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File

D:\Data\SI07 .raw

mean

std

mean

std

w

-0.21

Ts

21.63

u

-0.51

H2O

3.1

v

-0.02

CO2

2.27

CH4

2.21

  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

Cell Pressure – near 159

147

Cell Temperature

Mirror time

Sample rate

Methane low flow put back in high flow !

Pump status

Filter Status

Water traps

  1. If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

Water table depth 7.7 feet

Remember next time to:

1 photos found

People in the field
People in the field

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

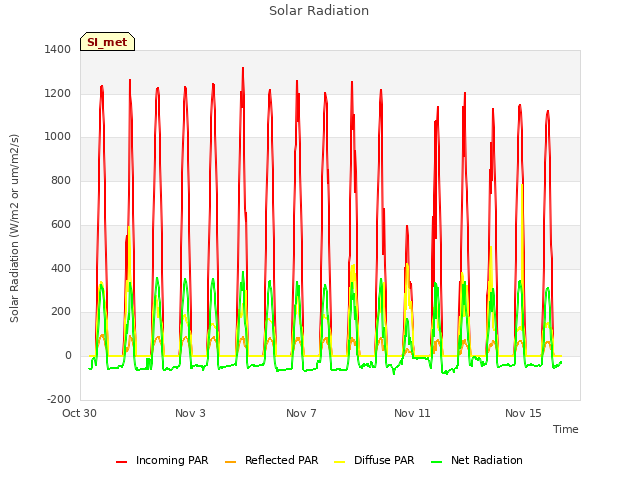

Explore the graph:Solar Radiation in a new window

Explore the graph:Energy in a new window

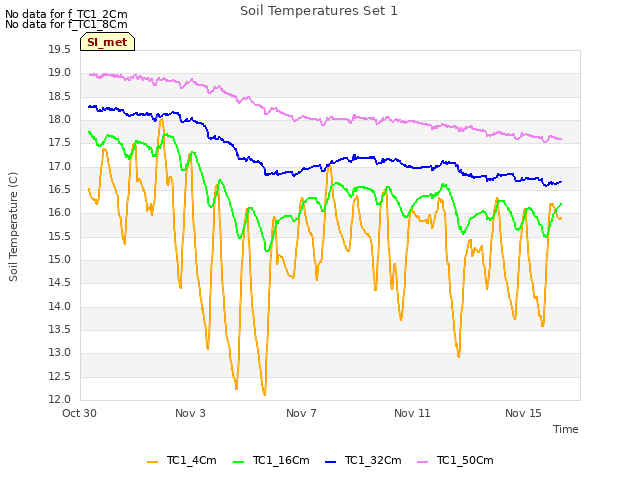

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

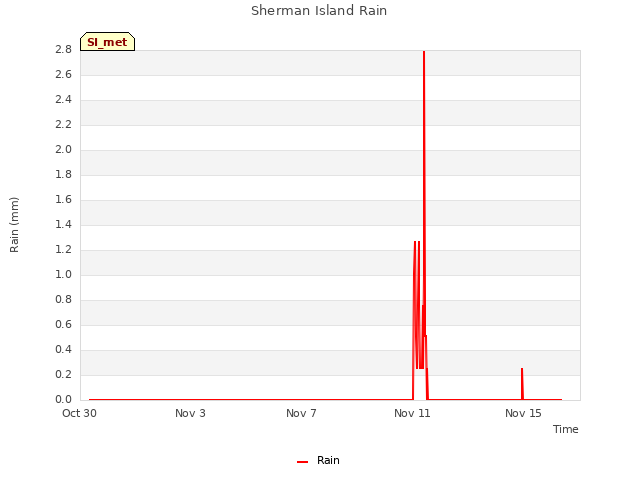

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

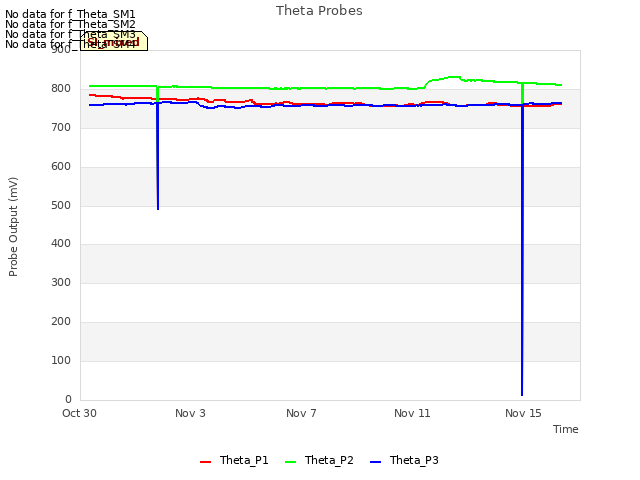

Explore the graph:Theta Probes in a new window

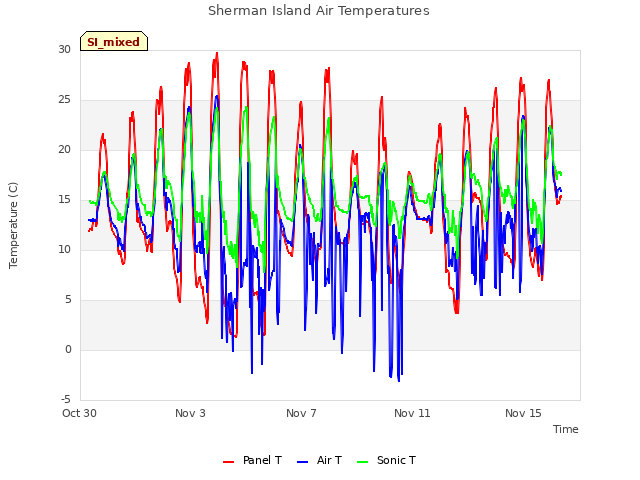

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

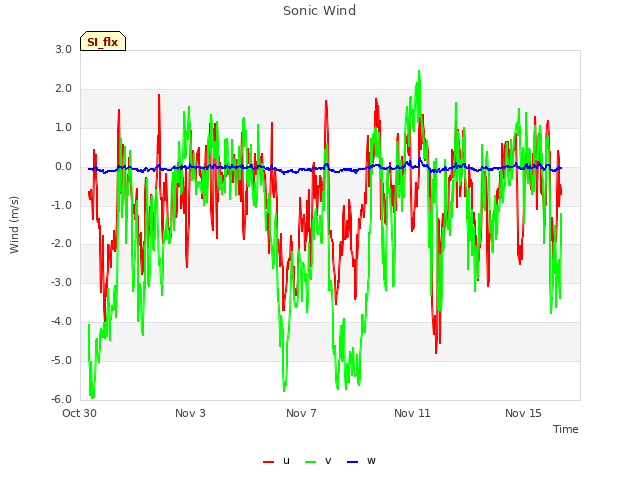

Explore the graph:Sonic Wind in a new window

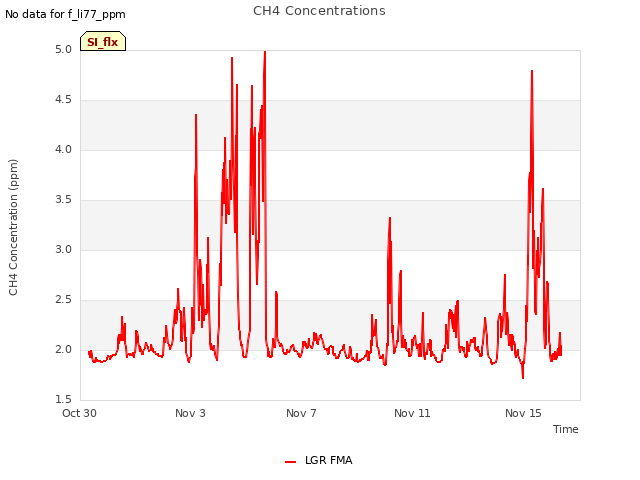

Explore the graph:CH4 Concentrations in a new window

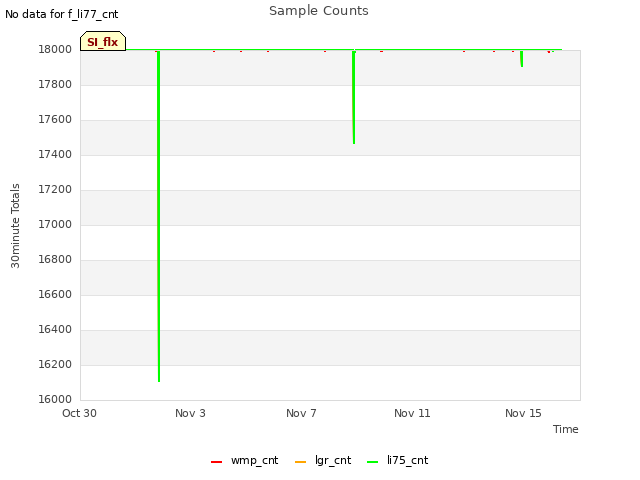

Explore the graph:Sample Counts in a new window

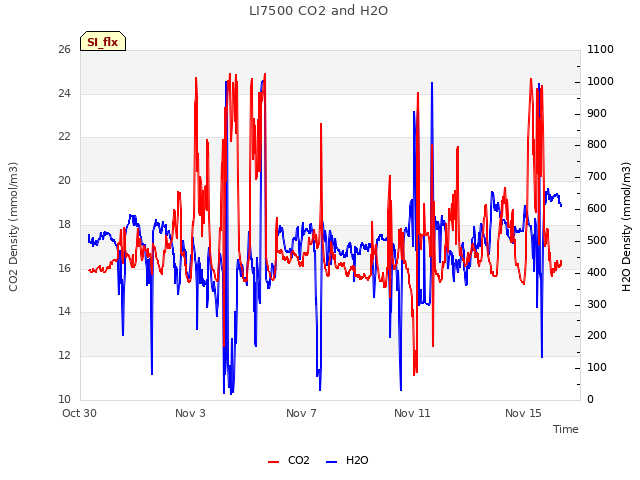

Explore the graph:LI7500 CO2 and H2O in a new window
