Sherman Island: 2007-04-12 00:00:00 (DOY 102)
Author: Dennis Baldocchi
Others: Matteo Detto & Ted Hehn

Summary: Tested rain gauge. Moved methane inlet to appropriate location near the sonic. Sherman Island data downloaded, TDR soil moisture readings taken, & spectrometer reflectance reading taken.

When: Date: April 12, 2007 , Day: 102 , Watch Time: 1400 .

Where: Sherman Island Methane Study

Who: ddb, TH and MD

Weather Clear, cool and brisk north wind

Phenology: Weeds green and functioning

Tasks

check and download data at Sherman Island
Take TDR soil moisture readings
take spectrometer reflectance reading
Sample additional water Table ports
Sample LAI and plant height

General Notes

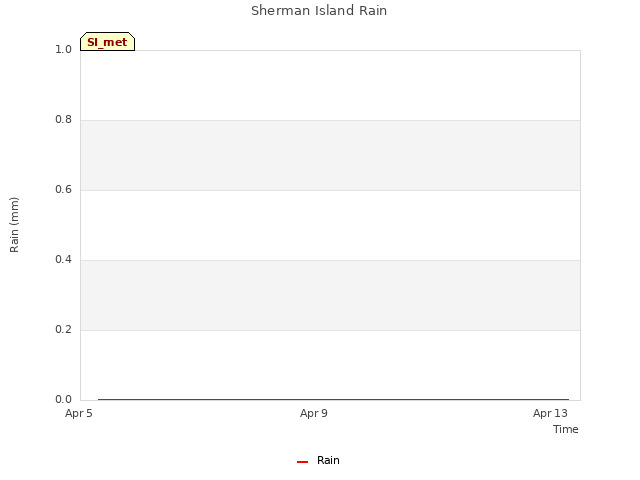

Tested Rain gauge. 10x tips yielded a voltage of 2.54. We need to double check.

This sensor seems to be the model with 0.01 inch per tip and is converted to mm.

The program has a 0.254 multiplier for the rain gauge, so ten tips produces a value of 2.54

So the output is a conversion from inches to millimeters

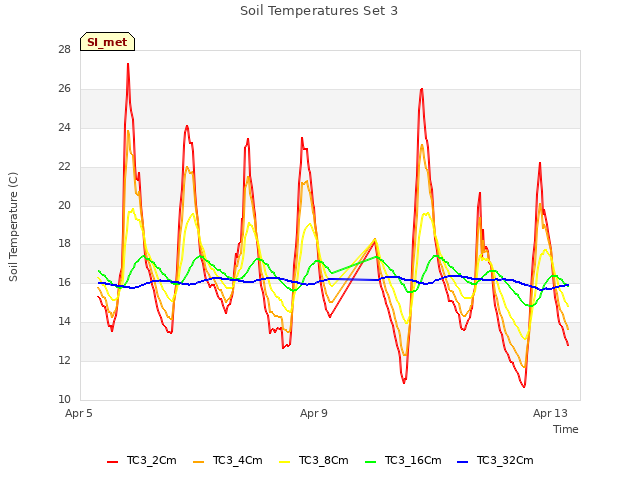

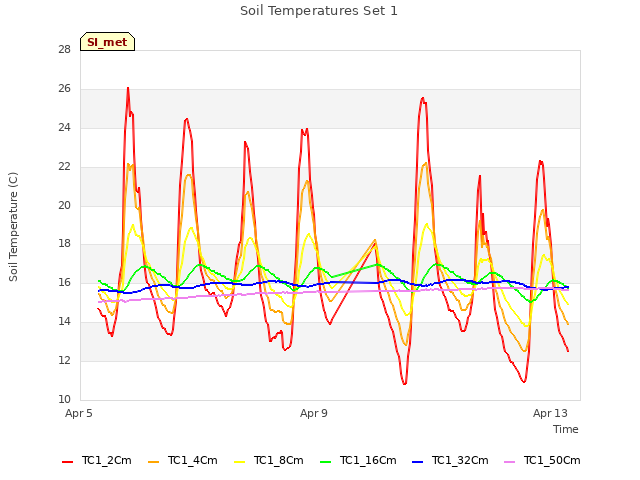

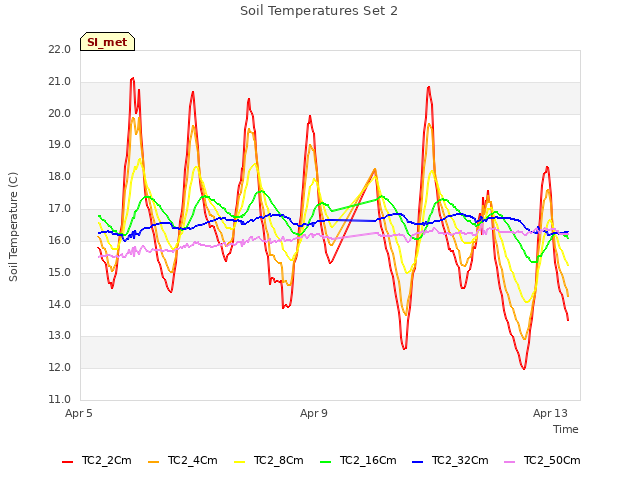

Found the labels for the Tsoil sensors were in error. We are reading the two sensors from 2 to 50 cm then the sensor from 2 to 32 cm, rather than vice versa.

Corrected April 12

Sherman Island Met input

Final Storage Label File for: SI_5.CSI

Date: 3/26/2007

Time: 17:40:37

200 Output_Table 2.00 Sec

1 200 L

2 Year_RTM L

3 Day_RTM L

4 Hour_Minute_RTM L

5 Ref_Temp_AVG L

6 Batt_Volt_AVG L

7 Precip_mm_TOT L

8 Wetness_AVG L

9 Pressure_AVG L

10 Air_Temp_AVG L

11 RH_AVG L

12 WaterPres_AVG L

13 TC1_2Cm_AVG L

14 TC1_4Cm_AVG L

15 TC1_8Cm_AVG L

16 TC1_16Cm_AVG L

17 TC1_32Cm_AVG L

18 TC1_50Cm_AVG L

19 TC2_2Cm_AVG L

20 TC2_4Cm_AVG L

21 TC2_8Cm_AVG L

22 TC2_16Cm_AVG L

23 TC2_32Cm_AVG L

24 TC2_50Cm_AVG L

25 TC3_2Cm_AVG L

26 TC3_4Cm_AVG L

27 TC3_8Cm_AVG L

28 TC3_16Cm_AVG L

29 TC3_32Cm_AVG L

30 SHF_1_AVG L

31 SHF_2_AVG L

32 SHF_3_AVG L

33 Net_Rad_AVG L

34 ParSol_AVG L

35 ParTerr_AVG L

36 Diff_Par_AVG L

37 AM25_Ch25_AVG L

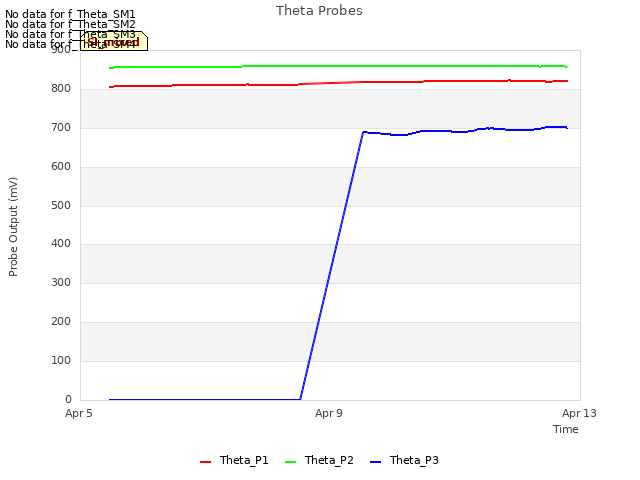

38 Theta_P1_AVG L

39 Theta_P2_AVG L

40 Theta_P3_AVG L

41 Ch2_HL2_AVG L

42 Ch3_HL1_AVG L

43 Sys_Volts_AVG L

44 CM1_Up_AVG L

45 CG1_Up_AVG L

46 CM1_Dn_AVG L

47 CG1_Dn_AVG L

48 PRT1_AVG L

49 Diff_Ave L

Moved the methane inlet to an appropriate location near the sonic

The inlet is 3.05 m above the ground and 0.30 from the center of the sonic

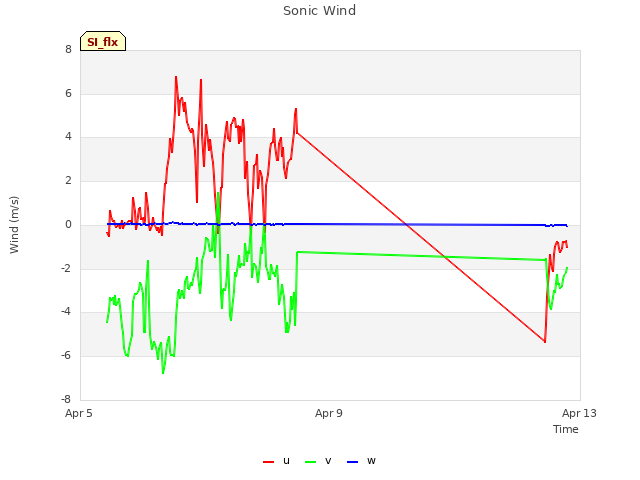

Adjusted the sonic azimuth to magnetic north.
Measured locations of sensors
- Sonic is 3.07 m from ground
- The LICOR is 0.30 m below the sonic and laterally separated by 0.25 m and is below the sonic
The well is 0.40 m above the ground.

Measured lat long of the tower and soil moisture probes.

Tower Location

38.036639 North

121.754028 West

TDR Probes

Sherman Island		Lat/Long
#1 East in fence	0FEDDAA1	38.036694
		121.75389
#2 West in fence	AB5408F
		38.036722
		121.754083

#3	FED8688	38.036778
		121.754417
#4 Middle T	0FED7C67	38.036833
		121.754694
#5 South T	0A6D8356	38.036667
		121.754722
#6 North T	0FEDDO1B	38.037333
		121.754694

Sherman Island Pasture Site

Fence and gate power: v.
Datalogger Solar Panel and Batteries: v;

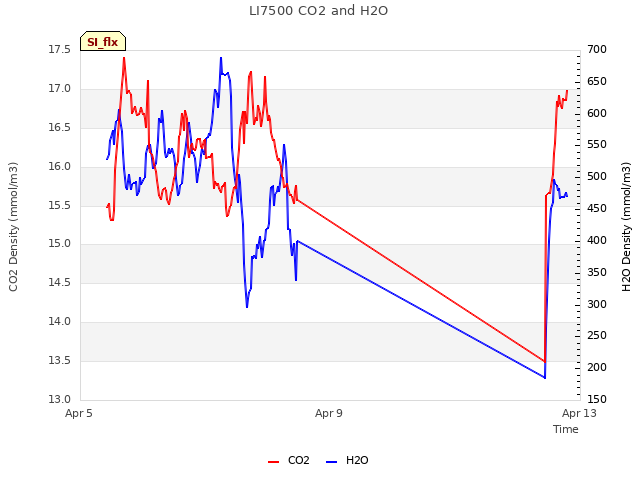

Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 â€“ 5 v.)

Time
Path/File name	D:\Data\SI07_ .flx D:\Data\SI07 102 .raw
	mean	std		mean	std
w	1.3		Ts	17.8
u	7.5		H₂O	1.36
v	2.6		CO₂	1.89
			CH4	1.858

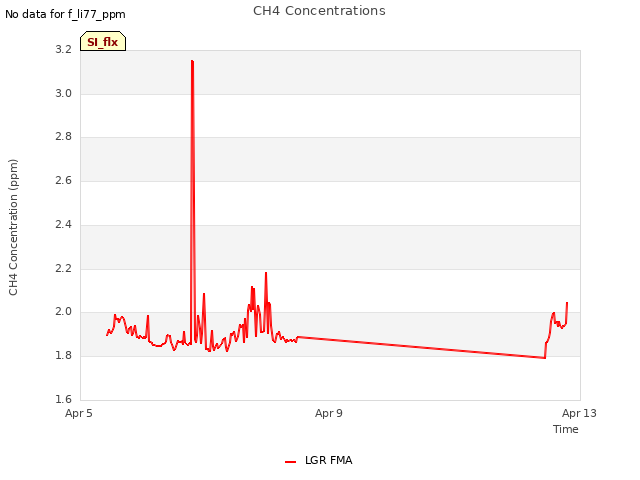

Methane Sensor
1. Cell Pressure (near 159 Torr?):___160.8 torr; 159.29 in low mode
2. Cell Temperature: ___22.02__
3. Double Check

i. Sample rate: 10Hz?:____

ii. Methane ppm Hi flow:1.858

iii. Methane ppm, low flow (remember to put back in high flow:

iv. Pump status??:____fine

v. Filter Status:______new

vi. Check Water in tube:

water

3â€™ 4.75â€ = 3.395 â€˜ = 103.5 cm

Offset is 400 mm.

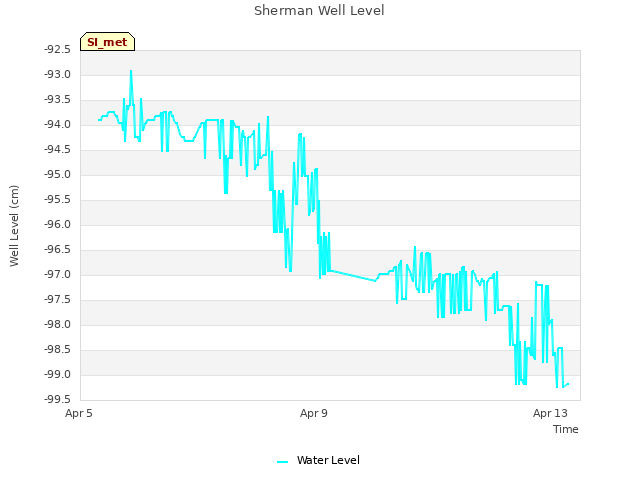

Water table is 63.5 cm

downloading data

My zip drive was giving me fits yesterday and did not copy all the files I wanted. I only got met data from day 98, so next time you go, please also get days 99, 100, 101 and 102 (*.10x) files, plus the new ones.

As for the raw data I have gaps between

D101 0230 to D102 0530

So we need to try and capture these files again. Hopefully with the new and larger drives it will work better.

If Swapping Li-7500 Analyzer. (Remove SN# ; install SN# )
Check the fans of air temp. and relative humidity sensors
Check MD-9 system connections
Check CR10X with two multiplexers and sensor values
Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Soil moisture - TDR probes			Date:	jDay	Name:
Battery (v) - the first reading after turn on				measurements started from
Site	SN#	Depth	Reading1	Reading2	Reading3	Average
Sherman Island
#1 East in fence	0FEDDAA1	0-15	17.1	17.9	17.1	17.36667
		15-30	36.8	36.5	35.9	36.4
		30-45	40.7	38.8	40.5	40
		45-60	87.8		72.3	80.05
#2 West in fence	AB5408F	0-15	13.5	14.4	13.2	13.7
		15-30	30.4	28.9	28.9	29.4
		30-45	34.9	39.4	34.4	36.23333
		45-60	101.8	93.5	100.4	98.56667
#3	FED8688	0-15	22	21.7	23.2	22.3
		15-30	28.6	28.6	28.6	28.6
		30-45	44.6	44.6	44.9	44.7
		45-60	107.6	107.6	99.6	104.9333
#4 Middle T	0FED7C67	0-15	16.5	16.5	16.8	16.6
		15-30	25.8	25.2	25.8	25.6
		30-45	44.6	44.4	44.1	44.36667
		45-60	84.4	72.1	68.6	75.03333
#5 South T	0A6D8356	0-15	18.5	18.2	18.5	18.4
		15-30	25.6	24	24.6	24.73333
		30-45	38.7	37.1	31.1	35.63333
		45-60	80.1	78.6	65.7	74.8
#6 North T	0FEDDO1B	0-15	20.6	20	20.3	20.3
		15-30	21.9	24.6	20.9	22.46667
		30-45	39.4	39.9	39.1	39.46667
		45-60	56	56.9	56.3	56.4
